Name: BEL Stewart Connectors SS65100-022F Modular build-in bush vertical shielded with flange SS65100-022F Socket, vertical ve
Brand: BEL Stewart Connectors
SKU: 1196230
Availability: InStock

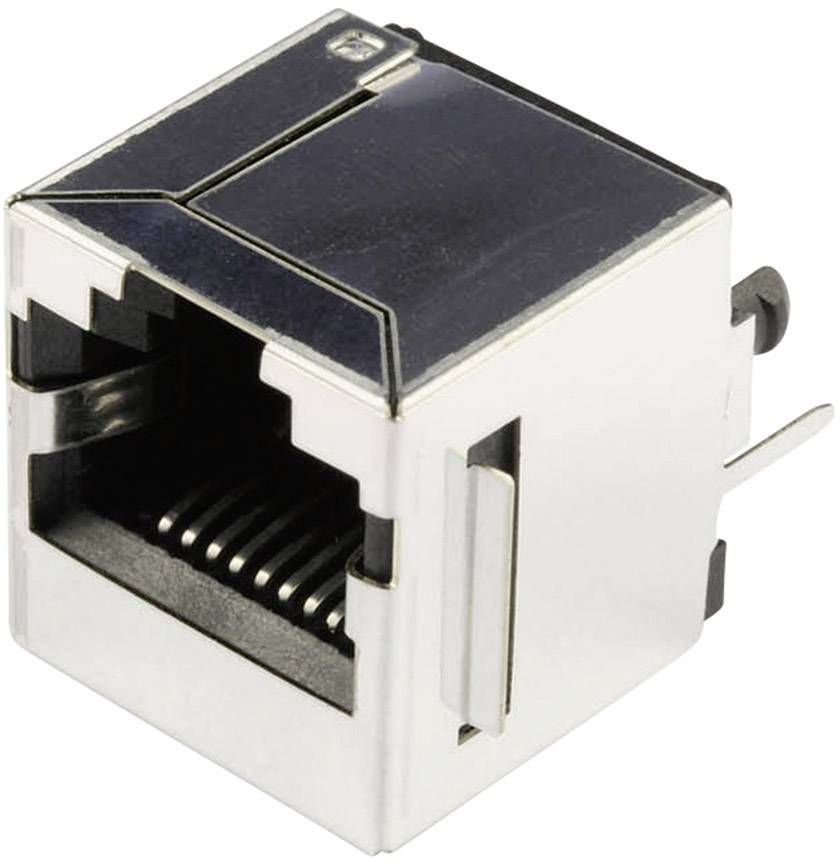

A RJ45 network socket in silver finish with eight metallic contacts and a plastic housing.

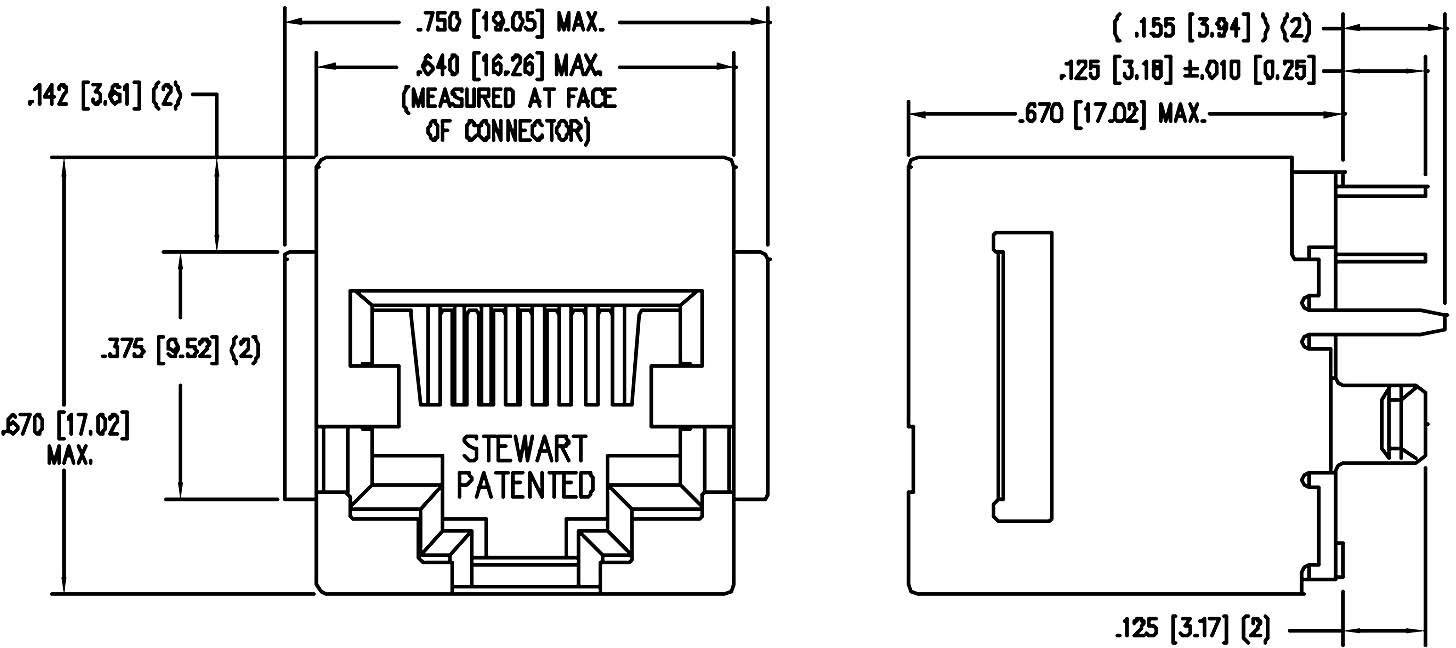

Technical drawing of an RJ45 connector with top view and side view. Dimensions in inches and millimetres are shown.

1/2

Product type

RJ45 connector

Connector type

Socket, vertical vertical

Specification

CAT 3

Connector standard

RJ45

Type

SS65100-022F

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

103 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Modular build-in bush vertical shielded with flange

CAT 3
This text is machine translated.

Technical specifications

Type: SS65100-022F

Product type: RJ45 connector

Connector type: Socket, vertical vertical

: CAT 3

Connector standard: RJ45

Connection: Solder pins

Factory colour: Nickel-coated
Metal

Content: 1 pc(s)

Contact material: Copper alloy gold plated

Seal type: Snap-in

Standards: IEC 60603-7-1

Material (details): Thermoplastic UL94V-0

Nominal voltage (details): 150 V AC

Nominal current (details): 1.5 A

Pins: 10 P8C

Mating cycles: min. 750

Temperature range: -40 - +85 °C
