Benning 05042101 Electrical tester set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,777.31 / piece)
€
Technical specifications

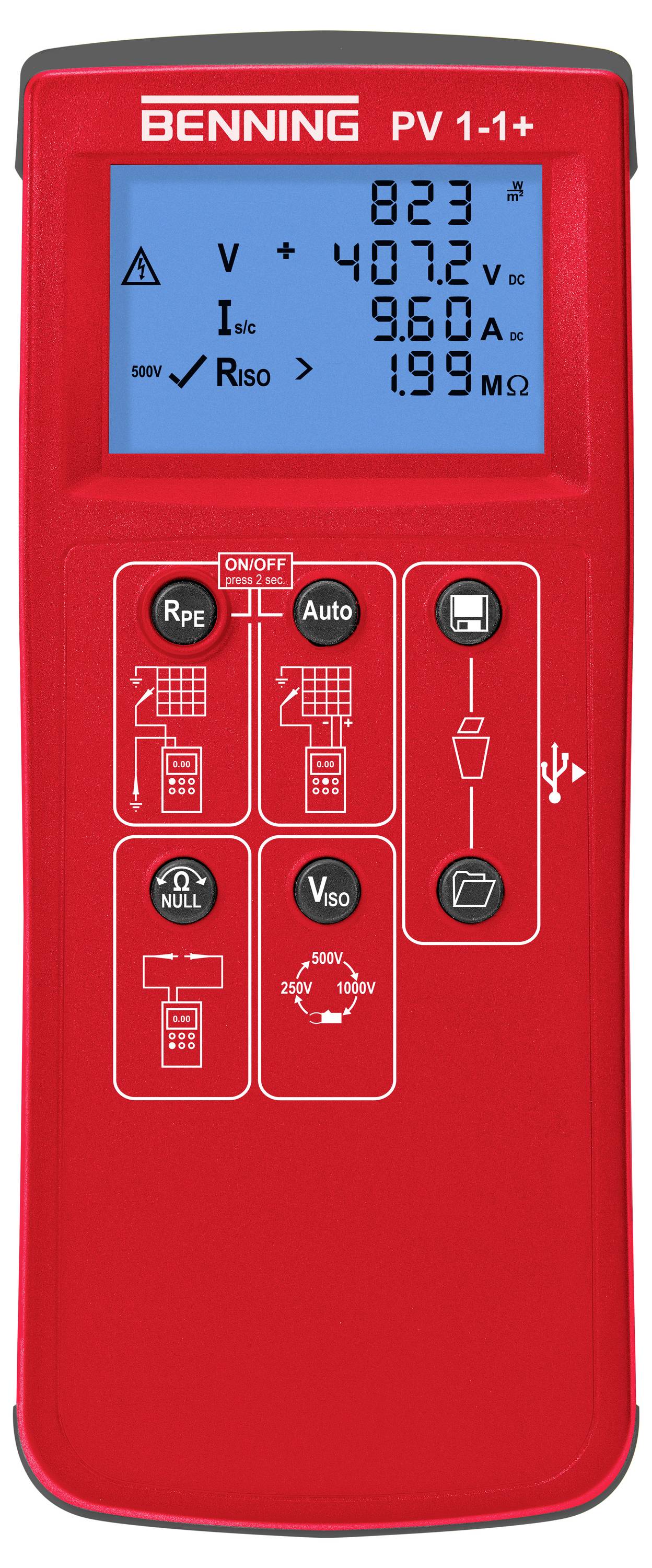

- Display: Graphic display (illuminated)
- Ground wire resistance (RPE) with test current 200 mA DC: 0.05 Ω – 199 Ω
- Open-circuit voltage (Uo/c) with polarity test +/-: 5 V – 1000 V DC
- Short-circuit current (Is/c) 0.5 A – 15 A DC
- Insulation resistance (Riso) with test voltage 250/500/1000: V 0.05 MΩ – 199 MΩ
- DC current/AC current for operating and functional testing via Benning CC 3: 0.2 A – 40 A DC/AC
- Voltage measurement via 4 mm Measuring lead 30 V – 440 V AC/DC
- Solar radiation from Benning SUN 2: 100 W/m2 - 1250 W/m2
- PV-Module-/Ambient temperature over Benning SUN 2: -30 °C - + 125 °C.
- Product type
Electrical tester set
Manufacturer's standards (no certificate)
- Interfaces
USB
- Dim
(L x W x H) 80 x 115 x 270 mm
- Weight
1.2 kg
- Width
115 mm
- Height
270 mm
- Length
80 mm
- Voltage supply
Battery
- Memory (space)
200
- Type
05042101
Documents & Downloads
Datasheet
Datasheet 2979960 Benning 05042101 Electrical tester set
User & Safety Instructions
User & Safety Instructions 2979960 Benning 05042101 Electrical tester set
User & Safety Instructions 2979960 Benning 05042101 Electrical tester set
Description

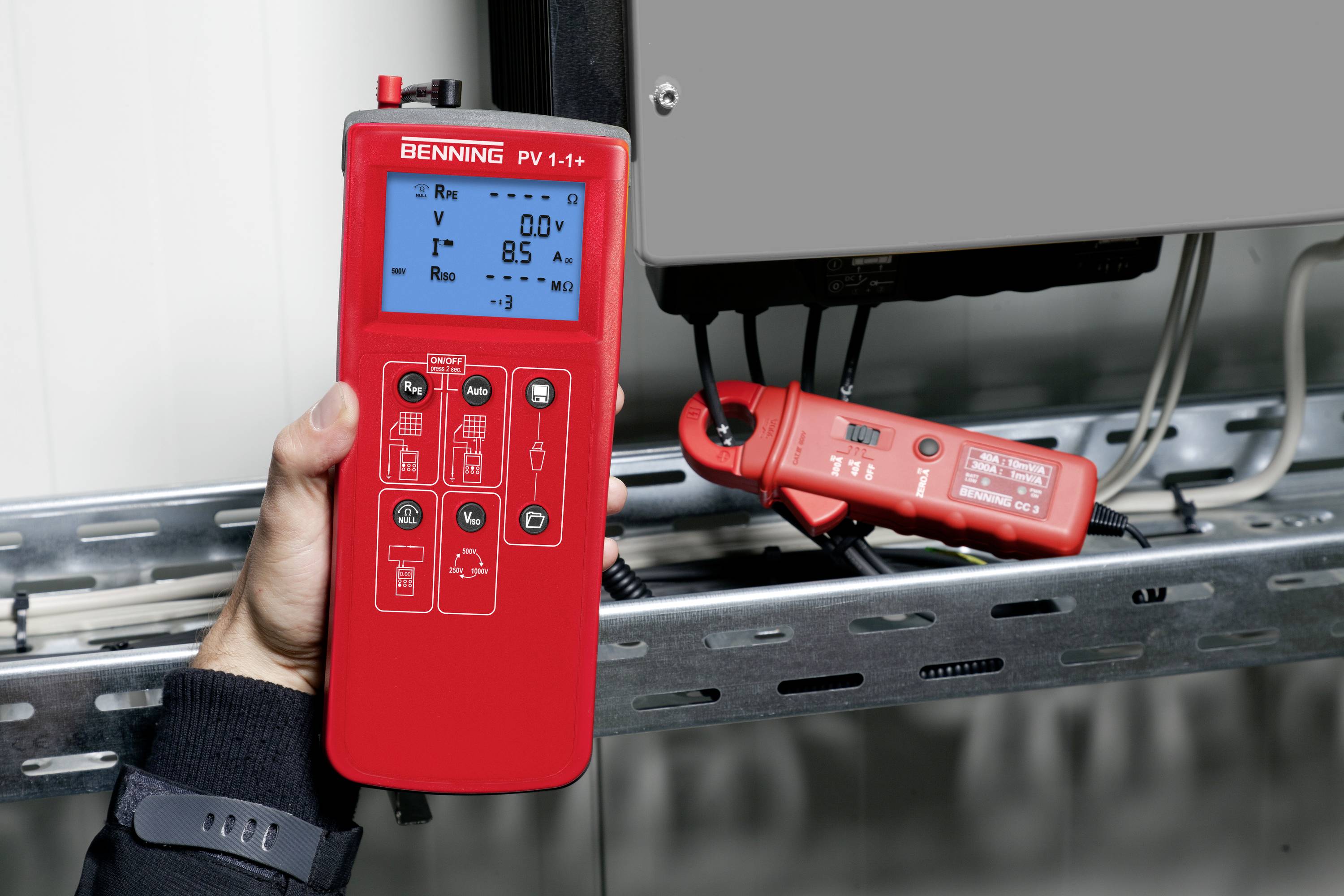

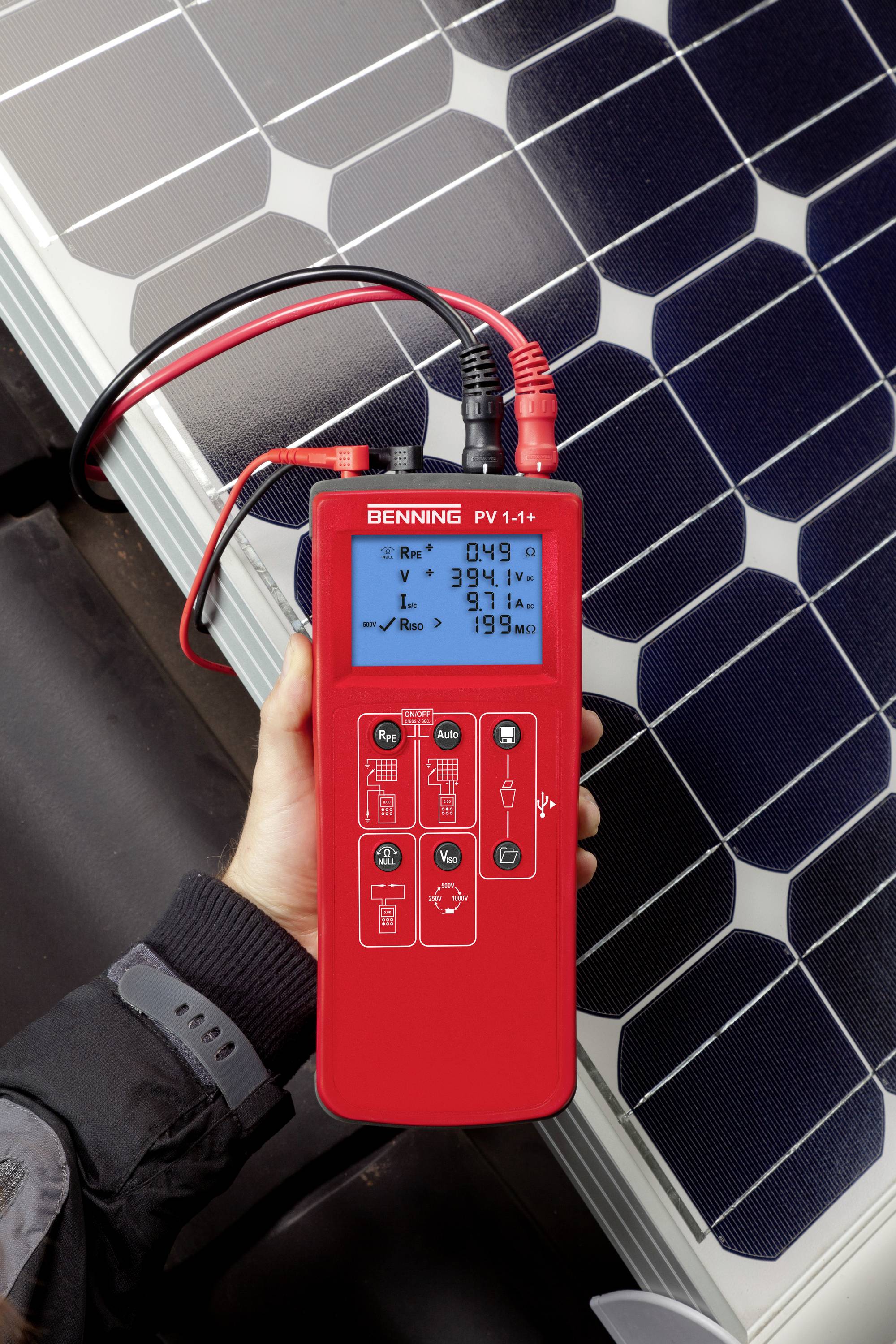

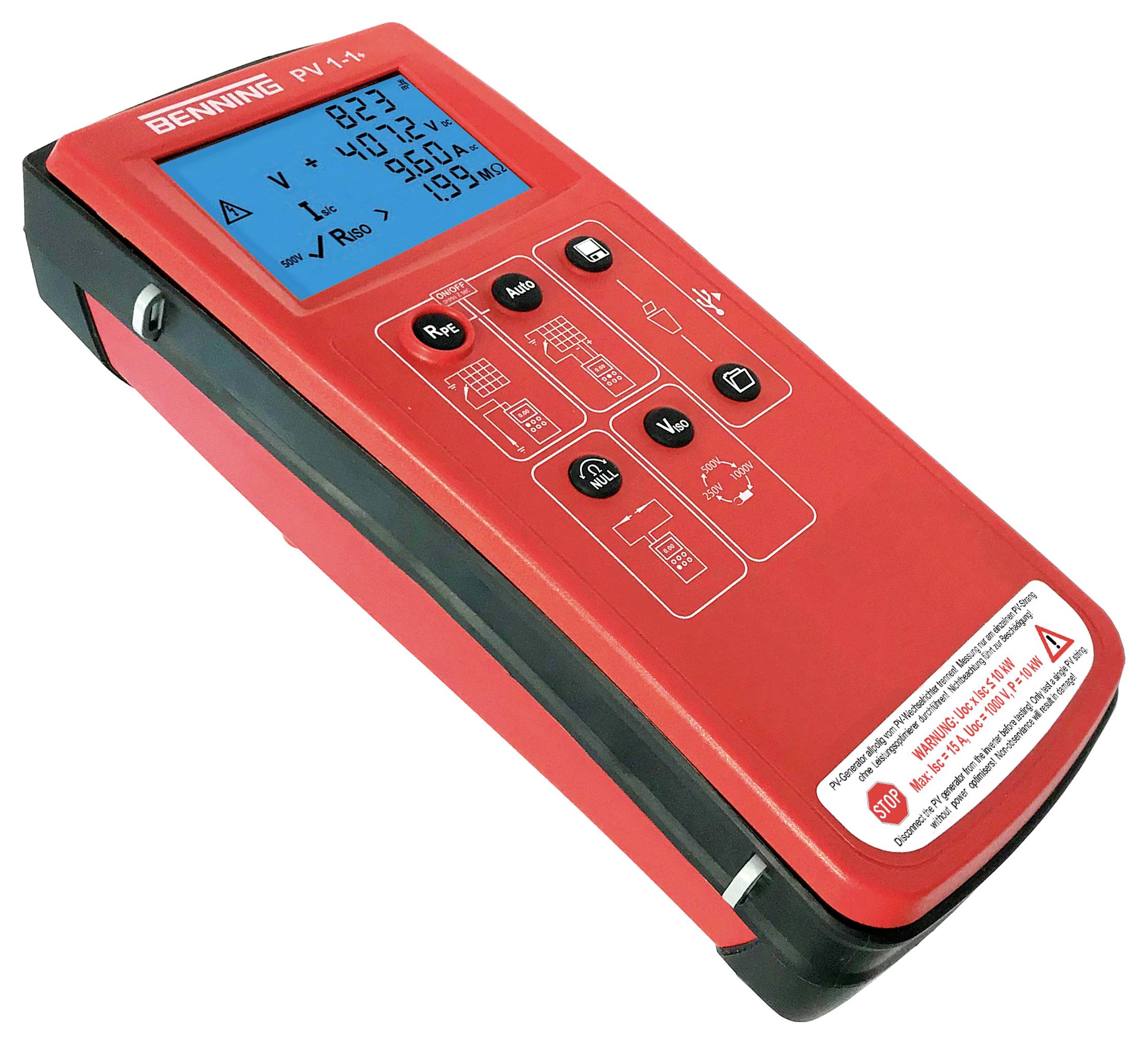

The Benning PV 1-1+ is an enhancement of the Benning PV 1-1 and offers improved test compatibility of PV modules of the latest technology with high efficiency. The optimized overload protection offers a 300% higher protection against transient short-circuit currents caused by high module capacities. The modified casing with circulating rubber protection enables the attachment of a carry strap for hand-free working. A plus in testing compatibility, reliability and ease of use.
This text is machine translated.
This text is machine translated.

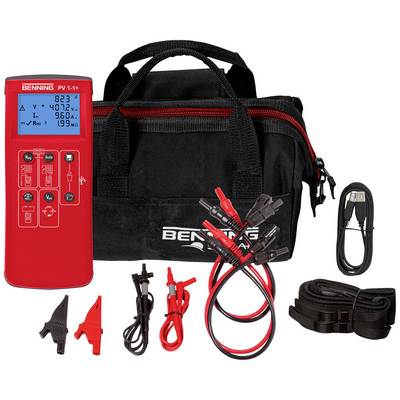

Scope of delivery
- Bag
- Camera strap
- 4mm test leads
- Alligator clips

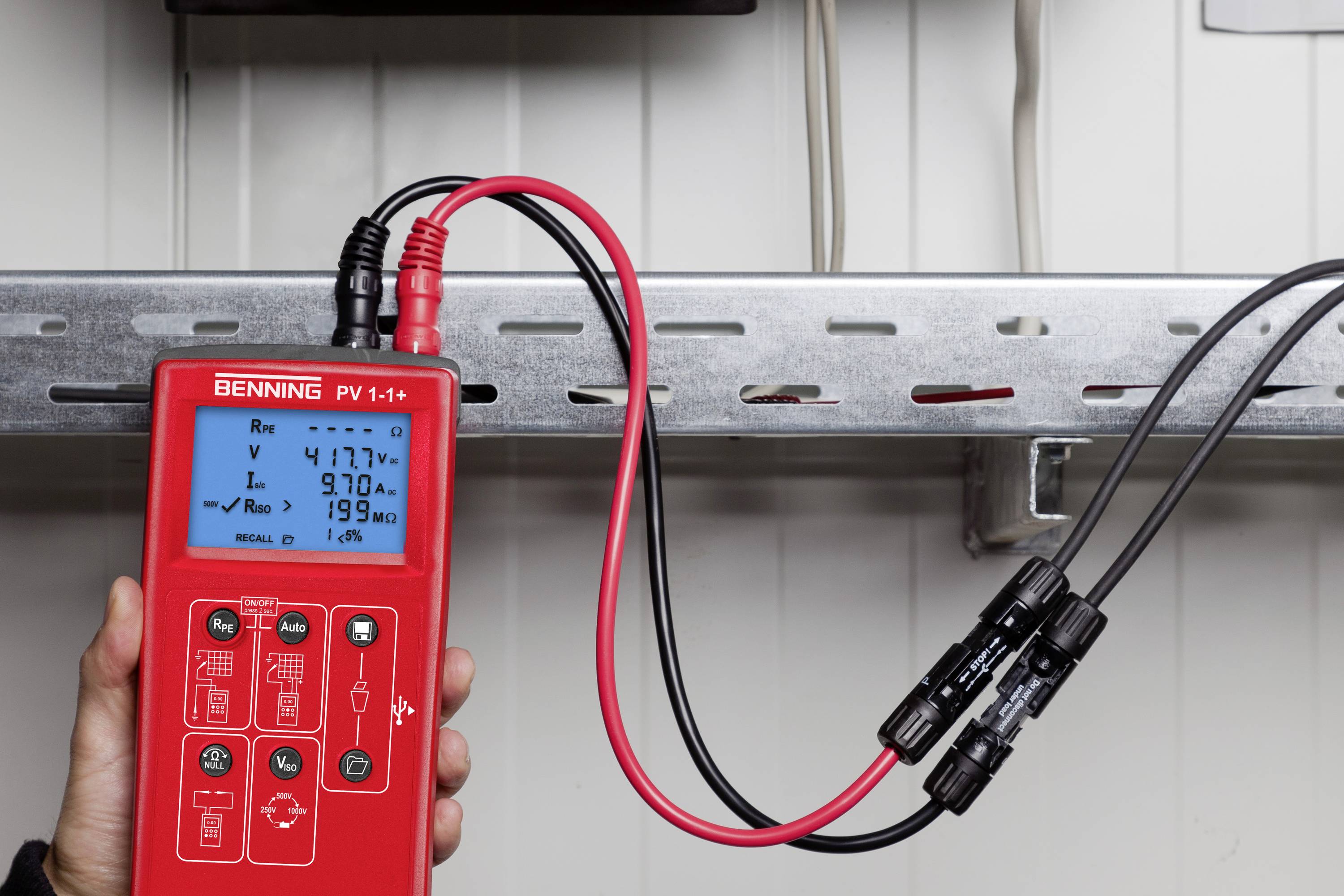

- MC4 and Sundix PV test leads
- Battery set (6x AA)
- Micro USB cable
- Download software
