Benning 10236770 Elektromeister tester kit

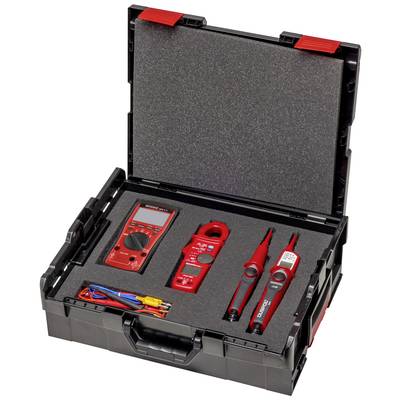

Measuring instrument set in a black carry case with foam insert, comprising a multimeter, current clamp, voltage tester, and cables.
Red digital multimeter with clamp function for measuring current, voltage and resistance. LCD display shows '00.0' with multiple setting options.
Red multimeter with clamp function, LCD display and test leads, pictured in front of a black Benning bag.
A red digital multimeter by Benning with accessories: test leads, thermocouple, adapter and black carrying case.
Black tool case with a red handle and blue 'BENNING' lettering on the front.
Two red voltage testers with display. Showing various electrical measurement values. Brand name 'BENNING' visible.
A person is measuring the voltage at an electrical switchboard using a multimeter. The multimeter shows 420 volts.
A person is measuring the voltage in an open electrical cabinet using a digital multimeter. Various cables are visible.
'Two hands are holding red measuring devices connected to a control panel, showing a measurement of 403 Hz and 230 V.'
A technician measures 403 volts with a voltage tester on an electrical switchboard.
A hand is holding a red current measuring device. It displays '100.0 A' on a screen and is measuring the current of a cable in an electrical cabinet.
A person is holding a red digital multimeter in front of an electrical cabinet. The display shows '24.0'. The background features cables and electrical circuits.
A person is measuring the voltage in an electrical cabinet using a red multimeter. The display shows '234.0' volts.
A person is measuring the electric current in a control cabinet using a red digital multimeter. The display shows '0.36'.
A digital multimeter is measuring a voltage of 234.84 V at an open electrical cabinet with multiple coloured cables and connections.
Benning 10236770 Elektromeister tester kit-15
Multimeter on a table displays '-59.95'. In the background, an electrical cabinet with cables and connections. Device for measuring electrical values.
A multimeter is measuring the resistance of a component lying on the table. Display shows value: 0.6781.
1/18
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
21 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 585.00 / piece)
€ 585.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Multimeters (044690)
  • V/DC min. reading range: 0.01 mV
  • V/DC reading range max. 1000 V
  • Measurement range V/AC min. 0.01 mV
  • V/AC max. 1000 V reading range
  • Measurement range A/DC min. 0.01 µA
  • A/DC reading range max. 10 A
  • Measurement range A/AC min. 0.01 µA
  • A/AC reading range max. 10 A
  • Measurement range 0.1 Ω - 60 MΩ
  • Capacity 0.01 nF - 10 mF measuring range
  • Frequency measuring range 0,001 Hz - 1 MHz
  • Measuring range: Temperature -200 to +1090 °C
  • Basic accuracy (+/-): 0.03 %
  • Measuring mode True RMS
  • Product dimensions, height: 193 mm
  • Product dimension, width: 89 mm
  • Product dimension, length 51 mm
  • Weight: 420 g
  • Measurement category CAT III 1000 V CAT IV 600 V
  • Display: Digital
  • Display (counts): 60000
  • Current clamp (044689)
  • V/DC min. 100 µV
  • V/DC reading range max. 600 V
  • Measurement range V/AC min. 100 µV
  • V/AC max. 600 V reading range
  • Measurement range A/DC min.: 10 mA
  • A/DC reading range max. 400 A
  • Measurement range A/AC min. 10 mA
  • A/AC reading range max. 400 A
  • Measurement range 0.1 Ω - 40 MΩ
  • Basic accuracy (+/-): 1.5 %
  • Frequency range 0.01 Hz - 50 K Hz
  • Power supply 2 AAA batteries
  • Measurement category CAT IV 300 V CAT III 600 V
  • Display: Digital
  • Display (counts): 4000
  • Voltage tester (050263)
  • Protection system: IP65
  • Weight: 500 g
  • Continuity test up to 100 kΩ
  • Diode test 0.3 V – 2 V
  • Power supply: 2x AAA battery
  • Display: LCD, acoustic, vibration
  • Frequency (max.) 1000 Hz
  • Min. Frequency 15 Hz
  • V/AC max. 1000 V reading range
  • V/AC min. reading range: 12 V
  • V/DC reading range max. 1200 V
  • V/DC reading range min.: 12 V
  • Measuring function: Rotating field testing, continuity testing, FI-testing, phase testing, resistance testing
  • Measurement category CAT III 1000 V CAT IV 600 V
  • Product dimension, width: 85 mm
  • Product dimensions, height: 55 mm
  • Product dimension, length 330 mm
Product type

Elektromeister tester kit

Manufacturer's standards (no certificate)

Reading category

CAT III 1000 V

Display type

Digital (LCD)

Accuracy

0.03 %

Voltage supply

Battery

Memory

Yes

Type

10236770

Features

RCD/FI testing

Features

LoZ

Documents & Downloads

Datasheet

Datasheet 2987781 Benning 10236770 Elektromeister tester kit

User & Safety Instructions

User & Safety Instructions 2987781 Benning 10236770 Elektromeister tester kit

User & Safety Instructions 2987781 Benning 10236770 Elektromeister tester kit

Description

The Benning SET measuring instrument box is Ideal for the daily routine of electricians. The set combines our best-seller, perfectly tucked away in our practical L-Boxx®. The DUSPOL digital is a digital TRUE RMS voltage and continuity tester with resistance and frequency range. The voltage tester is suitable for electrical engineering, industry, maintenance, service (troubleshooting) and photovoltaic areas.

This text is machine translated.

Features

  • Multimeters (044690)
  • 5-digit illuminated LCD display (60,000 points) with bar graph
  • Optical and acoustic continuity (100 µs) and diode test
  • Precise by real effective value procedure TRUE RMS (AC, AC+DC)
  • Ergonomic case with integrated protective rubber frame for increased grip and shock resistance
  • AutoV function for automatic AC/DC-switching and measuring range selection
  • LoZ for voltage measurement with low input impedance (2 kΩ) for suppression of capacitive/ inductive voltage controls
  • Socket control (optical/acoustic) for monitoring the µA/mA and A measuring input and warning when measuring range is selected incorrectly (fuse protection)
  • Low-pass filter (high-frequency suppression HFR, 1000 Hz) for measurements on pulsed motor drives
  • Volt sensor for contact-free and single-pole phase and cable break test (optical and acoustic)
  • Peak value storage (PEAK) and relative measurement (REL)
  • Automatic range selection
  • Auto switch-off
  • Battery low-voltage indicator
  • Manual/automatic measurement memory (HOLD/A-HOLD)
  • Maximum/minimum/average value memory (MAX/MIN/ AVG)

Scope of delivery

  • Set package:
  • Benning MM 2-3 multimeter (044690)
  • Benning CM 2-1 current pliers (044689)
  • DUSPOL® digital voltage tester (050263)
  • Benning L-Boxx 136 (10236015)
  • Foam for L-Boxx® 136 (10236017)
  • Without batteries
