Benning DB 2 Training/demo kit
EAN:
Part number:
Item no:
Number
Total (€ 1,435.00 / piece)
€ 1,435.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Training/demo kit
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Dim
(L x W x H) 450 x 330 x 110 mm
- Weight
3.45 kg
- Reading range (VDE)
Insulation resistance
- Width
330 mm
- Height
110 mm
- Length
450 mm
- Voltage supply
230 V/AC
- Type
DB 2
- Reading category
CAT II 300 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 127950 Benning DB 2 Training/demo kit
Information
Information 127950 Benning DB 2 Training/demo kit
Description

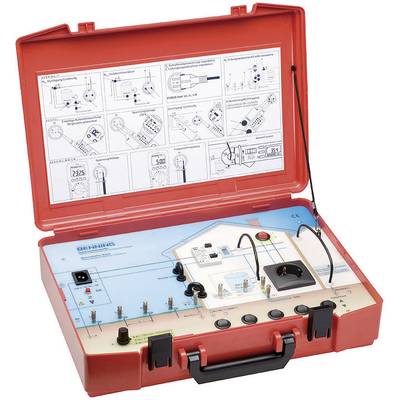

Demonstration case for practical application and training of VDE 0100 installation test equipment. The demonstration case simulates an electrical system, which is usually found in single-family houses or apartments. The demonstration case can be used to explain the basic operation of Benning test, measurement and safety devices, in particular VDE 0100 test devices. Different safety tests and measurements can be performed simulated on an electrical system. Acceptable or unacceptable parameters are preset by five "fault switches". Some real elements of the electrical system are arranged on the front, e.g. RCD protective device, on/off switch with lamp, earthing contact socket-outlet and connection clamps. Other elements are shown improvised.
This text is machine translated.
This text is machine translated.
Features
- Realistic representation of a low-voltage installation of a single-family house (TN/TT system)
- Real components like FI-protection switch, safety socket, on/off-switch with lamp and current measuring loop of a boiler
- Simulated components with connection terminals for potential equalization rail, earthing, water pipes and lightning conductors
- Error simulation can be set via 5 toggle switches
- Measurement of protective conductor (RPE), insulation resistance (RISO), loop (ZL-PE) and line impedance (ZL-N)
- Testing of an FI circuit breaker (tripping time, tripping current, contact voltage)
- Earthing resistance measurement with different measurement methods
- Voltage, current, frequency measurement and single-pole phase test
- Robust and dust-proof housing design.
Scope of delivery
- Demonstration case
- Two jumpers
- Power cable;
- User manual.
