binder 99 9135 70 12 Micro DIN connector Sleeve plug Total number of pins: 12 1 pc(s)

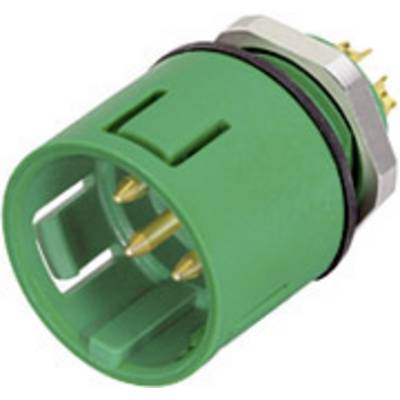

'Green electrical connector with four brass pins and hexagonal metal thread, side view of the plug contact.'
Technical drawing of an electrical connector with dimensions in millimetres. Shows lengths and diameters of various components.
Technical drawing shows a circle with a diameter specification of 10.2 and lines that centre the circle.
Diagram illustrates a connector with 12 numbered pins on the left-hand side. Table on the right shows X and √Y values for Pins 1 to 12.
Technical drawing of a cylindrical component with dimensions and labels. Lines indicate distances and diameters.
Construction diagram shows a circular sketch with a dimension of '10', horizontal and vertical centre lines, and arrows at the edges.
1/6
Image similar
Product type
Micro DIN connector
Connector type
Sleeve plug
Total no. of pins
12
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 14.99 / piece)
€ 19.99
-25 %
€ 14.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

99 9135 70 12

Product type

Micro DIN connector

Connector type

Sleeve plug

Total no. of pins

12

Connection

Soldering

Factory colour

Green

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

2 A

Min. temperature

-25 °C

Nominal current - rounded value

2 A

Leading contact (PE)

No

Nominal voltage

60 V

Contact material

Brass gold plated

Case material

PA (UL 94 V-0)

24

Connection angle

180°

Manufacturer part #

99 9135 70 12

Number of pins

12

max. cross section

0.25 mm²

Cross-section range

0.25 mm² (max)

IP67
