binder 99 9227 050 08 Micro DIN connector Sleeve plug Total number of pins: 8 1 pc(s)

Red electrical connector with multiple gold-coloured pins and a silver thread.
Technical drawing of a circle with diameter indication. A screw symbol to the right. Axis cross within the circle.
Technical drawing of a component with multiple dimensions in millimetres, showing the side and rear view of a connector with assembly instructions.

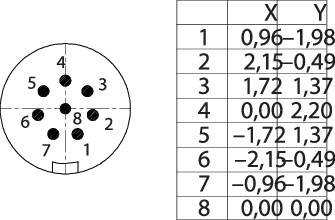

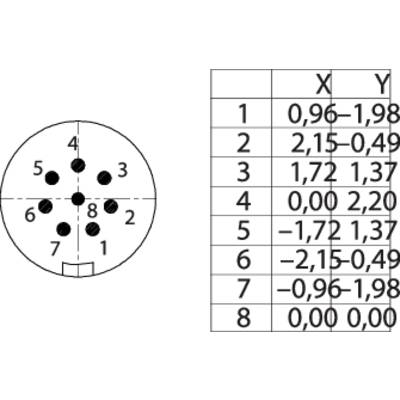

'Target with eight numbered points' on the left side, table with X/Y coordinates of the points on the right side.
Technical drawing of a metal pin in side view. Dimensions and minimal insertion are marked.
A technical drawing shows a circle at right angles with dimensioning and lines. A symbol and measurement notation are located in the top right corner.
1/6
Image similar
Product type
Micro DIN connector
Connector type
Sleeve plug
Total no. of pins
8
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 15.99
-25 %
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

99 9227 050 08

Product type

Micro DIN connector

Connector type

Sleeve plug

Total no. of pins

8

Connection

Soldering

Factory colour

Red

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

1 A

Min. temperature

-25 °C

Nominal current - rounded value

1 A

Leading contact (PE)

No

Nominal voltage

63 V

Contact material

Brass gold plated

Case material

PA (UL 94 V-0)

24

Connection angle

180°

Manufacturer part #

99 9227 050 08

Number of pins

8

max. cross section

0.25 mm²

Cross-section range

0.25 mm² (max)

IP67

Documents & Downloads

Datasheet

Datasheet 1665986 binder 99 9227 050 08 Micro DIN connector Sleeve plug Total number of pins: 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1665986 binder 99 9227 050 08 Micro DIN connector Sleeve plug Total number of pins: 8 1 pc(s)
