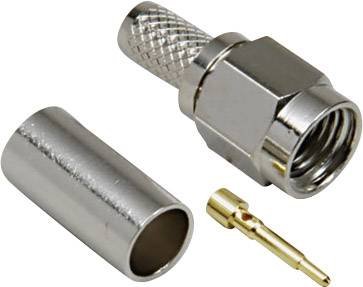

BKL Electronic 0409004 0409004 SMA connector Plug, straight 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 174 U
RG 316/U
Product type
SMA connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
SMA connectors
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 174 U
RG 316/U
- Product type
SMA connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
3.20 mm
- Case material
Brass nickel plated
- Manufacturer part #
0409004
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
0409004
Documents & Downloads
Datasheet
Datasheet 1389617 BKL Electronic 0409004 0409004 SMA connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1389617 BKL Electronic 0409004 0409004 SMA connector Plug, straight 50 Ω 1 pc(s)
Description
SMA plug connectors are used mainly for applications in the frequency ranges 1 GHz to 18/26.5 GHz (depending upon the design). SMA stands for Sub-Miniature-A. The plug connectors are considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. The (8 mm) screw lock generates high mechanical strength.
