BKL Electronic 10121214 LSA connector, tool free, quick, STP, CAT. 6 A Black Content: 1 pc(s)
Factory colour
Black
Content
1 pc(s)
Max. temperature
+60 °C
Min. temperature
-10 °C
Type
10121214
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Highlights & Details

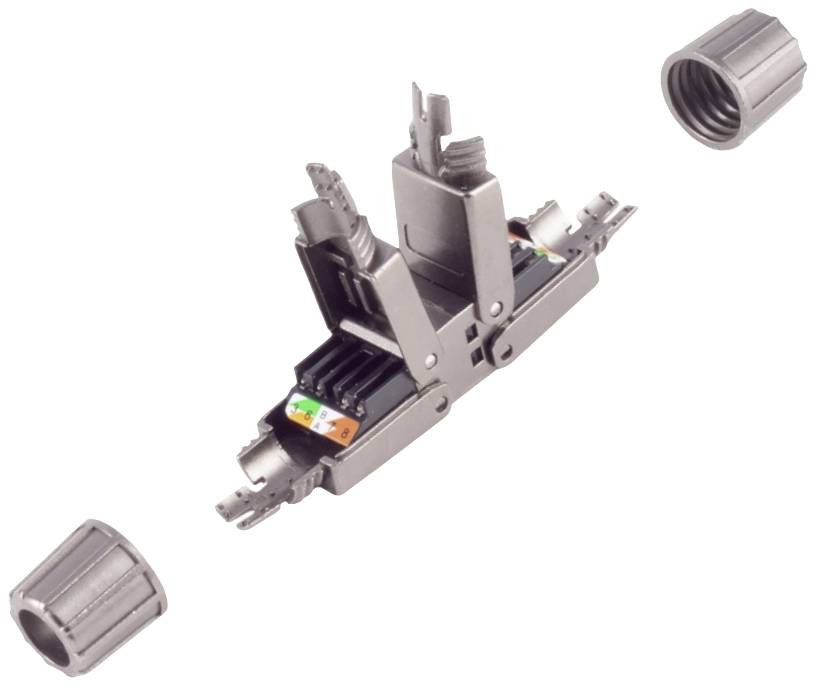

LSA connector, tool free, quick, STP, CAT. 6 A
- Connections: Insulation displacement terminal (LSA) on insulation displacement terminal (LSA)
- Pins assigned 8 (1:1)
- Suitable for solid conductors 1/22 AWG to 1/24 AWG
- Suitable for stranded wire 7/22 AWG to 7/24 AWG
- For cable diameters up to 8.5mm
Our service for you
Technical specifications
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+60 °C
- Min. temperature
-10 °C
- Type
10121214
Documents & Downloads
Datasheet
Datasheet 3280521 BKL Electronic 10121214 LSA connector, tool free, quick, STP, CAT. 6 A Black Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3280521 BKL Electronic 10121214 LSA connector, tool free, quick, STP, CAT. 6 A Black Content: 1 pc(s)
Description
With this LSA connector, you can connect 2 network cables without any tools.
This text is machine translated.
This text is machine translated.
Features
- Specification: CAT. 6 a (class EA)
- Complies with Cat.6A Permanent Link ANSI/TIA/EIA 568B.2, ISO/IEC 11801 Class EA
- Shielding STP
- Compatible with: 100Base-TX, 1000Base-T, 10GBASE-T
- Case material: Metal
- Installation without any tools
- Special features: Cable manager with LSA quick release, T568A/B color coding
Scope of delivery
- Connector
- 2x cable manager
- 2x Metal grommet,screw-on
- 2x copper foil tape
- Installation manual
