Name: BLOCK RTE 120/2x12 Toroidal core transformer 120 VA 5 A
Brand: BLOCK
SKU: 710214
Availability: InStock

A toroidal transformer with multiple coloured cables for power connections, used for voltage conversion in electrical devices.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Toroidal - safety / Isolation transformer

5 A
120 VA

Our service for you

Technical specifications

Product type: Toroidal core transformer

Output voltage: 12 V AC

Output current: 5 A

: 120 VA

Input voltage: 230 V

Standards: IEC 61558-2-4; 2-6, DIN EN 61558-2-4; 2-6, VDE 0570 Part 2-4; 2-6

Connection: Open end cable

Type: RTE 120/2x12

Dim: (Ø x H) 96 mm x 45 mm

Design type: Open

Frequency: 50 - 60 Hz

Weight: 1.41 kg

Content: 1 pc(s)

Insulation class: A

Height: 45 mm

(Ø): 96 mm

Test voltage: 4000 V

RoHS-compliant: Yes

Protection class: II (prepared)

Max. ambient temperature: +40 °C

: 120 VA

Output voltage: 2 x 12 V

Input voltage: 230 V

Fitting method: Central attachment by means of two flexible insulating discs, a metal plate and screw

Primary voltage: 230 V

Variants(All information include VAT, plus shipping costs)

Output current

Output voltage

Power

BLOCK RTE 120/2x12 Toroidal core transformer 120 VA 5 A

Item no:710214

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

This article

5 A

12 V AC

120 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

BLOCK RTE 100/2x12 Toroidal core transformer 100 VA 4.17 A

Item no:710925

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

4.17 A

12 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

BLOCK RTE 100/2x18 Toroidal core transformer 100 VA 2.78 A

Item no:710959

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

2.78 A

18 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

BLOCK RTE 100/2x24 Toroidal core transformer 100 VA 2.08 A

Item no:710975

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

2.08 A

24 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

BLOCK RTE 120/2x24 Toroidal core transformer 120 VA 2.5 A

Item no:710335

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

2.5 A

24 V AC

120 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

BLOCK RTE 160/2x12 Toroidal core transformer 160 VA 6.67 A

Item no:710475

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

6.67 A

12 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

BLOCK RTE 160/2x15 Toroidal core transformer 160 VA 5.33 A

Item no:710500

Available soon

Conrad Electronic

5.33 A

15 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

BLOCK RTE 160/2x24 Toroidal core transformer 160 VA 3.33 A

Item no:710559

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

3.33 A

24 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

BLOCK RTE 20/2x24 Toroidal core transformer 20 VA 417 mA

Item no:710661

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

417 mA

24 V AC

20 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

BLOCK RTE 200/2x12 Toroidal core transformer 200 VA 8.33 A

Item no:710684

Fast track dispatch on Thu 29 Oct

8 Piece(s)Conrad Electronic

8.33 A

12 V AC

200 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 710214 BLOCK RTE 120/2x12 Toroidal core transformer 120 VA 5 A

User & Safety Instructions

User & Safety Instructions 710214 BLOCK RTE 120/2x12 Toroidal core transformer 120 VA 5 A

Certificate

Certificate 710214 BLOCK RTE 120/2x12 Toroidal core transformer 120 VA 5 A

Description

Built-in, non-replaceable fuse for protection against thermal overload. High performance at low volume. Optimum Efficiency Double output voltage for series or parallel switching. Reinforced insulation between PRI and SEC. Very low magnetic field.

Scope of delivery

Two flexible insulating, 1 metal plate and screw

Description

Scope of delivery

Two flexible insulating, 1 metal plate and screw

More interesting products

(^*All information is plus legal VAT)

Sedlbauer 530 241 Transformer mounts

Conrad Electronic

€ 5.49^*

Sedlbauer 859729 Toroidal core transformer 1 x 230 V 2 x 12 V AC 30 VA 1.25 A

Conrad Electronic

€ 34.99^*

-5%

Sedlbauer 858 259 Toroidal core transformer 1 x 230 V 2 x 18 V AC 160 VA 4.44 A

Conrad Electronic

€ 60.99

€ 57.99^*

Sedlbauer 859774 Toroidal core transformer 1 x 230 V 2 x 15 V AC 230 VA 7.67 A

Conrad Electronic

€ 79.99^*

BLOCK RTE 80/2x24 Toroidal core transformer 80 VA 1.67 A

Conrad Electronic

€ 81.99^*

Sedlbauer 858741 Toroidal core transformer 1 x 230 V 2 x 30 V AC 300 VA 5.00 A

Conrad Electronic

€ 95.99^*

Sedlbauer 859730 Toroidal core transformer 1 x 230 V 2 x 12 V AC 80 VA 3.33 A

Conrad Electronic

€ 44.99^*

-9%

Sedlbauer 858256 Toroidal core transformer 1 x 230 V 2 x 18 V AC 120 VA 3.33 A

Conrad Electronic

€ 54.99

€ 49.99^*

Sedlbauer 859732 Toroidal core transformer 1 x 230 V 2 x 12 V AC 230 VA 9.58 A

Conrad Electronic

€ 75.99^*

Sedlbauer 858252 Toroidal core transformer 1 x 230 V 2 x 12 V AC 50 VA 2.08 A

Conrad Electronic

€ 41.99^*

BLOCK RTE 30/2x12 Toroidal core transformer 30 VA 1.25 A

Conrad Electronic

€ 67.99^*

Sedlbauer 858 258 Toroidal core transformer 1 x 230 V 2 x 12 V AC 160 VA 6.67 A

Conrad Electronic

€ 67.99^*

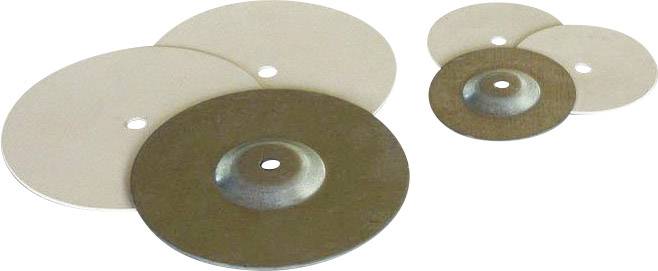

Sedlbauer 530 215 Transformer mounts
