BLOCK VCM 10/1/12 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 12.99 / piece)
€ 12.99
incl. VAT
14-day return policy included
Highlights & Details
BLOCK VCM 10/1/12 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA
- to N/A
- Excellent size to power ratio
- Vacuum resin moulded (self extinguishing to UL 94 V-0)
- Mounting tabs on side of housing
Our service for you
Technical specifications
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
1 x 12 V AC
- Output current
833 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
10 VA
- Type
VCM 10/1/12
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
0.28 kg
- Content
1 pc(s)
- Insulation class
VDE=B, UL=105
- Test voltage
500 V
- Test mark
C-UL-US, ENEC 10 (VDE)
- RoHS-compliant
Yes
- Max. ambient temperature
+40 °C
- Efficiency
74 %
10 VA
- Output voltage
12 V
Documents & Downloads
Datasheet
Datasheet 710970 BLOCK VCM 10/1/12 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA
User & Safety Instructions
User & Safety Instructions 710970 BLOCK VCM 10/1/12 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA
Description

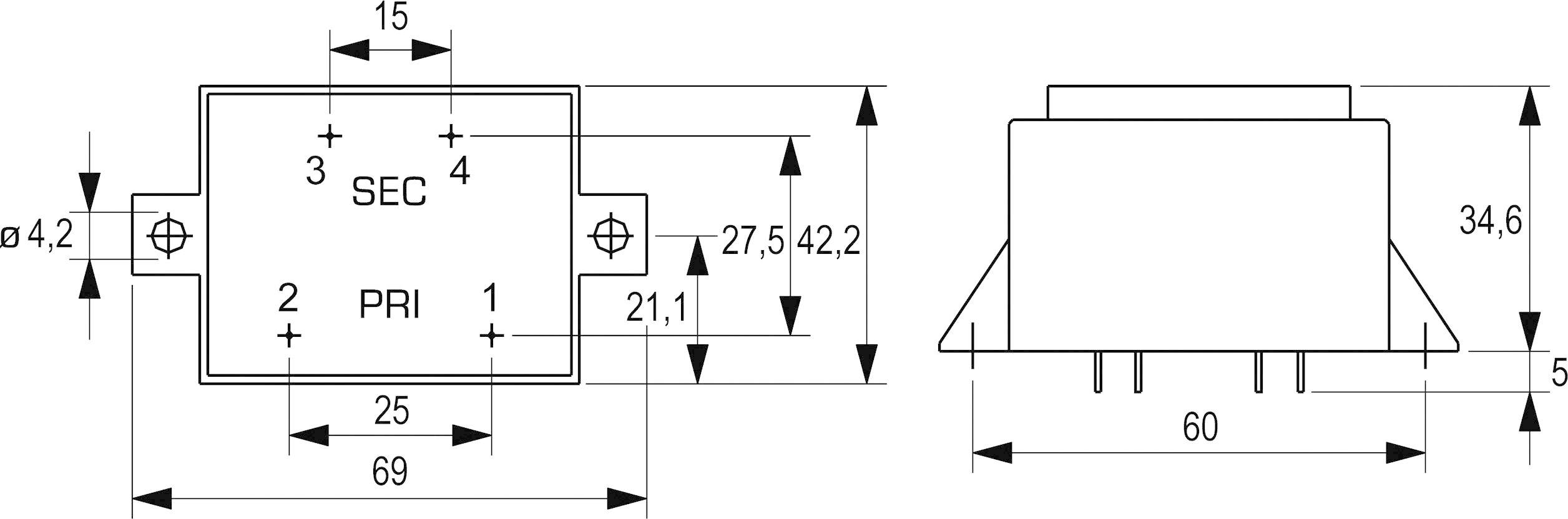

Secondary pin assignment: Pin 5 - 4
Hints
For more technical data on BLOCK's VCM 10/1/12 PCB transformer, please see its datasheet under 'downloadable documents'.
