Buy Bopla BoVersa 48142203.HMT3 Industrial-grade casing (L x W x H) 162 x 88 x 45.5 mm Aluminium White 1 pc(s)

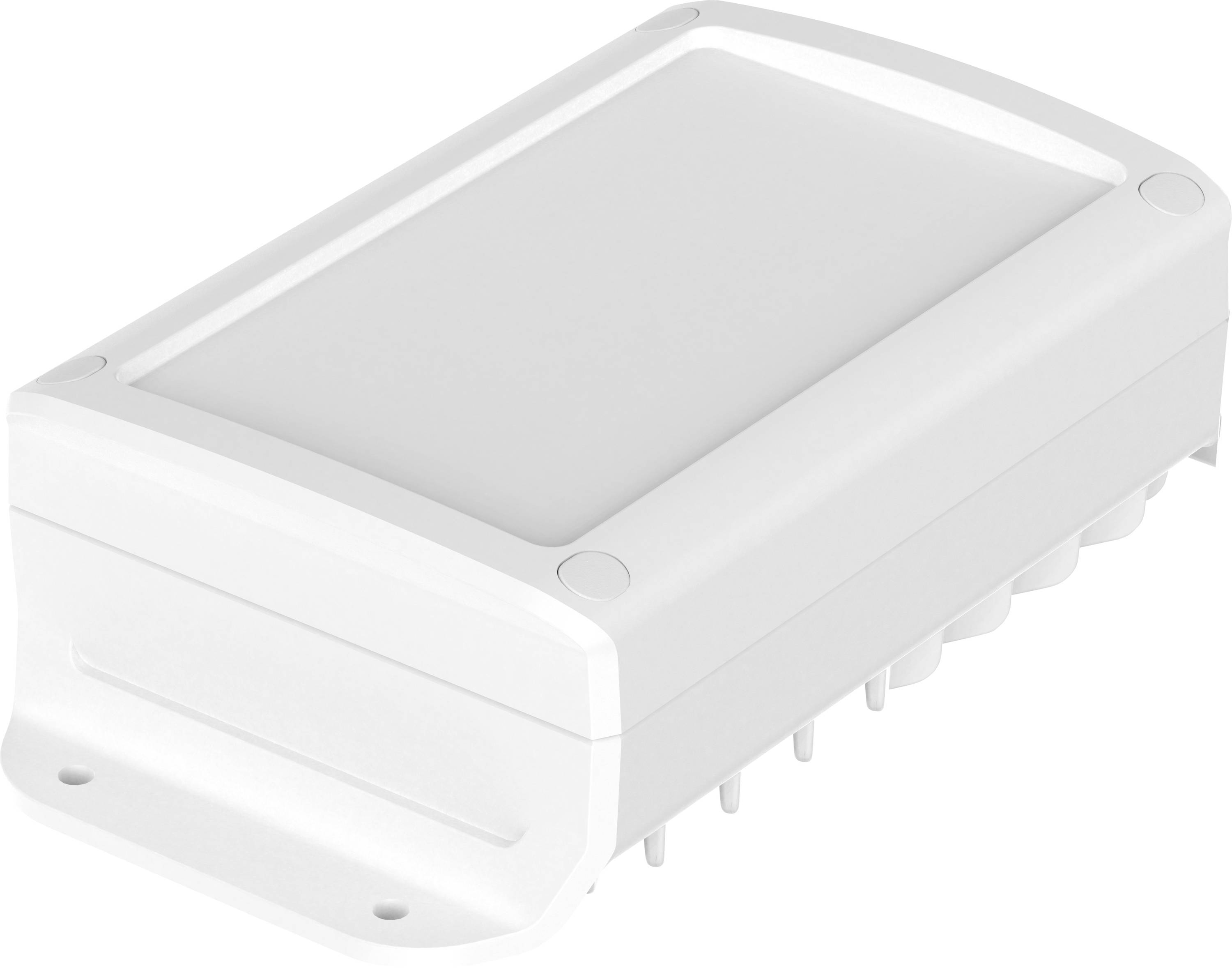

'A white electronic device with a rectangular shape and rounded edges, featuring mounting holes and pins on the underside.'

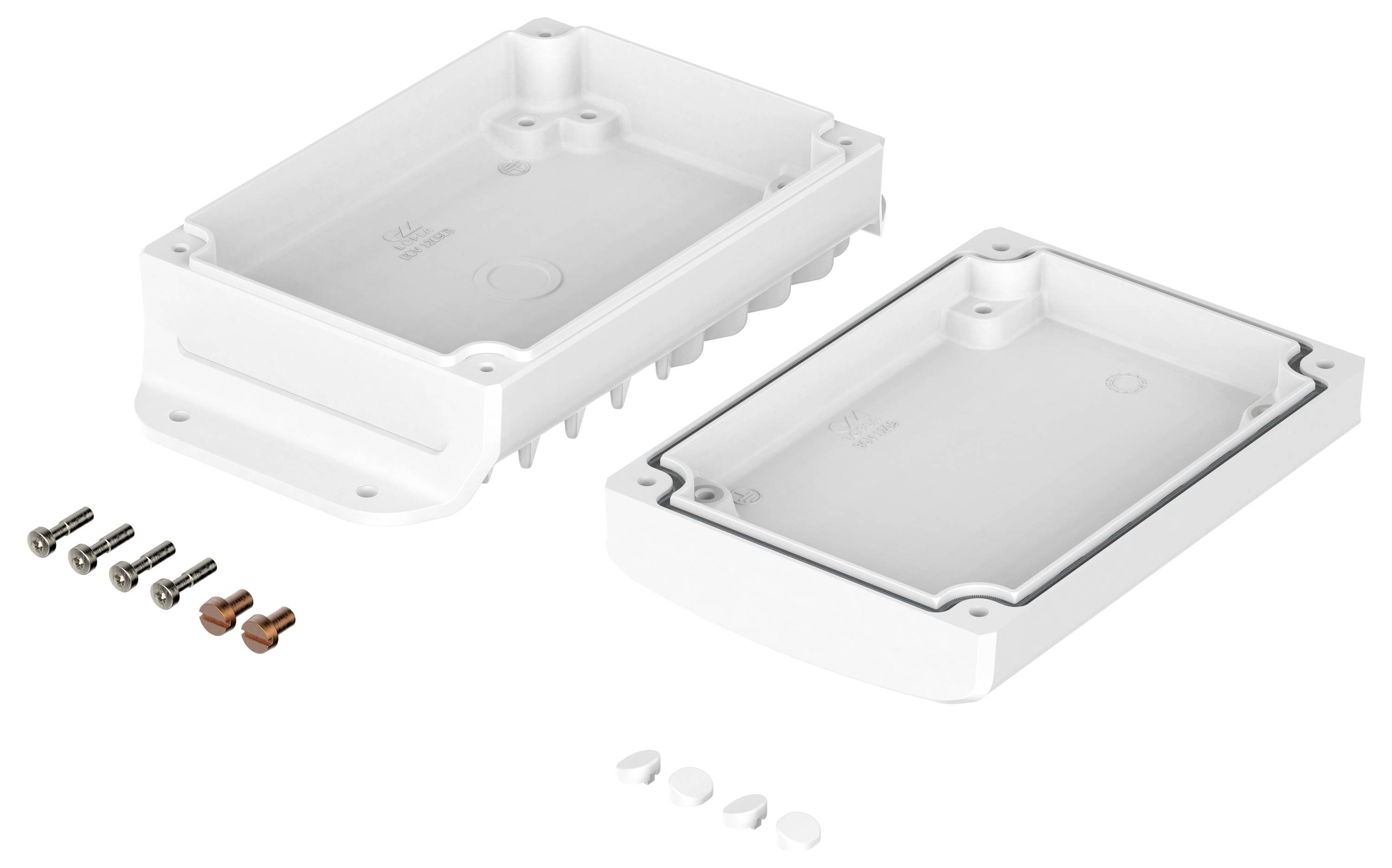

'White rectangular plastic electrical enclosure shown open with mounting screws and caps nearby.'

1/2

Material

Aluminium

IP rating

IP66

IP68

Width

88 mm

Height

45.5 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 29.40 / piece)

€ 29.40

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

BoVersa BOV-A KWL 120903-9003, set, 162 x 88 x 45.5mm, aluminum, white, similar RAL 9003

Protection class IP66/68 (1.2 m - 2 h),
Impact strength: IK08
Temperature resistance: -30°C to 100°C.
Colour white similar. RAL 9003
Made from aluminum alloy
Upper part with foil surface, lower part with cooling ribs and wall brackets

Technical specifications

KWL-series (wall mounting possible through separate mounting channels outside the sealing chamber)
Shock Resistant
Corrosion-resistant
EMC-compliant (through material quality)

Features: with bracket
with cooling fins

Material: Aluminium

: IP66
IP68

Factory colour: White

Type: Rectangular housing with circulating seal level

Length: 162 mm

Width: 88 mm

Height: 45.5 mm

Dimensions: 162 x 88 x 45,5 mm

Compatible with (details): PCB mounting, terminal series, industrial control components

Content: 1 pc(s)

Industrial packaging: Yes

Dim: (L x W x H) 162 x 88 x 45.5 mm

Type: BoVersa 48142203.HMT3

Weight: 240 g

Product type: Industrial-grade casing

Documents & Downloads

Datasheet

Datasheet 3720719 Bopla BoVersa 48142203.HMT3 Industrial-grade casing (L x W x H) 162 x 88 x 45.5 mm Aluminium White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3720719 Bopla BoVersa 48142203.HMT3 Industrial-grade casing (L x W x H) 162 x 88 x 45.5 mm Aluminium White 1 pc(s)

Description

The completely new and advanced housing concept, with modern design, offers flexible and customer-specific design options including lighting concept and forward-looking cooling for the version with aluminum base. The casing can be used for applications in the hand, on the table, at the wall or at the mast. The housing provides optimum conditions for, among other things, Internet of Things or Embedded systems.

This text is machine translated.
