Buy Bopla "BoVersa 48146403.HMT3" Industrial-grade casing (L x W x H) 258 x 140 x 66.5 mm Aluminium White 1 pc(s)

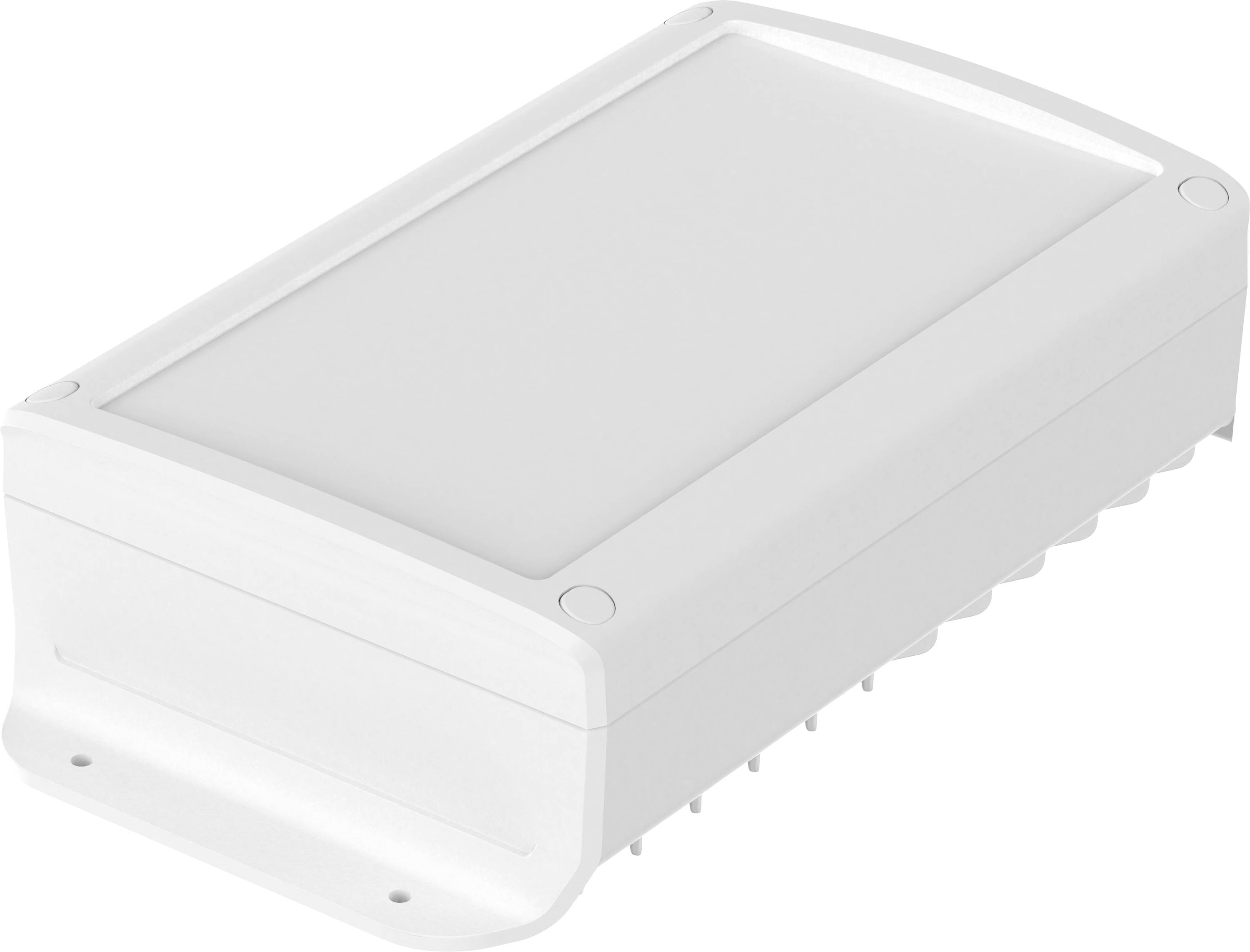

A white, rectangular electronic device with a flat top surface and rounded edges, likely a router or similar equipment.

A rectangular plastic enclosure split into two parts with a gasket lining, accompanied by screws and rubber feet, used for electronic projects.

1/2

Material

Aluminium

IP rating

IP66

IP68

Width

140 mm

Height

66.5 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

BoVersa BOV-A KWL 211405-9003, SET, 258 x 140 x 66.5 mm, Aluminium, white, similar RAL 9003

Protection class IP66 / 68 (1.2 m - 2 h)
Impact strength: IK08
Temperature resistance: -30°C to 100°C.
Colour white similar. RAL 9003
Made from aluminum alloy
Upper part with foil surface, lower part with cooling ribs and wall brackets

Technical specifications

Flammability UL 94 V-2

Features: with bracket
with cooling fins

Material: Aluminium

: IP66
IP68

Factory colour: White

Type: Closed design with flush-mounted lid

Length: 258 mm

Width: 140 mm

Height: 66.5 mm

Dimensions: Außenmaße nach DIN ISO 2768-m

Content: 1 pc(s)

Industrial packaging: Yes

Dim: (L x W x H) 258 x 140 x 66.5 mm

Type: "BoVersa 48146403.HMT3"

Weight: 450

Product type: Industrial-grade casing

Documents & Downloads

Datasheet

Datasheet 3720723 Bopla "BoVersa 48146403.HMT3" Industrial-grade casing (L x W x H) 258 x 140 x 66.5 mm Aluminium White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3720723 Bopla "BoVersa 48146403.HMT3" Industrial-grade casing (L x W x H) 258 x 140 x 66.5 mm Aluminium White 1 pc(s)

Description

The completely new and advanced housing concept, with modern design, offers flexible and customer-specific design options including lighting concept and forward-looking cooling for the version with aluminum base. The casing can be used for applications in the hand, on the table, at the wall or at the mast. The housing provides optimum conditions for, among other things, Internet of Things or Embedded systems.

This text is machine translated.
