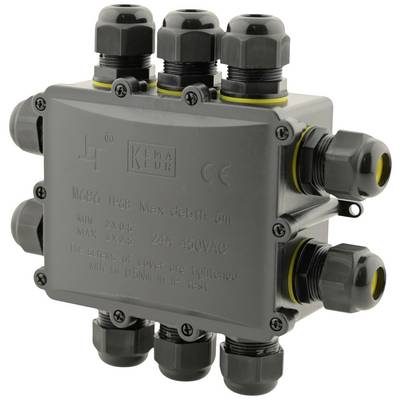

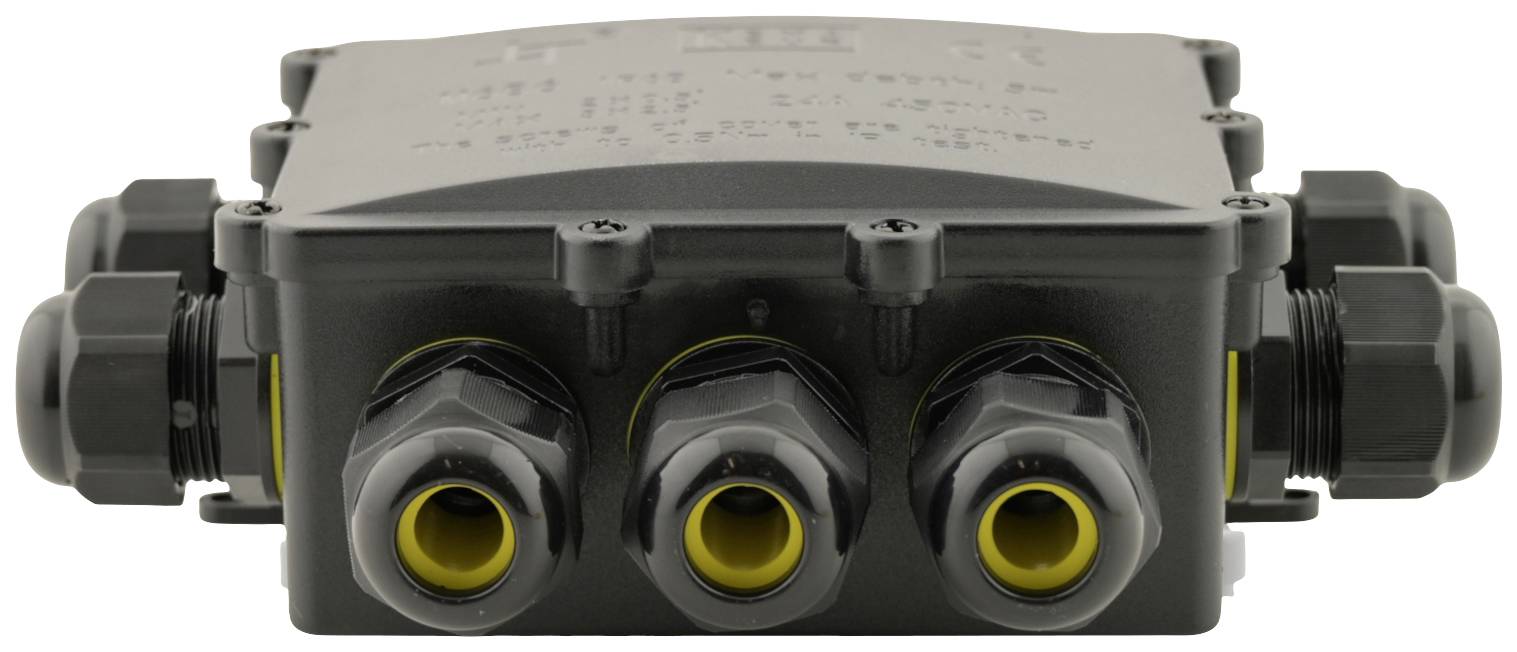

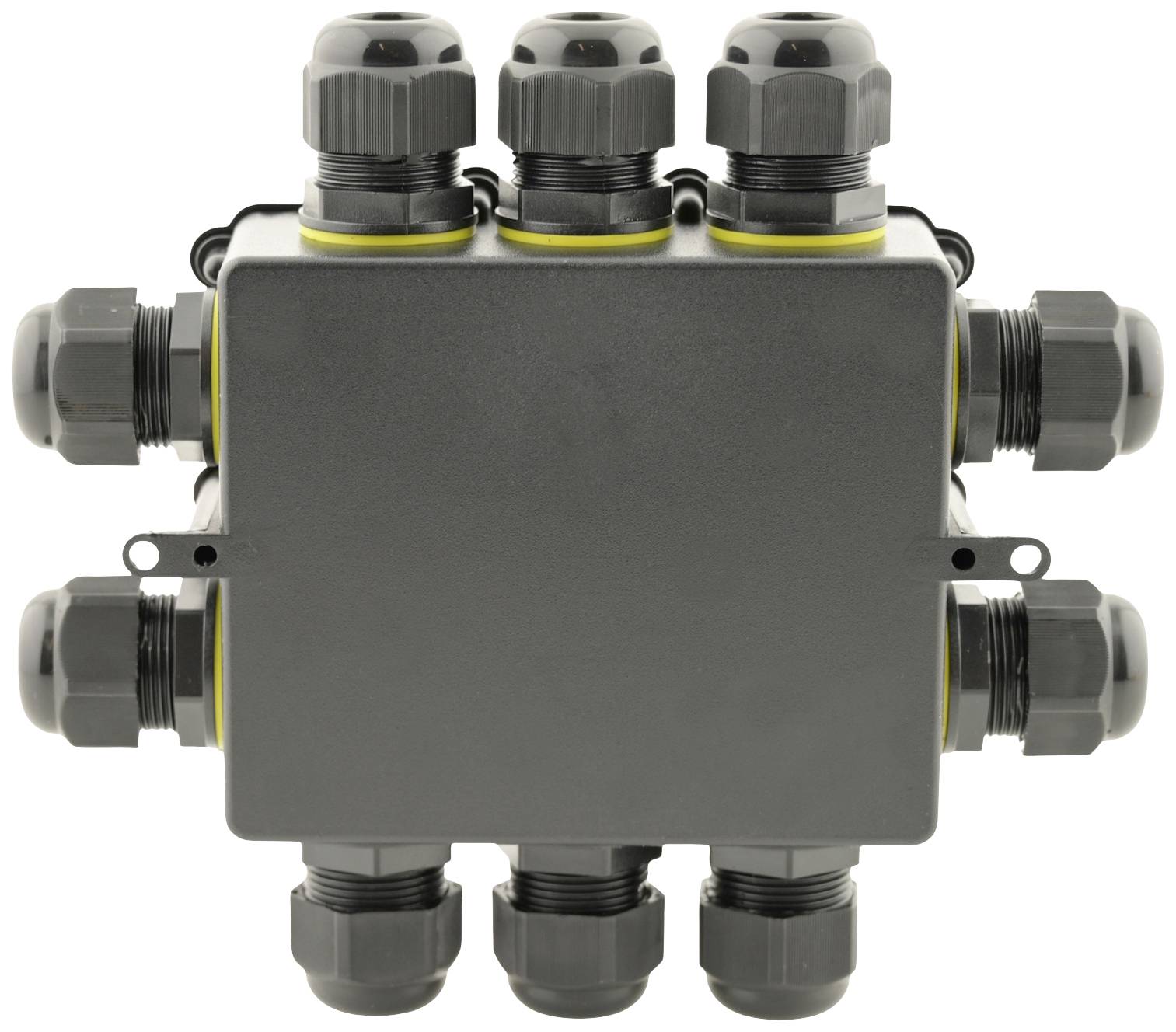

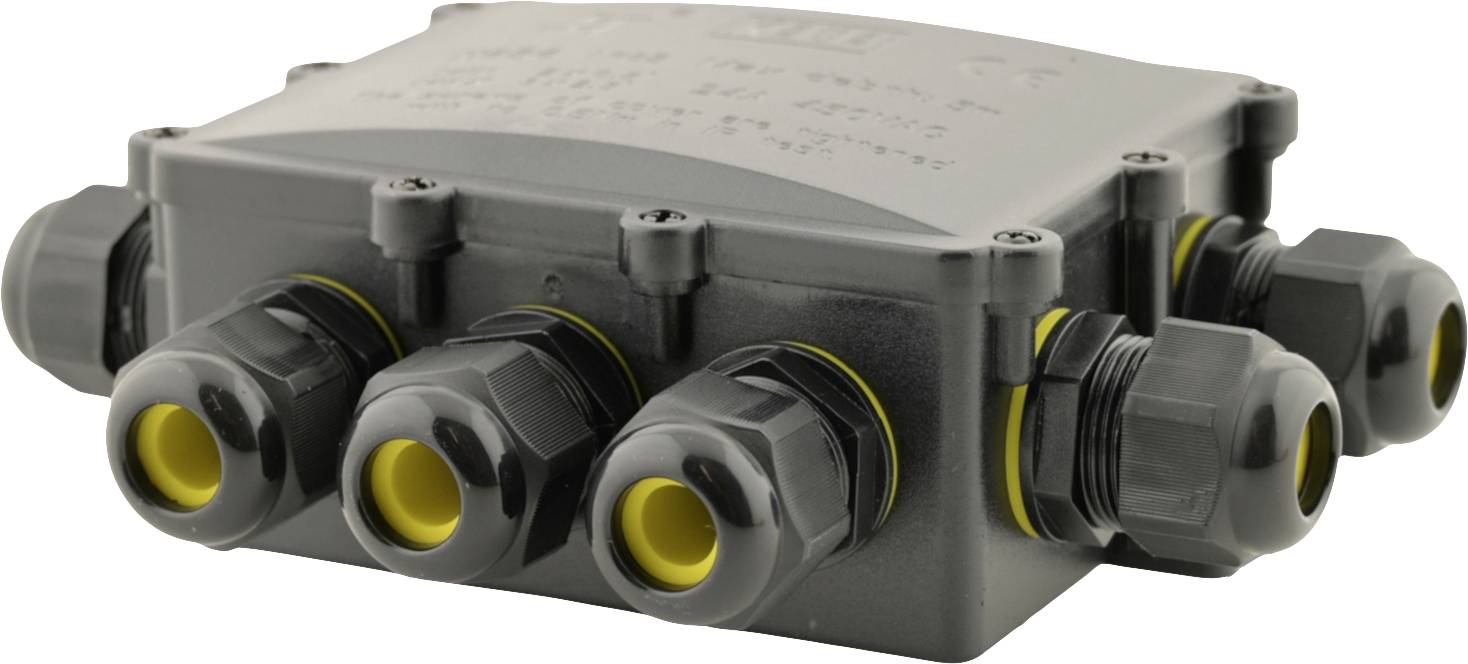

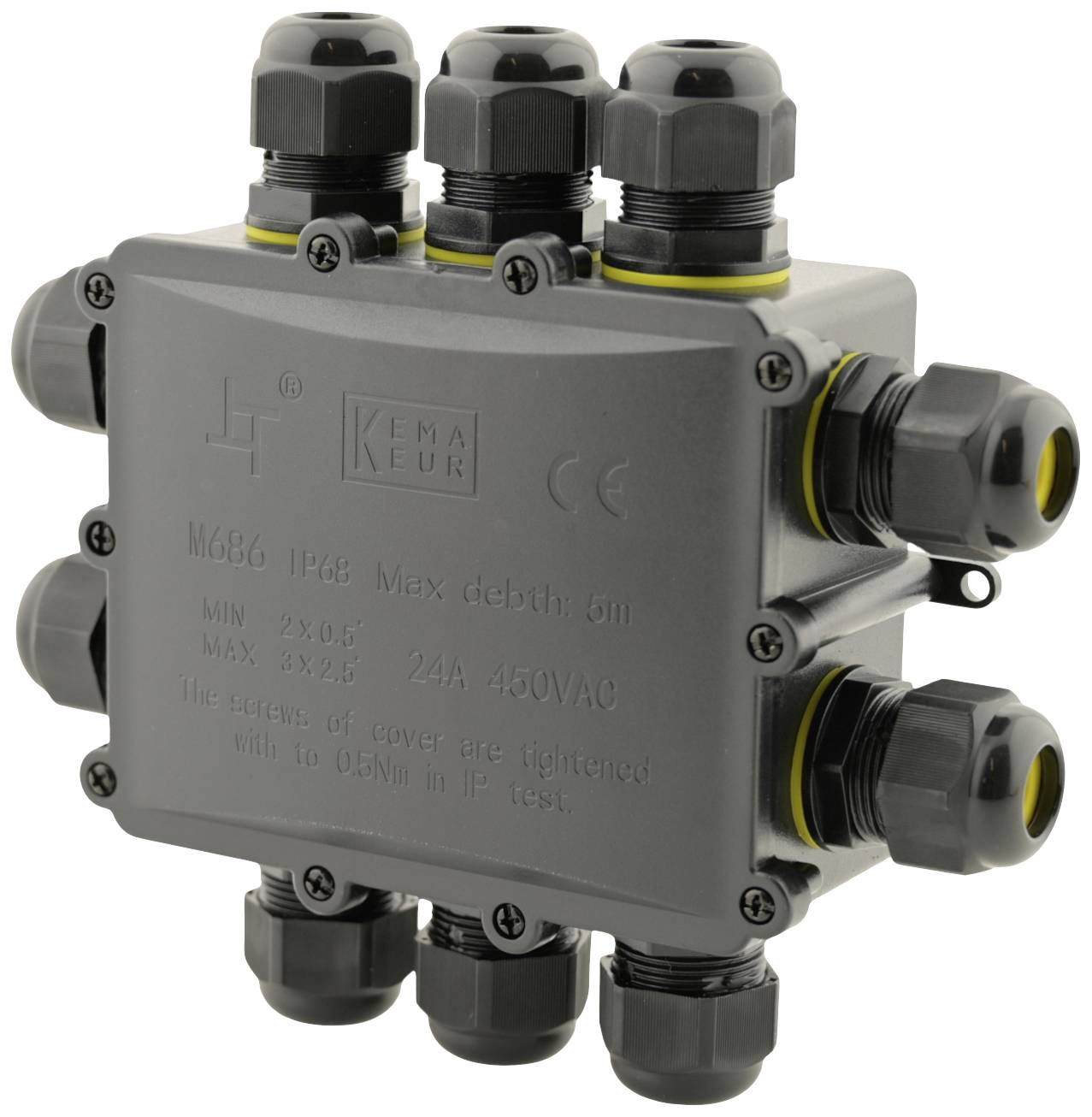

Boxexpert BXPJSGH686-10 Junction box Weather-proof (W x H) 183 mm x 136 mm 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Technical specifications
- Product type
Junction box
- Features
Weather-proof
- Mounting type
Surface-mount
- Max. fire resistance
105 °C
- Content
1 pc(s)
- Factory colour
Black
- Dim
(W x H) 183 mm x 136 mm
- Width
183 mm
- Height
136 mm
- Connection
10x M25 (4-14mm cable cross-section) with matching reductions
- Halogen-free
Yes
- Inputs / outputs
10 single / 5x input 5x output
- Total number of pins
6
IP68
- Material
Nylon
PA66
- Amperage (max.)
24 A
- Core cross section (max.)
6 mm²
- Core cross section (min.)
0.5 mm²
- Operating temperature (max.)
+105 °C
- Operating temperature (min.)
-40 °C
- Voltage (max.)
450 V AC
- Contact material
Tin plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2873047 Boxexpert BXPJSGH686-10 Junction box Weather-proof (W x H) 183 mm x 136 mm 1 pc(s)
Description
The water-proof 6-pin distribution box with protection type IP68 is a high-quality and tested housing, Ideal for the use in outdoor areas like garden, moist rooms, underwater or in the ground, e.g. for branching and connecting earth cables.
Whether you connect your LED garden light or your pond pump in the outdoor area, this external distributor ensures, with its high protection class IP68 and the waterproof cable glands, that no moisture can get through the electrical connections. The casing is dust-proof and offers full protection against contact and is waterproof even when permanently submerged, in addition it is protected against strong jet water from all directions and high humidity. The waterproof casing can be securely installed in a water depth of up to 4 meters and in classic damp rooms with high humidity, such as bathrooms, cellars or garages.
In the industrial sector the product can also be used in workshops or laboratories, which are regularly cleaned with high-pressure water and are thus considered damp rooms. Due to its small size, the 6-pin distribution box can be placed inconspicuously in the garden and can also be buried in the earth without a second worry.
Do not leave the electrical components of your garden lighting unprotected. The temperature range of the housing of the watertight distribution boxes is between -40°C and +105°C and is thus of industrial quality. Whether frost or humidity, the contacts are protected by the high-quality construction and kept dry. Tin-plated contacts prevent corrosion and the high-quality nylon PA66 is robust and weather-resistant. These material properties, combined with the high protection class IP68, make this junction box the perfect choice for outside use and all installation zones in damp rooms according to DIN VDE 0100-701 (VDE 0100-701): 2008-10.

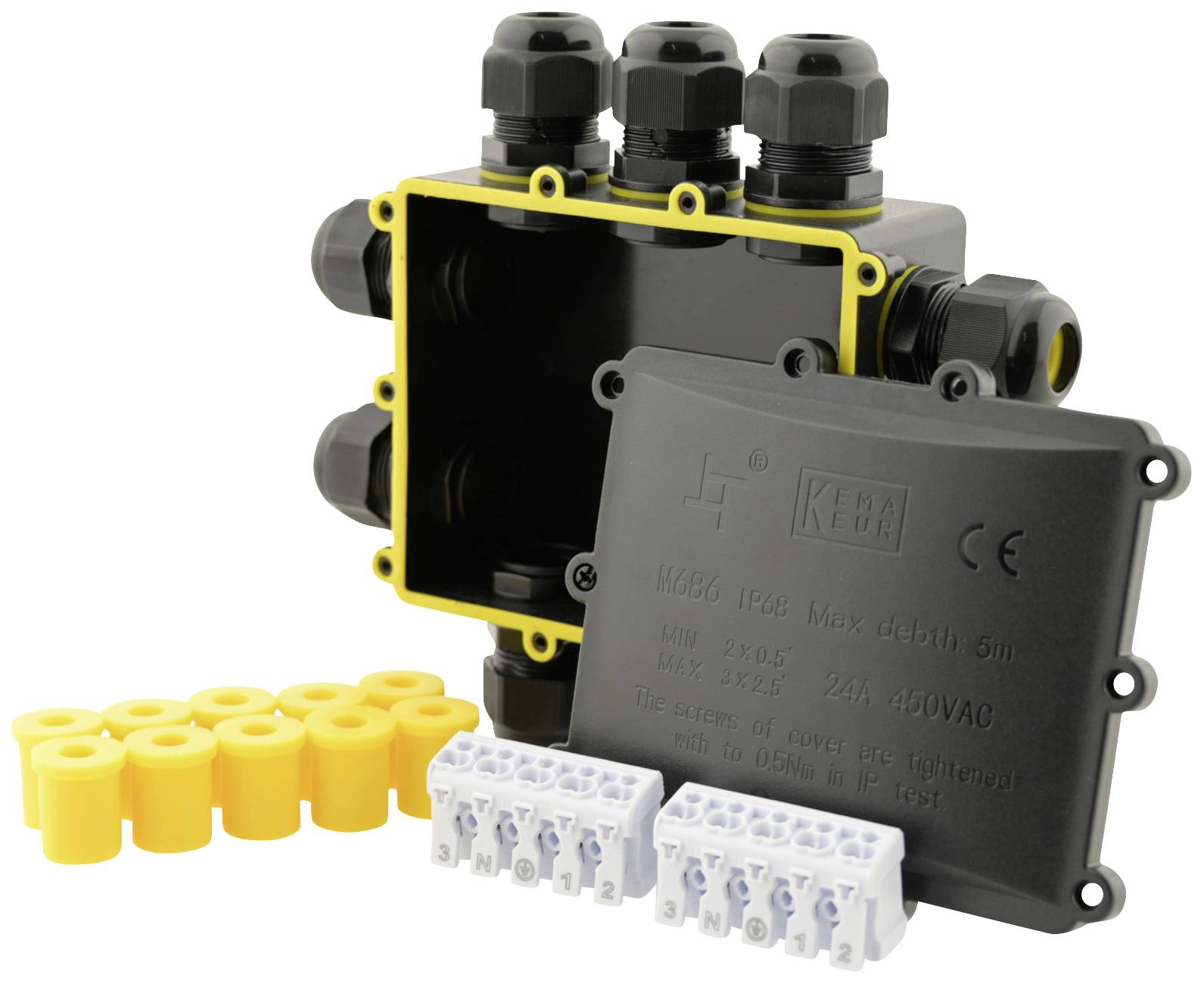

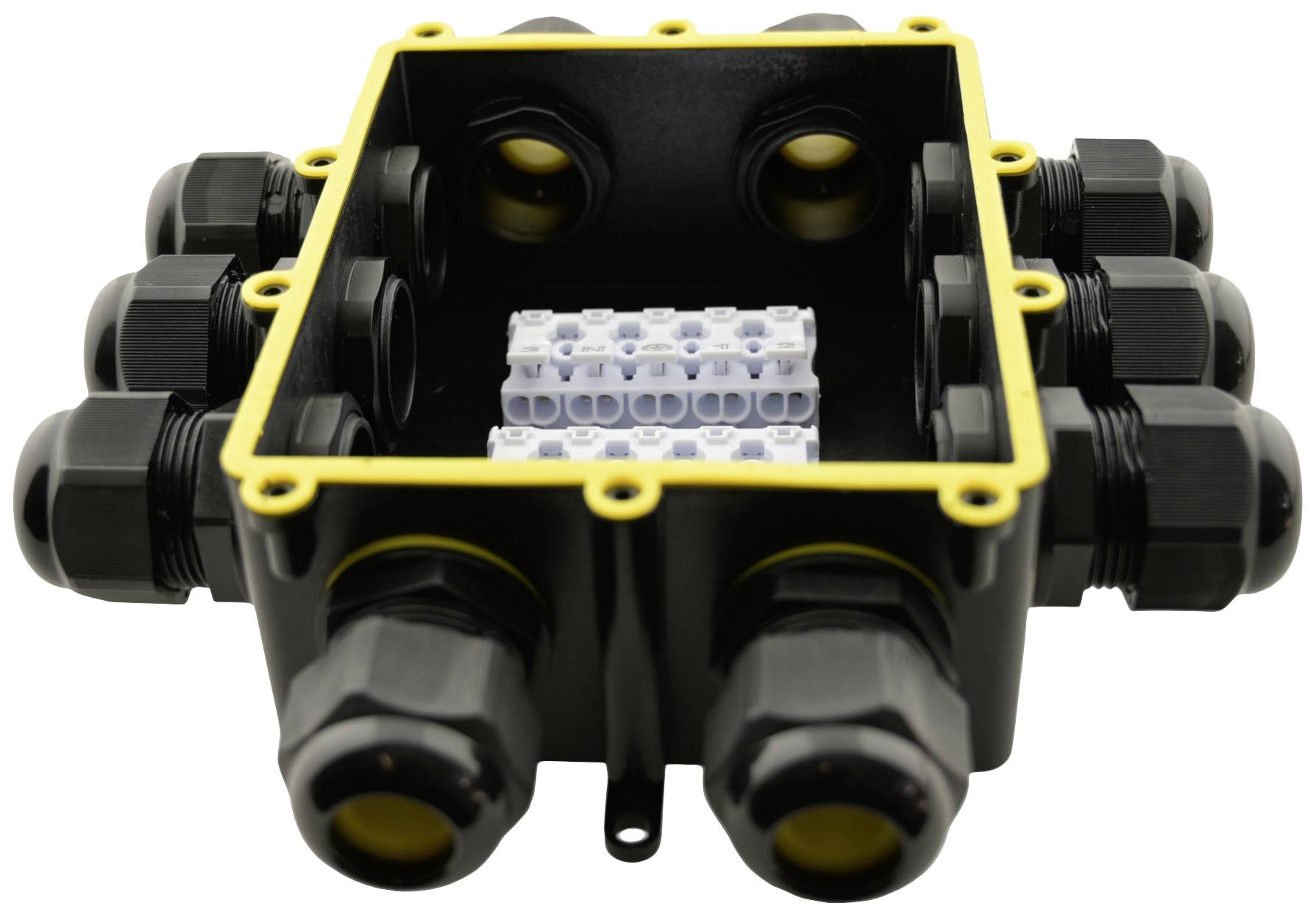

Ten M25 cable glands (4 mm cable cross-section) are integrated in the cable box and provide for additional stability. Matching reducing pieces and terminal connectors for conductor cross-sections of 0.5-6mm² are also included in the delivery. The enclosure has a total of five inputs and five outputs.
High-quality and safe materials are our top priority for our company. For this reason, these cases have been thoroughly tested and approved and conform to the European standards.
This text is machine translated.
Whether you connect your LED garden light or your pond pump in the outdoor area, this external distributor ensures, with its high protection class IP68 and the waterproof cable glands, that no moisture can get through the electrical connections. The casing is dust-proof and offers full protection against contact and is waterproof even when permanently submerged, in addition it is protected against strong jet water from all directions and high humidity. The waterproof casing can be securely installed in a water depth of up to 4 meters and in classic damp rooms with high humidity, such as bathrooms, cellars or garages.
In the industrial sector the product can also be used in workshops or laboratories, which are regularly cleaned with high-pressure water and are thus considered damp rooms. Due to its small size, the 6-pin distribution box can be placed inconspicuously in the garden and can also be buried in the earth without a second worry.
Do not leave the electrical components of your garden lighting unprotected. The temperature range of the housing of the watertight distribution boxes is between -40°C and +105°C and is thus of industrial quality. Whether frost or humidity, the contacts are protected by the high-quality construction and kept dry. Tin-plated contacts prevent corrosion and the high-quality nylon PA66 is robust and weather-resistant. These material properties, combined with the high protection class IP68, make this junction box the perfect choice for outside use and all installation zones in damp rooms according to DIN VDE 0100-701 (VDE 0100-701): 2008-10.
Ten M25 cable glands (4 mm cable cross-section) are integrated in the cable box and provide for additional stability. Matching reducing pieces and terminal connectors for conductor cross-sections of 0.5-6mm² are also included in the delivery. The enclosure has a total of five inputs and five outputs.
High-quality and safe materials are our top priority for our company. For this reason, these cases have been thoroughly tested and approved and conform to the European standards.
This text is machine translated.
Scope of delivery
- Terminal
