OBO Bettermann 2007029 Junction box (Ø x D) 80 mm x 51 mm 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
5
8% = € 0.42
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section = 2.5 mm²
- Assembly = without
- The form = round
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Depth = 51 mm
- Diameter = 80 mm
- Can be stacked end-to-end = Yes
- The number of entries = 4
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Color = gray
- IP65 degree of protection (IP) =
- Cover Mounting = snap-on
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- For Ex Zone Gas = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey

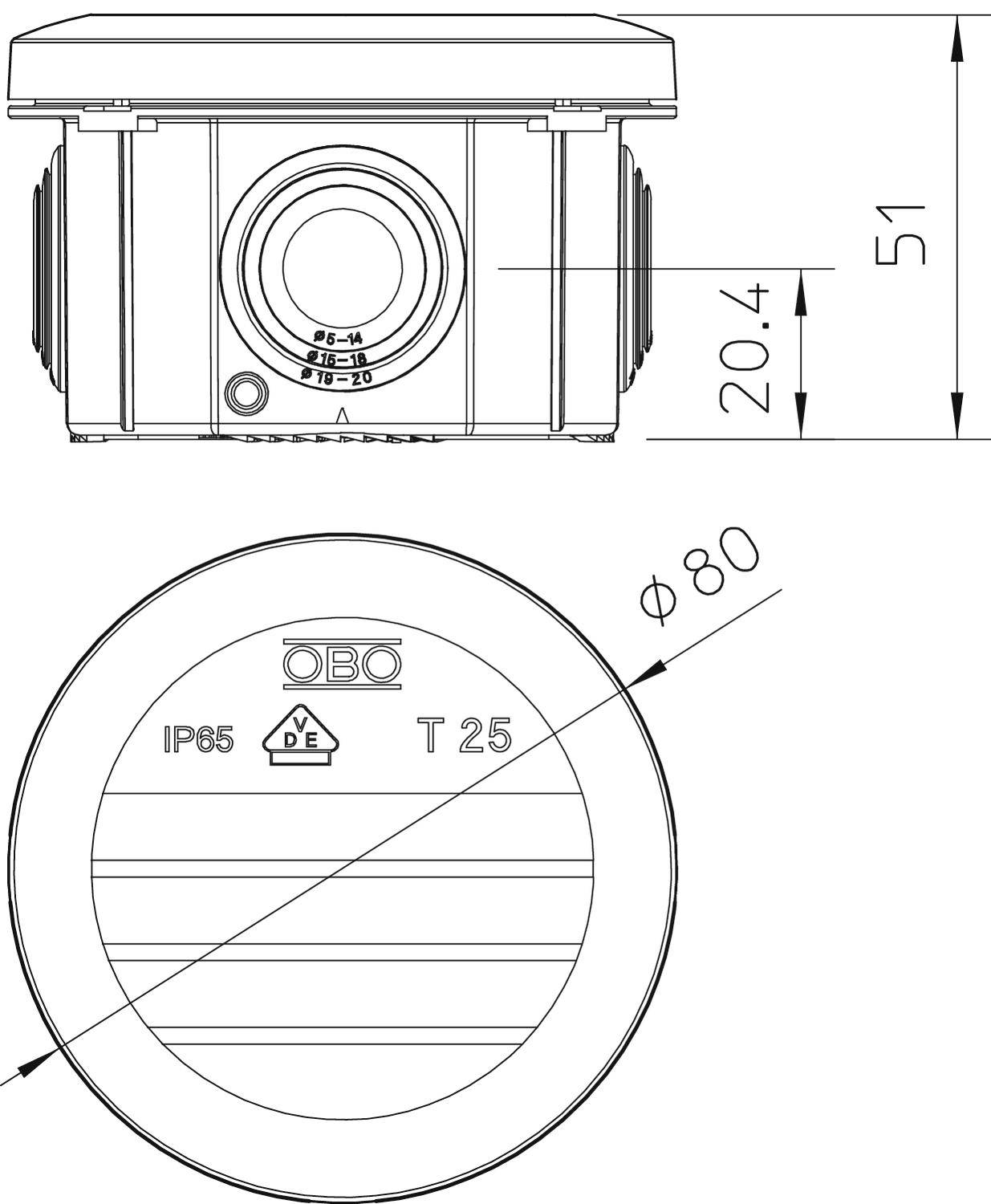

- Dim
(Ø x H) 80 mm x 51 mm
- Length
80 mm
- Width
80.0000 mm
- Height
51 mm
- Depth
51 mm
- (Ø)
80 mm
IP65
- Mounting
None
Wall-/ceiling mounting
Grey
TRUE
51 mm
Round
Untreated
80 mm
500 V
-5-60 °C
Plastic
FALSE
IP65
None
None
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965355 OBO Bettermann 2007029 Junction box (Ø x D) 80 mm x 51 mm 1 pc(s)
Description
The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. This plastic is soft, that is, it can be moved. Thus cables can either directly through the 4 x M25 seals can be installed or that the seals can be cut with a knife to provided an entry opening for cables or for pipes. In addition, cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box can be placed on a M6 threaded screwed on, as well as with sheet metal screws, 3.5 x 9.5 in holes on mounting plates can be mounted. Internal dimensions: Ø 63 x 45 mm cover with labelling field.
