OBO Bettermann 2000410 Junction box (L x W) 100 mm x 125 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 2.76 / piece)
€ 15.96
-83 %
€
Technical specifications
- Max. Conductor cross-section = 2.5 mm²
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = No

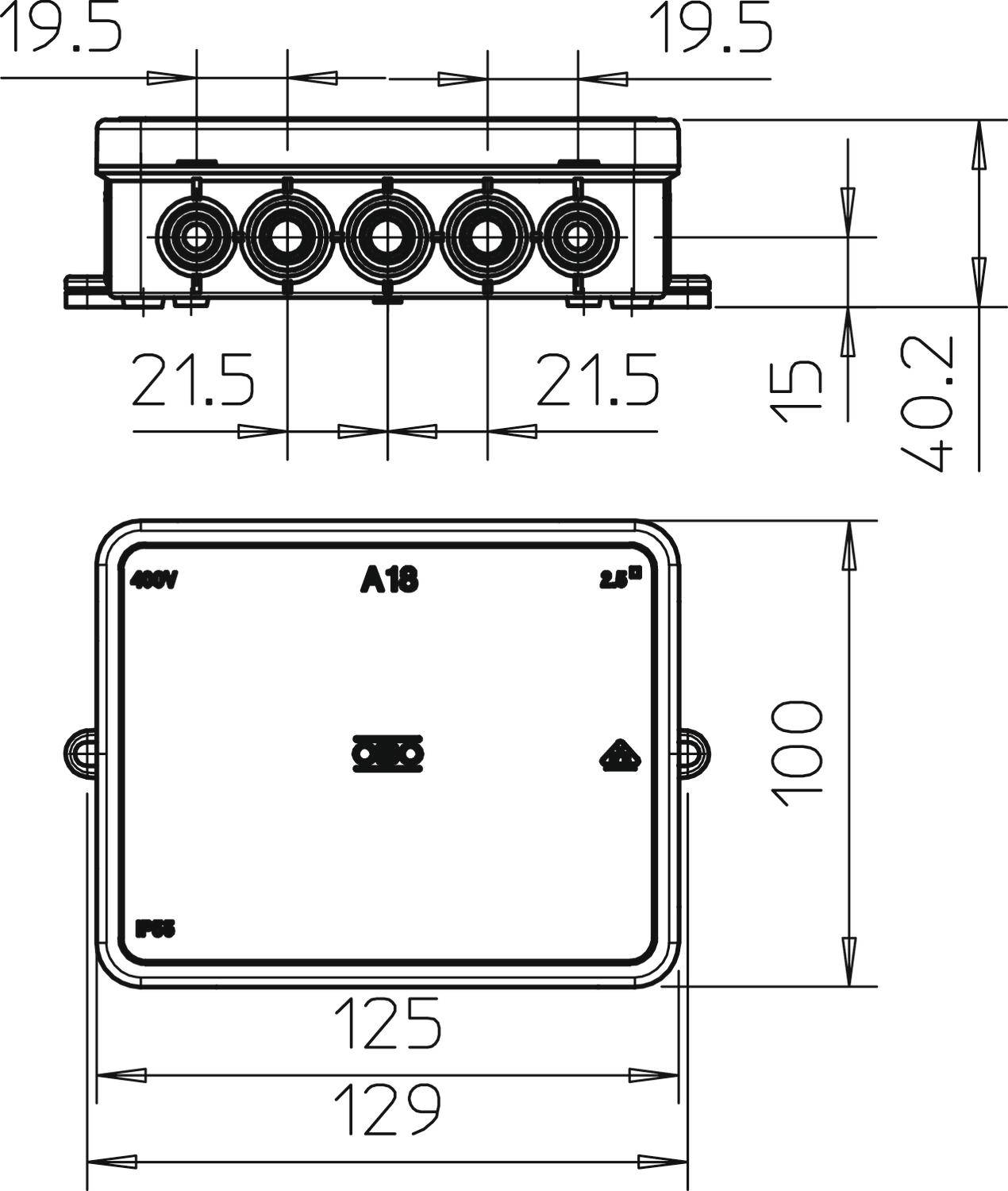

- Length = 100 mm
- Width = 125 mm
- Depth = 40 mm
- Can be stacked end-to-end = No
- The number of entries = 18
- The type of casing feed = Knockout
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP55 degree of protection (IP) =
- Cover Mounting = snap-on
- Sealable = No
- Rated insulation voltage Ui=400 V.
- Function receives = without
- With Shielding = No
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 100 mm x 125 mm
- Length
100 mm
- Width
125 mm
- Depth
40 mm
IP55
- Mounting
None
- Product type
Junction box
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964085 OBO Bettermann 2000410 Junction box (L x W) 100 mm x 125 mm 1 pc(s)
Description
The cable junction box has 10 inserts a cable diameter of 7-14 mm and 8 entries for a cable diameter of 7-11 mm
