OBO Bettermann 2002167 Junction box (L x W) 91 mm x 91 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section = 4 mm²
- Length = 91 mm
- Width = 91 mm
- Depth = 51 mm
- The number of entries = 7
- Material = Plastic
- Halogen-free = Yes
- Color = gray
- Degree of protection (IP)=IP54
- Cover Mounting = screwed
- Sealable = No
- Rated insulation voltage Ui=660 V
- Function receives = without
- With Shielding = No
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(Ø x H) 5 mm x 51 mm
- Length
91 mm
- Width
91 mm
- Height
51 mm
- Depth
51 mm
- (Ø)
5 mm
IP54
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957373 OBO Bettermann 2002167 Junction box (L x W) 91 mm x 91 mm 1 pc(s)
Description

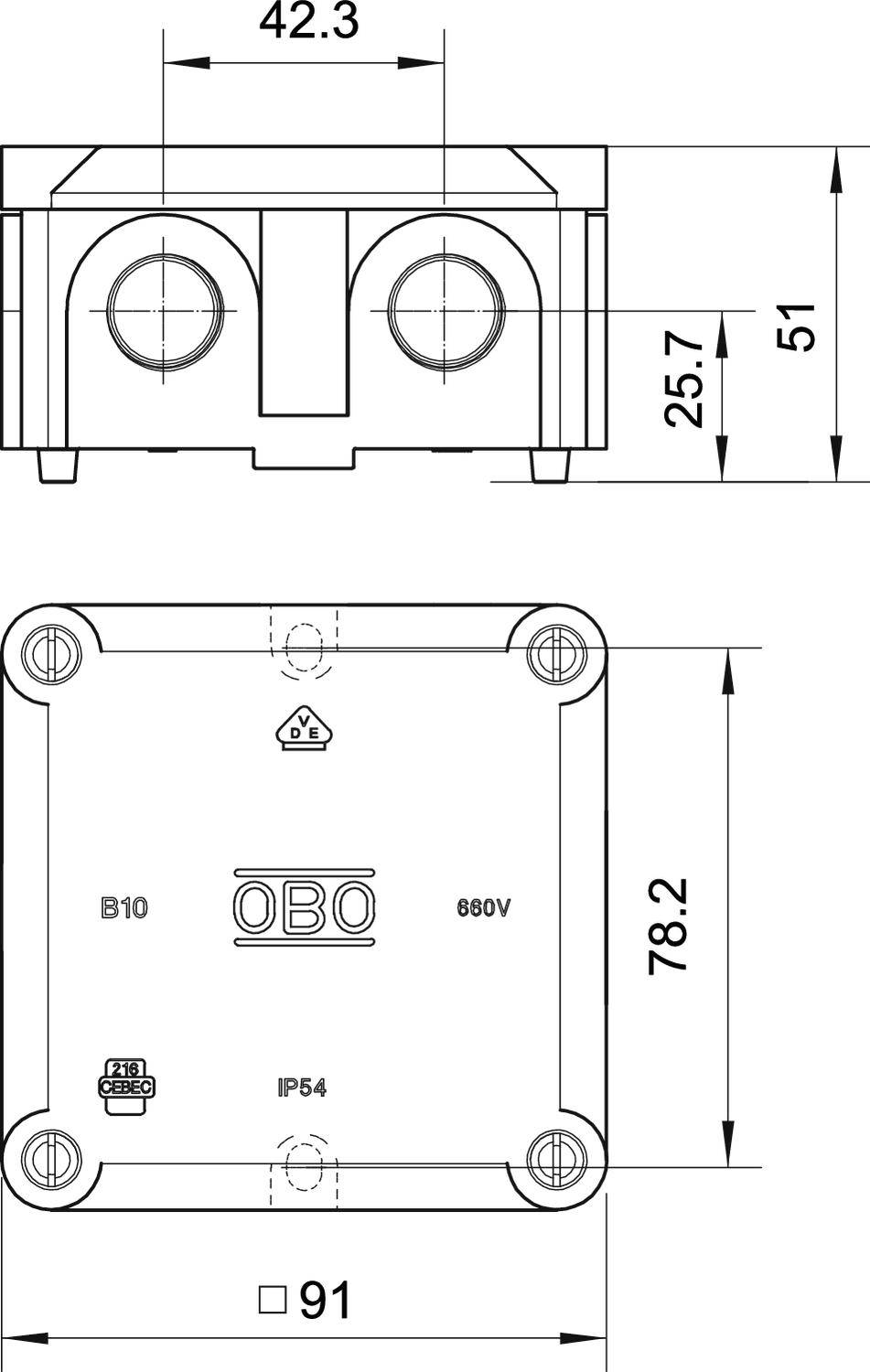

Protection class IP54, rated voltage 660 V, nominal cross-section 2.5 ÷ 4 or 4 mm² in combination with the terminal block 700/6 M has the box the nominal cross-section 4 mm², 2 mounting holes for screws up to 5 mm diameter on the outside of the box. 4 Cover Screws, 7 breakable entries with thread M20 x 1.5, preferably for screwed cable glands with short connecting thread. Dimensions: 91 x 91 x 51 mm internal dimensions: 80 x 80 x 39 mm.
