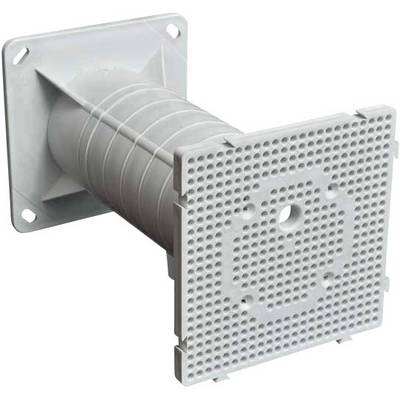

KOPOS MDZ KB Insulated device mount (W x H x D) 119 x 119 x 204 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 0.91
€ 22.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Technical specifications
- Product type
Insulated device mount
- Mounting type
Exterior wall insulation
- Max. fire resistance
850 °C
- Content
1 pc(s)
- Dim
(W x H x D) 119 x 119 x 204 mm
- Width
119 mm
- Height
119 mm
- Depth
204 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1525528 KOPOS MDZ KB Insulated device mount (W x H x D) 119 x 119 x 204 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1525528 KOPOS MDZ KB Insulated device mount (W x H x D) 119 x 119 x 204 mm 1 pc(s)
Description
For the installation of electrical equipment (outdoor lights, motion sensors, sockets 400V, etc.) in heat-insulated façades, with a thickness of 50 - 200 mm. Prevents the formation of thermal bridges. Load up to 40 N at a distance 180 mm from the wall. The connection of several mounting plates allows a larger working area. The scope of delivery includes high quality plugs and wood screws for installation. If installing a coarse plaster is a seal with silicone recommended. For attachments to the mounting plate are wood screws (Ø 4 - 5 mm).
