OBO Bettermann 2007434 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section = 6 mm²
- Assembly=clamp
- The form = square
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 114 mm
- Width = 114 mm
- Depth = 57 mm
- Can be stacked end-to-end = Yes
- The number of entries = 7
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- For Ex Zone Gas = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim

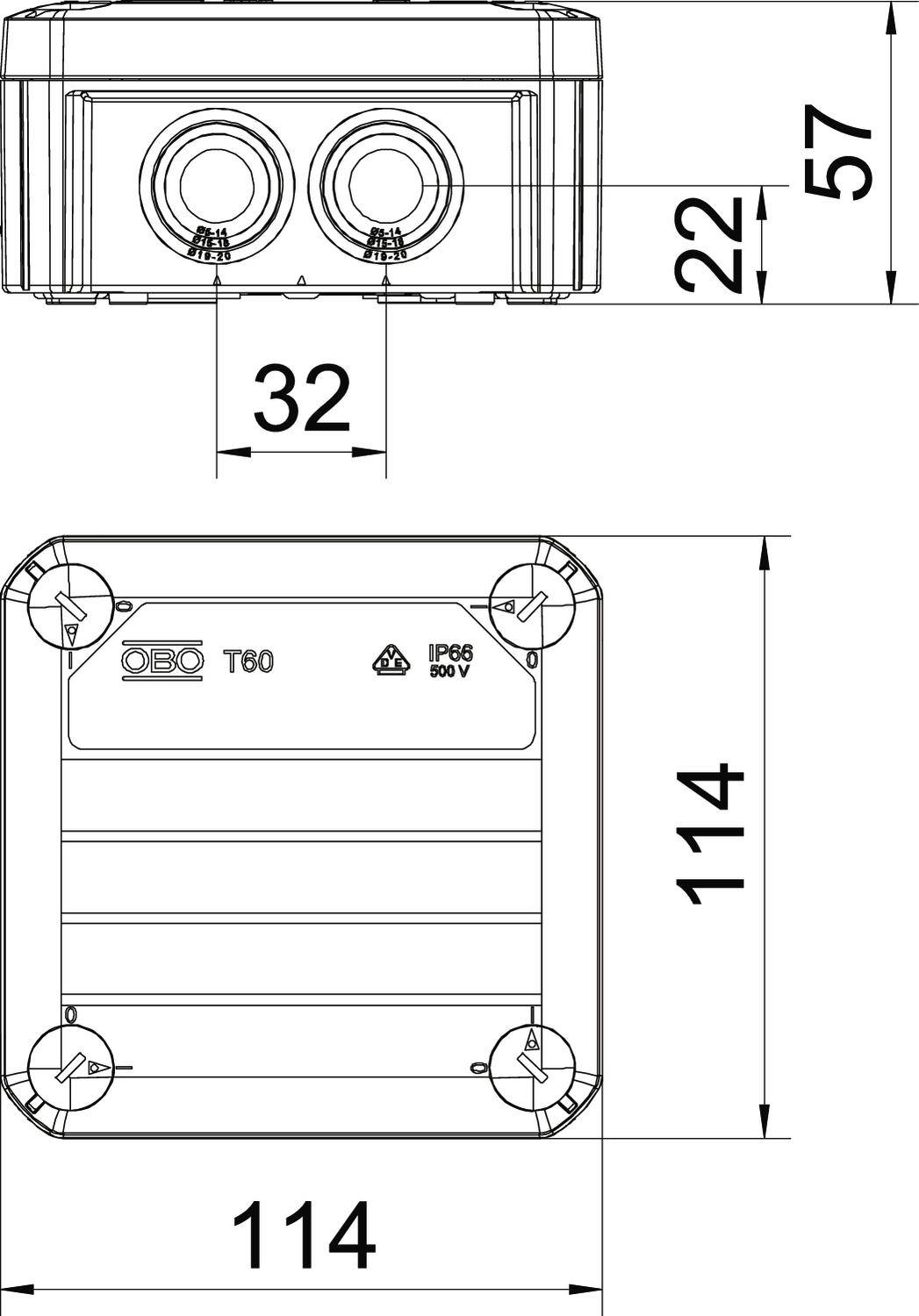

(L x W x H) 114 x 114 x 57 mm
- Length
114 mm
- Width
114 mm
- Height
57 mm
- Depth
57 mm
IP66
- Mounting
Terminal
Wall-/ceiling mounting
Grey
114
TRUE
57 mm
Square
Untreated
500 V
114 m
-5-60 °C
Plastic
FALSE
IP66
None
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959934 OBO Bettermann 2007434 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
Description
The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 7 x M25 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 100 x 100 x 48 lid with labelling field and lead-sealable.
