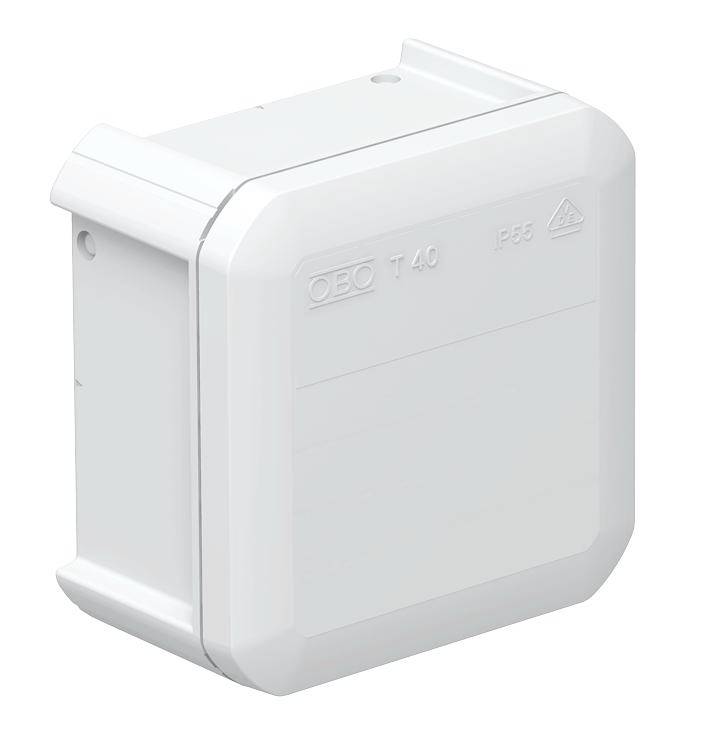

OBO Bettermann 2007223 Junction box (L x W) 90 mm x 90 mm 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 12.60
-40 %
€ 7.55
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section = 4 mm²
- Assembly = without
- The form = square
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes

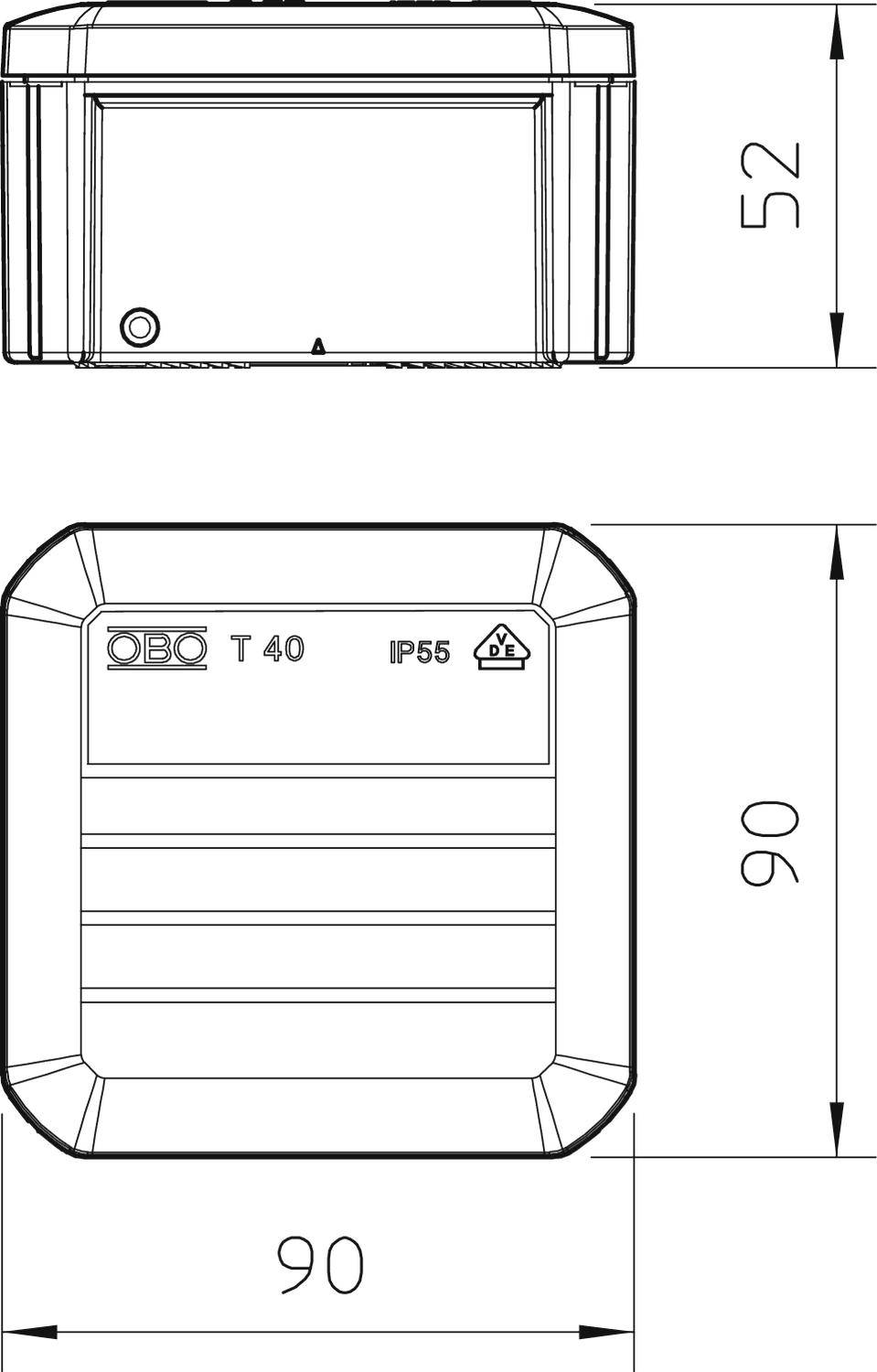

- Length = 90 mm
- Width = 90 mm
- Depth = 52 mm
- Can be stacked end-to-end = Yes
- The type of casing feed = without
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP55 degree of protection (IP) =
- Cover Mounting = snap-on
- Sealable = No
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- Use temperature =-5.:00-15 °C
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 90 mm x 90 mm
- Length
90 mm
- Width
90 mm
- Depth
52 mm
IP55
- Mounting
None
Wall-/ceiling mounting
Grey
90
TRUE
52 mm
Square
Untreated
500 V
90 m
-5-60 °C
Plastic
FALSE
IP55
None
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955310 OBO Bettermann 2007223 Junction box (L x W) 90 mm x 90 mm 1 pc(s)
Description
All cable junction box T-series are UV resistant. They are made of polypropylene (a thermoplastic plastic) and have closed side walls. Required openings can be introduced at any point. In these openings can plug-in seals EDK or screwed cable glands with locknuts are used, in order to lines. The cable junction box can with sheet-metal screws 3.5 x 9.5 in holes on mounting plates can be mounted. Internal dimensions: 77 x 77 x 46 mm cover with labelling field and lead-sealable.
