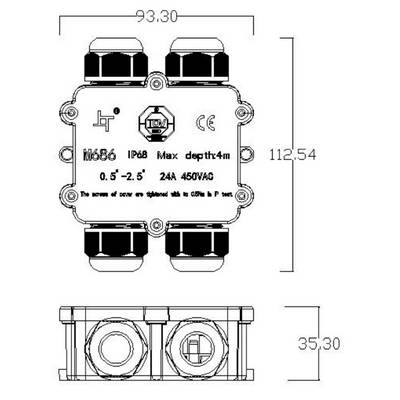

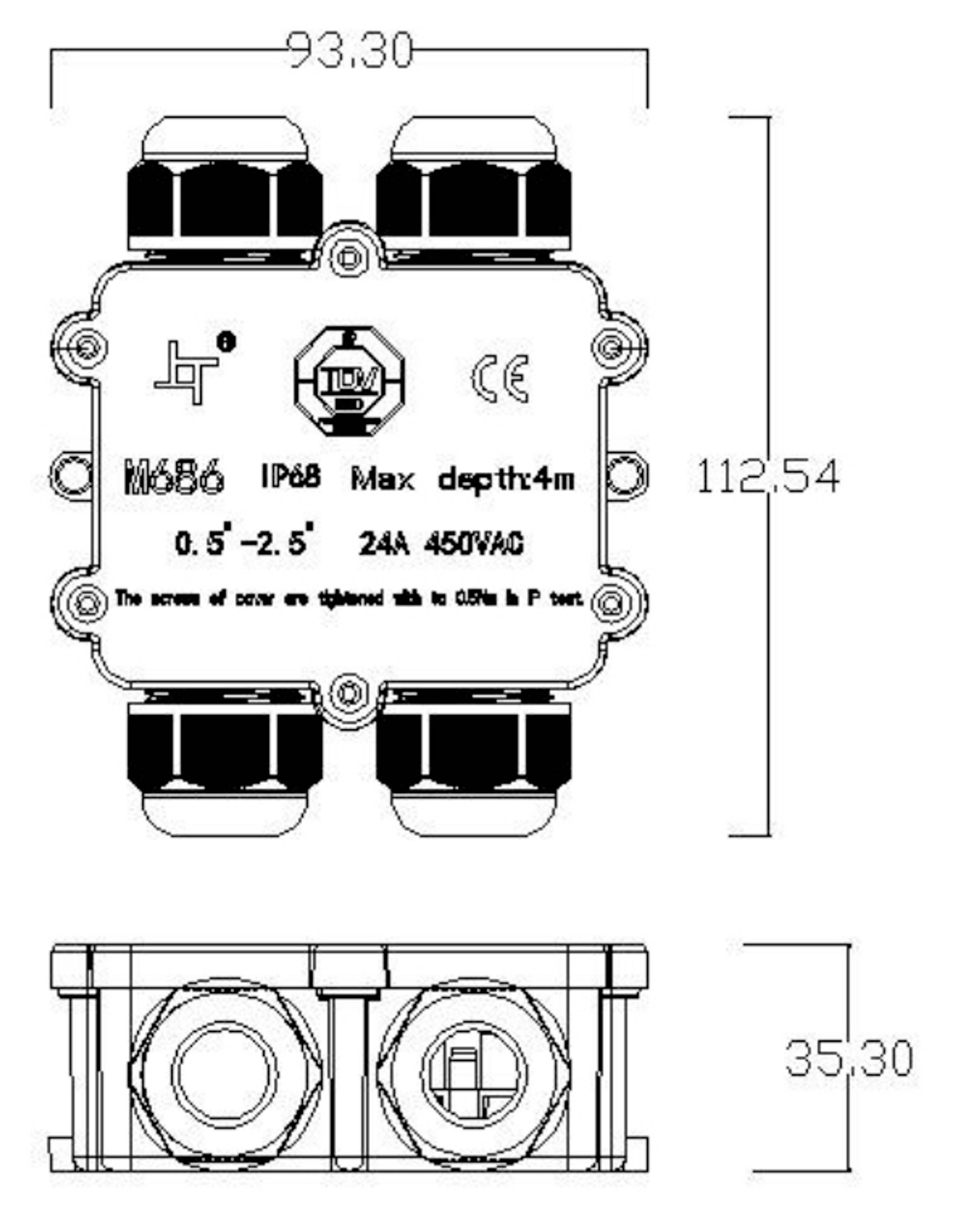

Boxexpert BXPJSGH687-3 Junction box Weather-proof (L x W x H) 35 x 112 x 93 mm 1 pc(s)

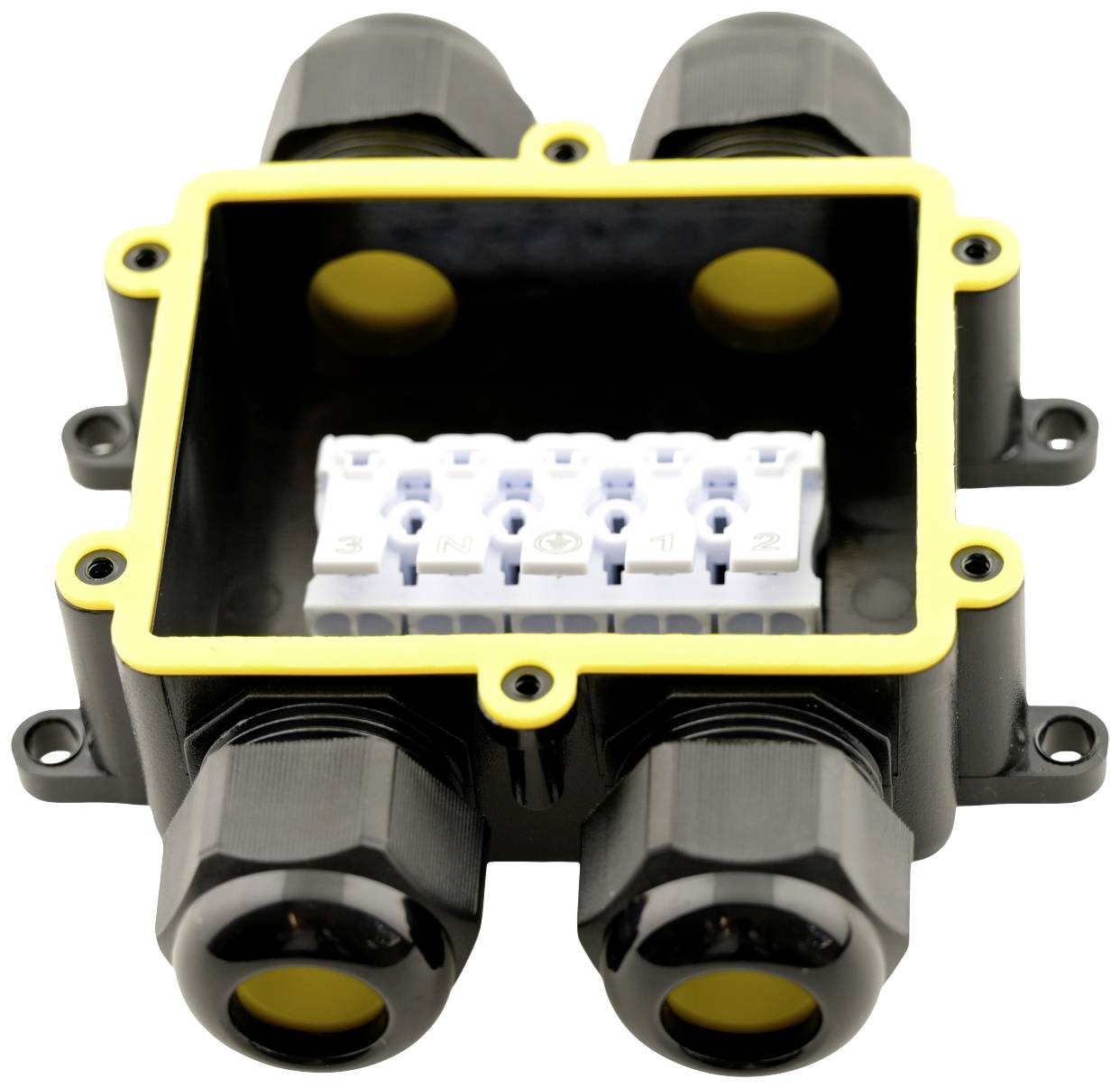

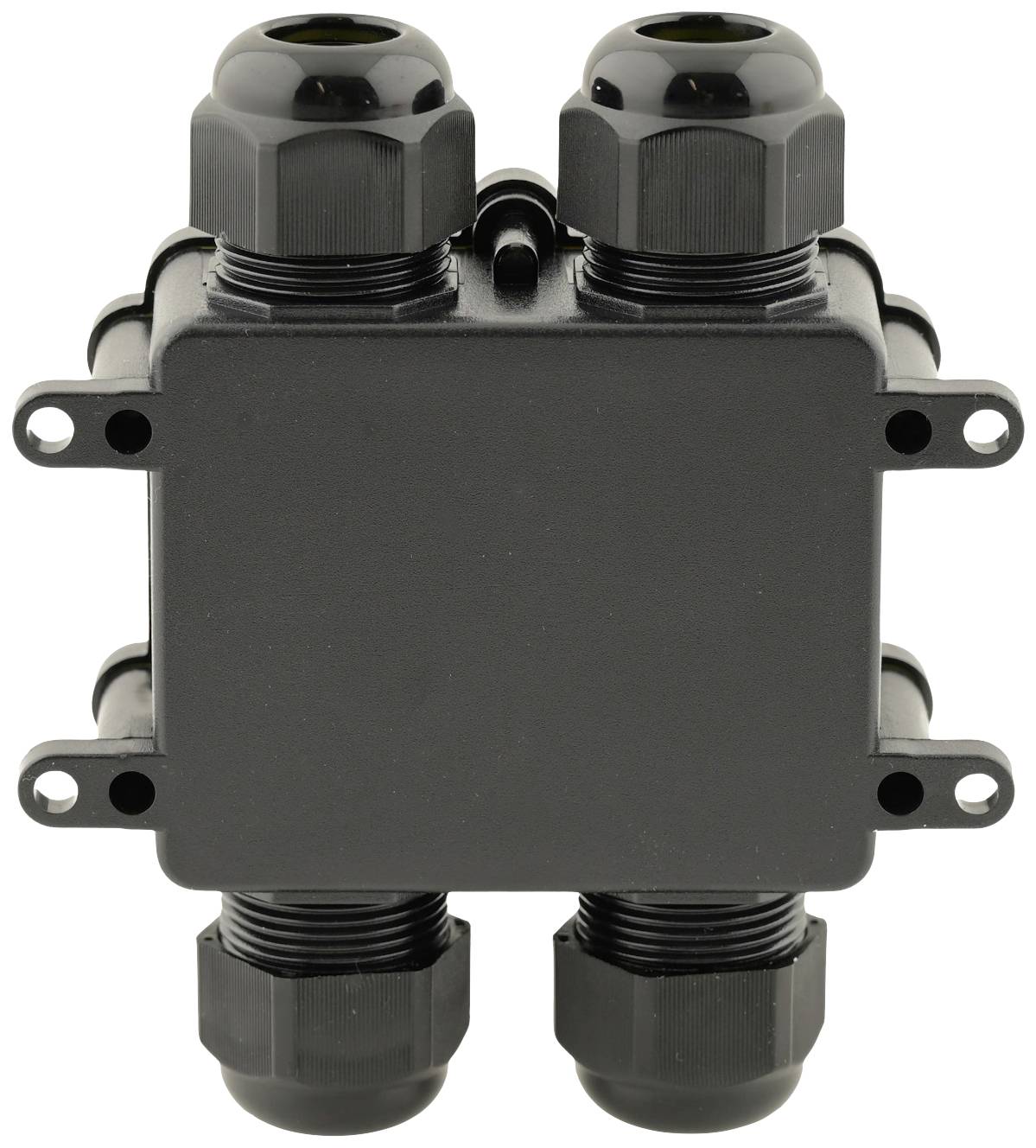

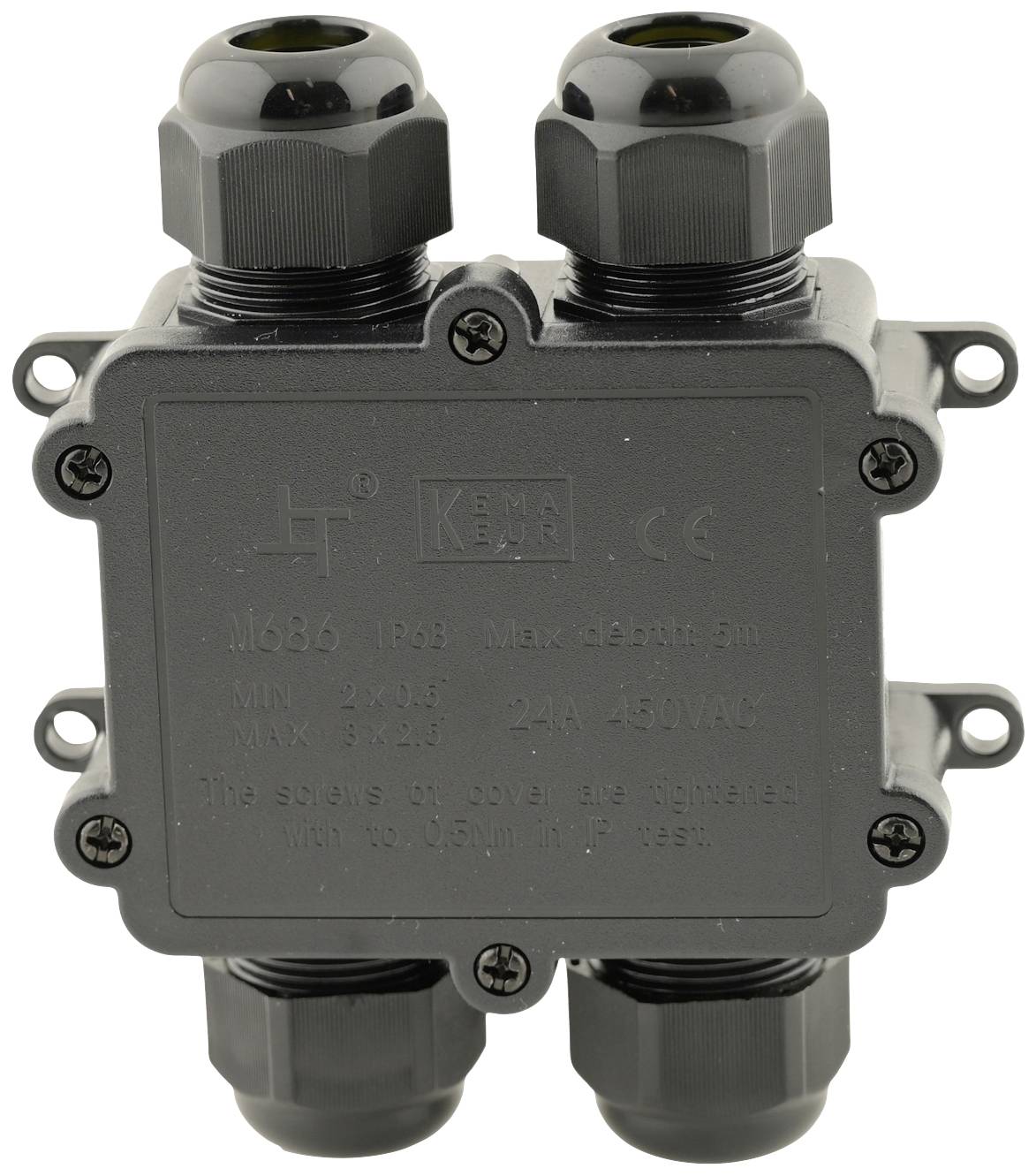

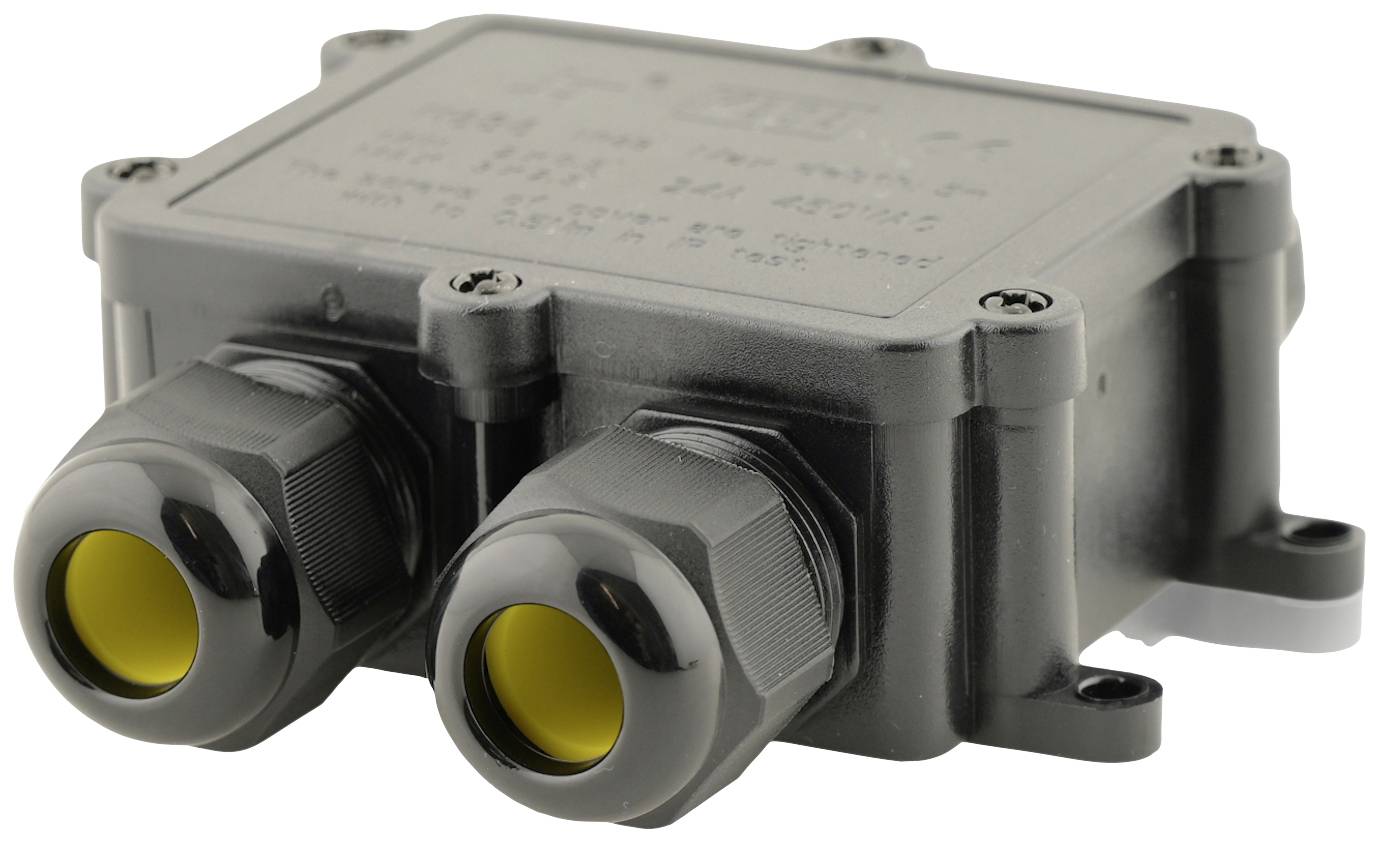

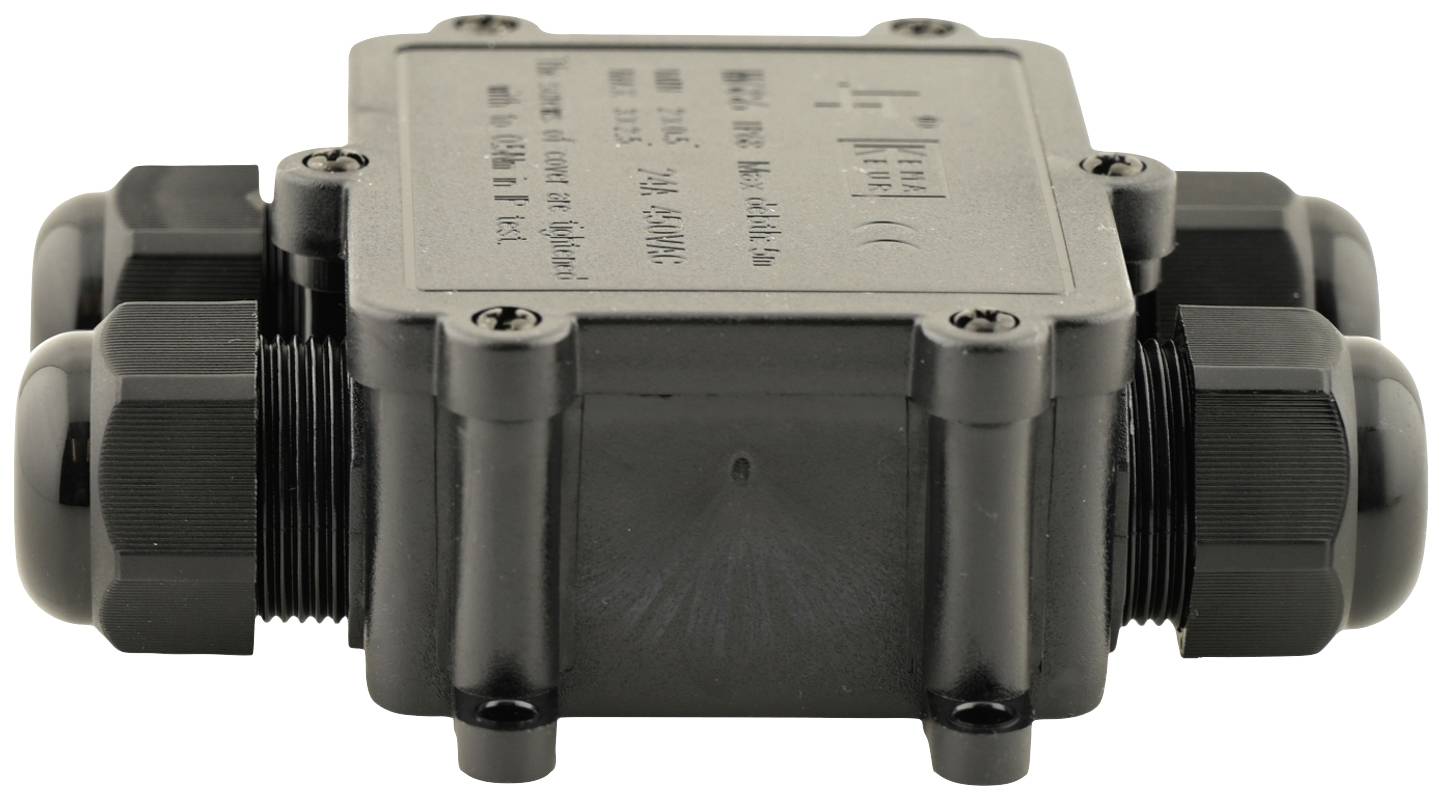

The BoxExpert 5-pin waterproof distribution box is a first-class housing suitable for outdoor use (e.g. in the garden), wet rooms (like basement, bathroom, garage), under water or in the ground, to branch off and connect the earth cable. The junction box with a high protection class of IP68 prevents the penetration of moisture at electrical connections, whether these are LED garden lighting, pond pumps or pump controls in the industrial area. The housing is fully dust proof and provides complete protection against accidental contact and is waterproof even when immersed permanently. The housing is perfect for use in classic damp rooms with high humidity such as bathrooms, cellars or garages.

The product also stands out in industrial workshops or laboratories where jet water or splash water is regularly used for cleaning. The junction box is also protected against strong jet water from all angles and high humidity. The casing is small enough to be placed inconspicuously in the garden, and can also be permanently buried in the ground without any concern in order to connect the earth cable here and protect it from water, contact and low temperatures.

Protect the electrical system of your garden lighting against moisture. The waterproof junction box has a temperature range from -40°C to +105°C and is therefore of industrial quality. The contacts remain protected and dry by the high-quality processing, no matter whether during frost or moisture. Tin-plated contacts prevent rust formation and the high-quality nylon PA66 is durable and weather-resistant. The high degree of protection IP68 makes this junction box the perfect choice for outside and all installation zones in damp rooms according to DIN VDE 0100-701 (VDE 0100-701):2008-10. Whether in private homes, in the garden or in industry, this junction box is the perfect choice.

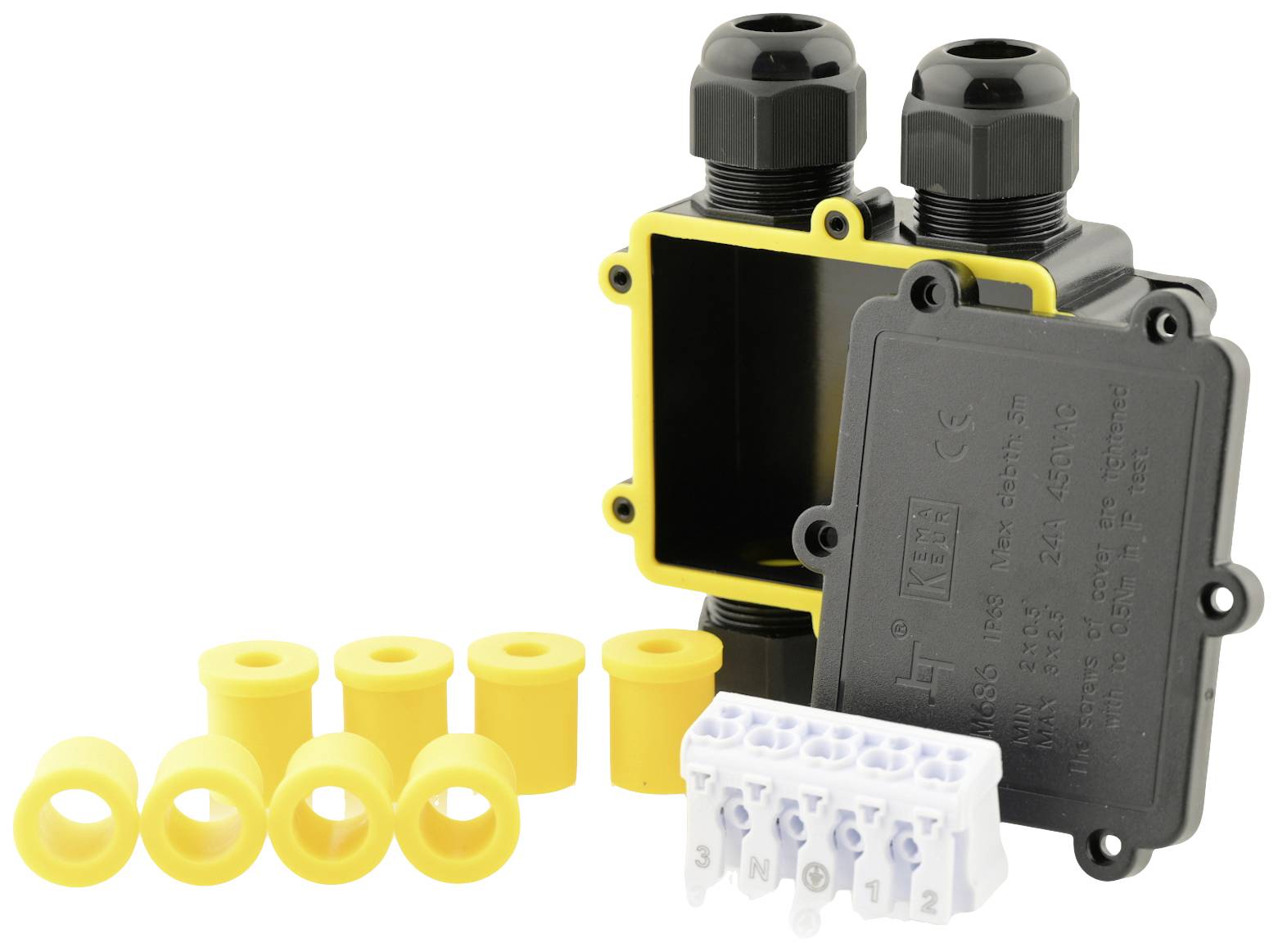

The casing comes with a M25 cable glands for cable cross-sections of 4-14mm and WAS for added stability. Matching reductions and terminal connections as well as terminals for conductor cross-sections of 0.5-2.5mm² are also included in the delivery. There are a total of two inputs and two outputs.

Our company attaches great importance to high quality and safe material. For this reason we have thoroughly tested these cases and they comply with the applicable standards in Europe.
