Brennenstuhl 1507490 Timer/power strip digital 7 day mode 23 h/59 min 3680 W IP44 Count-down mode, RND mode
EAN:
Part number:
Item no:
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.

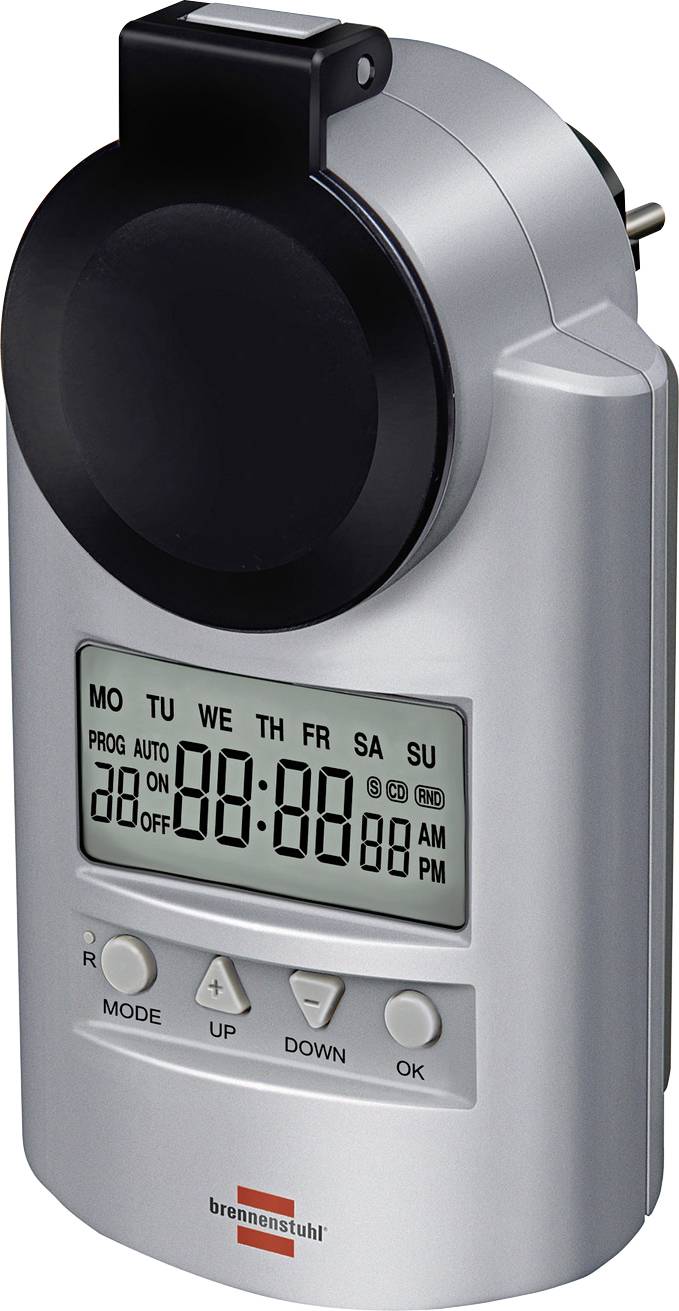

Digital weekly timer IP44
Highlights & Details
- Digital timer clock with extra large display, countdown, random function and with increased protection against accidental contactThe minimum switching distance of the time switch is 1 minuteSimple 4 -button operation allows 20 on/off programs with weekday, hours and minutes settingsWith countdown/random and manual on/off function
Technical specifications
- Countdown time 23 h/59 min
- Product type
Timer/power strip
- Type
digital
- Features
Count-down mode
RND mode
- Switching cycle
7 day mode
- Used at
Outdoors
IP44
- Max. switching capacity
3680 W
- No. of SPCs
20
- Block formation
Mon-Fri, Mon-Sat, Mon-Sun, Mon-Tu-Wed, Mon-Wed-Fri, Thu-Fri-Sat, Tue-Thu-Sat, Sun and Sat-Sun
- Operating voltage
230 V AC
- Switching current (max.)
16 A
- Factory colour
Silver
- Shortest switching time
1 min
- Summer/winter time
manual
- Width
65 mm
- Height
125 mm
- Depth
45 mm
- Type
Digital
- Dim
(W x H x D) 65 x 125 x 45 mm
- Use
Lighting and appliance control
- Max. timing range
23 h/59 min
- Weight
257 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 611762 Brennenstuhl 1507490 Timer/power strip digital 7 day mode 23 h/59 min 3680 W IP44 Count-down mode, RND mode
User & Safety Instructions 611762 Brennenstuhl 1507490 Timer/power strip digital 7 day mode 23 h/59 min 3680 W IP44 Count-down mode, RND mode
Conformity certificate
Conformity certificate 611762 Brennenstuhl 1507490 Timer/power strip digital 7 day mode 23 h/59 min 3680 W IP44 Count-down mode, RND mode
Description
The digital week timer from Brennenstuhl in silver is impressive due to its quality and safety in all areas. - Extra large display for days of the week, 12 and 24 hour hours, minutes and seconds, and for operating mode - 20 On/Off programs with weekday, hours and minutes setting - Easy 4 button operation - Shortest switching time 1 minute - Countdown function - Random function - Manual On/Off function - Practical housing construction. The light switch is not covered by the timer casing when it comes to switch/socket combinations - Interrupting running programs is possible - Data memory in the event of power failure - Practical housing construction. The light switch is not covered by the timer casing when it comes to switch/socket combinations - Including NiMH battery - Outlet with increased contact protection - Nominal voltage: 230 V. - Nominal current: 16 A.
This text is machine translated.
This text is machine translated.
Features
- Interrupting the running program is possible
- Data storage in case of power failure
- Practical housing construction. The light switch is not covered by the timer casing when it comes to switch-socket combinations
- Extra large display for weekdays, 12 and 24 hour hours, minutes and seconds, and operating mode.
Scope of delivery
- With 6 bits. Battery for data retention, cannot be changed.
