Name: Brennenstuhl Industrial power distributor Profi BSV 5-32A FI 9150328060 400 V 32 A
Brand: Brennenstuhl
SKU: 3314800
Availability: BackOrder

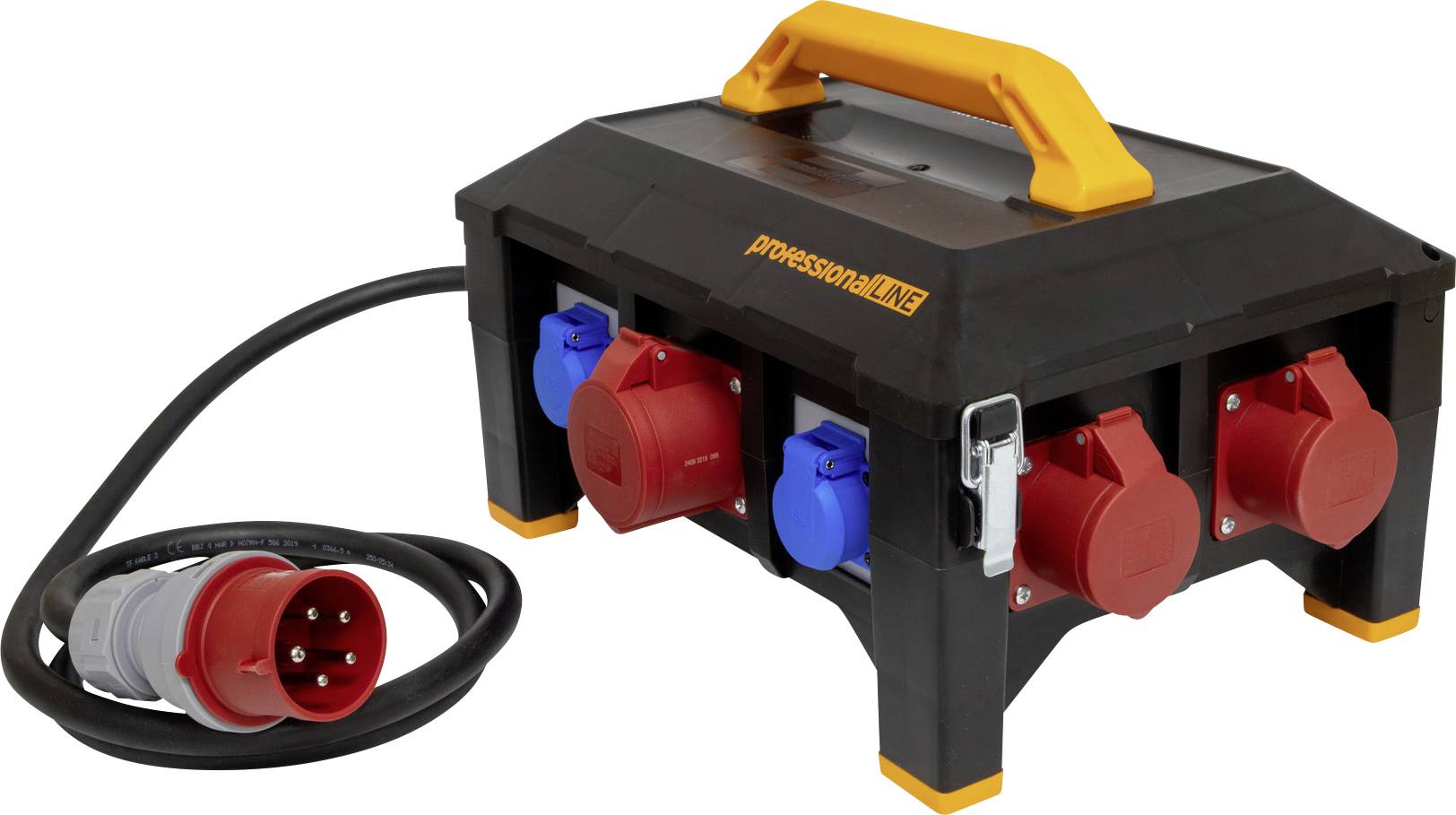

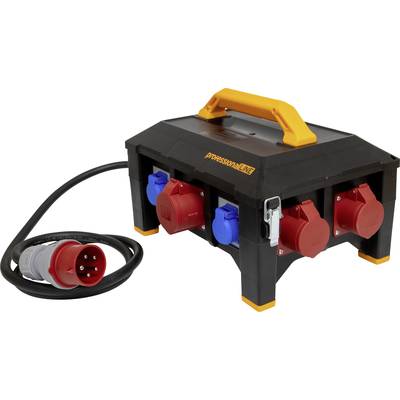

Black electrical distribution unit with a yellow handle and multiple red and blue power sockets. Cables and plugs are located on the side.

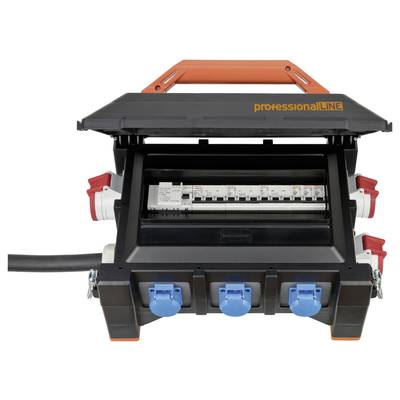

A black distribution box with four blue sockets at the bottom and an open lid with 'professionalLINE' written on it. Two red connections are located on the right and left sides.

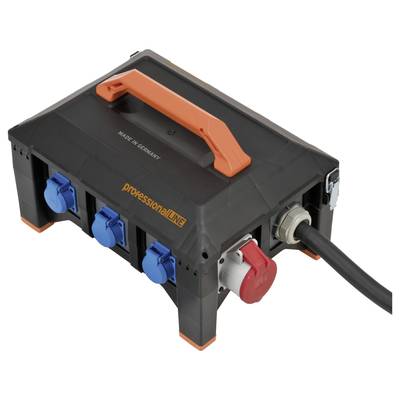

Black, portable power distribution unit with an orange handle, four blue sockets and one red high-power socket.

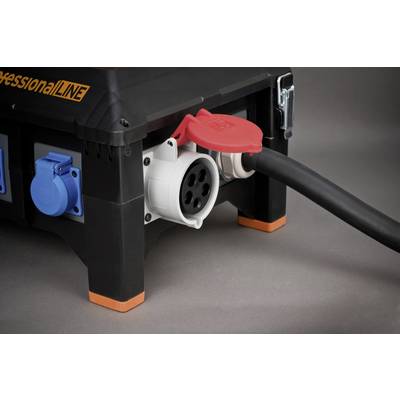

A black and orange extension lead is connected to a professional power strip with multiple blue electrical sockets.

A black electrical distribution box with red and blue sockets, a blue cap open. Background in grey.

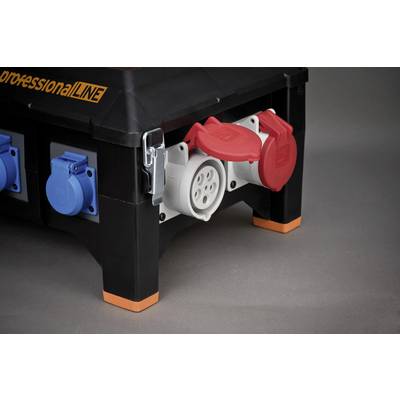

'Black distribution box with multiple blue and red sockets, labelled with "professional LINE".'

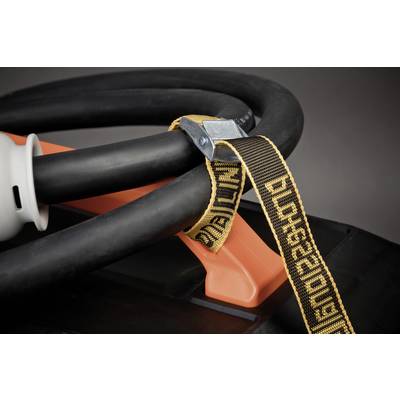

A black hose is secured with an orange holder and a yellow-black strap.

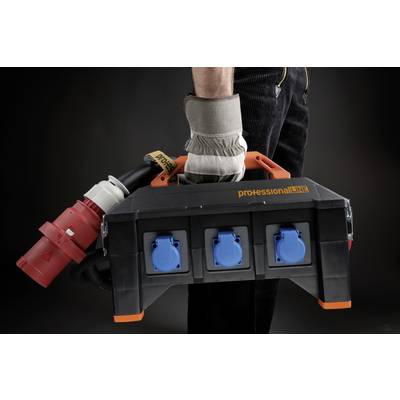

A person is holding a large black cable reel with blue sockets and a thick red plug, accompanied by a grey glove.

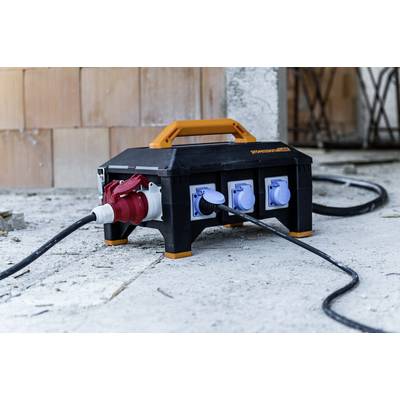

A mobile construction site power distribution unit with multiple blue sockets and a red industrial plug. It is standing on a concrete floor.

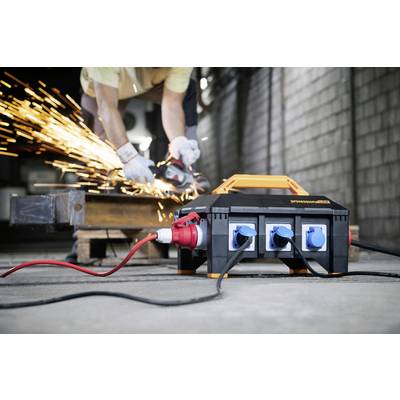

A person is grinding metal with an angle grinder. A power strip is in the foreground. Sparks are flying around.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 609.00 / piece)

€ 609.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Professional line rubber power distributor BSV 5 4/5 N560 AT 32A FI 2m H07RN-F 5G6.0 2xCEE 400V/32A, 2xCEE 400V/16A, 5x protective contact 230V/16A

Fuse elements (FI and LS switches) in the distributor interior.
High reliability through connection of 1 safety contact sockets each 230V at a LS-switch.
Extremely robust, impact-resistant, resistant to aging and weather.
Resistant to various oils, greases, petrol and acids, UV and ozone radiation.
Self-closing lid with snap closure and robust hinges.
Oil resistant rubber cable for continuous use in outdoor areas.
High-quality power sockets in accordance with VDE 0620-1.
CEE sockets with nickel-plated contacts.
Connected power from 11 to 22 kVA.
With FI-circuit breaker.
Operates several consumers at a three-phase/high-current connection point with plug-in systems according to IEC 60309.
Belt for cable fixing.
This text is machine translated.

Technical specifications

Plug system CEE 32A 3P+N+PE (5p) 400V
CEE socket system: CEE 2x 16A 3P+N+PE (5p) 400V, CEE 2x 32A 3P+N+PE (5p) 400V
Socket system: Type F (protective contact)

Product type: Industrial power distributor

No. of CEE connectors: 4

Type A: CEE plug (5-pin, 32 A)

Type B: CEE socket (5-pin, 32 A)
CEE socket (5-pin, 16 A)
PG socket

No. of PG sockets: 5

Outputs: CEE 2x 16A 3P+N+PE (5p) 400V, CEE 2x 32A 3P+N+PE (5p) 400V; 5x type F (protective contact)

Nominal input voltage: 400 V

Nominal input current: 32 A

: IP44

Cable length: 2 m

Cable standard: H07RN-F 5G 6 mm²

Factory colour: Black

Weight: 7800 g

Dim: (L x W x H) 310 x 530 x 300 mm

Length: 310 mm

Width: 530 mm

Height: 300 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3314800 Brennenstuhl Industrial power distributor Profi BSV 5-32A FI 9150328060 400 V 32 A

User & Safety Instructions

User & Safety Instructions 3314800 Brennenstuhl Industrial power distributor Profi BSV 5-32A FI 9150328060 400 V 32 A

Features

Light and mobile power distribution for outdoor use, IP 44.
Ergonomically designed carrying handle with recessed handle for convenient transport even with thick work gloves.
High and non-slip rubber feet against floor-related impurities.

Scope of delivery

Profi BSV 5-32A FI 2m H07RN-F5G6

System requirements

Suitable power connection

Description

Features

Light and mobile power distribution for outdoor use, IP 44.
Ergonomically designed carrying handle with recessed handle for convenient transport even with thick work gloves.
High and non-slip rubber feet against floor-related impurities.
