Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

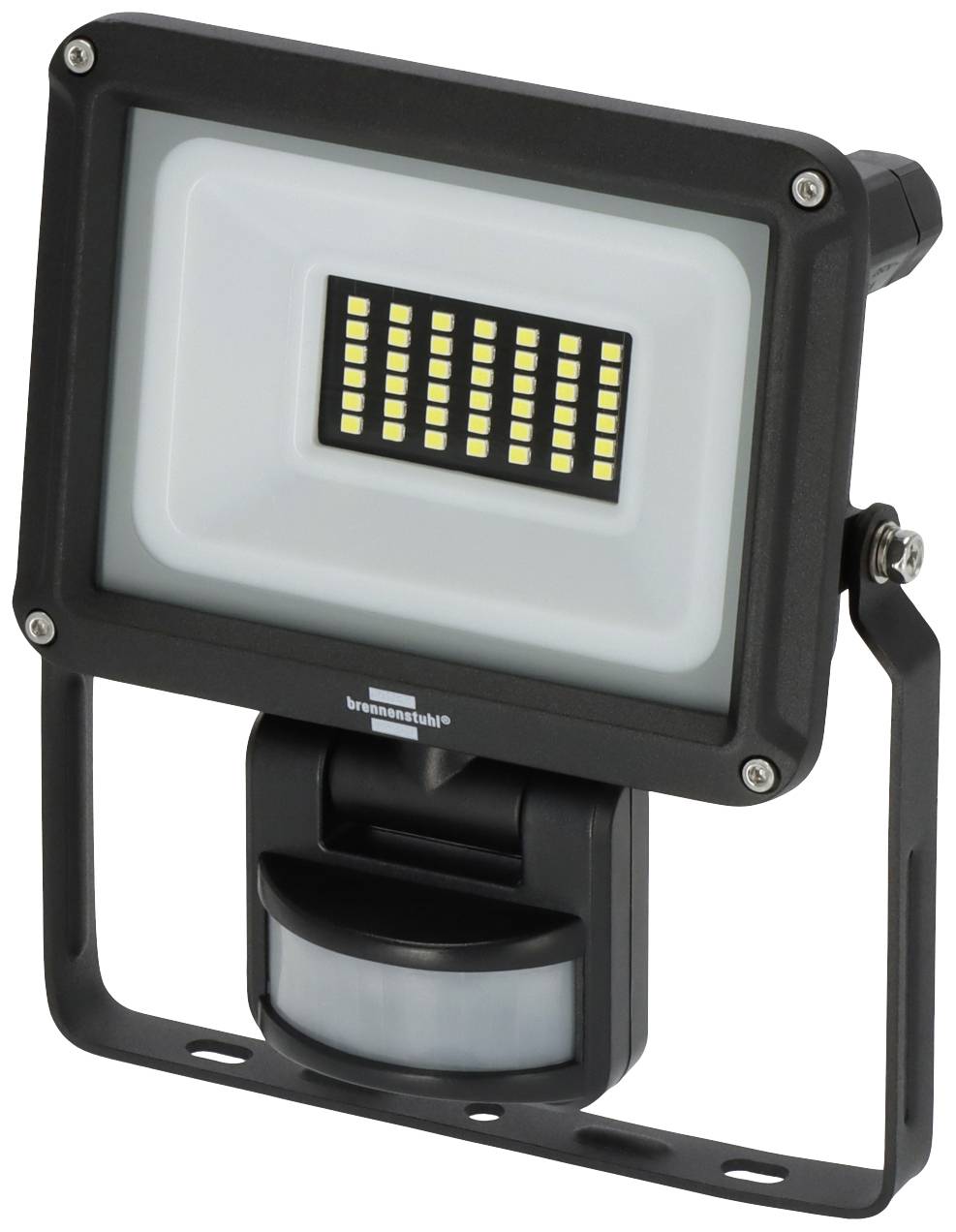

Black LED floodlight with motion sensor and adjustable mounting bracket on a white background.

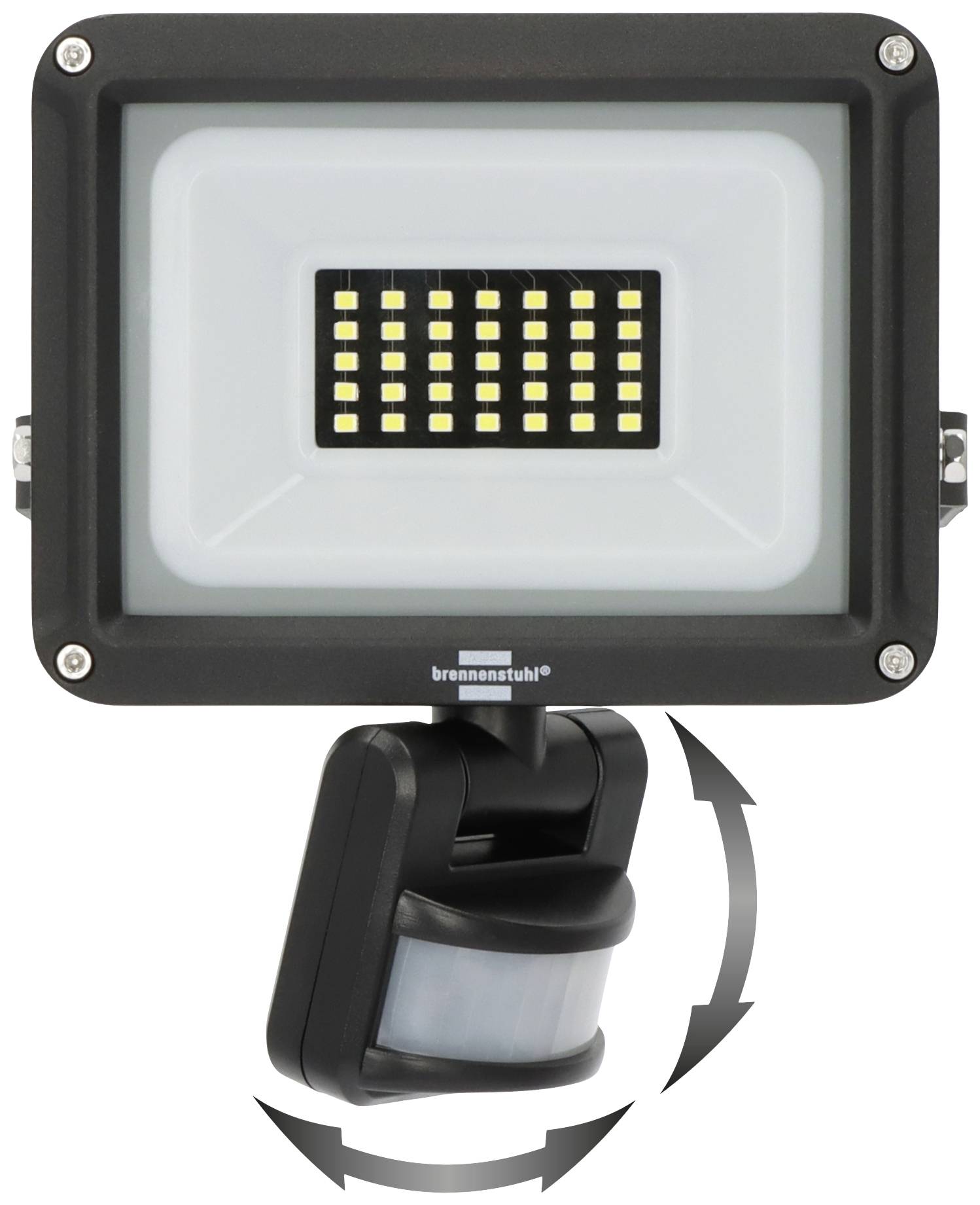

LED floodlight with motion sensor, shown with a rotating adjustable mount for angled positioning.
Black LED floodlight with attached motion sensor on a U-shaped stand, shown against a white background.

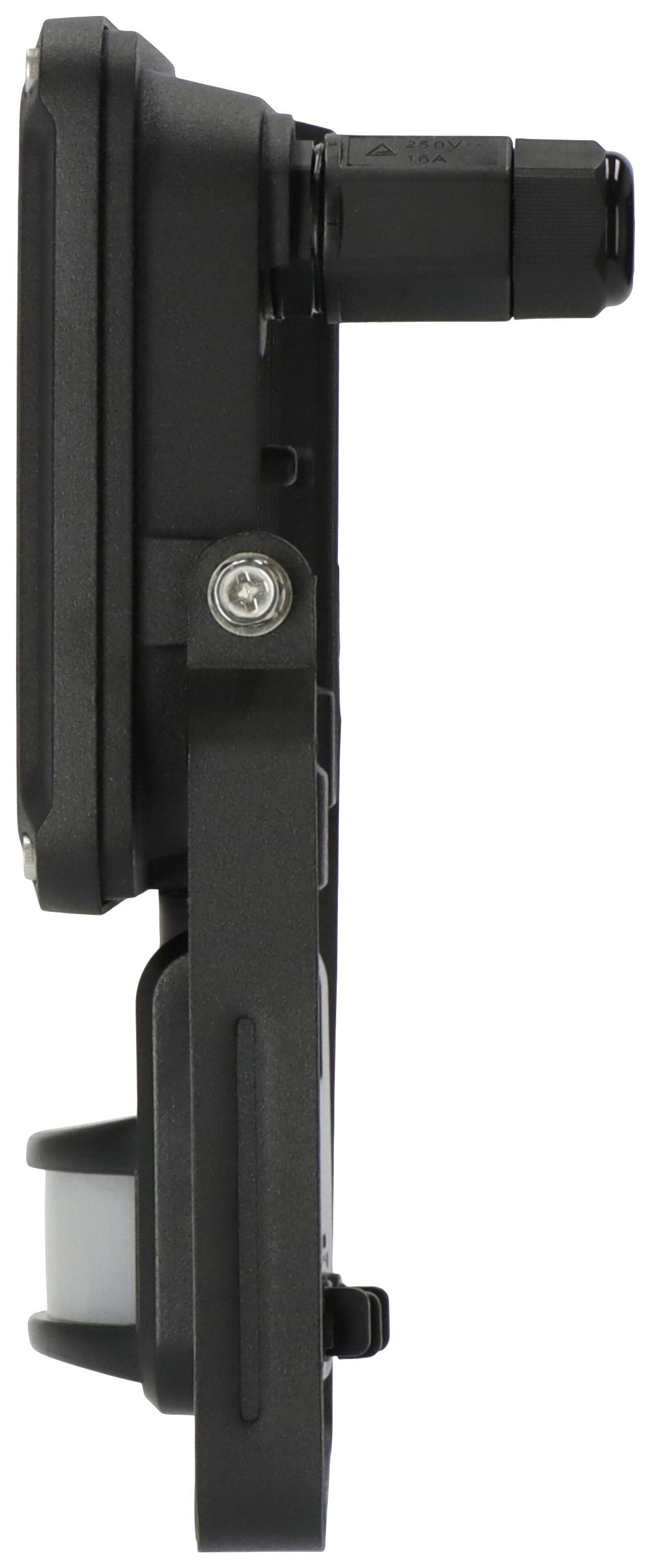

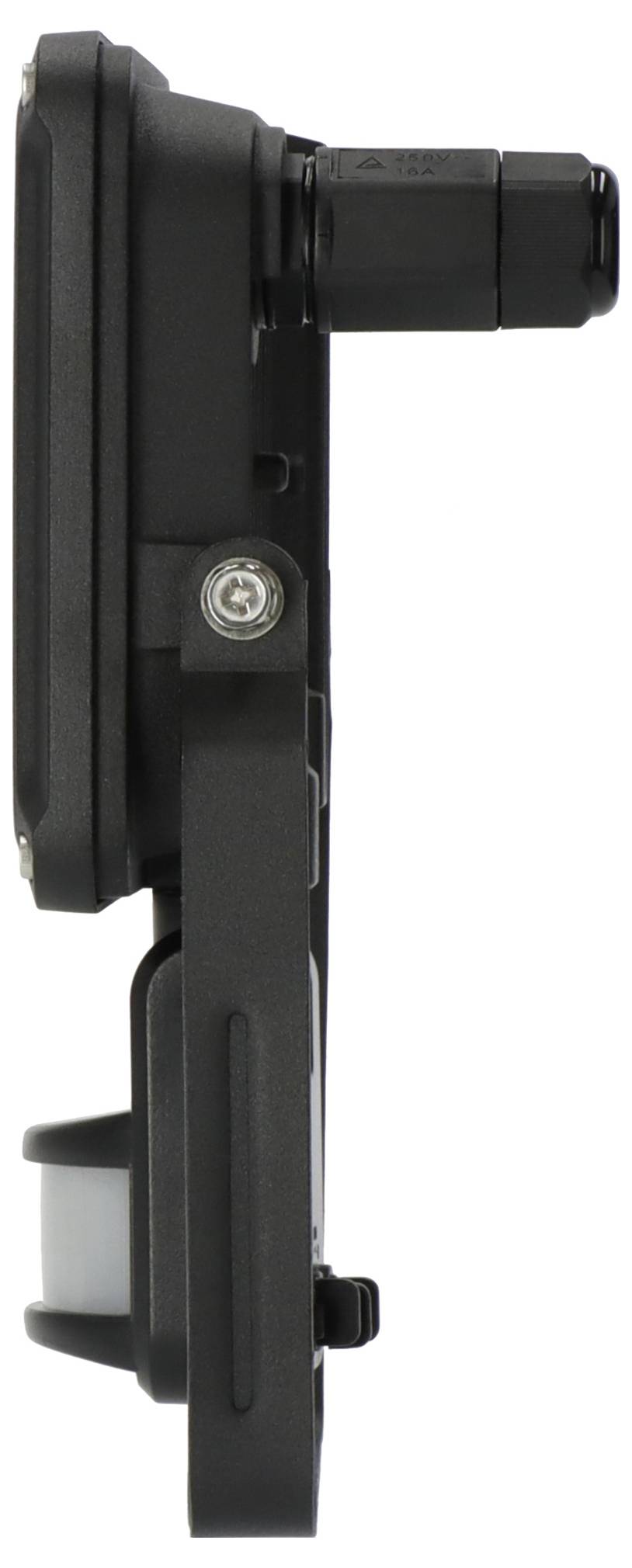

Side view of a black wall-mounted electronic device with a protruding cylindrical lens or sensor and a small motion sensor below.

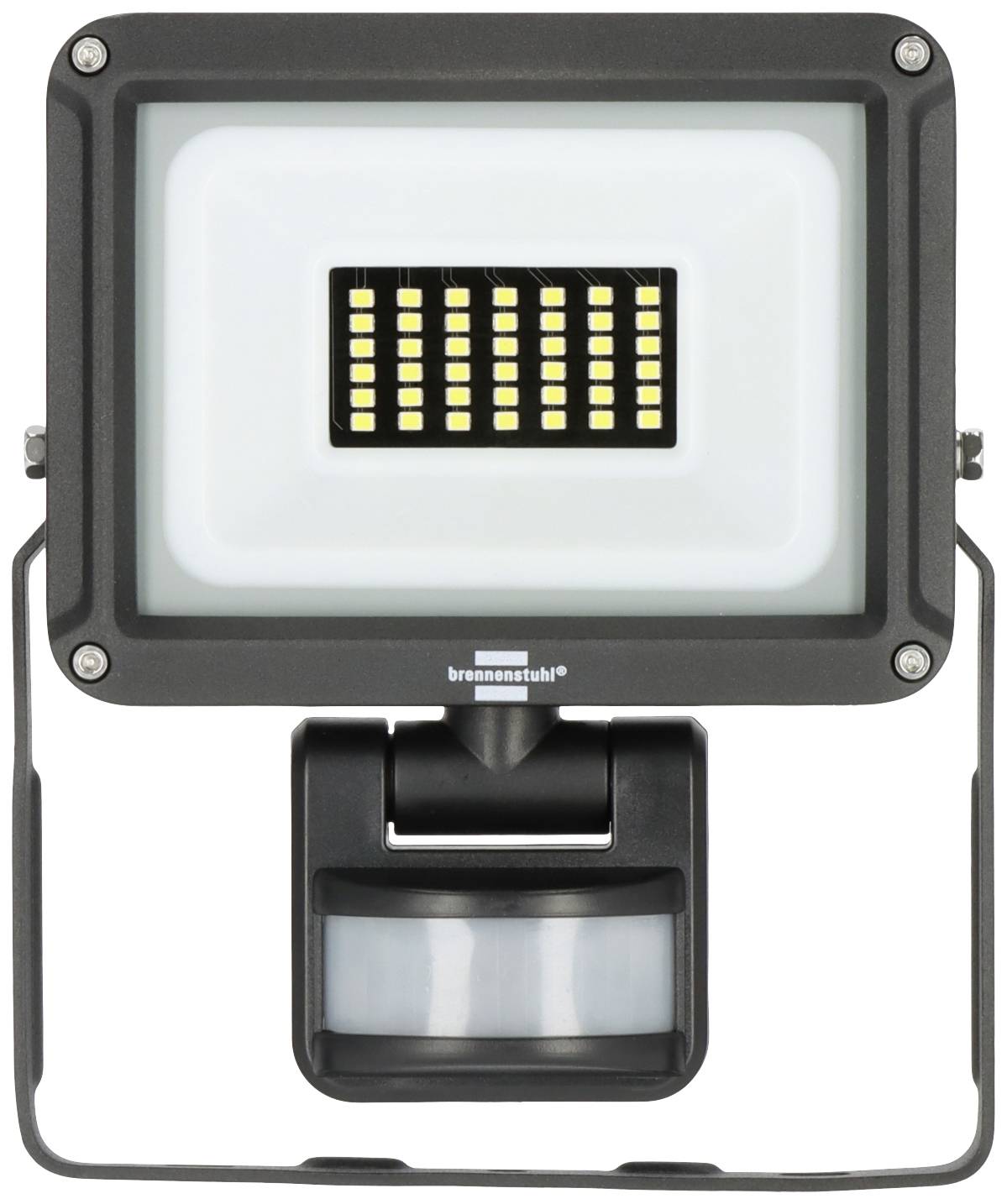

Black rectangular floodlight or projector housing with a mount bracket, shown front view on a white background.

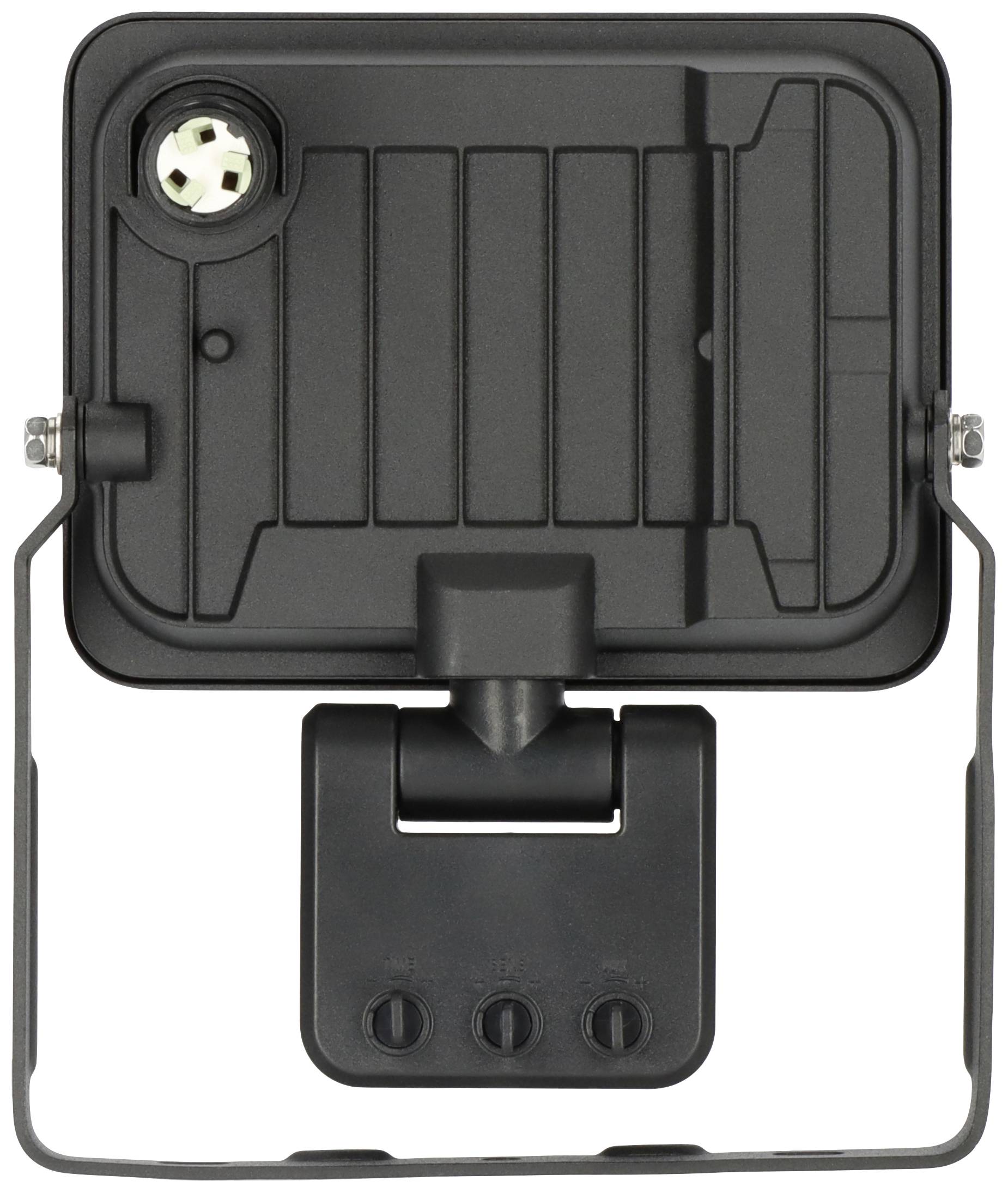

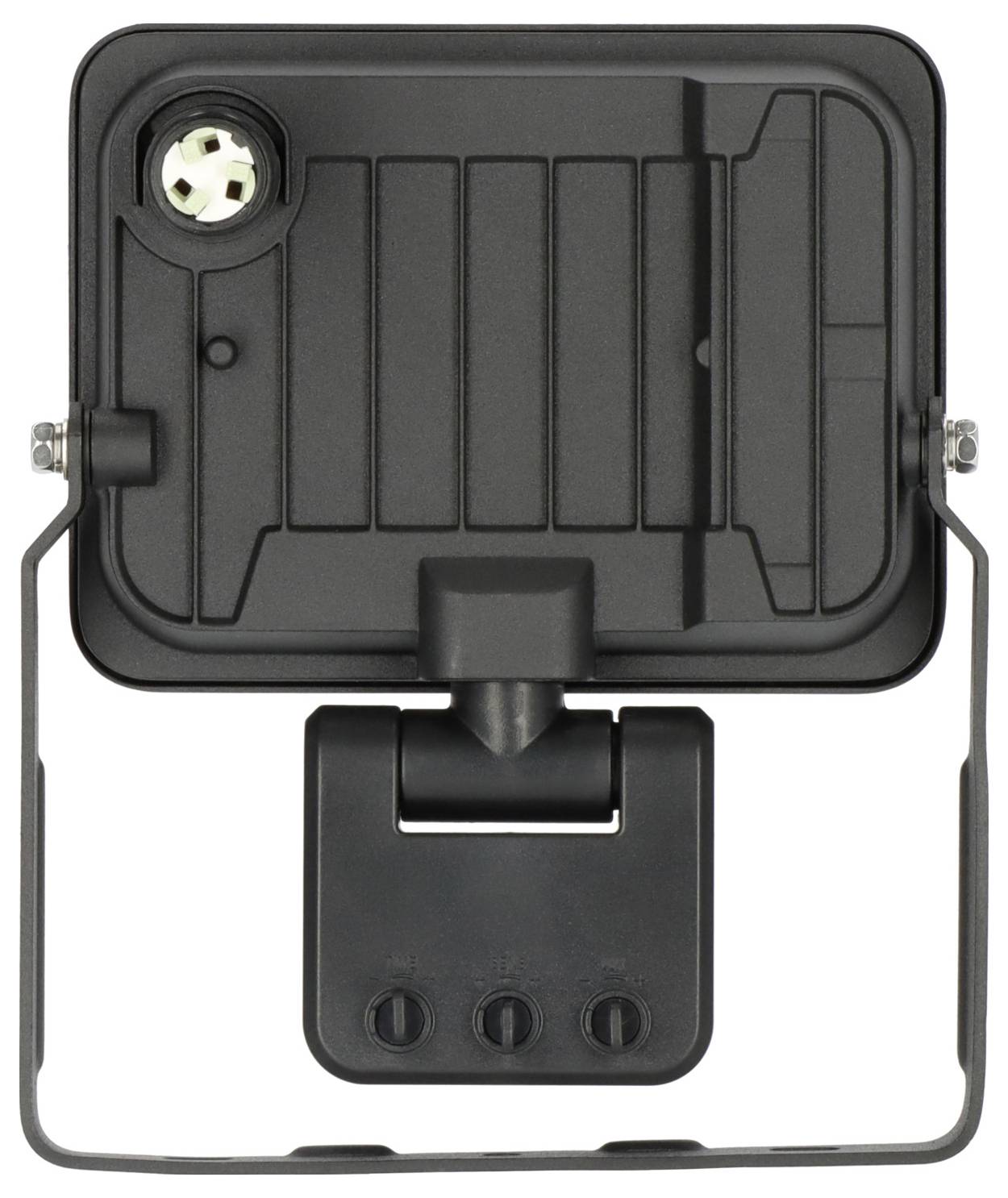

Black rectangular outdoor floodlight fixture with adjustable mounting bracket and a single bulb socket visible inside the housing.

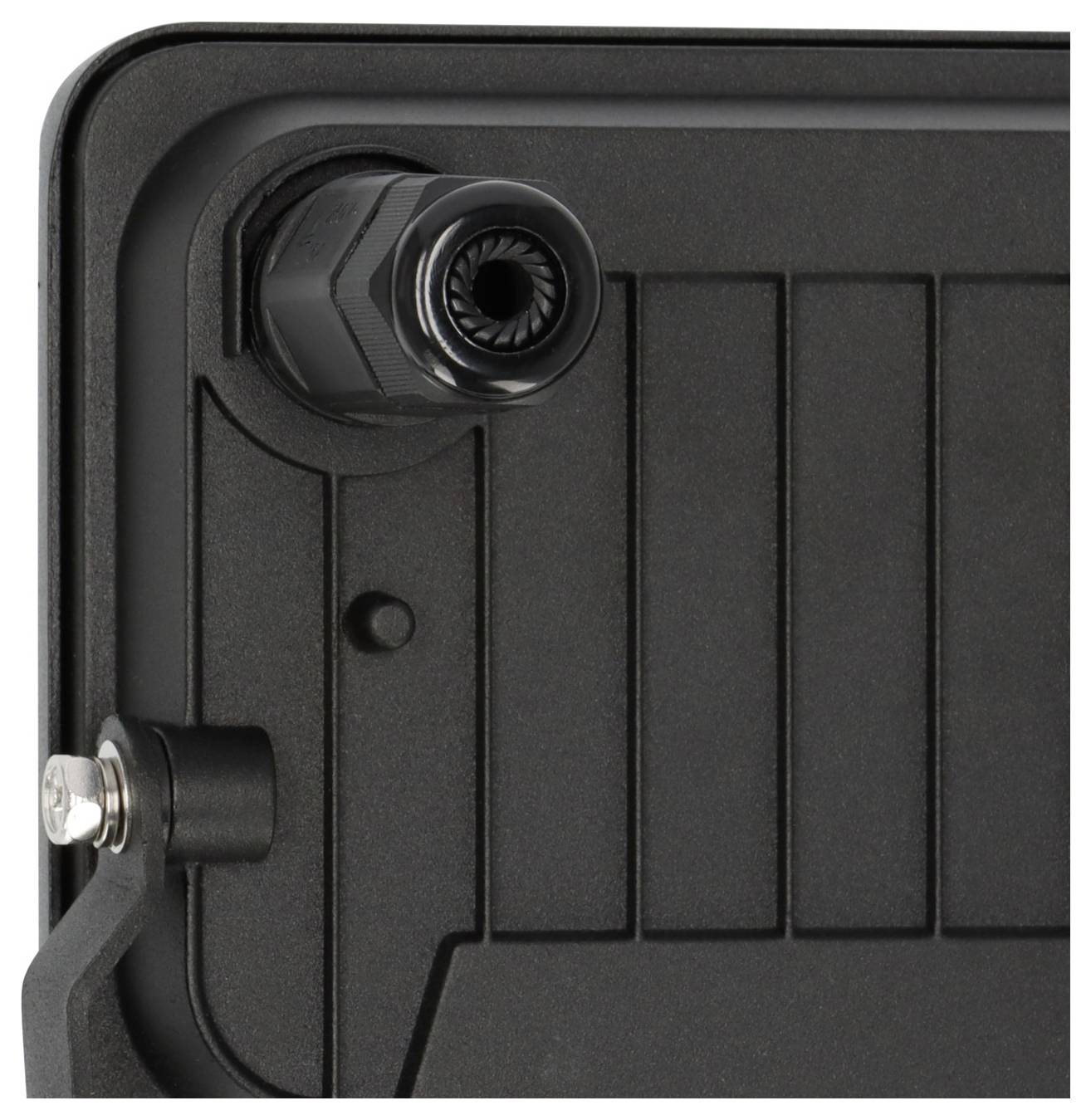

Close-up of a black electronic device or enclosure showing a side panel with a threaded connector and mounting hardware.

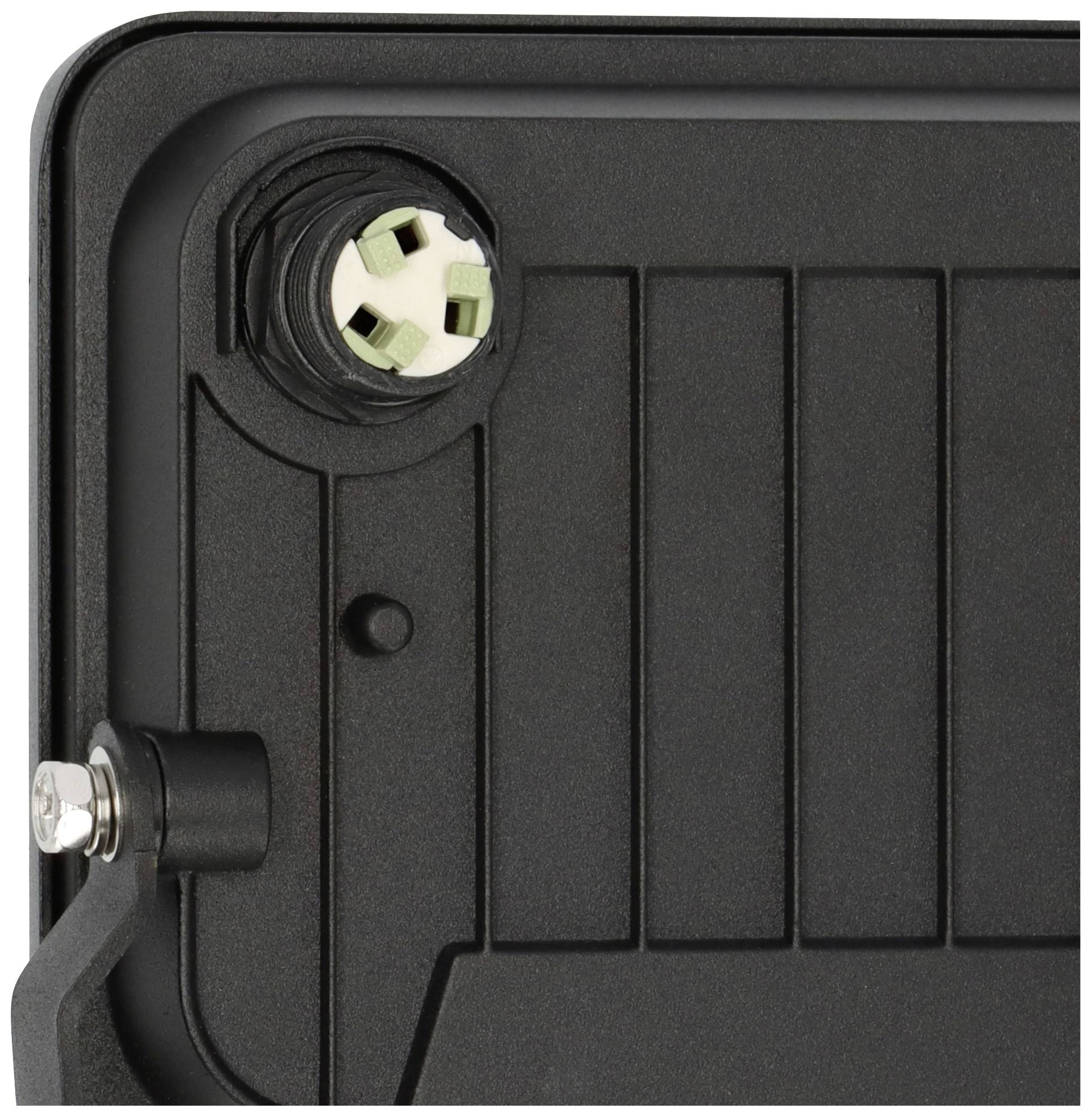

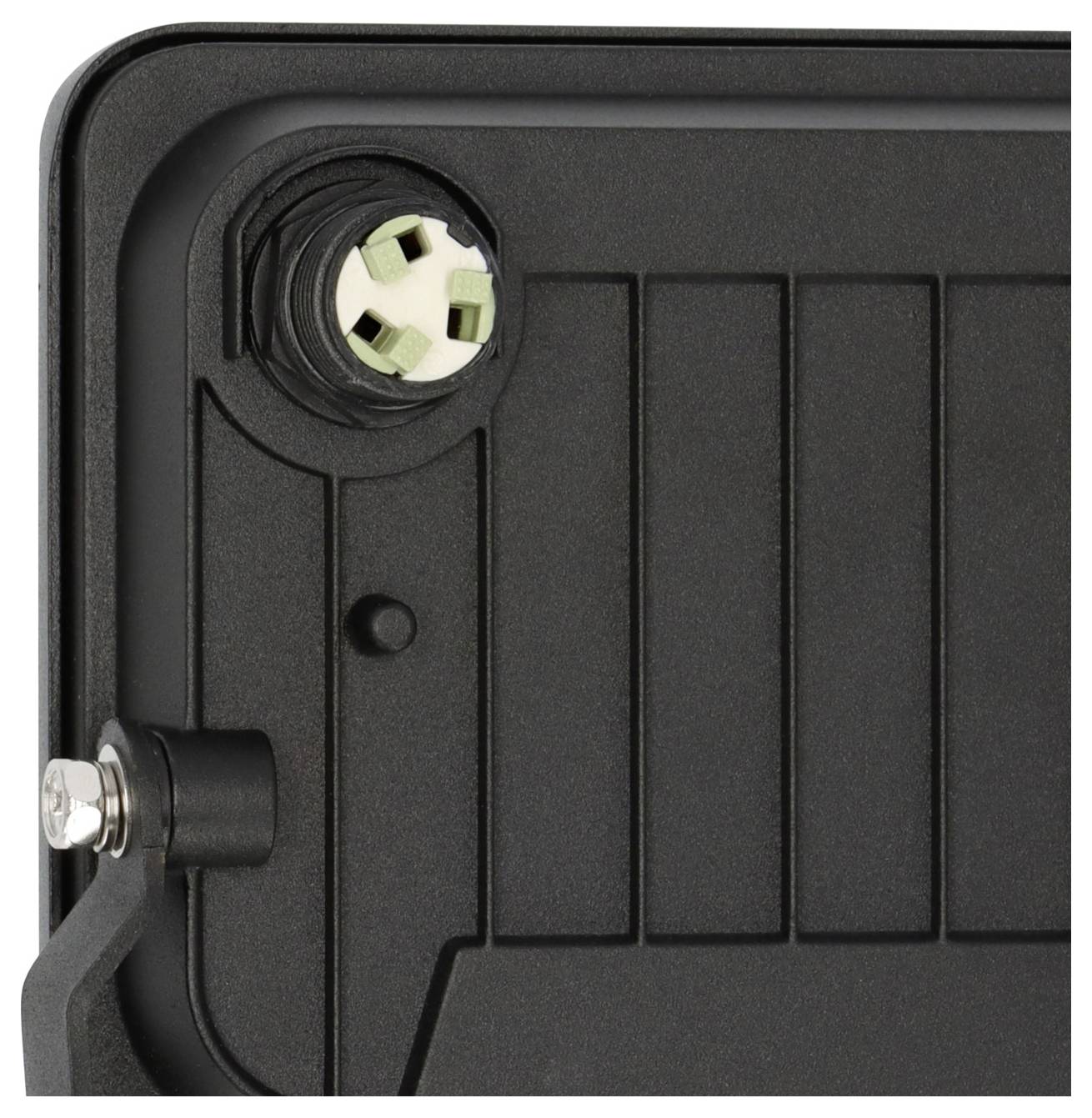

Close-up of a black plastic device panel with a circular connector opening and a metal screw latch on the left side.

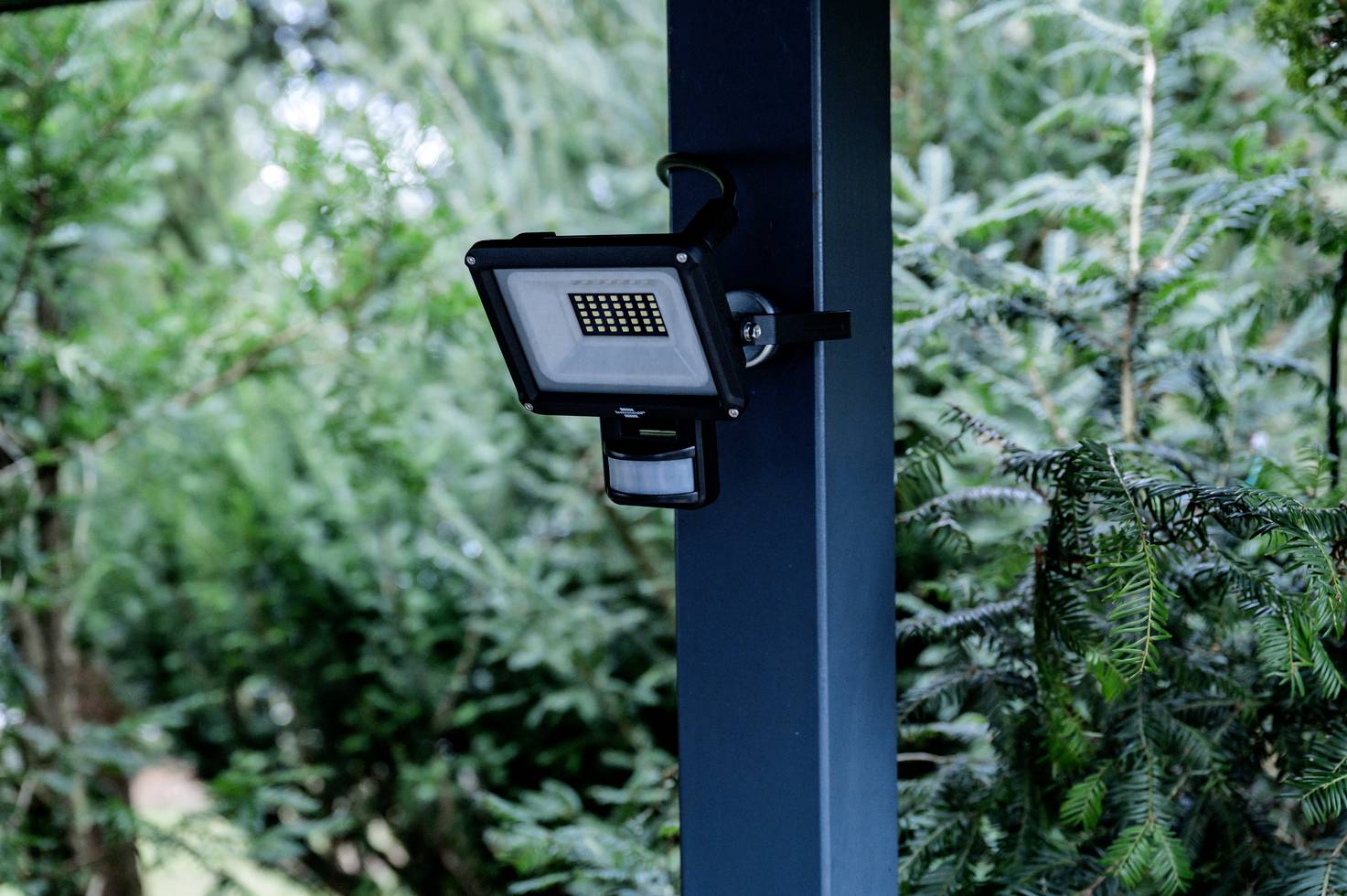

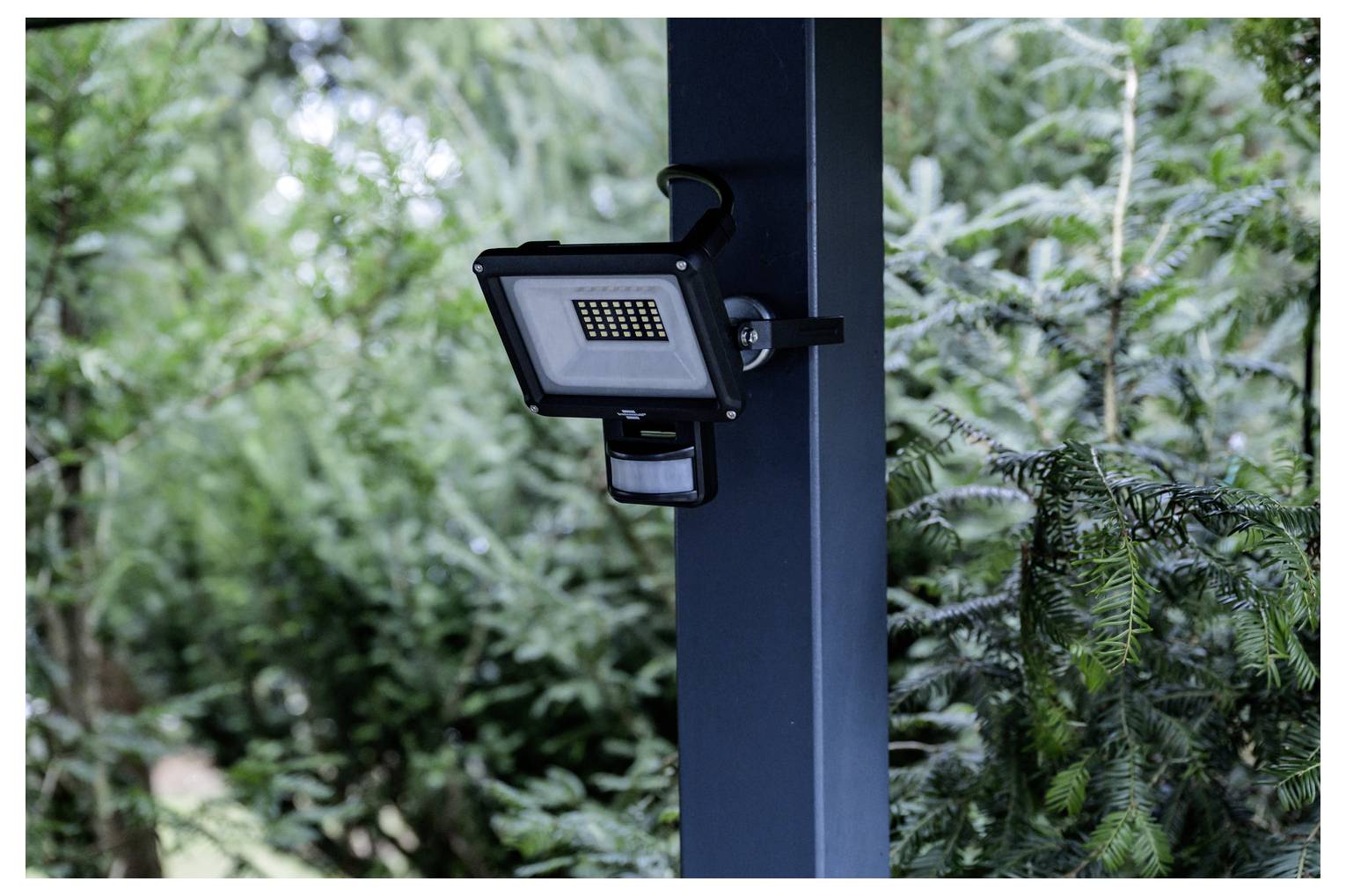

Motion-activated outdoor security light mounted on a dark metal post, with dense green foliage in the background.

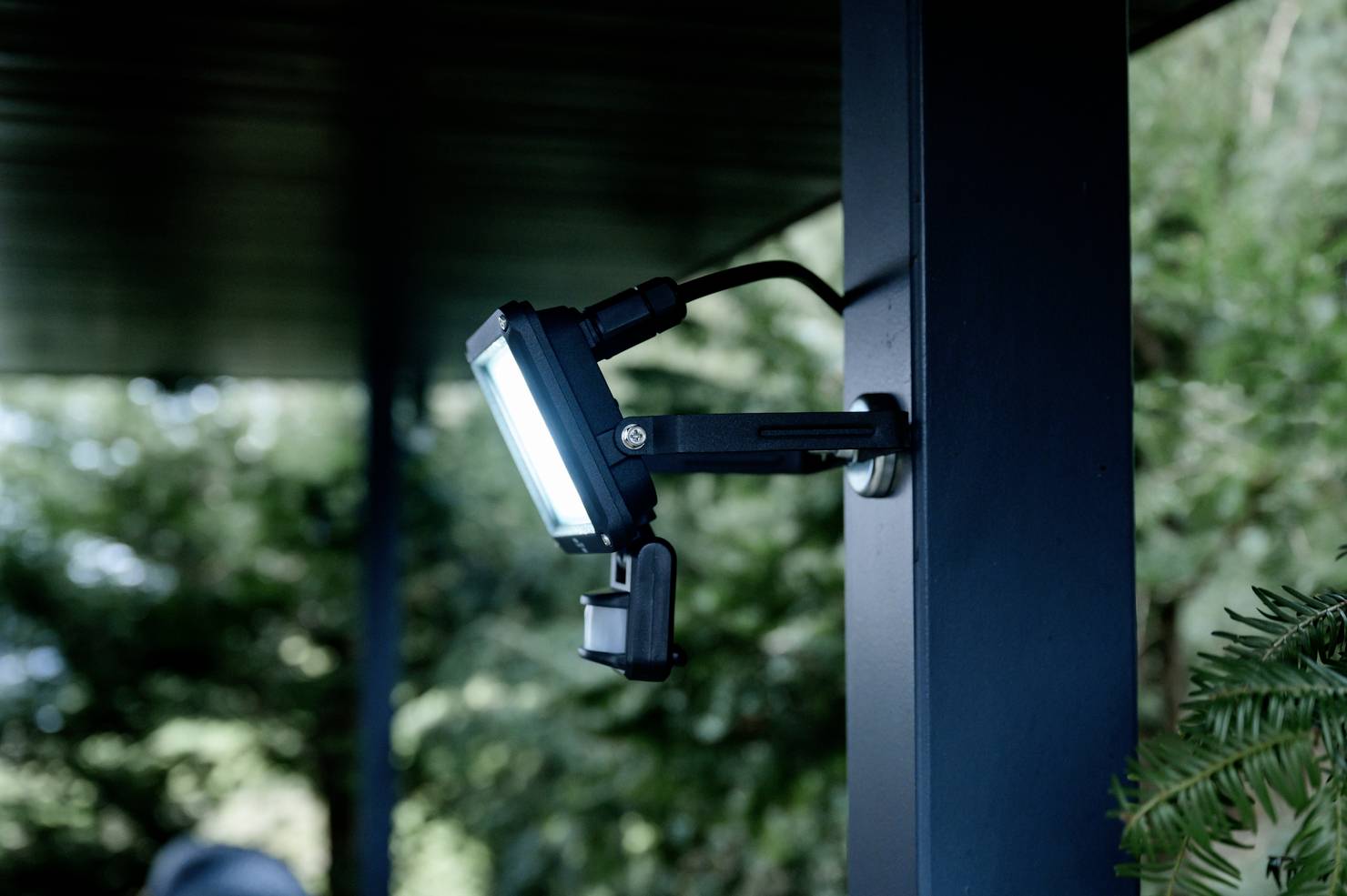

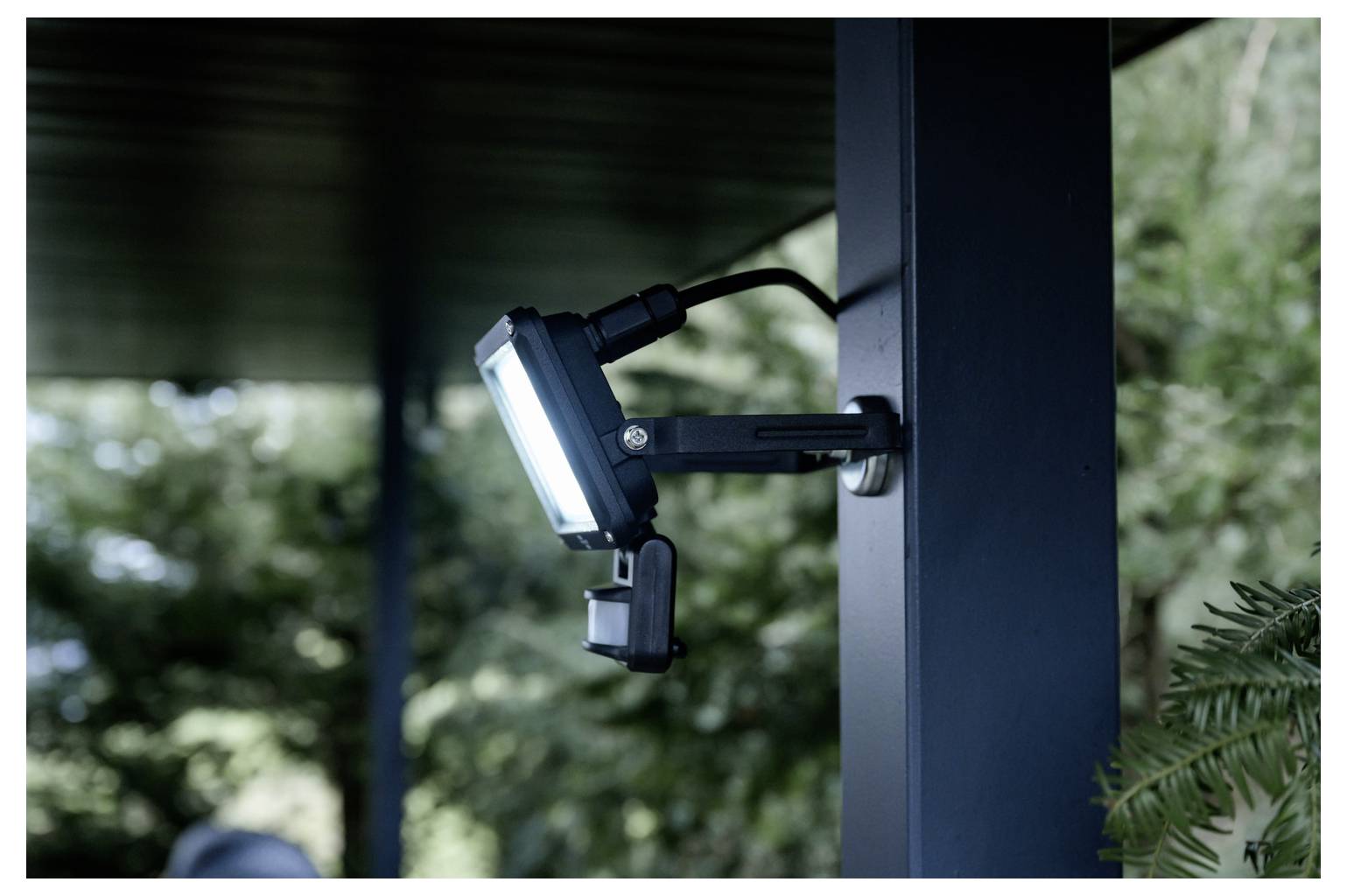

A mounted LED security light on a dark post under a roof, aimed outward outdoors with blurred trees in the background.

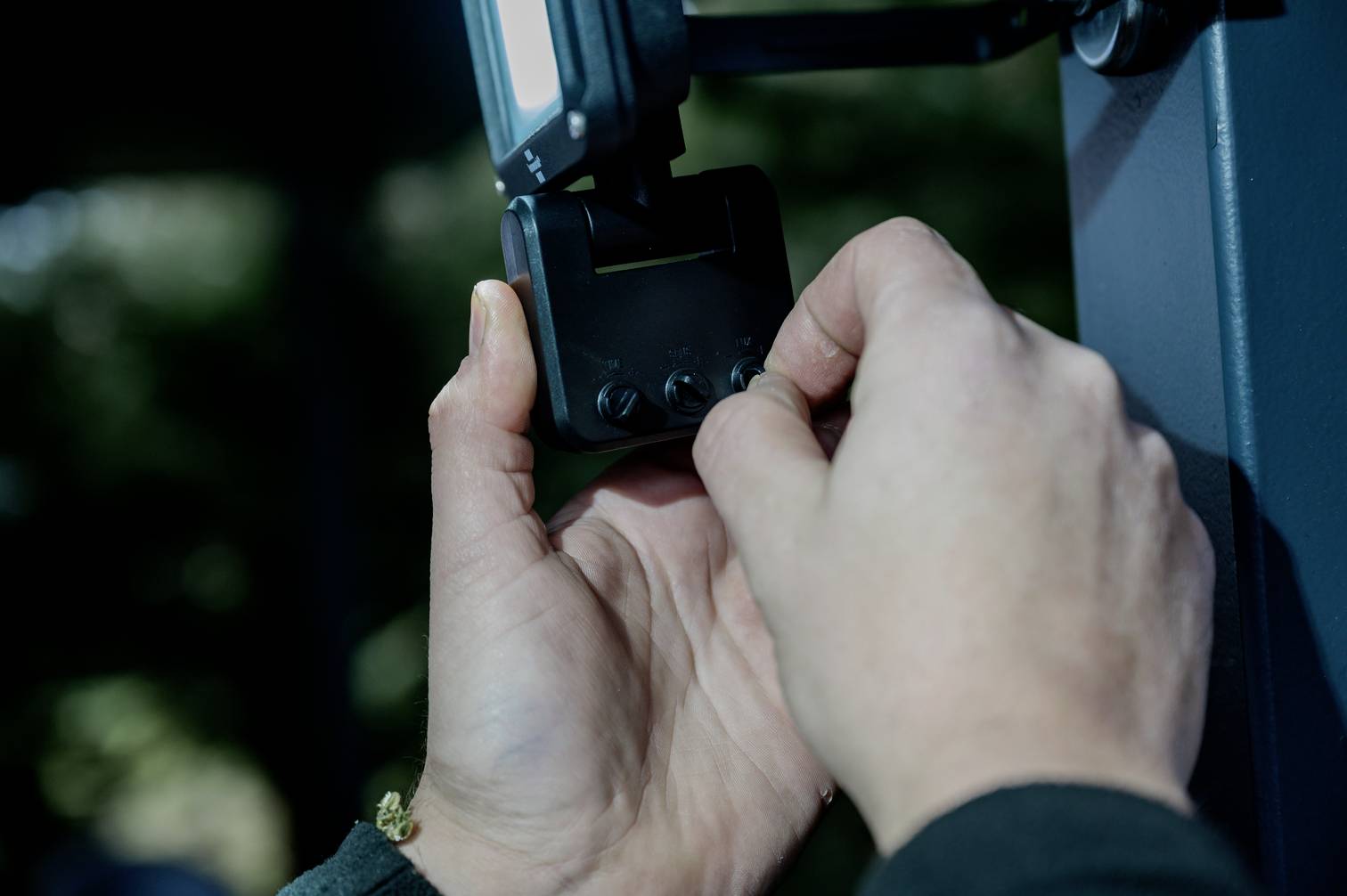

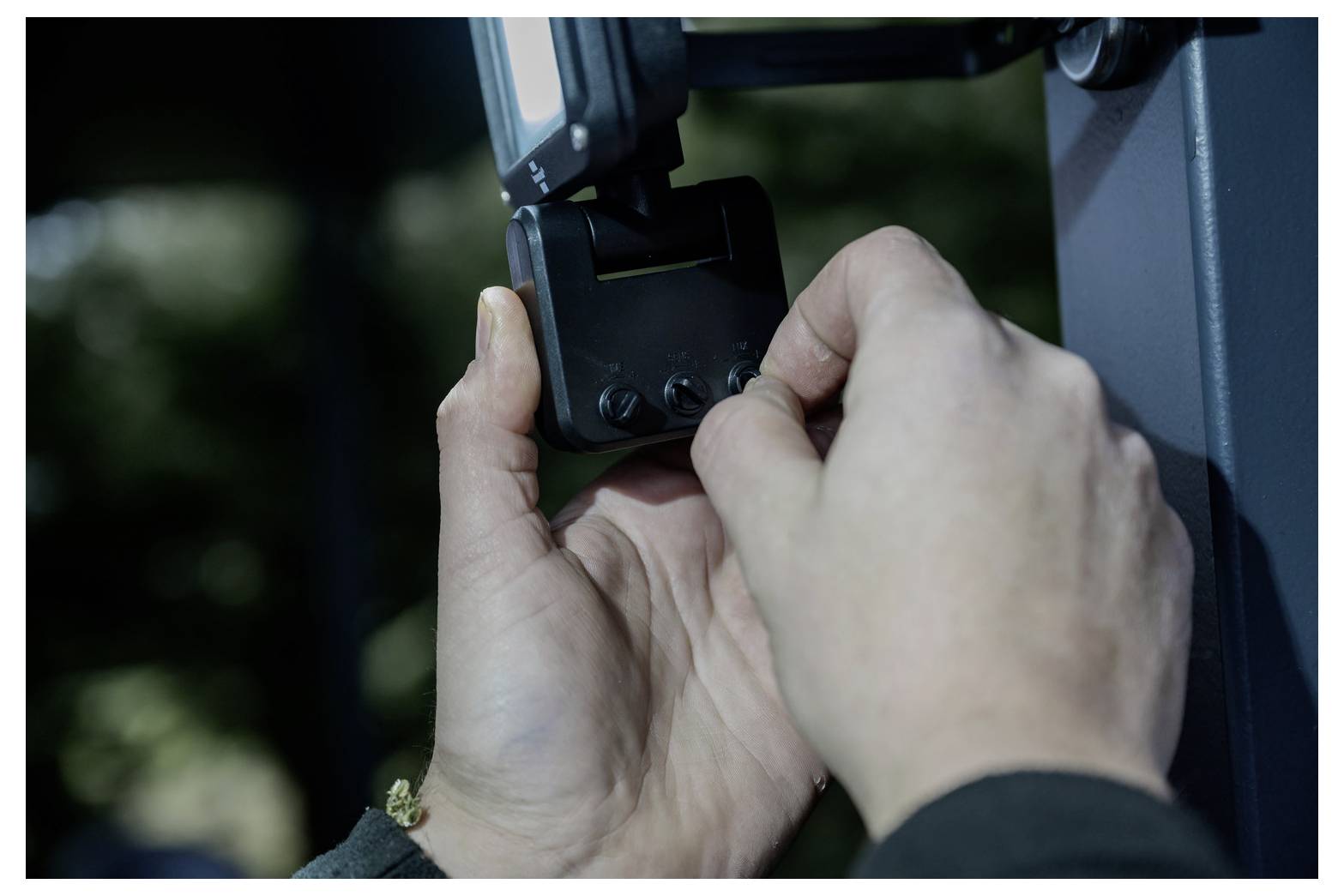

Close-up of hands adjusting a small black device mounted on a metal surface outdoors.

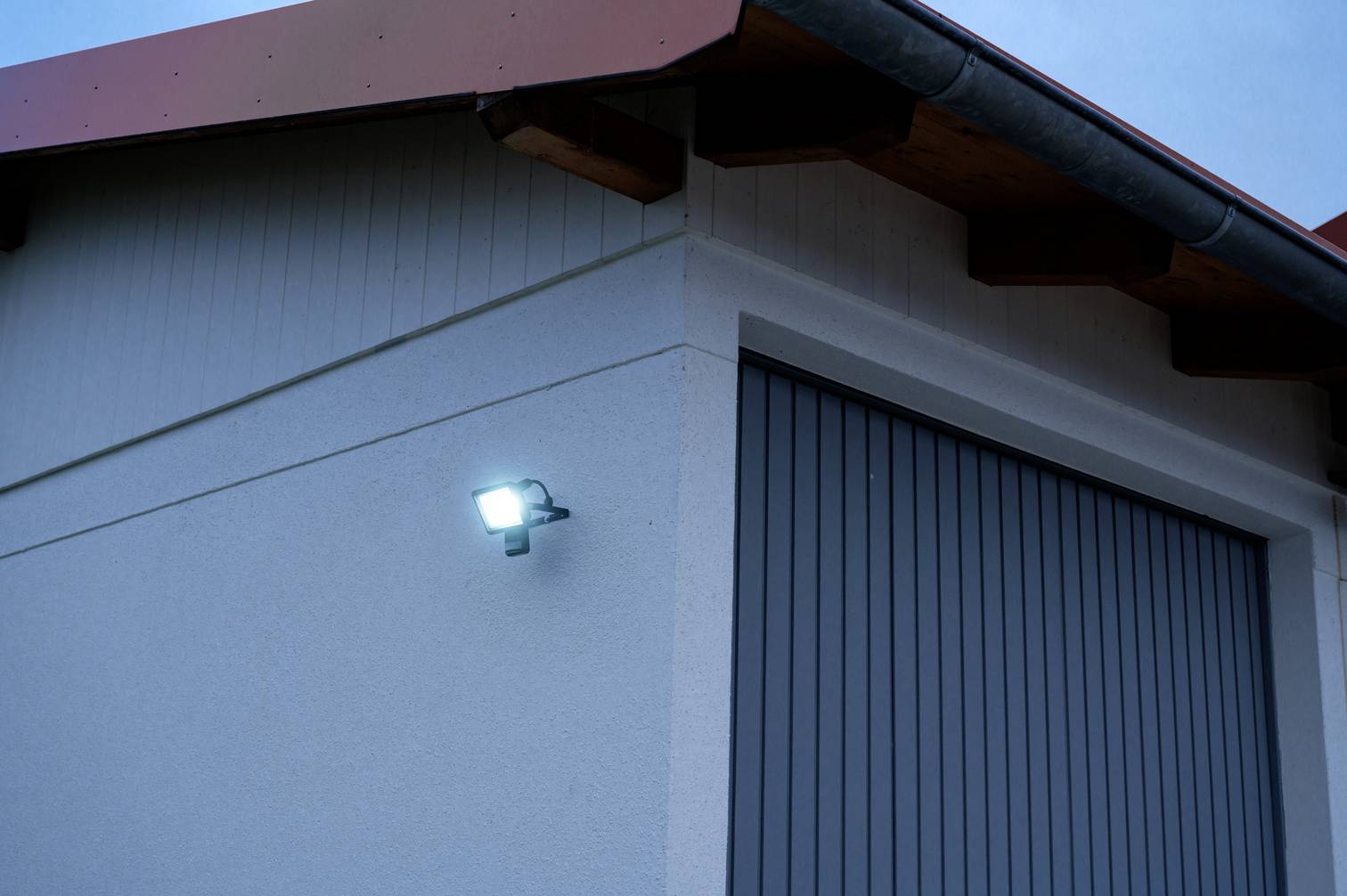

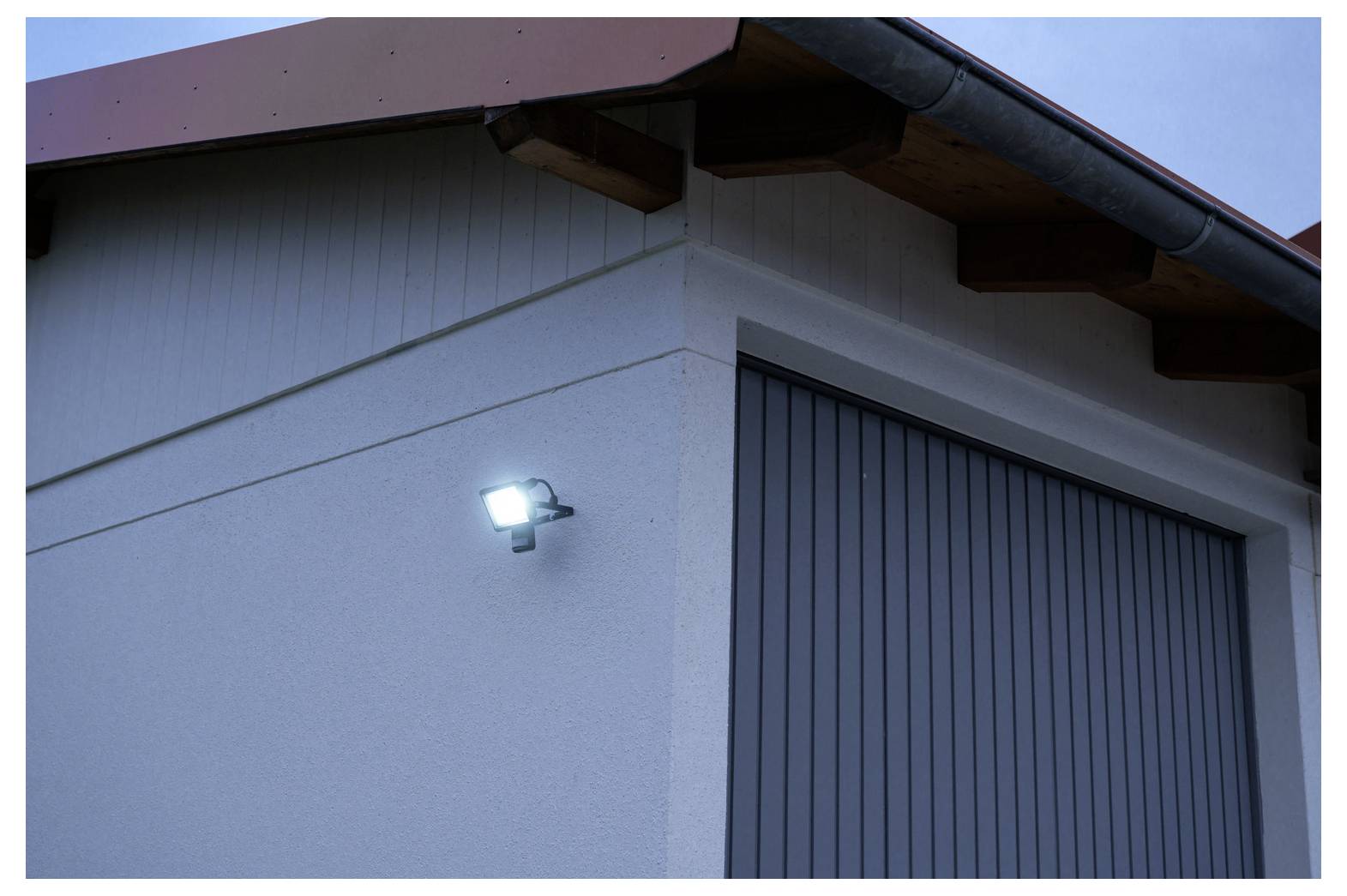

Outdoor wall light illuminating the corner of a house exterior with a sloped roof and closed garage door at dusk.
1/12
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 17 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED lamp JARO 3060 P 2300LM, IP65, PIR

  • Power= 20 W
  • Total luminous flux= 2300 lm
  • Colour temperature= 6500 K
  • Daylight white
  • Red circular warning sign with falling person icon and sound-wave symbol, labeled '10m MAX.'<br>
  • Red circular impact resistance rating symbol labeled 'IK08' with a hammer striking an object.<br>
  • Red IP65 rating symbol with a cloud and rain, indicating protection against dust and low-pressure water jets.
  • Red circular icon with white curved signal waves above the text '180°'.
  • Yellow right-pointing arrow labeled 'D' with a left white strip showing 'A' above an upward arrow above 'G'.

Technical specifications

Product type

LED outdoor floodlight (+ motion detector)

Operating voltage

230 V

Bulb type

LED (monochrome)

Built-in LED

20 W

Energy consumption

20 kWh/1000h

6500 K

Colour

Daylight white

Total luminous flux

2300 lm

PIR detection angle (horizontal)

180°

Coverage max. (width)

10 m

Adjustable on-time (min.)

10 s

Adjustable on-time (max.)

5 min

Light features

Incl. motion detector

Swivelling

Protection class

I

IP65

IK08

Factory colour

Black

Material

Aluminium

Safety glass

Weight

500 g

Dim

(L x W x H) 50 x 150 x 183 mm

D (A - G)

Type

Rectangular

Colour rendering index

80 - 89

Light bulb included

Yes

Width

150 mm

Height

183 mm

Length

50 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

User & Safety Instructions

User & Safety Instructions 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

User & Safety Instructions 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

User & Safety Instructions 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

User & Safety Instructions 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

Information

Information 2909394 Brennenstuhl JARO 3060 P 1171250242 LED outdoor floodlight (+ motion detector) EEC: D (A - G) 20 W Colours (LEDs): Dayli

Description

The JARO 3060 P LED spotlight for wall mounting of Brennenstuhl is an extremely energy-efficient 20 W power LED floodlight that fulfills the highest demands. With a glass pane for additional shock protection, this floodlight is suitable for both indoor and outdoor use. The built-in Everlight SMD LED light convinced by its exceptionally long life and its special light scattering for large area illumination. The infrared motion detector provides for an ideal, automatic illumination of, for example, entrances, driveways or carport and thus provides increased safety. In addition, the light convinces through the following features:

- IP65 degree of protection (dust-proof and water-proof)
- Motion detector can be rotated horizontally and vertically
- Coverage range up to 10 m, detection angle approx. 180°
- Power-on time adjustable from approx. 10 seconds to approx. 5 minutes
- With adjustable twilight switch
- Adjustable retaining bracket for mounting
- Power: 20 W.
- Luminous flux: 2300 lm
- Front glass made of safety glass
- Colour temperature: 6500 K.

This text is machine translated.

Scope of delivery

  • LED emitter JARO 3060 P with infrared motion detector
