Brennenstuhl SOL 1000 Cubus 1173740001 Solar outdoor wall light 6.9 W Colours (LEDs): Neutral white

A wall-mounted dark gray rectangular light fixture with a small sensor or lens on the left and the 'brennenstuhl' logo on the right.

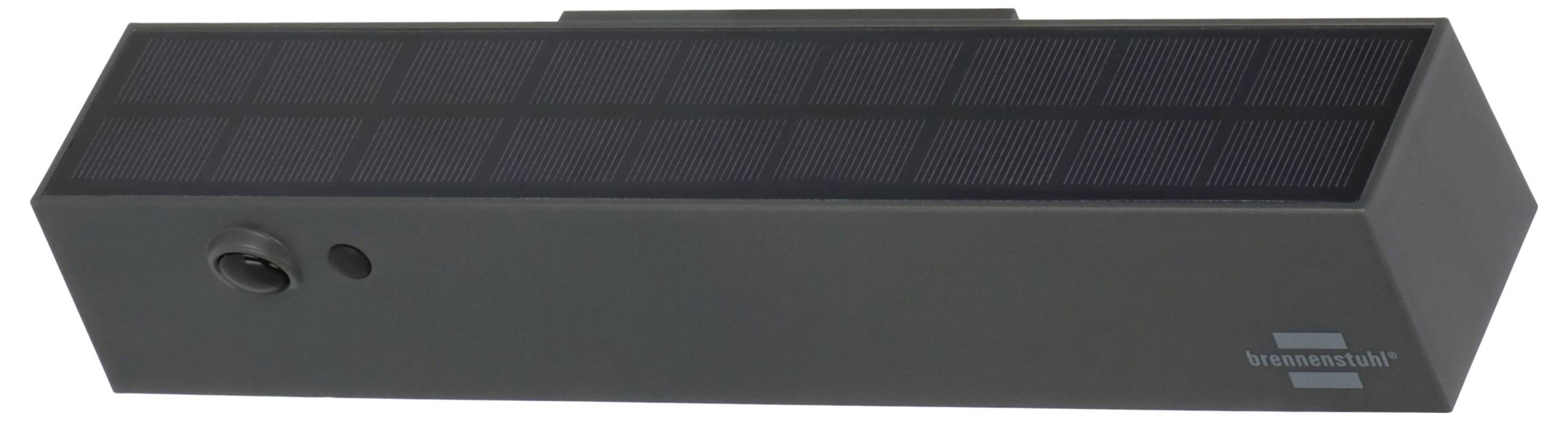

Black rectangular solar-powered electronic device with a long top solar panel and two circular openings on the front left.

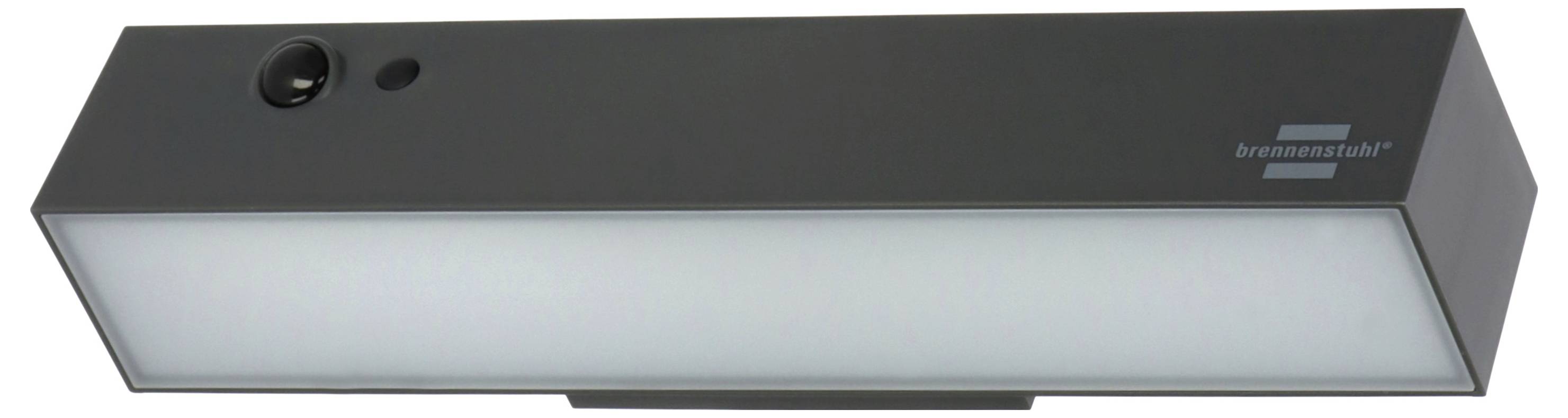

Black rectangular wall light fixture with frosted diffuser and small sensor or camera on the left end.
Black metal mounting plate with a central recessed handle and screw holes, shown above a smaller matching bracket piece.

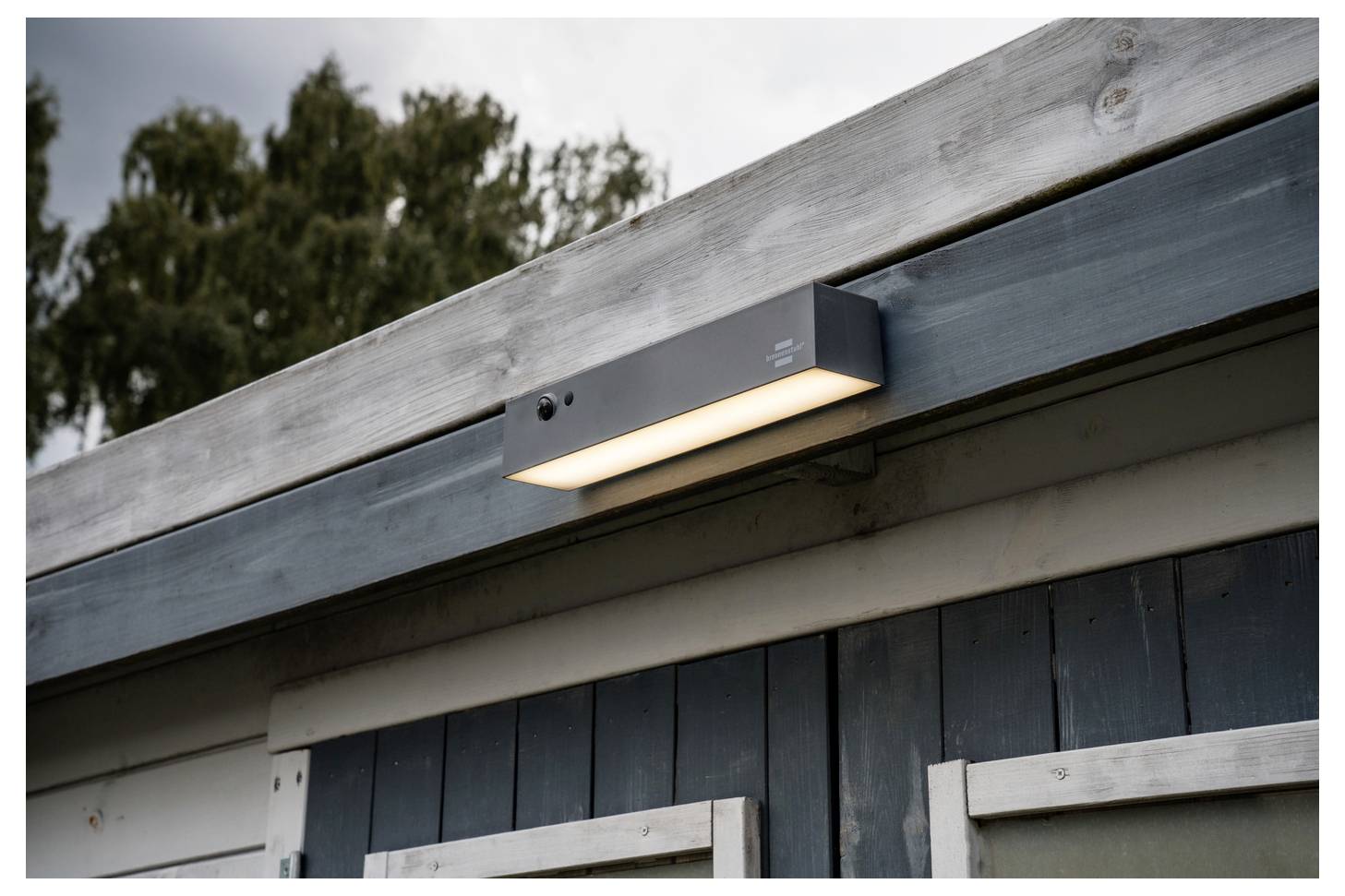

Lit wall-mounted outdoor light under a roof eave on a dark wooden building.<br>
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
11 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 38.99 / piece)
€ 38.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Solar LED spotlight with infrared motion detector SOL 1000 Cubus, 1000lm, IP54

  • Power= 6.9 W
  • Total luminous flux= 1000 lm
  • Colour temperature= 4000 K
  • Neutral white
  • Red circular warning icon with three white heat-wave lines above the text '120°'.
  • Red IP54 rating icon showing a cloud with rain, indicating protection against dust and splashing water.
  • Red circular warning sign with a running person icon, signal waves, and the text '5 m MAX.', indicating a 5-meter maximum limit.
  • Red circular day-night symbol split diagonally, with a sun in the upper left and a crescent moon in the lower right.<br>
  • Red circular badge with white text '1000 LUMEN'.

Technical specifications

Product type

Solar outdoor wall light

Operating voltage

3.7 V

No. of bulbs

1

Bulb type

LED (monochrome)

Built-in LED

Rating per bulb

6.9 W

6.9 W

4000 K

Colour

Neutral white

1000 lm

Total luminous flux

1000 lm

PIR detection angle (horizontal)

120°

Vertical detection angle

120°

Coverage max. (width)

5 m

Adjustable on-time (min.)

30 s

Adjustable on-time (max.)

30 s

Light features

Incl. motion detector

Protection class

III

IP54

Factory colour

Grey

Material

Plastic

Weight

310 g

Dim

(L x W x H) 284 x 62 x 50 mm

n.rel.

Type

Rectangular

Light bulb included

Yes

Width

62 mm

Height

50 mm

Length

284 mm

Rechargeable

1x 3.7 V (2000 mAh)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3308281 Brennenstuhl SOL 1000 Cubus 1173740001 Solar outdoor wall light 6.9 W Colours (LEDs): Neutral white

User & Safety Instructions

User & Safety Instructions 3308281 Brennenstuhl SOL 1000 Cubus 1173740001 Solar outdoor wall light 6.9 W Colours (LEDs): Neutral white

User & Safety Instructions 3308281 Brennenstuhl SOL 1000 Cubus 1173740001 Solar outdoor wall light 6.9 W Colours (LEDs): Neutral white

Description

The solar LED spotlight SOL 1000 CUbus with infrared motion detector from Brennenstuhl is a wall light with integrated solar module made of mono-crystalline solar cells. The motion sensor has a detection angle of 120° and a maximum range of 5m. The outdoor solar wall lamp offers 4 different modes: M1: Upon movement for 30sec with 1000lm - M2: Permanent from dark with 100lm, upon movement for 30sec with 1000lm - M3: From darkness permanent with 100lm - M4: From darkness permanent with 250lm.

This text is machine translated.

Features

  • Solar panel 1.6W
  • twilight sensor
  • Housing: Plastic
  • Li-Ion 18650 3.7V/2Ah battery with integrated overload and deep discharge protection
  • Including screw set, mounting plate and safety angle as theft protection

Scope of delivery

  • Solar LED spotlight SOL 1000 cube, screw set, mounting plate, safety angle
