Brennenstuhl SOL 1000 Plana 1173740002 Solar outdoor wall light 3.9 W Colours (LEDs): Neutral white

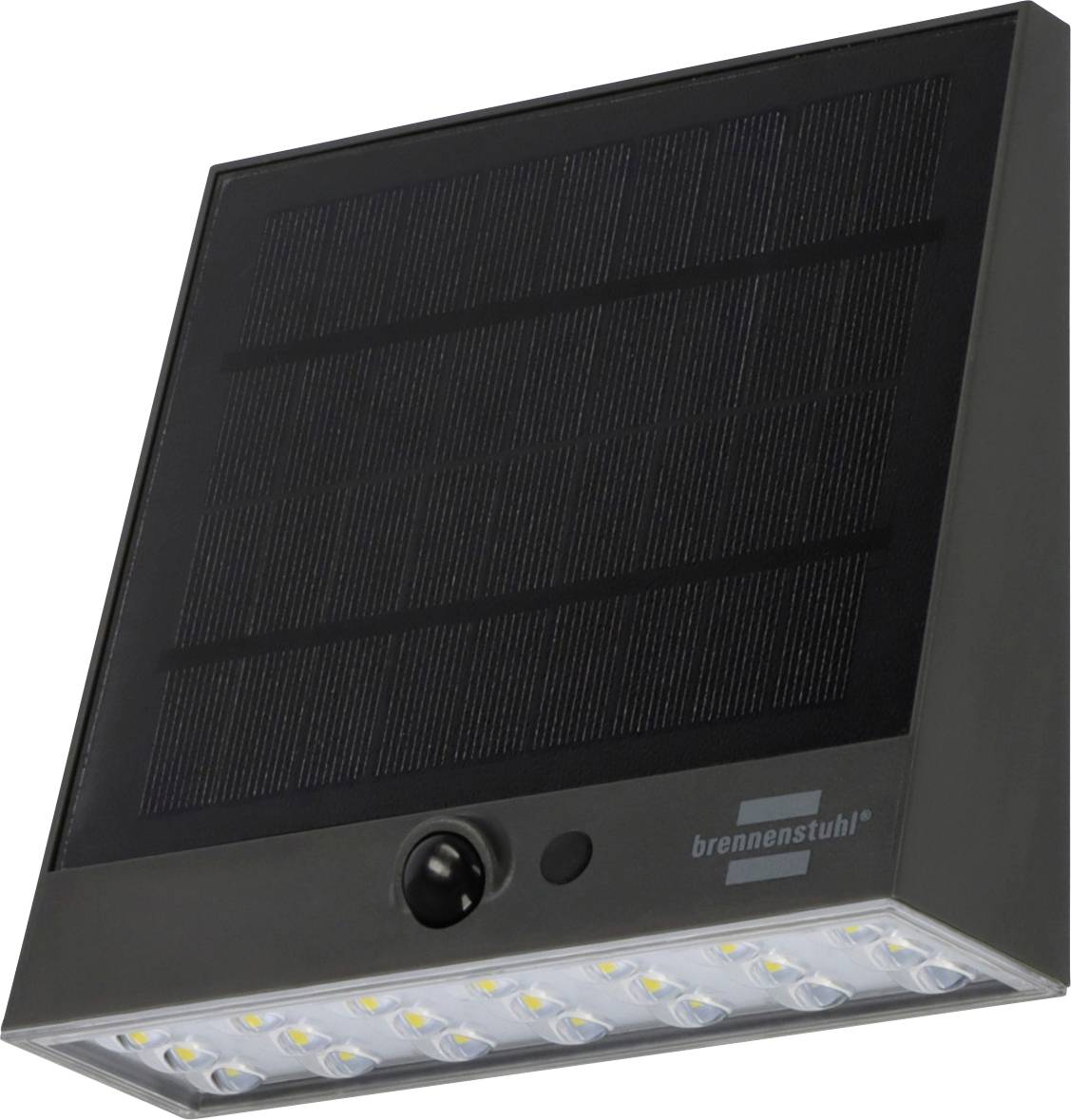

Black solar-powered wall light with LED strip and motion sensor, shown at an angle on a white background.

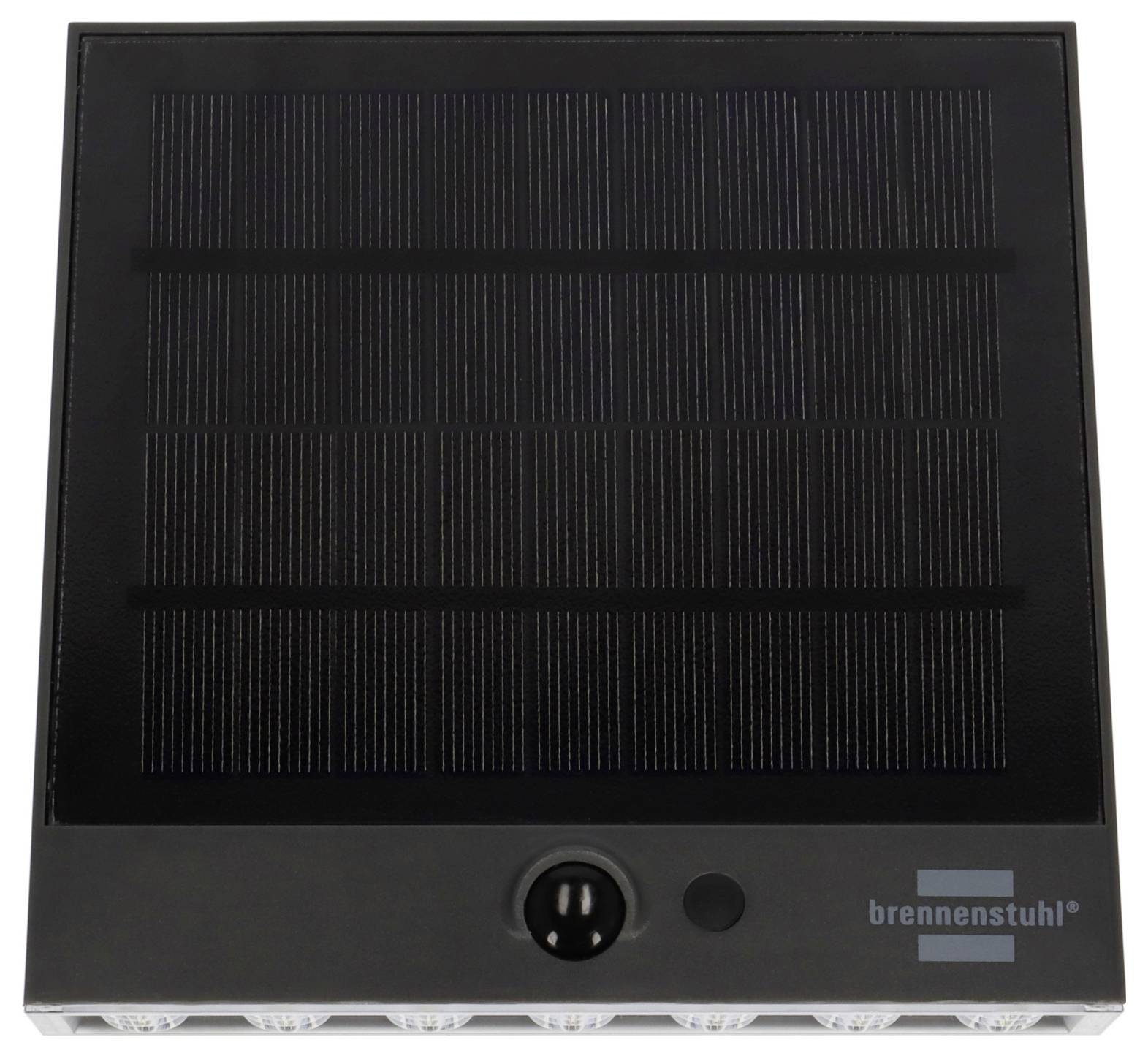

Black square solar panel with a central power port and Brennenstuhl logo at bottom right, shown against a white background.

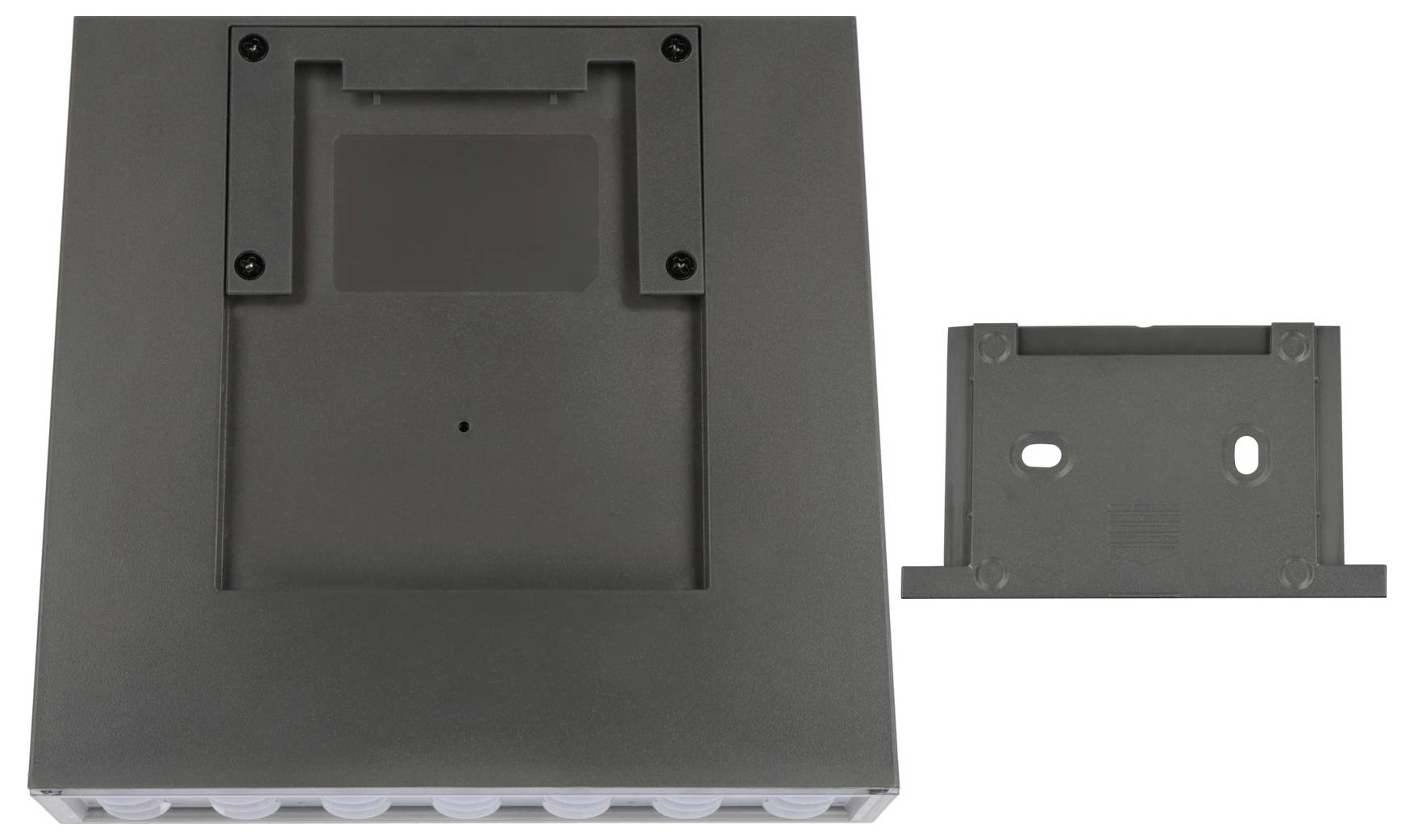

A gray metal mounting bracket and enclosure panel shown from the front, with a separate smaller bracket piece to the right.

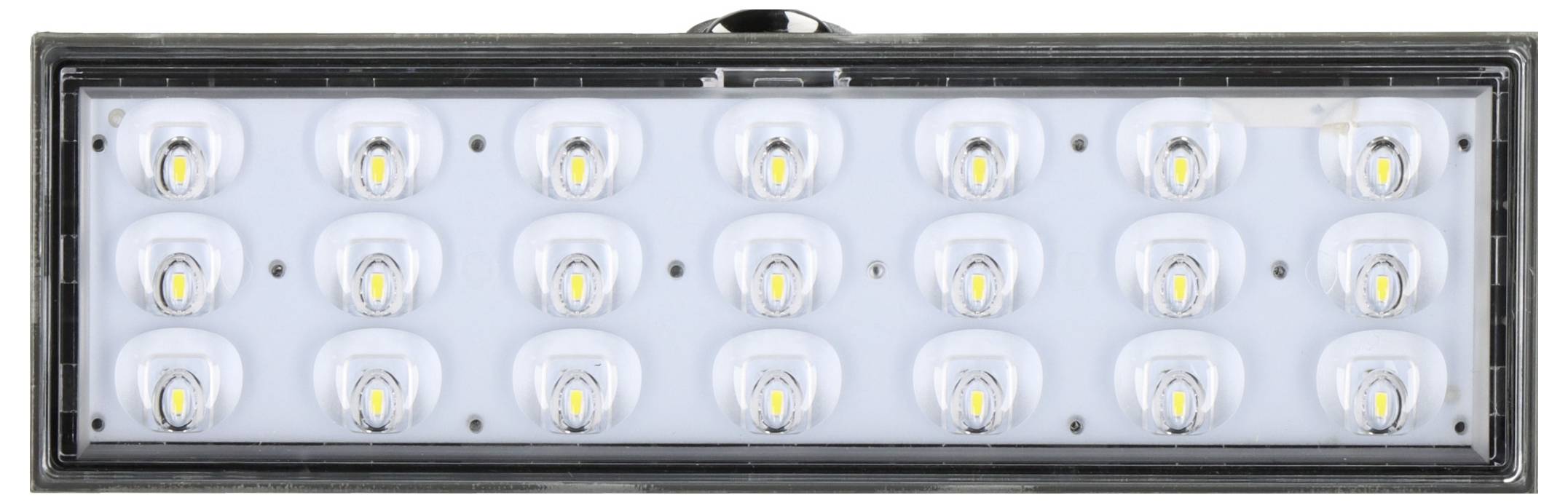

Rectangular LED light fixture with 24 bulbs in a black frame.

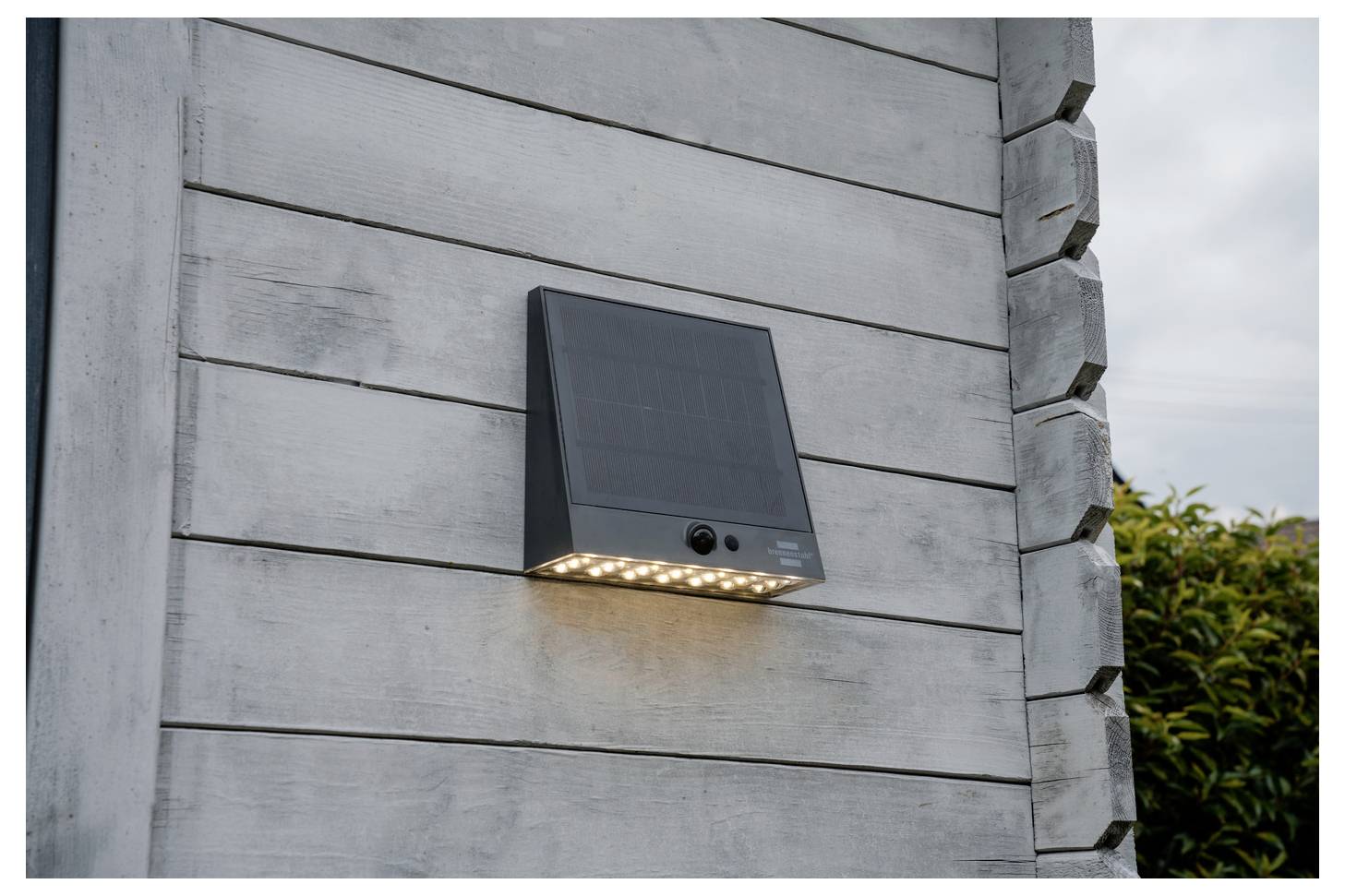

Black wall-mounted solar light with motion sensor and glowing LEDs on a gray wooden exterior wall.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 42.99 / piece)
€ 42.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Solar LED spotlight with infrared motion detector SOL 1000 Plana, 1000lm, IP54

  • Power= 3.9 W
  • Total luminous flux= 1000 lm
  • Colour temperature= 4000 K
  • Neutral white
  • Red circular warning icon with three white curved signal lines above '120°'.<br>
  • Red IP54 rating symbol with a cloud and rain, indicating dust-protected and splash-resistant equipment.
  • Red circular warning sign with running figure, signal waves, and text '5 m MAX.'<br>
  • Red circular icon split diagonally showing a sun and a crescent moon, symbolizing day and night or light and dark mode.
  • Red circular badge with white text '1000 LUMEN', indicating 1000-lumen brightness rating.

Technical specifications

Product type

Solar outdoor wall light

Operating voltage

3.7 V

No. of bulbs

1

Bulb type

LED (monochrome)

Built-in LED

Rating per bulb

3.9 W

3.9 W

4000 K

Colour

Neutral white

1000 lm

Total luminous flux

1000 lm

PIR detection angle (horizontal)

120°

Vertical detection angle

120°

Coverage max. (width)

5 m

Adjustable on-time (min.)

30 s

Adjustable on-time (max.)

30 s

Light features

Incl. motion detector

Protection class

III

IP54

Factory colour

Grey

Material

Plastic

Weight

400 g

n.rel.

Type

Rectangular

Light bulb included

Yes

Height

150 mm

Length

158 mm

Depth

49 mm

Rechargeable

1x 3.7 V (2000 mAh)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3308282 Brennenstuhl SOL 1000 Plana 1173740002 Solar outdoor wall light 3.9 W Colours (LEDs): Neutral white

User & Safety Instructions

User & Safety Instructions 3308282 Brennenstuhl SOL 1000 Plana 1173740002 Solar outdoor wall light 3.9 W Colours (LEDs): Neutral white

User & Safety Instructions 3308282 Brennenstuhl SOL 1000 Plana 1173740002 Solar outdoor wall light 3.9 W Colours (LEDs): Neutral white

Description

The Solar LED spotlight SOL 1000 PLANA with infrared motion sensor from Brennenstuhl is a wall light with integrated solar module made of monocrystalline solar cells. The motion sensor has a detection angle of 120° and a maximum range of 5m. The solar exterior lamp offers 4 different modes: M1: Upon movement for 30sec with 1000lm - M2: Permanent from dark with 100lm, when moving for 30sec with 1000lm - M3: From darkness permanent with 100lm - M4: From darkness permanent with 250lm.

This text is machine translated.

Features

  • Solar panel 2W
  • twilight sensor
  • Housing: Plastic
  • Li-Ion 18650 3.7V/2Ah battery with integrated overload and deep discharge protection
  • Including screw set, mounting plate and safety angle as theft protection

Scope of delivery

  • Solar LED spotlight SOL 1000 Plana, screw set, mounting plate, safety angle
