Bulgin PX0803 - IP68 Connector Body, Mini Buccaneer, Panel Mount
Product type
Bullet connector
Connection
Screws
Content
1 pc(s)
Nominal current - rounded value
10 A
Nominal voltage
250 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Highlights & Details

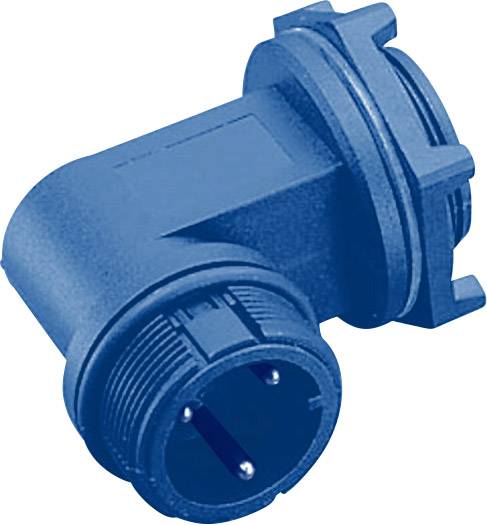

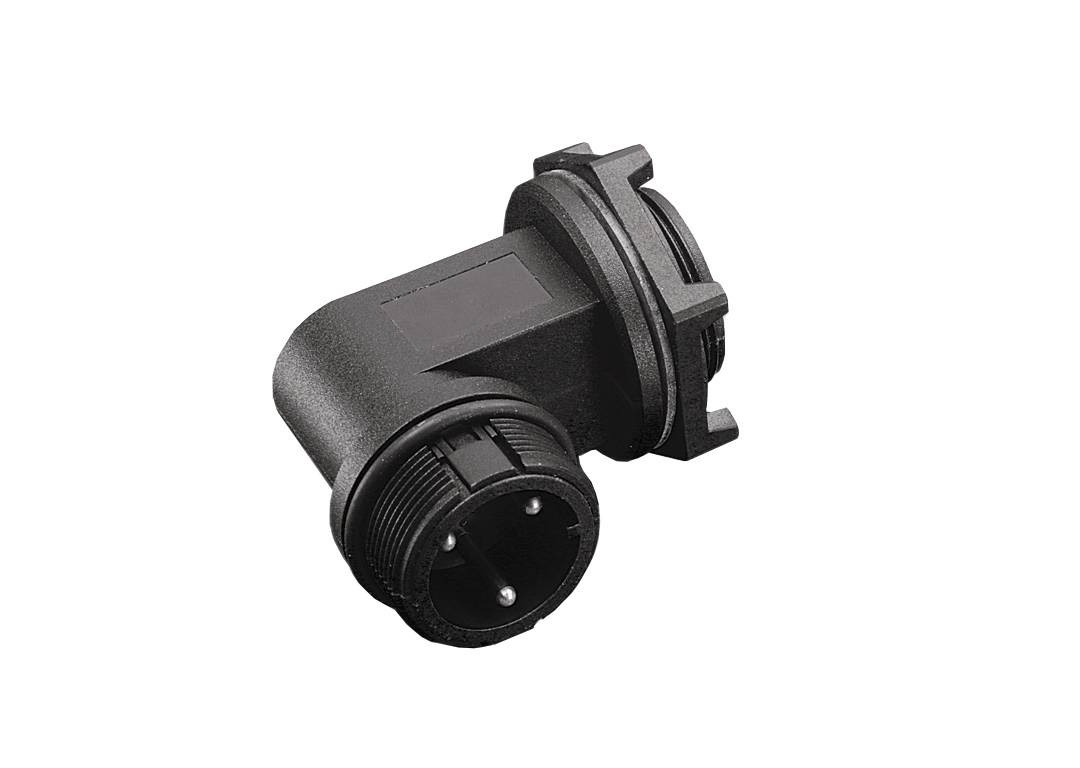

Bulgin PX0803 - IP68 Connector Body, Mini Buccaneer, Panel Mount
- PX0803 Connector body
- Mates with PX0800 - Flex Cable connector
- Right angle cable entry
- Single hole fixing
- Suitable for Pin or Socket inserts
- Contact inserts supplied separately
Technical specifications
- Type
PX0803
- Product type
Bullet connector
- Connection
Screws
- Content
1 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Contact material
Brass nickel plated
- Case material
Plastic
- Connection angle
180°
- Manufacturer part #
PX0803
- Length
53.4 mm
- (Ø)
23.2 mm
- max. cross section
0.5 mm²
- Cross-section range
0.5 mm² (max)
IP68
- Series
PX08
- Type
Supporting base for right-angle Assembly / male thread
- Insulation resistance
> 5 MΩ
- Cross section
0.2 - 0.5 mm²
- Pins
-
- Connection
Screws
- Fitting type (details)
Front panel mounting: 1.5 - 6 mm
- Temperature range
-20 - +70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 740499 Bulgin PX0803 - IP68 Connector Body, Mini Buccaneer, Panel Mount
Description
The Mini Buccaneer series connectors are very robust with different mounting options for single and three phase applications in a variety of harsh operating environments such as when working in the waste water and in water, civil engineering, in gas / oil plant, in the outdoor applications and general applications in the industry
Hints
Screw terminals insert and locking cap not included - order separately!
