Buy Bulgin SA3320 - Pole IP68 Pin Screw Terminal Insert, Mini Buccaneer, 10A

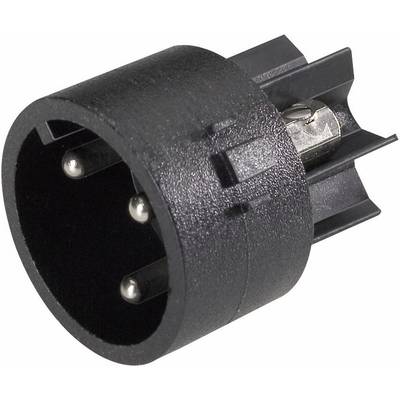

Black round adapter with three silver contact pins, commonly used to connect electronic devices.

Image similar

Product type

Bullet connector

Connector type

Plug, straight

Total no. of pins

Connection

Screws

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 5.87 / piece)

€ 5.87

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Bulgin SA3320 - Pole IP68 Pin Screw Terminal Insert, Mini Buccaneer, 10A

Fits all Body Styles
Nickel Plated contacts

Technical specifications

Type: SA3320

Product type: Bullet connector

Connector type: Plug, straight

Total no. of pins: 2

Connection: Screws

Content: 1 pc(s)

Nominal current: 10 A

Nominal current - rounded value: 10 A

Nominal voltage: 250 V

Contact material: Brass nickel plated

Case material: Plastic

Connection angle: 180°

Manufacturer part #: SA3320

Number of pins: 2

max. cross section: 0.5 mm²

Cross-section range: 0.5 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SA

Type: Pin insert, 2-pin

Insulation resistance: > 5 MΩ

Nominal voltage (details): 250 V

Nominal current (details): 10 A

Cross section: 0.2 - 0.5 mm²

Connection: -

Temperature range: -20 - +70 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 740394 Bulgin SA3320 - Pole IP68 Pin Screw Terminal Insert, Mini Buccaneer, 10A

User & Safety Instructions

User & Safety Instructions 740394 Bulgin SA3320 - Pole IP68 Pin Screw Terminal Insert, Mini Buccaneer, 10A

Description

The Mini Buccaneer screw-clamp insert is suitable for one-and three-phase applications in a variety of harsh operating environments such as when working in the waste water and in water, civil engineering, in gas-/crude oil plants, in the outdoor and general applications in industry.
