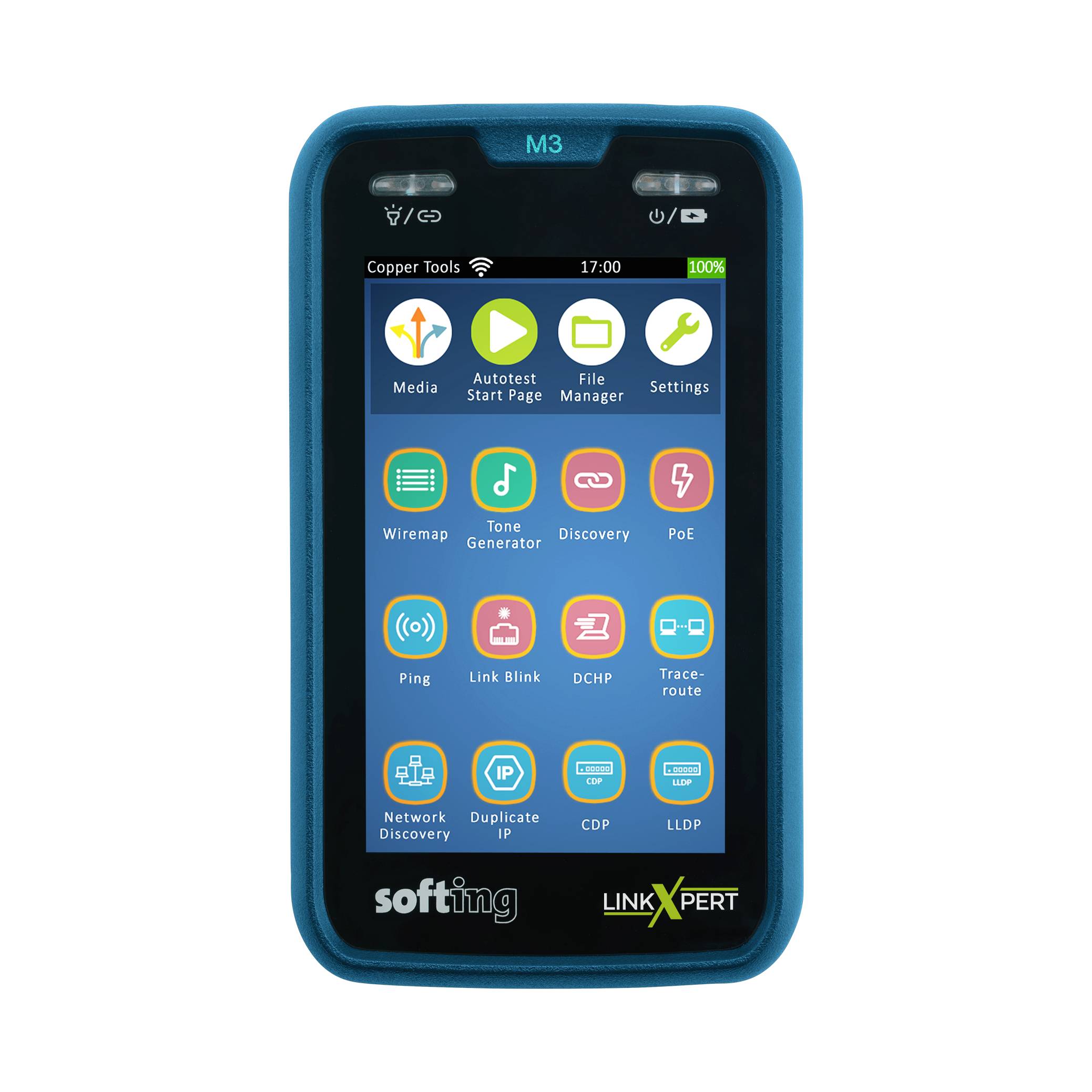

Handheld network tester showing the Copper Tools home screen with app icons for media, autotest, file manager, settings, wiremap, tone generator, discovery, PoE, ping, link blink, DHCP, traceroute, network discovery, duplicate IP, CDP, and LLDP.

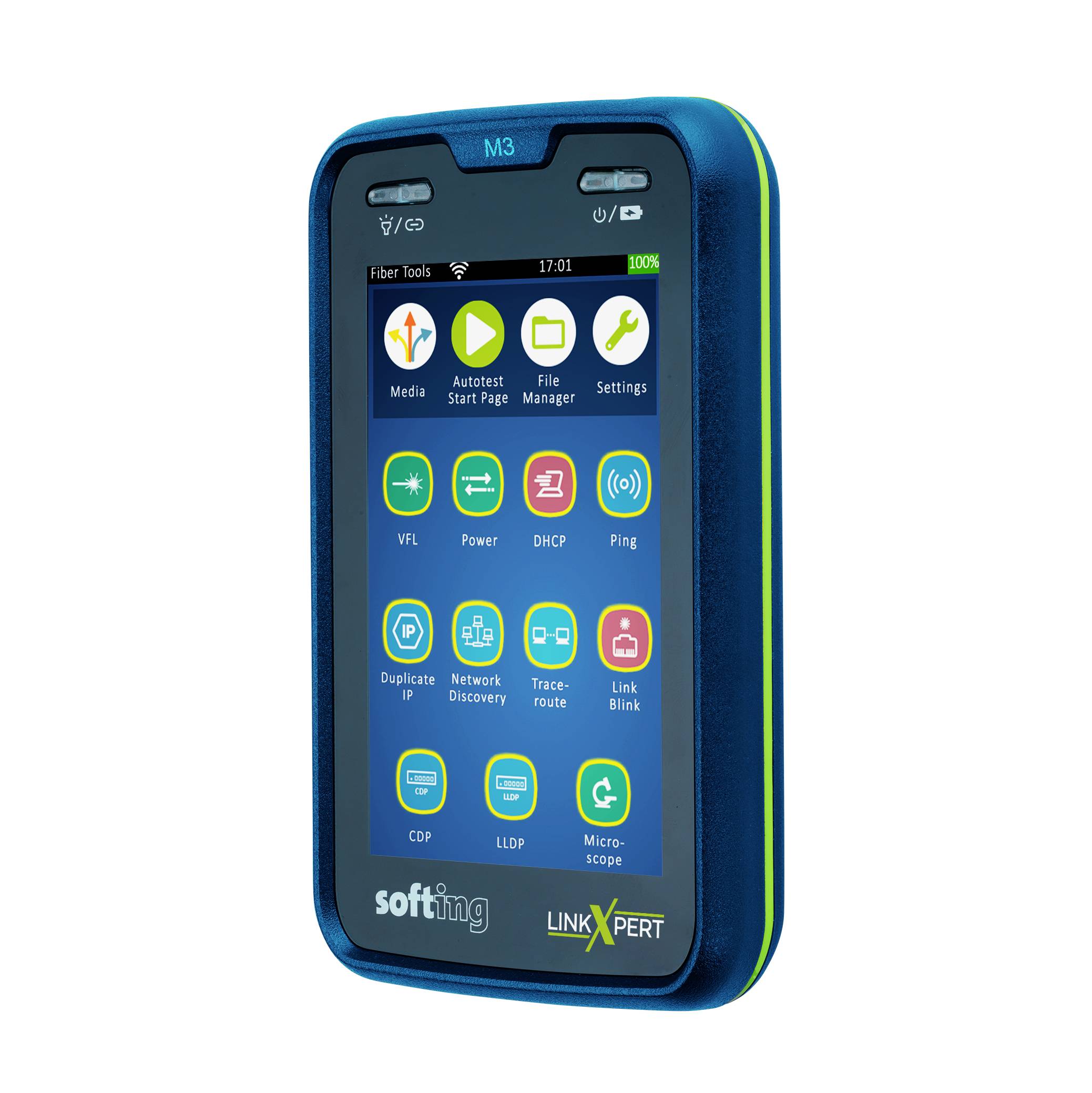

Handheld Softing LinkXpert M3 network tester showing a touchscreen menu with icons for media, file manager, settings, VLAN, power, DHCP, ping, duplicate IP, network discovery, trace route, link blink, CDP, LLDP, and microscope.

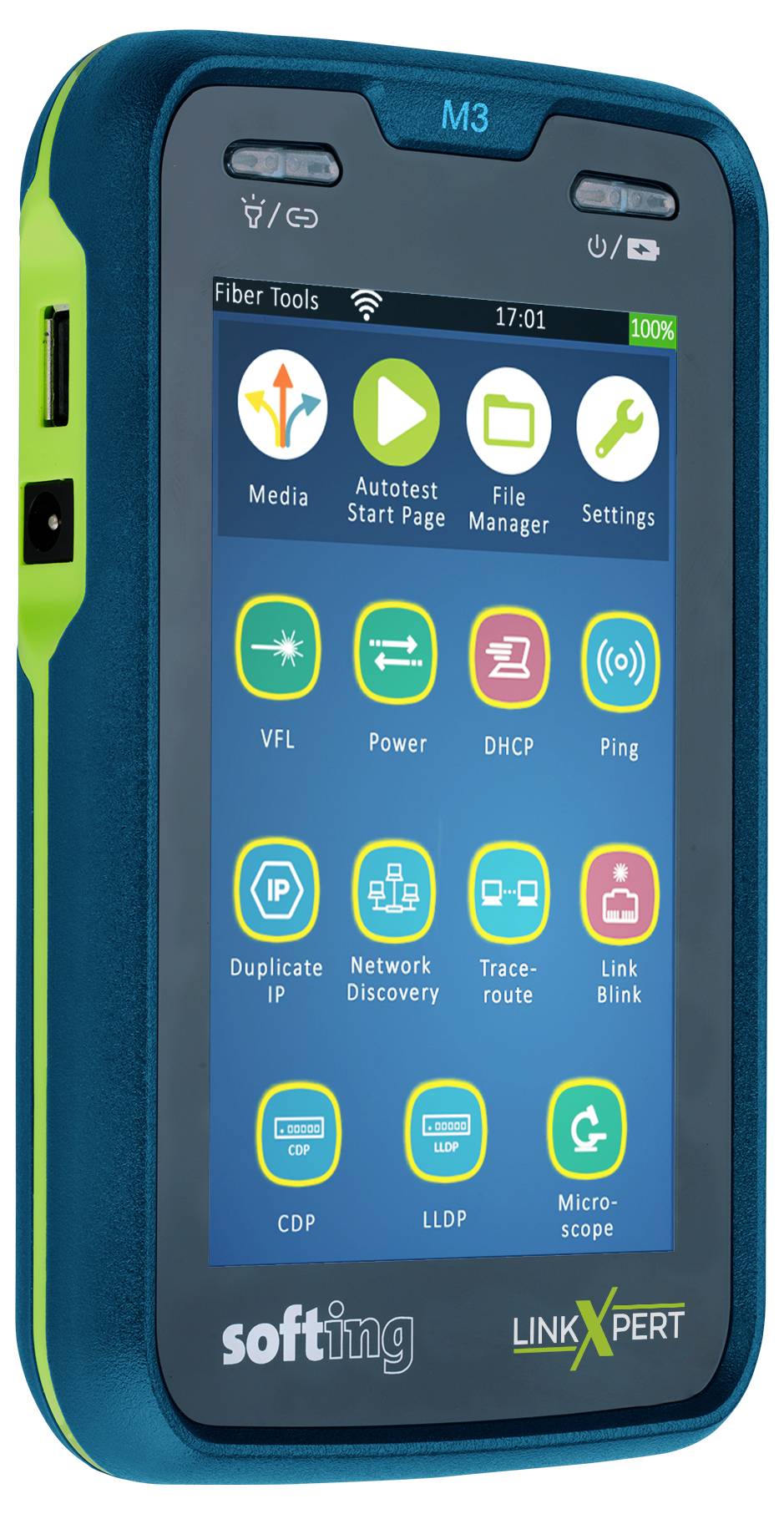

Handheld Softing LinkXpert M3 fiber tester showing touchscreen home menu with icons for Media, Autotest Start Page, File Manager, Settings, VFL, Power, DHCP, Ping, Duplicate IP, Network Discovery, Trace route, Link Blink, CDP, LLDP, and Microscopes.

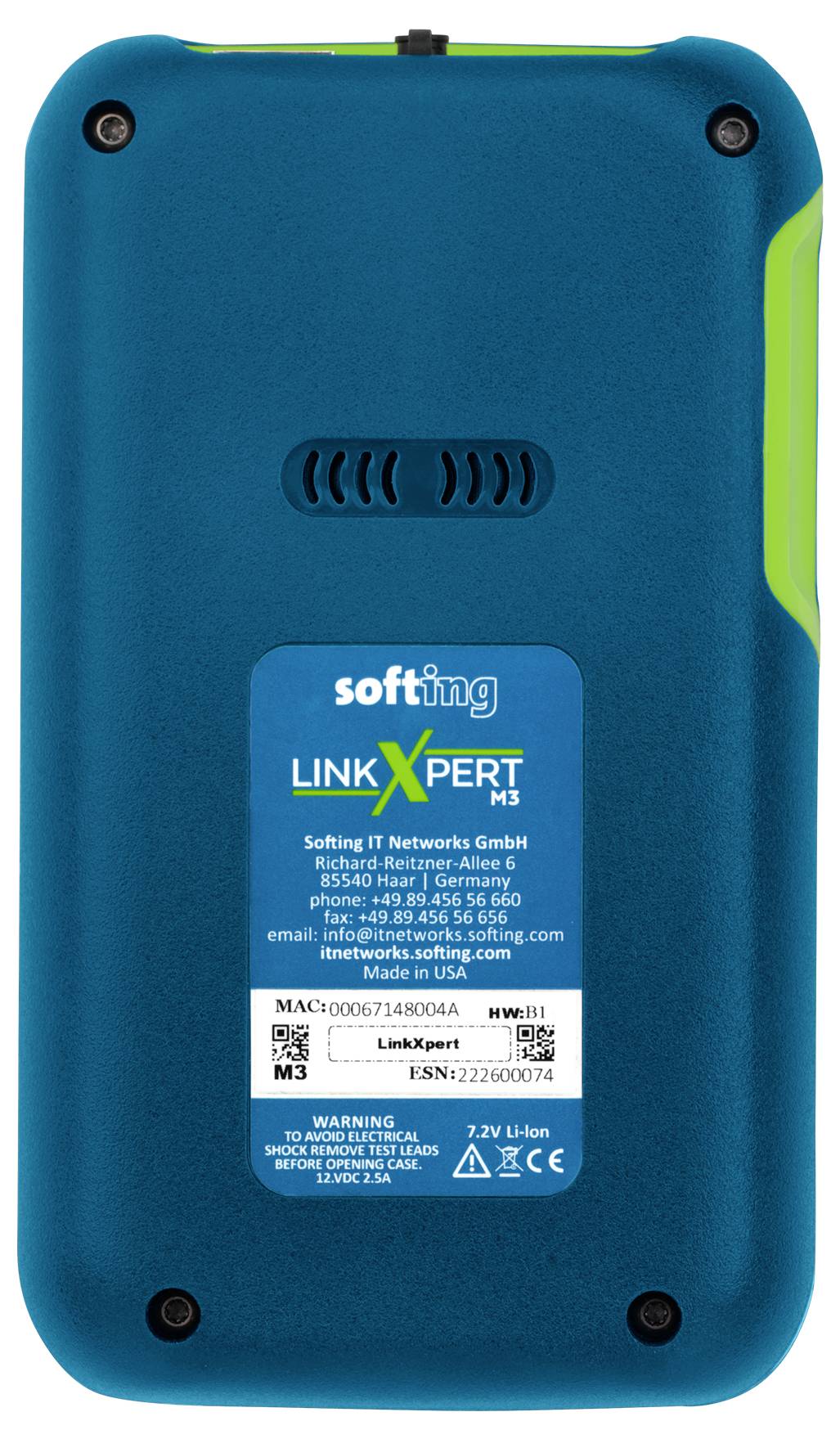

Back view of a blue Softing LINXPERT M3 industrial network device with label, vents, mounting screws, and lime-green side accent.

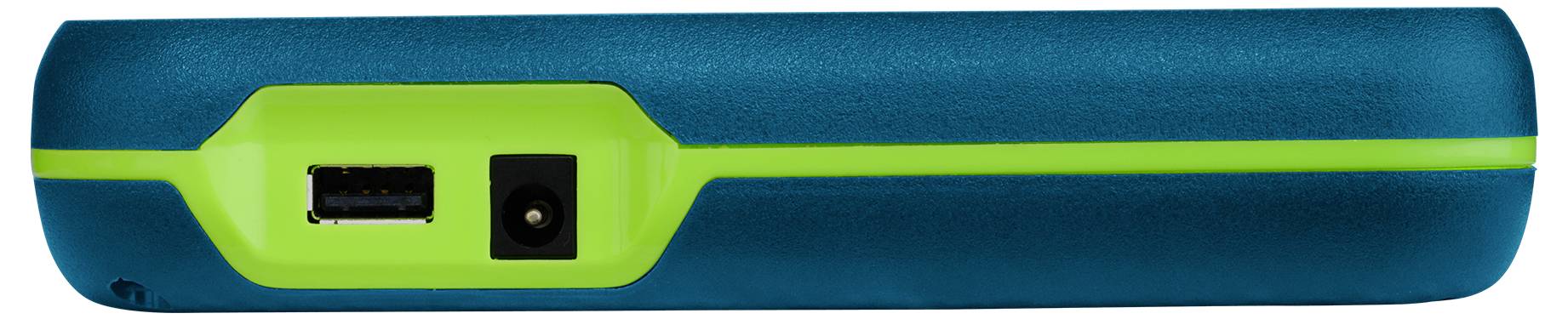

Top view of a blue electronic device with a bright green panel featuring a USB port and power jack.

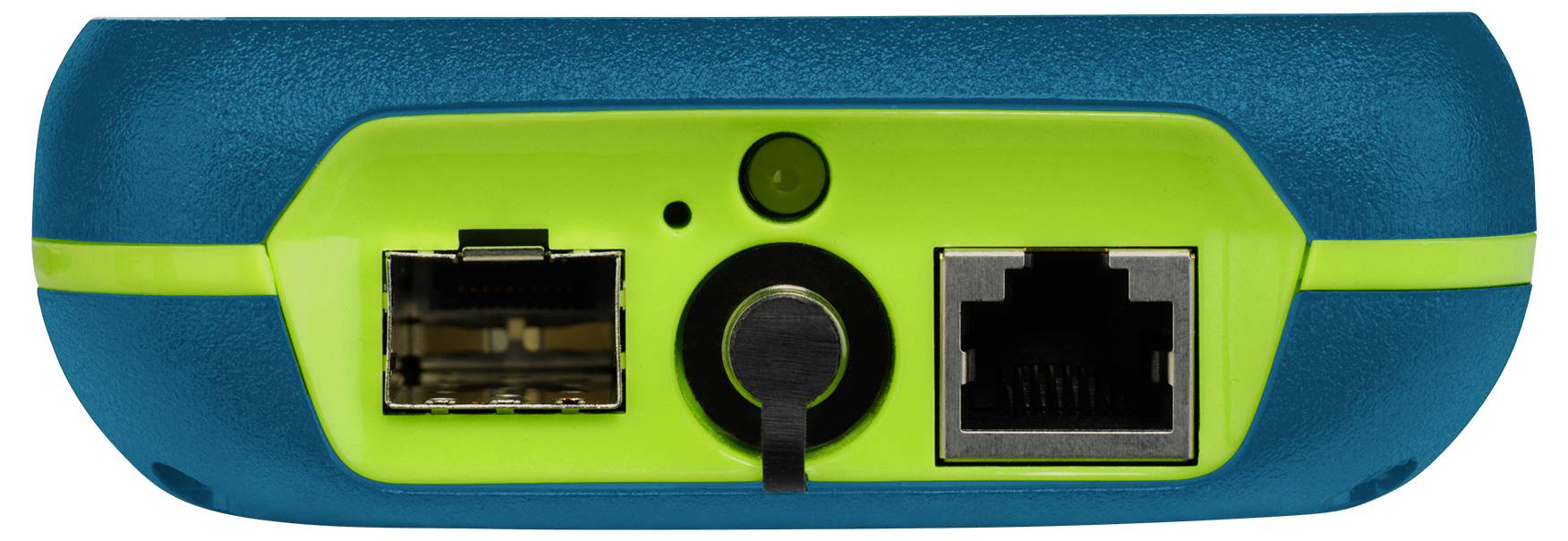

Close-up of a device port panel with an Ethernet jack, central round port, and a power connector, framed by a blue and green casing.

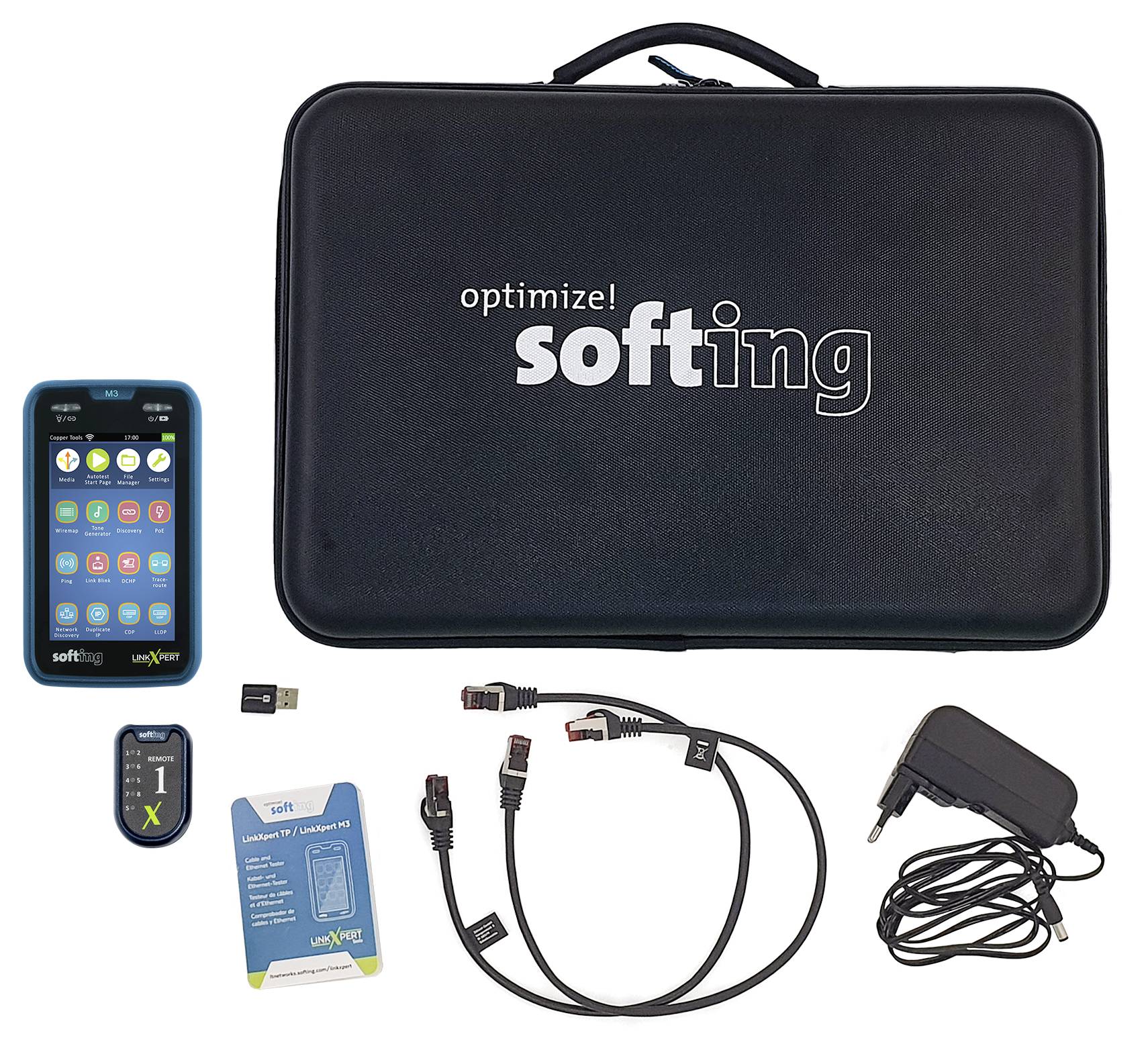

Softing test kit in a black carrying case with smartphone-like device, adapter, cables, USB dongle, manual, and power adapter.

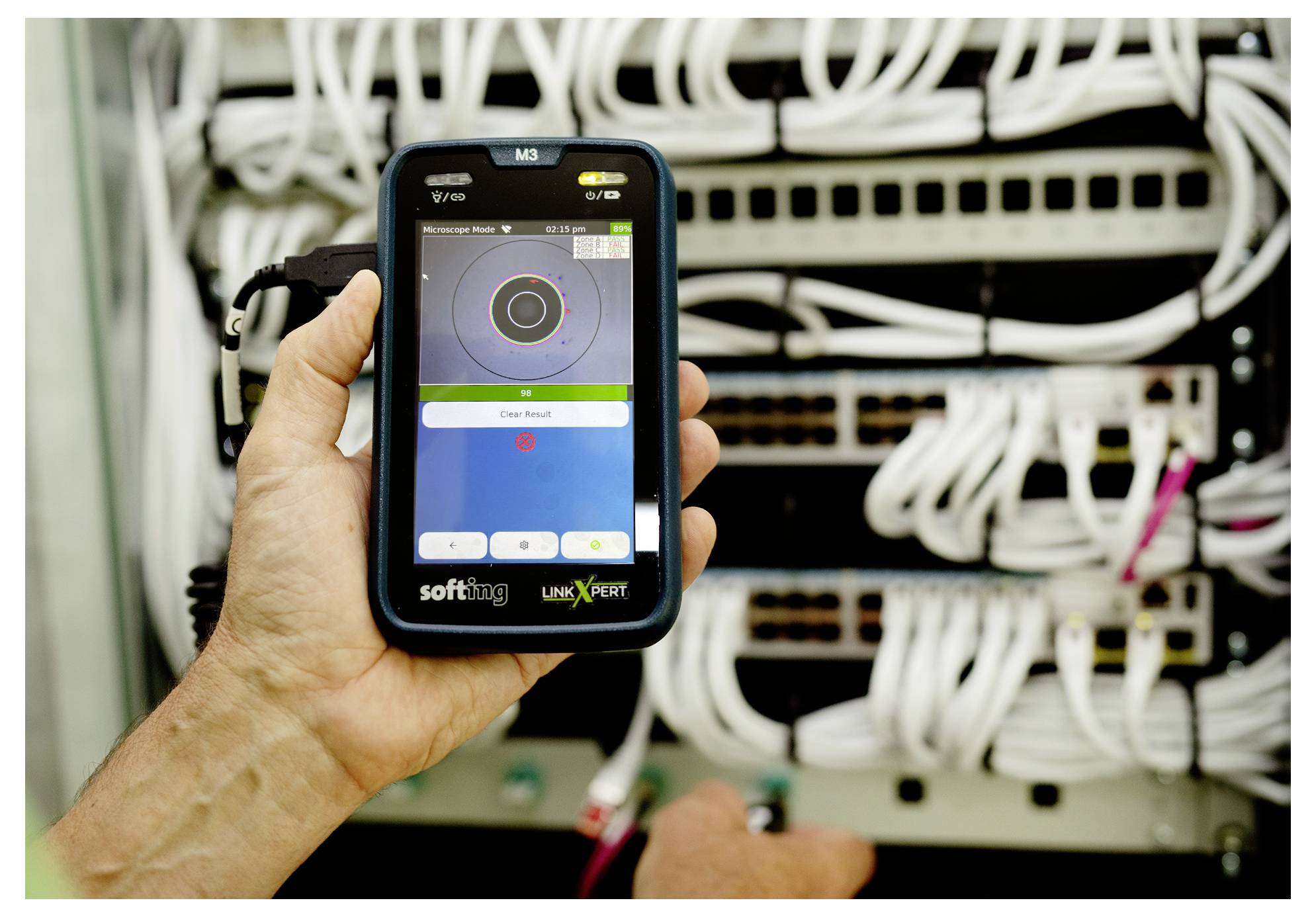

Hand holding a handheld network tester in front of a server rack with many connected ethernet cables and switches.

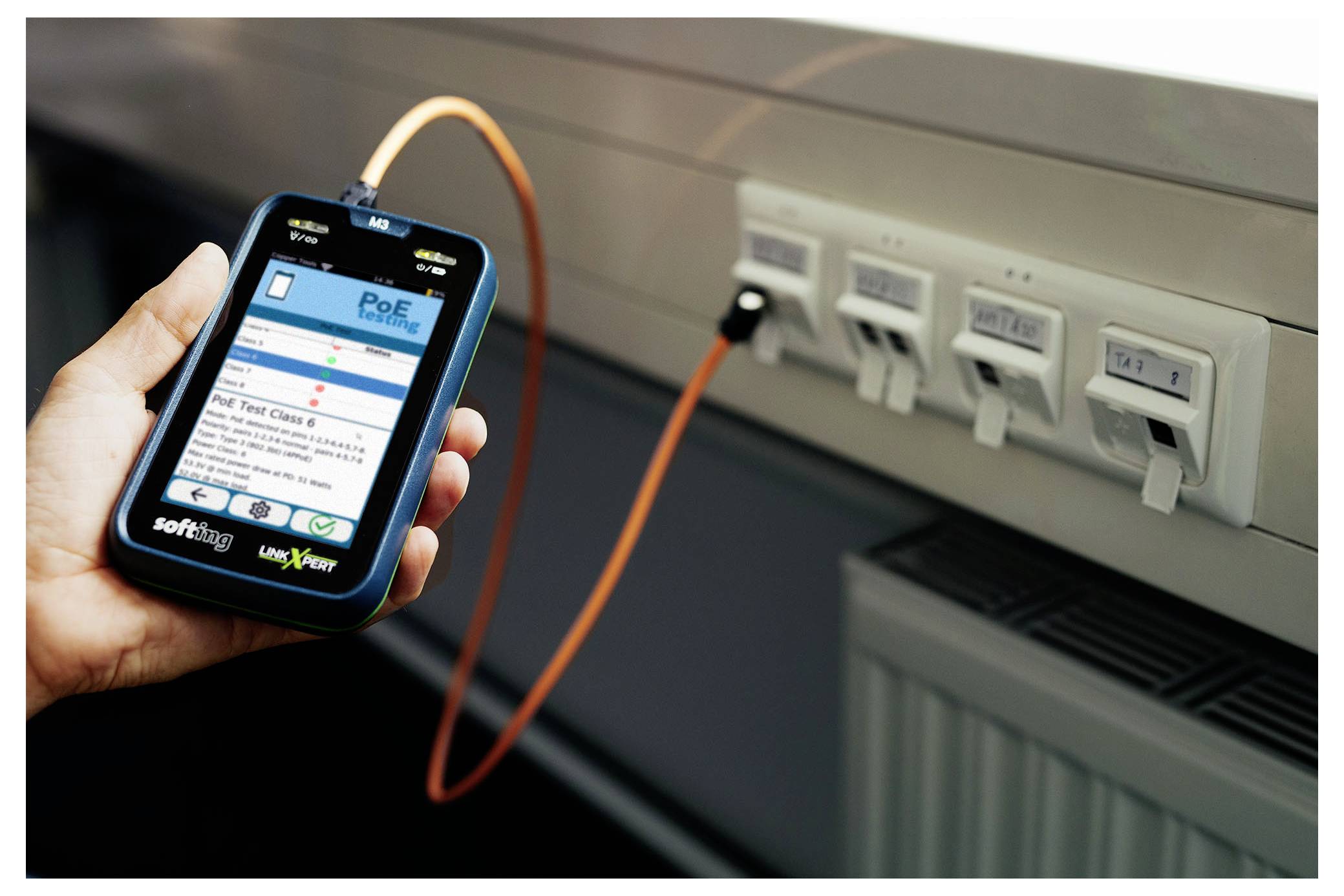

Hand holding a handheld network tester connected by orange cable to wall Ethernet ports, with the device screen showing 'PoE' test results.

1/10

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,875.00 / piece)

€ 1,875.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LinkXpert M3 Cable and Ethernet Tester for copper, fiber optic and WLAN networks

Technical specifications

Product type: Cable meter

Function: Location

Display: Touchscreen

Optical display: Yes

Test sockets: RJ45

Dim: (W x H x D) 93 x 160 x 33 mm

Weight: 2.676

Range: Networks

Features: RJ45 remotes

Width: 93 mm

Height: 160 mm

Depth: 33 mm

Type: LINKXPERTM3

Factory colour: Copper

: Connection tester

: Multi function

: TRUE

: Touch screen

: TRUE

: FALSE

: TRUE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3192651 Cable meter 226104 Softing LINKXPERTM3 Networks

User & Safety Instructions

User & Safety Instructions 3192651 Cable meter 226104 Softing LINKXPERTM3 Networks

Information

Information 3192651 Cable meter 226104 Softing LINKXPERTM3 Networks

Description

The 3 media multitool for easy testing of LAN networks. Comprehensive Ethernet network diagnostics up to 1 Gb/s Ethernet on copper and fiber optic lines and WLAN. Individual test scenarios thanks to freely configurable test profiles.

High speed detection up to 10 Gbit/s and load tests up to High Power PoE (90 W / Class 8) on copper. Fiber polarity check and visual troubleshooting via VFL. Comprehensive documentation options.

With connectivity to all 3 media - copper, fiber optic and WLAN - LinkXpert M3 is perfect for installation and documentation, right up to troubleshooting Ethernet networks.
Applications are SoHo- and office-environments as well as industrial applications.

The LinkXpert M3 is a versatile cabling and networking tool that helps you complete day-to-day cabling tasks, right through to solving complex Ethernet problems.

The device offers a unique combination of cabling tests and comprehensive Ethernet network diagnostics on copper, fiber optic and WLAN to keep your network up and running around the clock.

For network commissioning, the LinkXpert M3 can perform automatic tests, which can be configured individually. All tests can also be performed individually for troubleshooting purposes.

Unique in this price class is the support of the video microscope for plug-end surface evaluation as well as the detection of 10 GBit/s networks on copper.

Copper Ethernet functions: DHCP, DNS, Ping, Traceroute, Network discovery, Dual address scanner, LLDP, CDP, VLAN

Fibre optic cable: Red light laser, SFP transmit and receive power, connection speed, Link Light Blink, DHCP, DNS, Ping, Traceroute, Network Discovery, Dual Address Scanner, LLDP, CDP, VLAN, 802.1x security, MAC Spoofing

WLAN: Access point scanner, connection speed, field strength in db, channel setting, DHCP, DNS, Ping, Traceroute, Network discovery, Dual address scanner, LLDP, CDP, VLAN, 802.1x security

Includes: 1 x main unit, 1 x RJ45 Smart remote, 2 x 50cm RJ45 patch cable, 1 x RJ45 coupling, 1 x quick start guide, 1 x transport case
