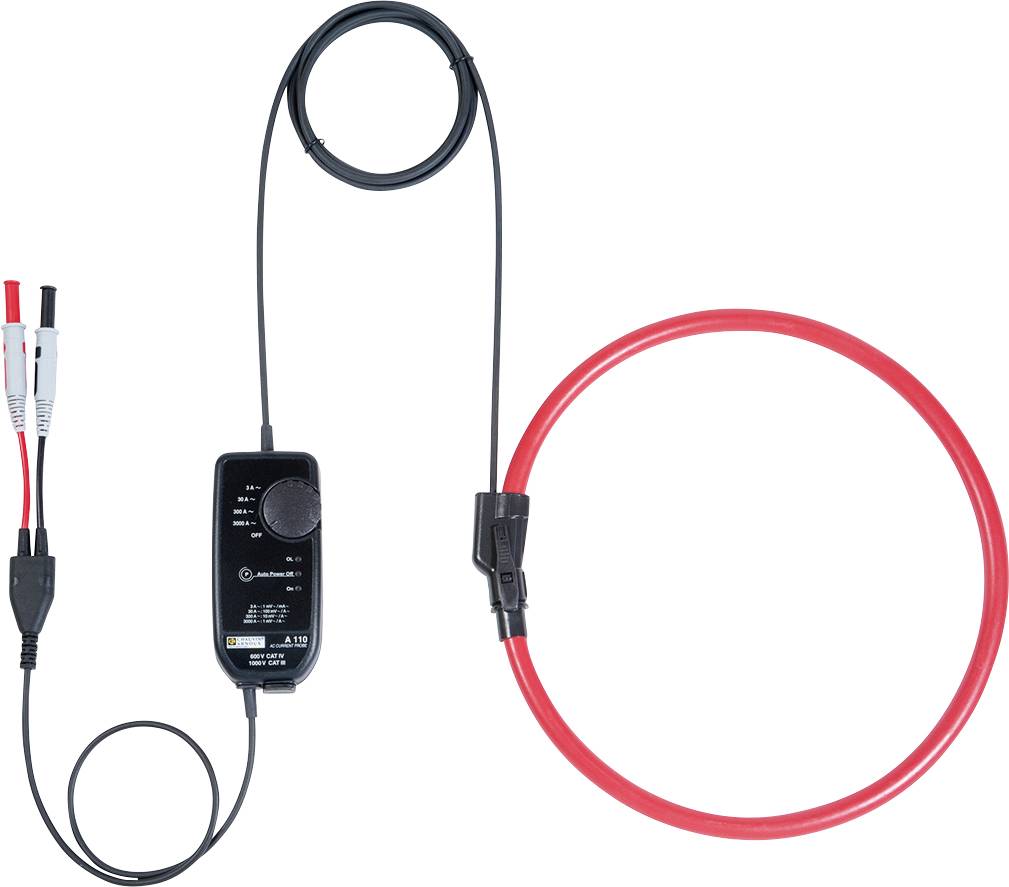

Name: Chauvin Arnoux A 110-80 Clamp meter adapter A/AC reading range: 0.08 - 3000 A Flexible
Brand: Chauvin Arnoux
SKU: 1593631
Availability: BackOrder

Highlights & Details

Flexibility for each power measurement on single-phase networks!

N/A
Opening range of current clamps 250 mm

Technical specifications

Opening range of current clamps: 250 mm

Product type: Clamp meter adapter

Type B: 4 mm jack

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.08 A

Amperage reading range AC (max.): 3000 A

Power supply (details): Via AC-voltage input of the measuring device.

Dim: (L x W x H) 36 x 120 x 58 mm

Current reading: AC

Reading category: CAT IV 1000 V

Weight: 450 g

Max. frequency: 20 kHz

Width: 120 mm

Height: 58 mm

Length: 36 mm

Features: Flexible

Documents & Downloads

Datasheet

Datasheet 1593631 Chauvin Arnoux A 110-80 Clamp meter adapter A/AC reading range: 0.08 - 3000 A Flexible

User & Safety Instructions

User & Safety Instructions 1593631 Chauvin Arnoux A 110-80 Clamp meter adapter A/AC reading range: 0.08 - 3000 A Flexible

Description

The series AmpFlex A110 includes 3 models of flexible current loops directly to any multimeter, watt meters or recorder, etc. can be connected.

The flexible measurement loops have the following advantages:

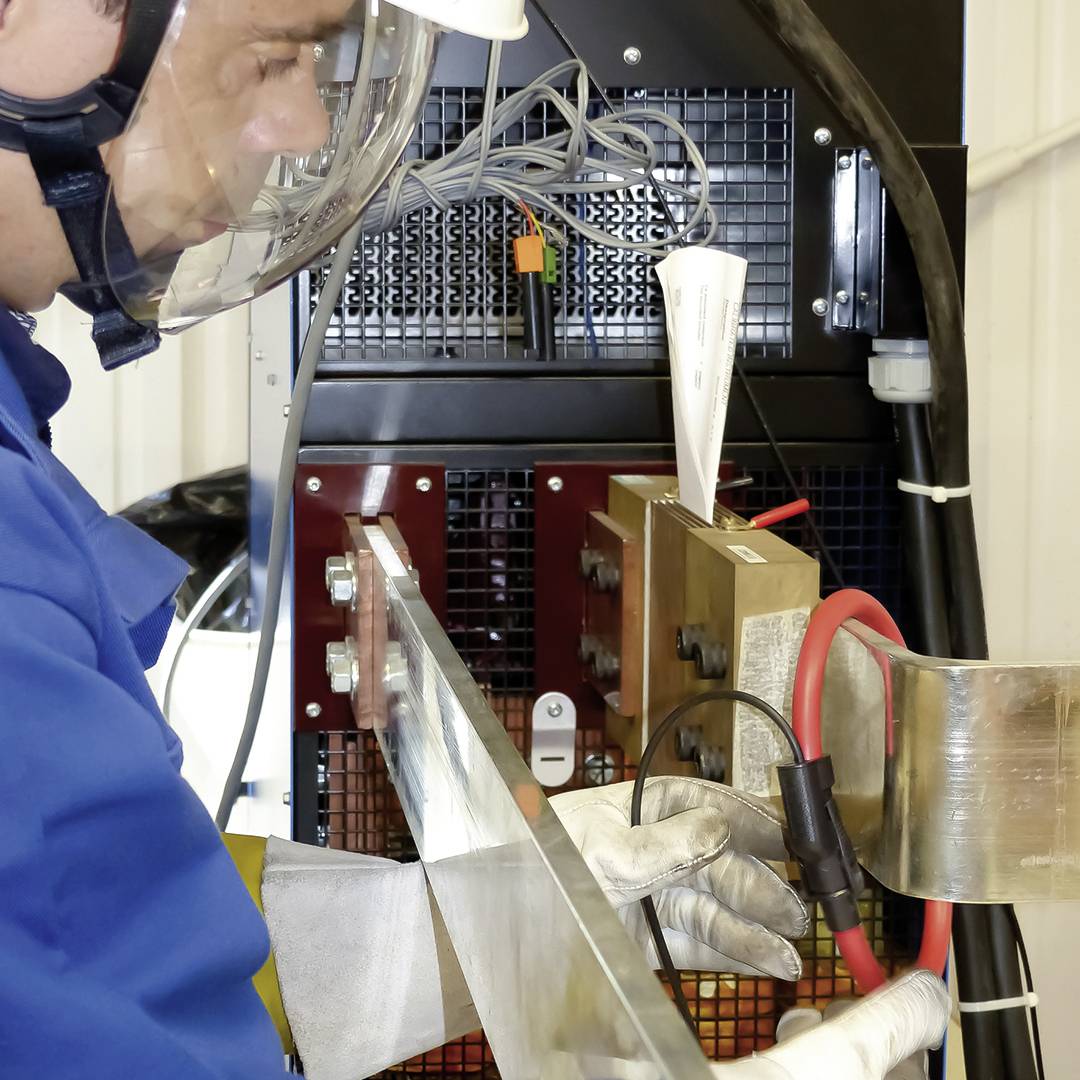

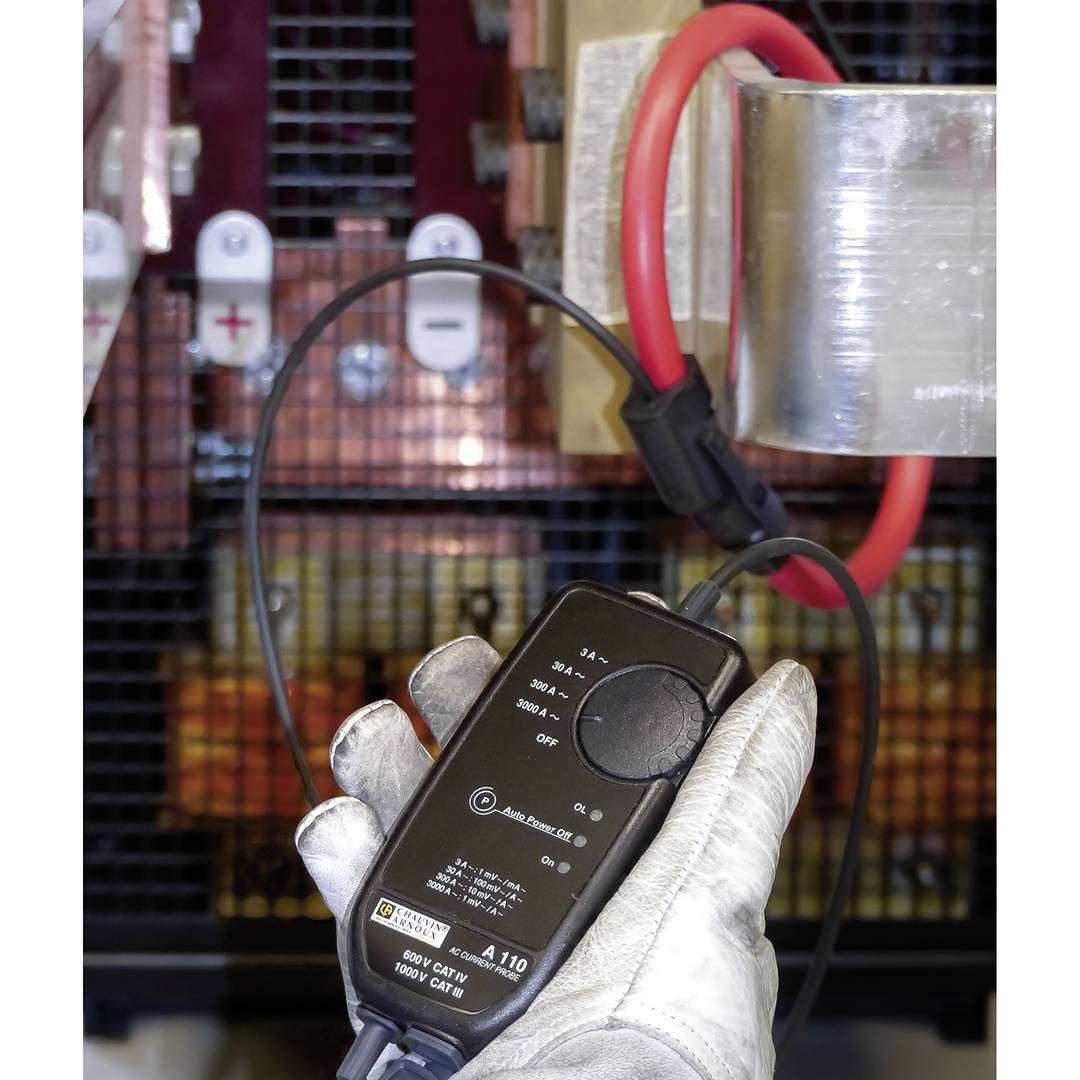

- The high flexibility and ease makes it one or more conductors of any kind and form enclosed (cables, busbars, wiring harnesses...)
- Large measuring range
- With common industrial frequencies and harmonic analysis customized bandwidth
- No magnetic saturation effects and thus no heating
- Low and constant phase shift, the correct power measurements allowed

This text is machine translated.

Features

Measuring range: From 80 mA to 3 kA
4 measuring ranges
Length of measuring loop (Ø): 80 cm (Ø25 cm)
Protection class of measurement loop / housing: IP67 / IP54
Output signal: AC voltage
Two-wire connection cable with 2 straight safety banana plugs Ø 4 mm
Power supply: 2 batteries 1.5 V AA or external via µUSB type B 5V
Battery life 300 hours
1000 V CAT IV.

Scope of delivery

1 flexible current transformer
2 alkaline batteries 1.5 V AA/LR6
1 Operating instructions in 5 languages
1 Safety Data Sheet
1 inspection certificate

Description

The series AmpFlex A110 includes 3 models of flexible current loops directly to any multimeter, watt meters or recorder, etc. can be connected.

The flexible measurement loops have the following advantages:
- The high flexibility and ease makes it one or more conductors of any kind and form enclosed (cables, busbars, wiring harnesses...)
- Large measuring range
- With common industrial frequencies and harmonic analysis customized bandwidth
- No magnetic saturation effects and thus no heating
- Low and constant phase shift, the correct power measurements allowed

This text is machine translated.
