Name: Chauvin Arnoux C.A 1510 schwarz Carbon dioxide detector 0 - 5000 ppm Datalogger function
Brand: Chauvin Arnoux
SKU: 1666157
Availability: InStock

A portable device measuring air quality displays a CO2 level of '1,900 ppm', temperature of '21.0 °C' and humidity of '43.0 %RH'.

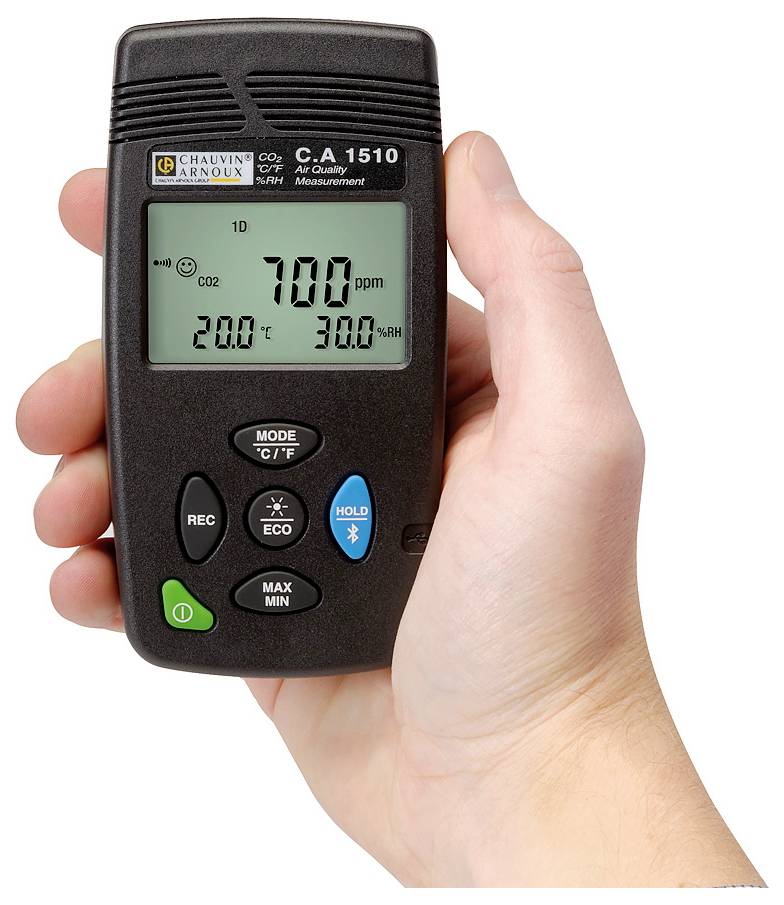

A hand is holding a portable CO2 meter displaying "700 ppm", along with temperatures of "20°C" and "30% RH".

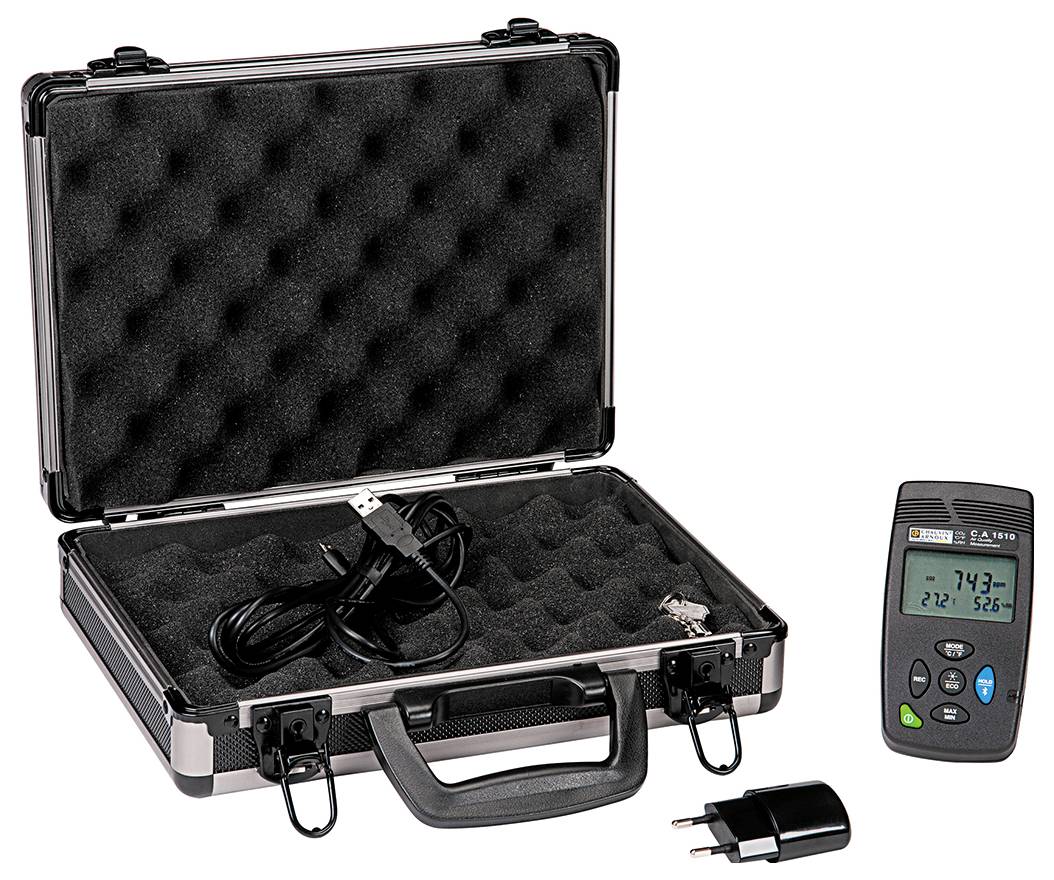

An open black case with foam lining contains a charging cable. Next to it lies a display device showing values and a power adapter.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 669.00 / piece)

€ 669.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

C. A.1510 to messng room air quality (with metal case)

Recording of the CO2, temperature and air humidity values (up to 1 million measured values)
Compact and autonomous - for stationary or mobile measurements
Easy to use thanks to the display of the indoor air quality level on the basis of CO2 content and humidity/Air Temperature
Meets the latest regulations valid for the indoor air quality monitoring
Low gas consumption for the control of an on-site Kalibrierungs-Set

Technical specifications

Measuring range humidity: 5% RH to 95% RH
Humidity reading accuracy: 2% RH
Measuring range: temperature: -10 to + 60 °C
Measurement accuracy temperature: 0.5 °C
Measuring interval: Min. 1 minute up to 2 hours
Sensor: non-dispersive infrared (NDIR) sensor
Protection class: IP40
Memory: over 1 million measured values
Interfaces: USB, Bluetooth ®.

Reading range: Carbon dioxide

Product type: Carbon dioxide detector

Unit of measurement: CO2
Humidity
Temperature

Reading range: 0 - 5000 ppm

Dim: (L x W x H) 32 x 125 x 65.5 mm

Resolution: 1 ppm

Features: Datalogger function

Weight: 190 g

Reading range (max.): 5000 ppm

Reading range (min.): 0 ppm

Reading category: CAT II

Width: 125 mm

Height: 65.5 mm

Length: 32 mm

: IP40

Power supply (details): Aa battery (2x)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1666157 Chauvin Arnoux C.A 1510 schwarz Carbon dioxide detector 0 - 5000 ppm Datalogger function

User & Safety Instructions

User & Safety Instructions 1666157 Chauvin Arnoux C.A 1510 schwarz Carbon dioxide detector 0 - 5000 ppm Datalogger function

Description

The C.A 1510 measures the CO2 content in accordance with the latest valid regulations governing the assessment of ventilation systems and the measurement of pollutants in the air in public places. As soon as the CO2 concentration in the room air in the 1000 ppm or peak values of 1700 ppm is reached, the C.A 1510 a visual and audible warning signal.

This text is machine translated.

Features

Two Colored backlit large display
Simultaneous display of CO2 content, temperature and relative humidity
Symbol for the air quality on the basis of the measured values

Scope of delivery

Metal case
2 batteries LR6
USB mains adapter
Micro-USB connection cable, 1.80 m long
Quick guide
Mini-CD with the aqr software and the operating instructions (1 file per language)
Test confirmation

Description

Features

Two Colored backlit large display
Simultaneous display of CO2 content, temperature and relative humidity
Symbol for the air quality on the basis of the measured values

Scope of delivery

Metal case
2 batteries LR6
USB mains adapter
Micro-USB connection cable, 1.80 m long
Quick guide
Mini-CD with the aqr software and the operating instructions (1 file per language)
Test confirmation
