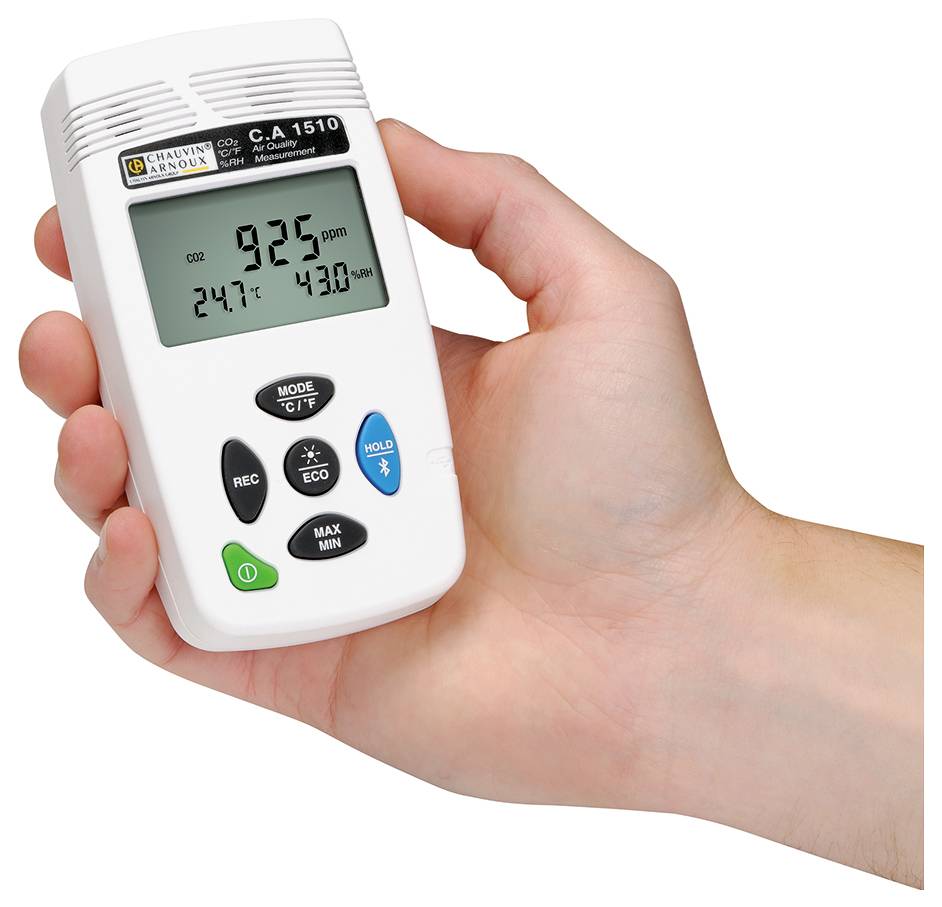

Chauvin Arnoux C.A 1510 weiß Carbon dioxide detector 0 - 5000 ppm Datalogger function
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 562.18 / piece)
€ 562.18
plus VAT.
Only 1 Piece(s) available
Highlights & Details
C. A.1510 to messng the indoor air quality
- Recording of the CO2, temperature and air humidity values (up to 1 million measured values)
- Compact and autonomous - for stationary or mobile measurements
- Easy to use thanks to the display of the indoor air quality level on the basis of CO2 content and humidity/Air Temperature
- Meets the latest regulations valid for the indoor air quality monitoring
- Low gas consumption for the control of an on-site Kalibrierungs-Set
Technical specifications
- Measuring range humidity: 5% RH to 95% RH
- Humidity reading accuracy: 2% RH
- Measuring range: temperature: -10 to + 60 °C
- Measurement accuracy temperature: 0.5 °C
- Measuring interval: Min. 1 minute up to 2 hours
- Sensor: non-dispersive infrared (NDIR) sensor
- Protection class: IP40
- Memory: over 1 million measured values
- Interfaces: USB, Bluetooth ®.
- Reading range
Carbon dioxide
- Product type
Carbon dioxide detector
- Unit of measurement
CO2
Humidity
Temperature
- Reading range
0 - 5000 ppm
- Dim
(L x W x H) 32 x 125 x 65.5 mm
- Resolution
1 ppm
- Features
Datalogger function
- Weight
190 g
- Reading range (max.)
5000 ppm
- Reading range (min.)
0 ppm
- Reading category
CAT II
- Width
125 mm
- Height
65.5 mm
- Length
32 mm
IP40
- Power supply (details)
2 x AA batteries (AA)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1666189 Chauvin Arnoux C.A 1510 weiß Carbon dioxide detector 0 - 5000 ppm Datalogger function
User & Safety Instructions
User & Safety Instructions 1666189 Chauvin Arnoux C.A 1510 weiß Carbon dioxide detector 0 - 5000 ppm Datalogger function
Description
The C.A 1510 measures the CO2 content in accordance with the latest valid regulations governing the assessment of ventilation systems and the measurement of pollutants in the air in public places. As soon as the CO2 concentration in the room air in the 1000 ppm or peak values of 1700 ppm is reached, the C.A 1510 a visual and audible warning signal.
This text is machine translated.
This text is machine translated.
Features
- Two Colored backlit large display
- Simultaneous display of CO2 content, temperature and relative humidity
- Symbol for the air quality on the basis of the measured values
Scope of delivery
- 2 batteries LR6
- USB mains adapter
- Micro-USB connection cable, 1.80 m long
- Table bracket
- Quick guide
- Mini-CD with the aqr software and the operating instructions (1 file per language)
- Test confirmation
