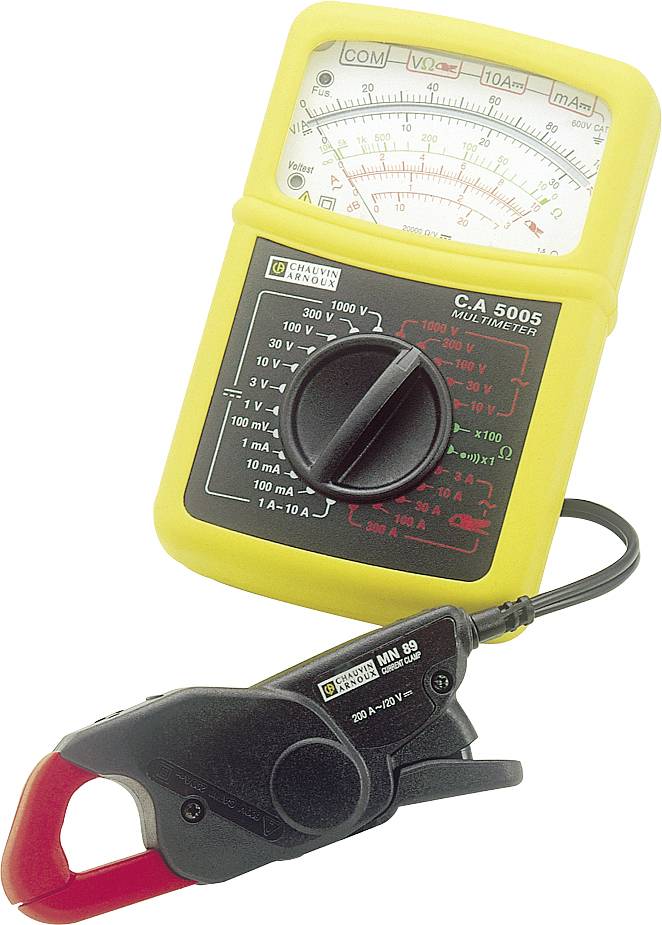

Chauvin Arnoux C.A 5005 + MN 89 Handheld multimeter Analogue Splashproof (IP54) CAT III 600 V, CAT IV 300 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
Highlights & Details
C.A 5005 + MN 89
- Analogue multimeter with compact and shock-proof casing with foldable standing bracket
- 'Fus' illuminated display for showing the status of fuses for the current measuring ranges
- Offers a µA measuring range for particularly small currents
- With electronic protection and high-power fuses
- Automatic zero adjustment in the ohmmeter function
- Illuminated display "Voltage test" signals the presence of external voltages during resistance measuring and continuity testing

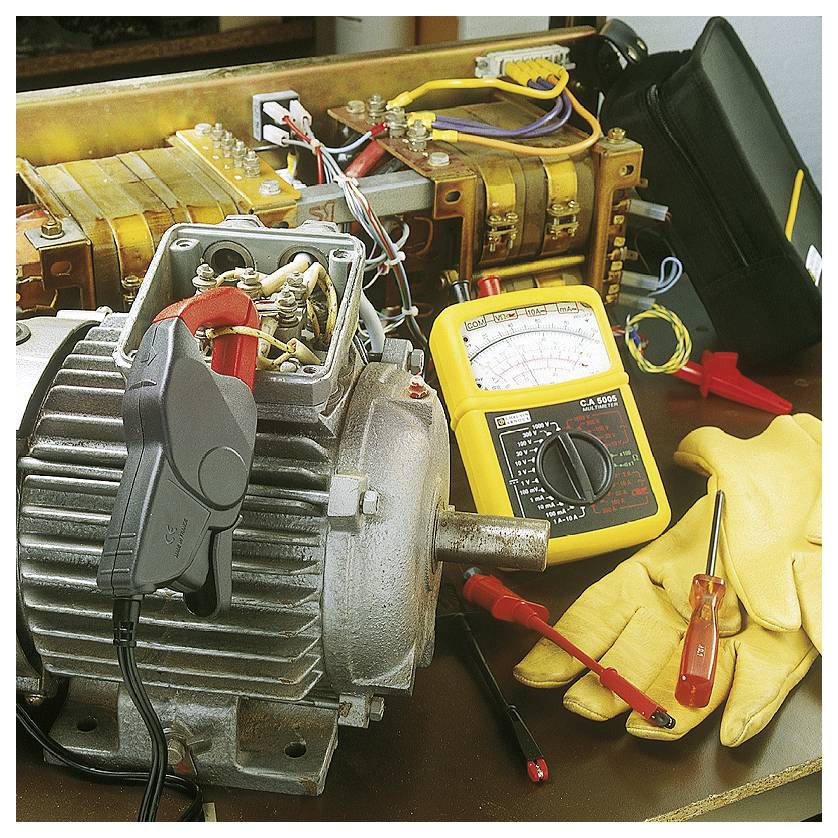

- Direct reading of motor currents with the MN 89 pliers
- BASIC FUNCTIONS V AC, V DC, A AC, A DC, RESISTANCE, Acoustic Continuity testing
Technical specifications
- Typical accuracy:
- 1.5 % at V.
- 2.5 % at V/AC and A
- 10 % at Ω
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
300 A
- Reading range - resistance
5 Ω to 1 MΩ
- Basic accuracy
1.5 %
- Frequency range
10 Hz up to 100 kHz Hz
- Height
160 mm
- Width
105 mm
- Length
56 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Voltage metering
AC
DC
- Current reading
AC
DC
- Type
C.A 5005 + MN 89
- Display
Analogue
- Dim
(L x W x H) 56 x 105 x 160 mm
- Features
Splashproof (IP54)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2793010 Chauvin Arnoux C.A 5005 + MN 89 Handheld multimeter Analogue Splashproof (IP54) CAT III 600 V, CAT IV 300 V
User & Safety Instructions
User & Safety Instructions 2793010 Chauvin Arnoux C.A 5005 + MN 89 Handheld multimeter Analogue Splashproof (IP54) CAT III 600 V, CAT IV 300 V
Warranty Terms
Warranty Terms 2793010 Chauvin Arnoux C.A 5005 + MN 89 Handheld multimeter Analogue Splashproof (IP54) CAT III 600 V, CAT IV 300 V
Description
The C.A 5005 is an analogue multimeter at an affordable price that fulfills all the measurement requirements of electrical engineers.
The device is supplied with a clip-on ammeter (for direct reading) of alternating current strengths of up to 200 A AC.
This text is machine translated.
The device is supplied with a clip-on ammeter (for direct reading) of alternating current strengths of up to 200 A AC.
This text is machine translated.

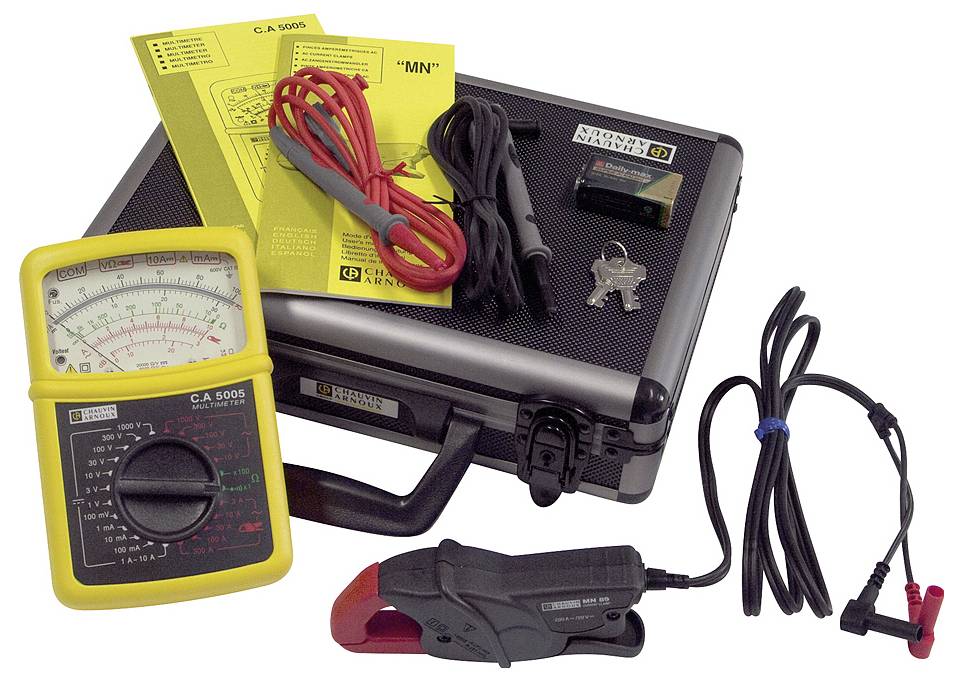

Scope of delivery
- 1 set of safety measuring lines acc IEC 1010 with test probes
- 1 x 9 V battery
- 1 operating instructions
- 1 mini-pliers MN 89
- 1 transport bag.
