Name: Chauvin Arnoux C.A 6424 Earth ground meter
Brand: Chauvin Arnoux
SKU: 2255068
Availability: BackOrder

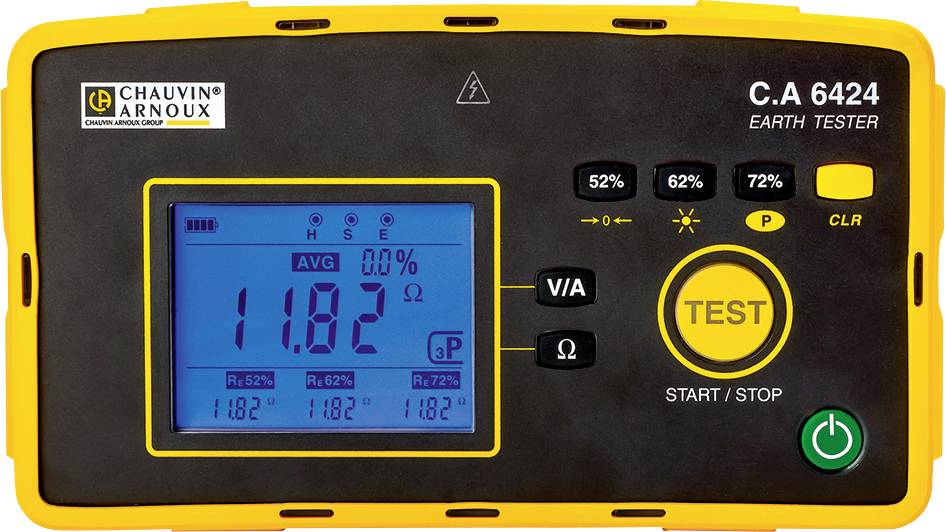

A digital earth testing device with a yellow casing displays a resistance value of '11.82 Ω' on its screen.

A yellow electrical testing device next to a black carry case and a USB cable.

A yellow earth/ground measurement device C.A 6424 with a digital display shows 0.5 mA. A red measuring clamp is connected on the right.

Yellow earth resistance measuring device C.A 6424 with digital display and multiple buttons, displaying resistance measurement value of 11.82 ohms.

Yellow electronic device with multiple ports and indicator lights on the front. It is situated in a sturdy mounting bracket.

Yellow earth testing device 'C.A 6424' with digital display shows 11.82 ohms. Start/Stop and Test buttons available.

Device for earth resistance measurement with digital display, showing a measured value of 0.5 mA, surrounded by function buttons and connection terminal.

A yellow electronic device with multiple ports and a control panel on the front, sitting on a table.

An earth resistance measurement device with a display shows '7.64 Ω'. Measurement cables and probes are lying next to the device on a grassy surface.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 815.00 / piece)

€ 815.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

C.A 6424 earth tester

2- or 3-pole earth resistance measurement up to 50 kΩ for high ground resistance
Robust and waterproof housing for intensive field applications
Automatic measurement stabilization
Help for placement of auxiliary earth - calculation of mean 52%/62%/72% and deviation
Measurement of leakage currents from 0.5 mA
Recharging the batteries via power supply, USB connection or 12 V car socket

Technical specifications

Current measurement with optional G72 clamp meter:
Range: 0.5 - 999.9 mA / 0.800 - 9.999 A /8.00 - 60.00 A
Resolution 0.1 / 1 / 10 mA

Product type: Earth ground meter

Interfaces: Vehicle socket
USB

Reading range - voltage: 0.1 V/AC - 600 V AC

: Manufacturer's standards (no certificate)

Reading range - resistance: 0.5 Ω - 50.00 kΩ

: IK04
IP65

Dim: (L x W x H) 7 x 22.3 x 12.6 cm

Weight: 1 kg

Display: LCD

Content: 1 pc(s)

Reading category: CAT IV 600 V

Measuring type: Ground spike

Width: 22.3 cm

Height: 12.6 cm

Length: 7 cm

Type: C.A 6424

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2255068 Chauvin Arnoux C.A 6424 Earth ground meter

User & Safety Instructions

User & Safety Instructions 2255068 Chauvin Arnoux C.A 6424 Earth ground meter

Description

The C.A 6424 earth tester is waterproof and robust and thus suitable for intensive field applications.

The earth tester can be used to perform 2-pole and 3-pole earth measurements. A text and color marker prevents the user from passing port errors.
The device supports the placement of the earth rods by calculating the mean value of 52%/62%/72% and the deviation.

The tester also enables voltage measurements up to 600 V.
All measurements and functions are located directly on the front of the device and can also be operated with gloves.
The special G72 clamp-on ammeter enables the measurement of phase and leakage currents from 0.5 mA to 60 A.

There is a button to compensate the lines. A warning light indicates the presence of dangerous voltage, while the flashing NOISE symbol indicates the presence of interference voltages.

The earth tester C.A 6424 has an illuminated triple display so that all relevant information is displayed on the same screen: Measurement result, measurement error or recorded values as well as additional information (USE, RH, etc.).

This text is machine translated.
