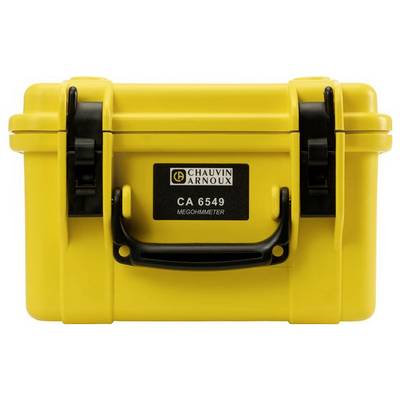

Chauvin Arnoux C.A 6549 Insulation tester 500 V, 1000 V, 2500 V, 5000 V 10 TΩ

DescriptionDigital insulation meter for 5000 V.The Megohm meter CA 6549 in a housing suitable for construction offers a quantitative and qualitative analysis of the insulation on a large illuminated graphic display.Technical data and functions:Comprehensive measurement range: 10 kΩ to 10 TΩ4 specified test voltages: 500, 1000, 2500 and 5000 V.Test voltage from 40 V to 5100 V can be set in 10 V or 100 V stepsVoltage ramp operating mode: The display shows the measurement curve R (Utest) and automatic calculation of the inclination in ppm/V.Automatic calculation OF quality criteria, PI and DDAdjustable test duration and direct display of the history curve R(t) on the displayAfter the measurement with indication of the measured temperature t° Calculation of the resistance relative to another temperature t° (reference temperature) for a precise and reliable testing of the insulationNumerous functions: Limiting the test voltage to non-hazardous values, smooth, programmable alarms, etc.Memory for several measured valuesUSB interface for connection to computer and very compact serial printerPower supply: NiMH rechargeable batteries for approx. one month operating time with 10 CURRENT and 5 PI measurements per dayInstallation category: IEC 61010-1 cat III 1000 V or cat I 2500 V and IEC 61557Dimensions 270 x 250 x 180 mm; weight 4.3 kg
