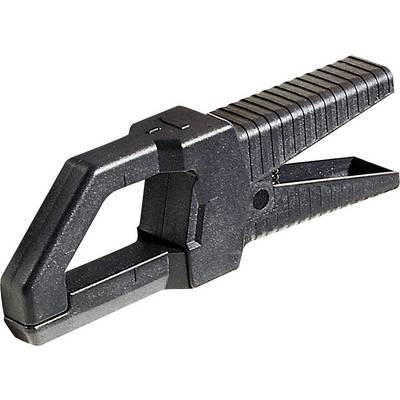

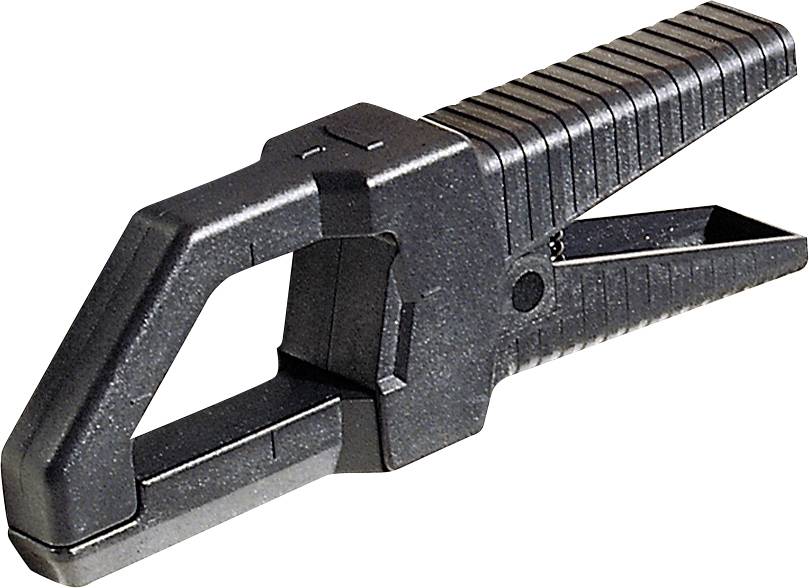

Buy Chauvin Arnoux Y7N Clamp meter adapter A/AC reading range: 1 - 1200 A

A large black G-clamp with a serrated handle and wide opening, typically used for technical or craft purposes.

Datasheet (PDF)

Dispatches on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 542.02 / piece)

€ 542.02

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Y-clamps - measure alternating currents up to 600 A !

N/A
Opening range of current clamps 30 mm

Technical specifications

Transmission ratio (input/output): 1 A/1 mV

Opening range of current clamps: 30 mm

Basic accuracy: 2 %

Dim: (L x W x H) 34 x 66 x 195 mm

Weight: 420 g

Type B: BNC plug

Current reading: AC

Height: 195 mm

Length: 34 mm

Width: 66 mm

Max. frequency: 10 kHz

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT IV 300 V

Amperage reading range AC (max.): 1200 A

A AC reading range (min.): 1 A

Output signal (max.): 1 V

Product type: Clamp meter adapter

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199873 Chauvin Arnoux Y7N Clamp meter adapter A/AC reading range: 1 - 1200 A

User & Safety Instructions

User & Safety Instructions 2199873 Chauvin Arnoux Y7N Clamp meter adapter A/AC reading range: 1 - 1200 A

Description

The "Y" range includes clamp transformers that can measure alternating currents up to 600 A on cables up to 30 mm in diameter or on rails up to 62x5 mm in systems up to CAT III 600 V or CAT IV 300 V.
Together with an oscilloscope, this isolated current transformer with its 2 measuring ranges can be used to represent peak currents up to 1,200 A with a bandwidth of up to 10 kHz.

This text is machine translated.

Scope of delivery

1 user manual
