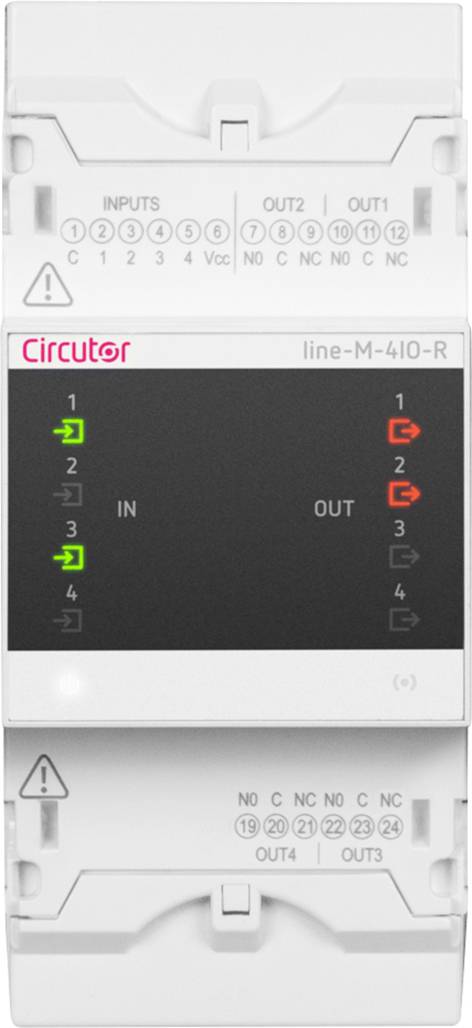

Image similar
1/2
Image similar
Circutor Line-EDS-PSS Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 810.92 / piece)
€
Highlights & Details
- Integrated PowerStudio SCADA software
- 5 display LEDs
- 2 digital outputs
- RS-485 and Ethernet
- WiFi
Technical specifications
- Product type
Expansion
- Type
Line-EDS-PSS
- Display technology
LCD
IP30
- Recess width
53 mm
- Recess height
118 mm
- Operating voltage
230 V DC/AC
- Dim
(L x W x H) 74 x 53 x 118 mm
- Weight
180 g
- Max. operating voltage
300 V DC
- Min. operating voltage
100 V DC
- Display lighting
white
- Recess depth
74 mm
- Factory colour
White
- Reading category
CAT III 300 V
- Width
53 mm
- Height
118 mm
- Length
74 mm
- Frame width
53 mm
- Interfaces
1 x Ethernet/LAN
Wi-Fi
1 x RS 485 Modbus RTU
Documents & Downloads
Datasheet
Datasheet 2390047 Circutor Line-EDS-PSS Expansion
User & Safety Instructions
User & Safety Instructions 2390047 Circutor Line-EDS-PSS Expansion
Information
Information 2390047 Circutor Line-EDS-PSS Expansion
Description
Line-EDS-PSS is a module of the CIRCUTOR Line System for monitoring and controlling plants.
Circutor Line-EDS-PSS is a gateway with embedded PowerStudio. With this module alone, you can set up a monitoring and remote management system (SCADA). By using the extension modules of the line series or any Modbus (TCP or RTU) device on the market, it is possible to integrate every process signal to be measured.
By programming the device with PowerStudio, you can integrate any control logic for analogue or digital outputs so that you can create an automated management system that performs actions based on the input signals. The device can be connected via wired (Ethernet) or wireless (Wi-Fi) networks. The data displays, screens, and reports can be accessed through the PowerStudio client or through a web browser using the embedded Web server.
The Line-M Series I/O Expansion Modules allow the system to be expanded to include I/O functions.
This text is machine translated.
Circutor Line-EDS-PSS is a gateway with embedded PowerStudio. With this module alone, you can set up a monitoring and remote management system (SCADA). By using the extension modules of the line series or any Modbus (TCP or RTU) device on the market, it is possible to integrate every process signal to be measured.
By programming the device with PowerStudio, you can integrate any control logic for analogue or digital outputs so that you can create an automated management system that performs actions based on the input signals. The device can be connected via wired (Ethernet) or wireless (Wi-Fi) networks. The data displays, screens, and reports can be accessed through the PowerStudio client or through a web browser using the embedded Web server.
The Line-M Series I/O Expansion Modules allow the system to be expanded to include I/O functions.
