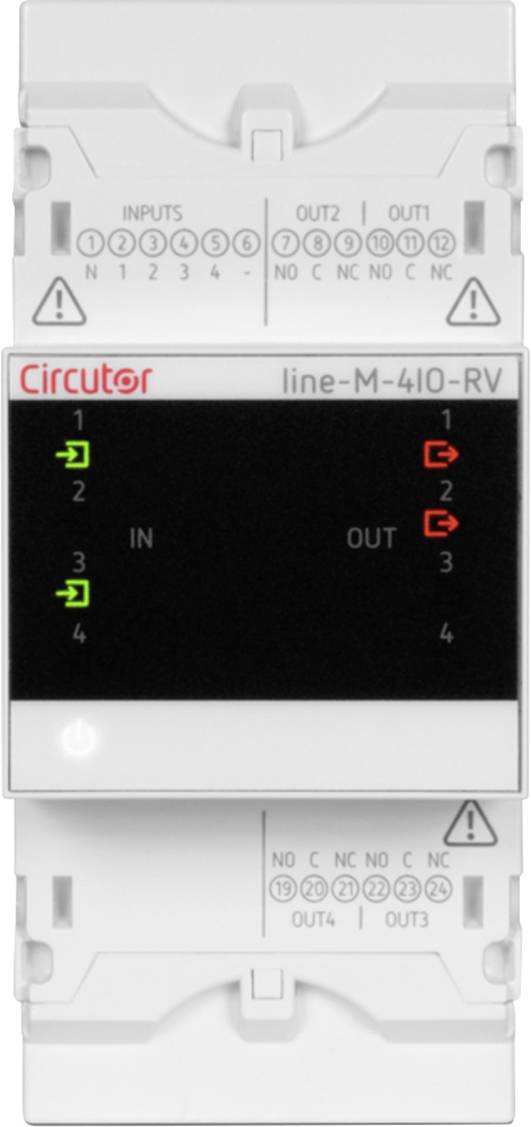

Circutor Line-M-4IO-RV Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Highlights & Details
- 4x digital input 50 mA/230 V AC
- 4x relay output 6 A/250 V AC
Technical specifications
- Product type
Expansion
- Reading type
Pulse
- Reading range (min.)
0 V
- Type
Line-M-4IO-RV
- Reading range (max.)
230 V
- Display technology
LCD
IP30
IP40 (Front)
- Recess width
53 mm
- Recess height
118 mm
- Dim
(L x W x H) 74 x 53 x 118 mm
- Weight
215 g
- Display lighting
white
- Recess depth
74 mm
- Factory colour
White
- Reading category
CAT III 300 V
- Width
53 mm
- Height
118 mm
- Length
74 mm
- Frame width
53 mm
Documents & Downloads
Datasheet
Datasheet 2390052 Circutor Line-M-4IO-RV Expansion
User & Safety Instructions
User & Safety Instructions 2390052 Circutor Line-M-4IO-RV Expansion
Information
Information 2390052 Circutor Line-M-4IO-RV Expansion
Description
Line-M-4IO-RV is an I/O expansion module of the CIRCUTOR Line System for monitoring and controlling plants.
The Line-M-4IO-RV module has 4 digital inputs with voltage at 230 V~ and 4 relay outputs.
The line-series expansion modules provide an easy way to extend the functionality of any version of Line-EDS-Cloud, Line-EDS-PS or Line-CVM-D32 Network Analyzer. The modules are connected to the side and are automatically recognized when connecting on the side, was a great way to install and configure the modules.
This text is machine translated.
The Line-M-4IO-RV module has 4 digital inputs with voltage at 230 V~ and 4 relay outputs.
The line-series expansion modules provide an easy way to extend the functionality of any version of Line-EDS-Cloud, Line-EDS-PS or Line-CVM-D32 Network Analyzer. The modules are connected to the side and are automatically recognized when connecting on the side, was a great way to install and configure the modules.
This text is machine translated.
