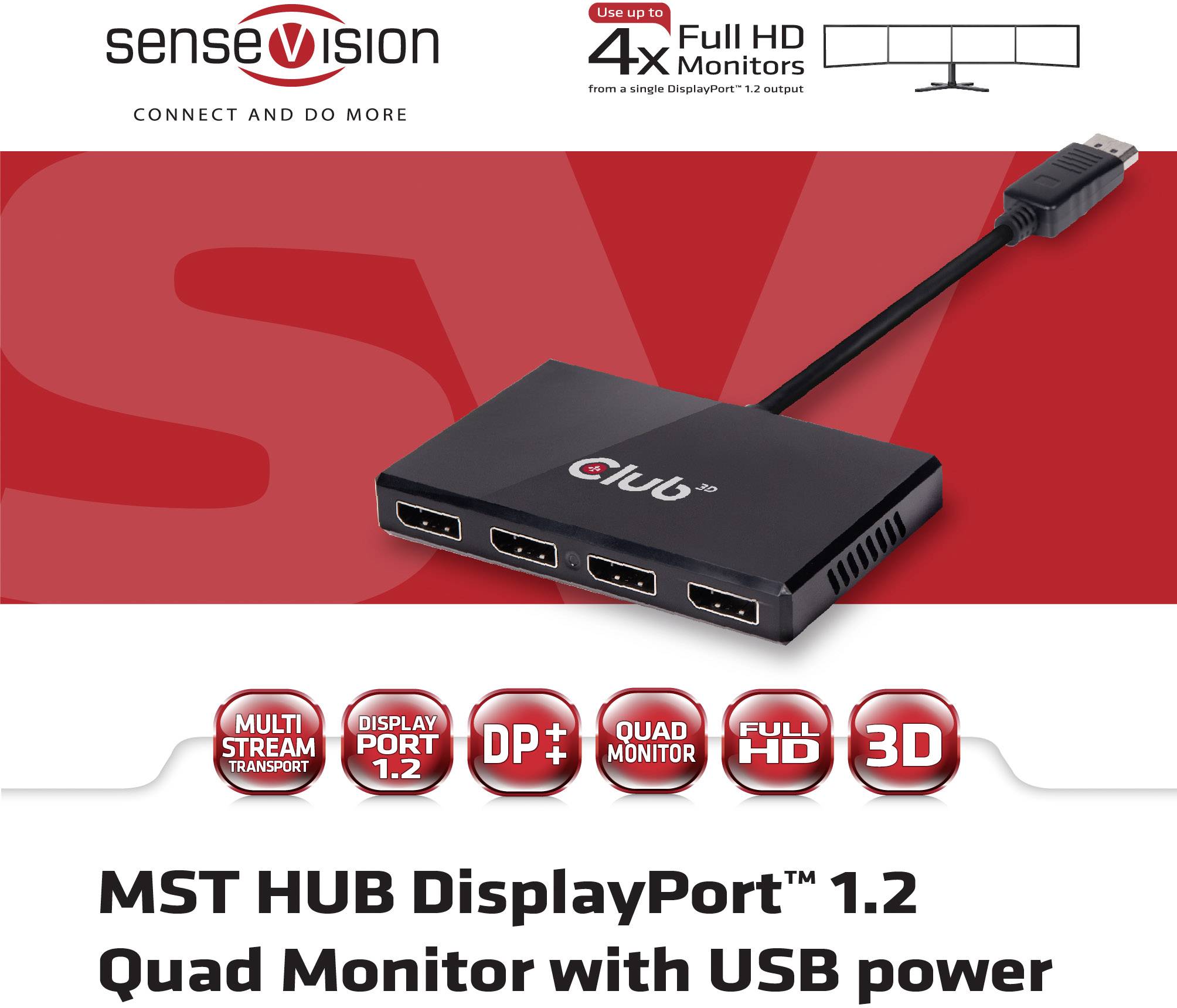

club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black
Highlights & Details
- Compatible with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0, DisplayID and EDID V1.4
- Supports the main connection rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR), and 1.62 Gbps (RBR) from the source
- Outputs support DisplayPort™ dual mode (DP++)
- Supports Advanced Wide Eye™ SerDes technology, enables high jitter performance
- Supports AMD Eyefinity™
- Compatible with Microsoft® Surface Pro and Intel NUC platforms
- Works with AMD, NVIDIA and Intel graphics solutions
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
4 x
- Type B
DisplayPort socket
- Factory colour
Black
- Video resolution
2560 x 1600 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- UKCA
yes
![club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997874PI00/image.jpg?x=100&y=100)
![club3D CAC-2003 DisplayPort Adapter [1x DisplayPort plug - 1x VGA socket] White 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997856PI00/image.jpg?x=100&y=100)
![club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997859PI04/image.jpg?x=100&y=100)
![club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997862PI00/image.jpg?x=100&y=100)
![club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997866PI00/image.jpg?x=100&y=100)
![club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997867PI00/image.jpg?x=100&y=100)
![club3D CSV-6200 DisplayPort Adapter [1x DisplayPort plug, USB 3.2 1st Gen port Micro B (USB 3.0) - 2x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997872PI00/image.jpg?x=100&y=100)
![club3D CAC-2504 USB Adapter [1x USB 3.2 2nd Gen connector C (USB 3.1) - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997875PI00/image.jpg?x=100&y=100)
Documents & Downloads
Datasheet
Datasheet 1997874 club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black
User & Safety Instructions
User & Safety Instructions 1997874 club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black
Description
The Club3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that allows multiple independant, uncompressed display and audio streams to be transported over a single cable to support protected content and powerful applications such as 3D games. This allows the use of multiple monitors connected through the MST hub configuration. The Club3D MST Hubs can distribute these video streams to the connected screens.
The Club3D MST hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs, but allow optimum use.
This text is machine translated.
The Club3D MST hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs, but allow optimum use.
This text is machine translated.
Features

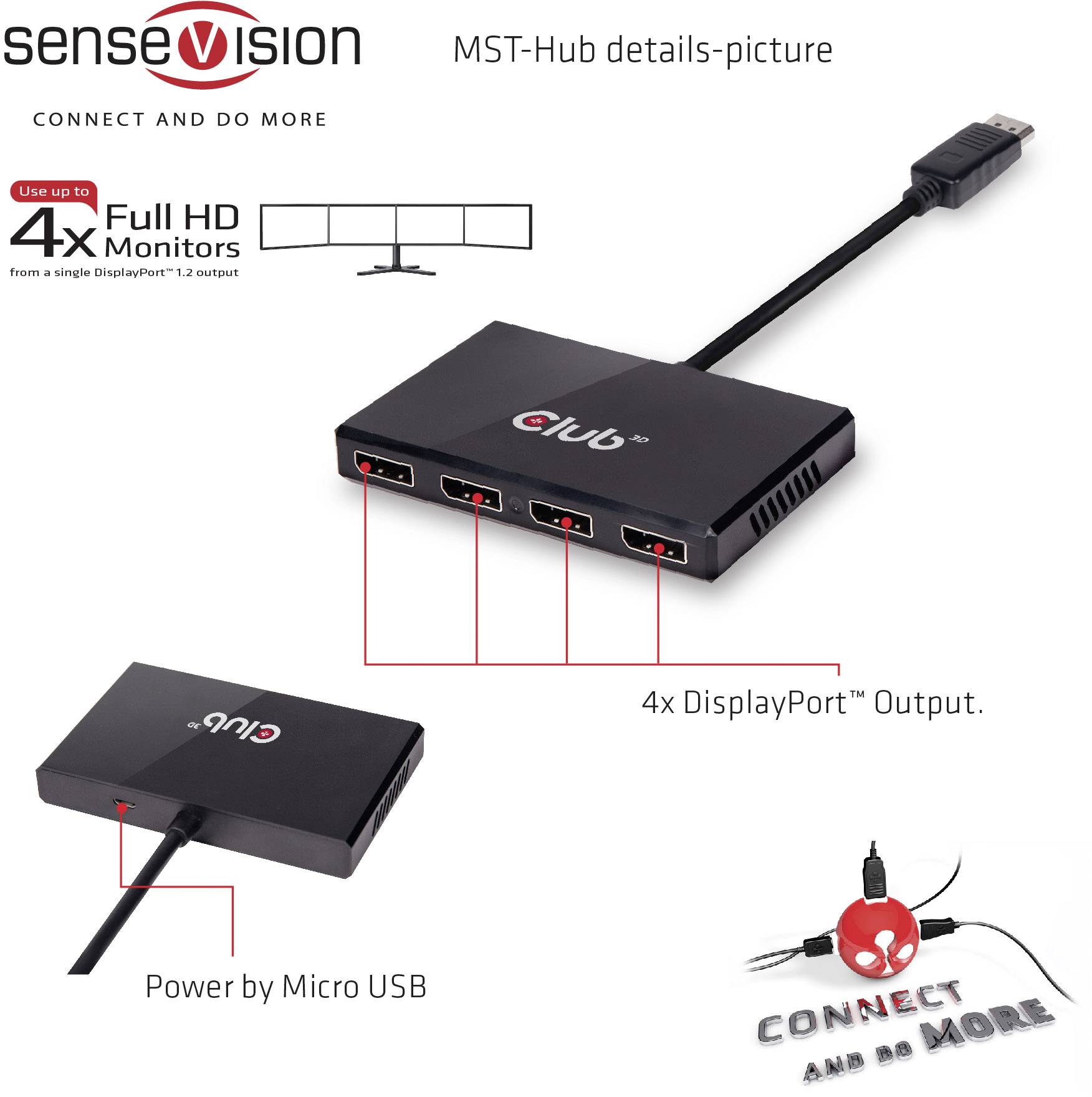

- Power supply via USB

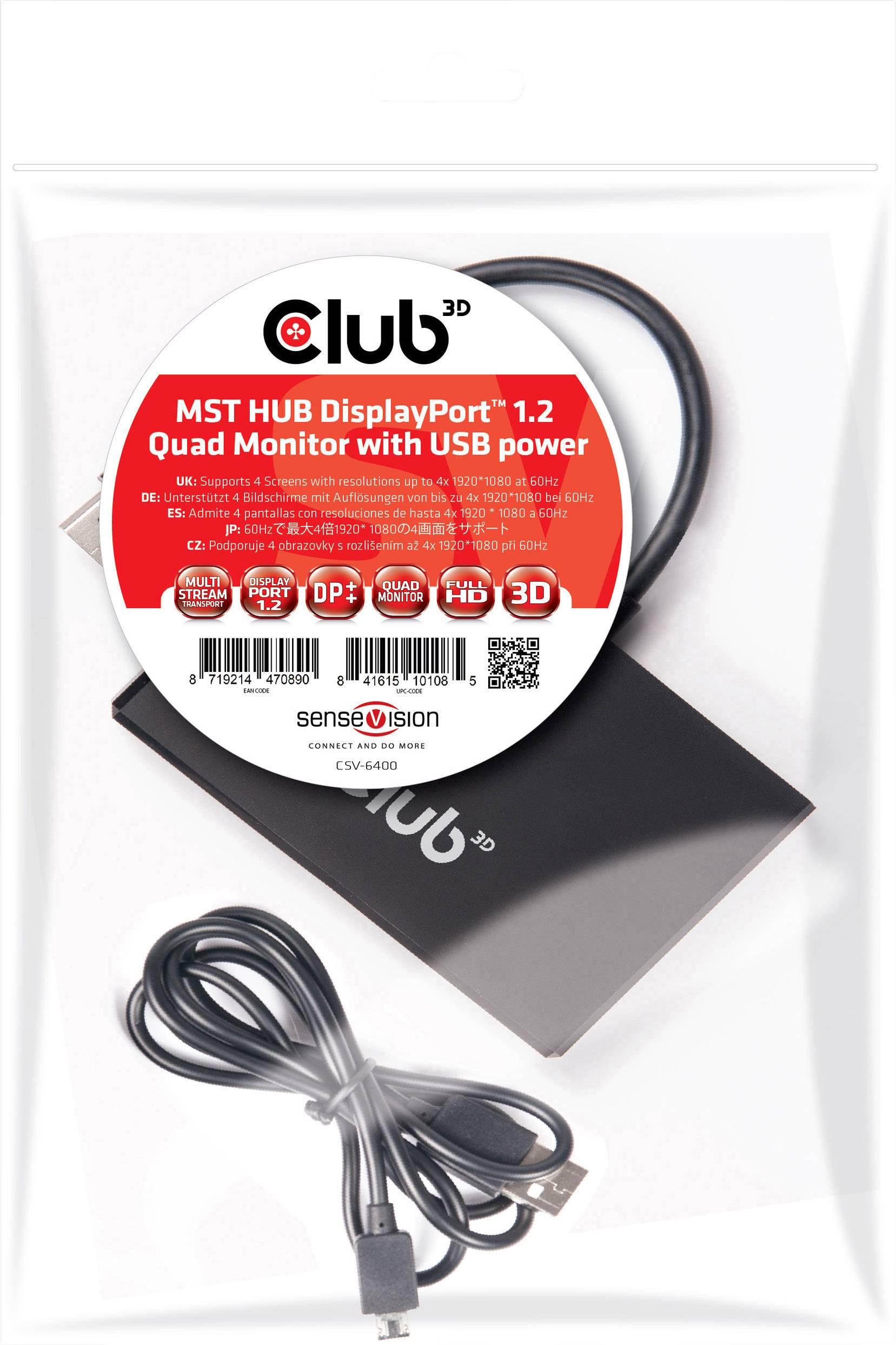

Scope of delivery
- USB to micro USB cable for power
- Quick installation guide
Hints
Note: When using a DisplayPort™ 1.1 graphics card, the MST hub acts as a splitter and automatically mirrors your video source across all displays. Note: Some notebooks/tablets/MiniPCs have built-in graphics chips that do not support more than 3 screens in total. For more information, see the specifications for your device.
System requirements
- Microsoft Windows 10/8.1
