Buy Comatec ORF1224RB Power supply unit 24 V DC 0.50 A 12 W

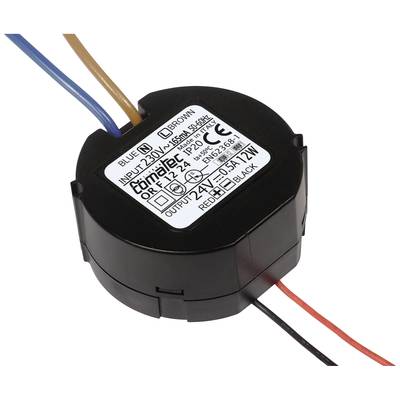

Round electronic transformer with printed technical specifications, including input voltage 230V and output 12V. Four wires: blue, brown, red, black.

Round, black LED driver with inscription: 'INPUT 230V; OUTPUT 2-24V; 6-54W; IP20'. Multiple coloured cables connected.

Round LED driver, model number LPV-10-24, with colour-coded connection wires in Blue, Brown, Red and Black.

1/3

Fast track dispatch on Fri, 11 Sep

60 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 22.68 / piece)

€ 22.68

plus VAT.

Report legal concerns

Highlights & Details

UP-POWER SUPPLY 230VAC/24VDCR-0.5A CONNECTIONS FREE ENDS EN62368

Output 24 V DC / 0.50 A
Power 12 W

Technical specifications

EMC STANDARDS EN55032/B - EN55024Safety standard EN62368Connections: Through free ends Length 80 mm

Product type: Power supply unit

Input voltage (max.): 230 V AC

Max. output current: 0.50 A

Output current (max.) - rounded: 500 mA

Dim: (Ø) 50 mm

Output voltage (max.): 24 V DC

: 12 W

Type: closed

PSU features: open cable ends

Type: ORF1224RB

(Ø): 50 mm

Max. temperature: +50 °C

Min. temperature: -10 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2586515 Comatec ORF1224RB Power supply unit 24 V DC 0.50 A 12 W

Description

The synchronized flush-mounted power supplies of the “ORBIT” series have a high degree of efficiency and low standby power consumption in idle mode and are designed for installation in the smallest European flush-mounted sockets. This means that the continuous, stabilized power source is directly where it is needed, without having to carry out complex installation work or mount visible power supplies on the wall. They are also used in extremely small rooms and especially in home automation, e.g. security and video surveillance systems, door and window automation, air conditioning and lighting systems, etc.… especially in historic buildings, whose masonry cannot be changed, Comatec offers an innovative solution with the series "ORBIT".

This text is machine translated.
