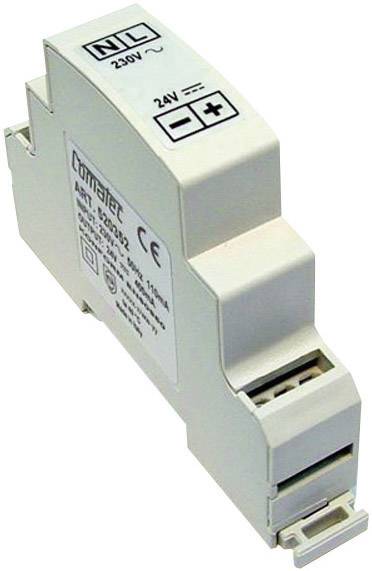

Comatec PSM1/10.24 Rail mounted PSU (DIN) 24 V DC 0.42 A 10 W Content 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 42.85
-41 %
€ 25.20
plus VAT.
Technical specifications
- EN60950 / EN55022/B / EN61000-4
- Nominal input voltage
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
195 V AC
- Output voltage
24 V DC
- Input voltage (max.)
265 V AC
- Max. output current
0.42 A
- Output current (max.) - rounded
420 mA
10 W
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal

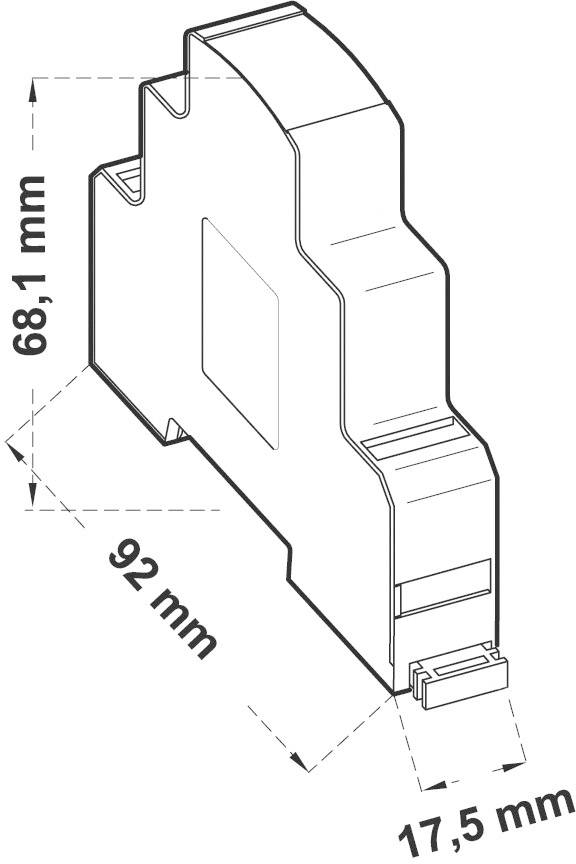

- Dim
(W x H x D) 17.5 x 68.5 x 93 mm
- Weight
0.35 kg
- Output voltage (min.)
23.28 V DC
- Manufacturer part #
PSM1/10.24
- Content
1 pc(s)
- Width
17.5 mm
- Height
68.5 mm
IP20
- Max. temperature
+50 °C
- Min. temperature
-5 °C
- Type
PSM1/10.24
- Depth
93 mm
10 W
- Type
1 M (TE)
- Ambient temperature
-5 - +50 °C
- Frequency
48 - 63 Hz
- Primary voltage
230 V AC
- Protection class
II
- Standards
EN60950-1, EN55022/B, EN55024, EN61204-3
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 540520 Comatec PSM1/10.24 Rail mounted PSU (DIN) 24 V DC 0.42 A 10 W Content 1 pc(s)
Description
The power supplies are developed for use in building automation, industrial automation, safety technology, access control, sensors and video surveillance.
