Comatec PSM1/15.24 Rail mounted PSU (DIN) 24 V DC 0.625 A 15 W Content 1 pc(s)

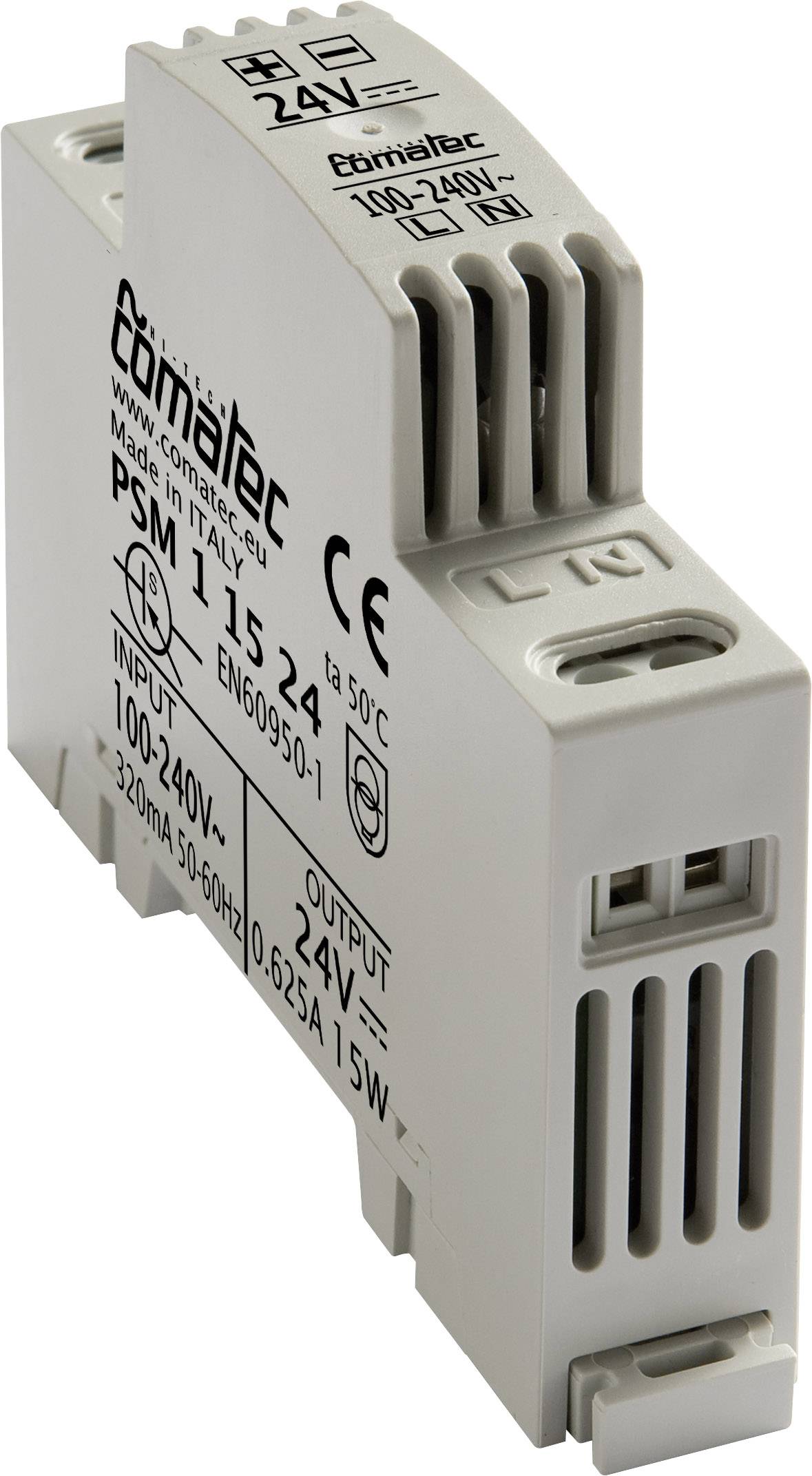

Grey-white DIN rail power supply adapter with inscription 'INPUT 100-240V' and 'OUTPUT 24V', suitable for industrial applications.
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
22 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 30.99 / piece)
€ 30.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • EN60950 / EN55022/B / EN55024 / EN61000-3-2(3)
Product type

Rail mounted PSU (DIN)

Min. input voltage

90 V AC

Input voltage (max.)

264 V AC

Max. output current

0.625 A

Output current (max.) - rounded

625 mA

15 W

Output type (power supply units)

Fixed voltage

Output voltage (nominal)

24 V DC

Dim

(L x W x H) 93 x 17.5 x 68 mm

Weight

0.18 kg

Output voltage (max.)

24 V DC

Output voltage (min.)

23.28 V DC

Manufacturer part #

PSM1/15.24

Content

1 pc(s)

PSU features

Surge protection

Width

17.5 mm

Height

68 mm

Length

93 mm

Max. temperature

+50 °C

Min. temperature

-10 °C

Type

PSM1/15.24

12 W

Type

1 M (TE)

Ambient temperature

-10–+50 °C

Frequency

48 - 63 Hz

Primary voltage

100 - 240 V AC

Standards

EN60950 / EN55022/B / EN55024 / EN61000-3-2(3)

Documents & Downloads

Datasheet

Datasheet 1313694 Comatec PSM1/15.24 Rail mounted PSU (DIN) 24 V DC 0.625 A 15 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1313694 Comatec PSM1/15.24 Rail mounted PSU (DIN) 24 V DC 0.625 A 15 W Content 1 pc(s)

Description

12 W power supply in the 1module(TE) casing. These power supplies are designed according to the Flyback converter principle. This means constant output voltage in supply voltage fluctuations and with load variations from 0 - 100% in a tolerance of ± 3 %. No minimum load is required. The output voltage stays stable in the load range from 0 to 100%. No Hiccup-mode function. The devices run safely even with difficult loads (DC/DC converter, motors). The max. constant current is maintained even with overloads and short-circuits, without that the devices switch off.
