Connectors & CablesConnectorsD-SUB ConnectorsD-SUB Contacts

Conec 131C11049X 131C11049X Pin AWG (min.): 10 AWG max.: 8 Copper alloy 40 A 1 pc(s)

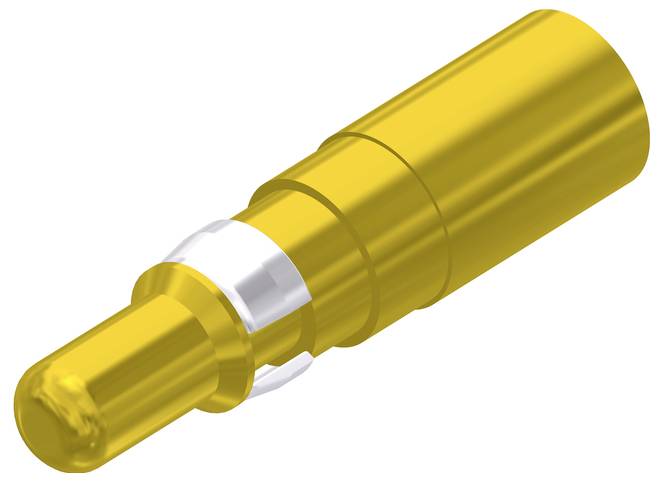

A yellow, cylindrical metal plug in close-up. The plug is smooth and shiny with a silver ring in the middle.

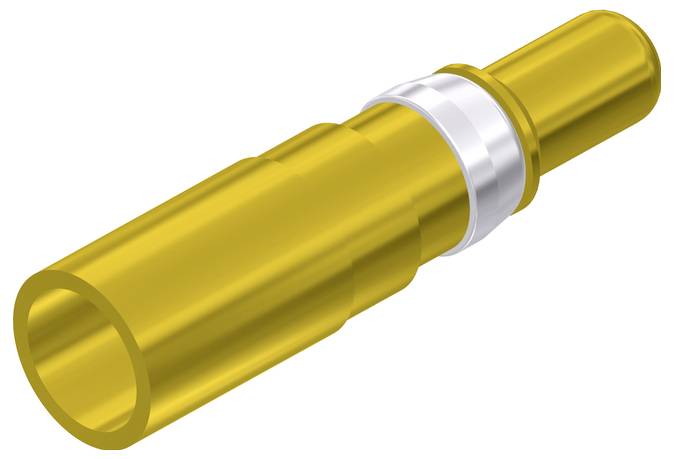

A yellow, elongated, metallic connector with a silver ring in the middle, typically used for electronic connections.
Yellow button with white border, centrally positioned.
1/3
Product type
Pin
AWG max.
8
Contact material
Copper alloy
Content
1 pc(s)
AWG (min.)
10
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
1 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.99 / piece)
€ 2.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Conec pin contact 131C11049X

Our service for you

Technical specifications

  • Product type: D-SUB combination contacts
  • Contact type: Pin
  • IP protection class IP20
  • Standard current carrying capacity IEC 60807-2
  • Standard electrical strength IEC 60807-2
  • Standard operating voltage IEC 60807-2
  • Lower operating temperature: -55° C.
  • Grade: Grade 1
  • Mating cycles: 500
  • Insertion force 7 N
  • Pull force 5 N
  • Standard mating cycles IEC 60807-2
  • Standard plug-in-pulling forces:IEC 60807-2
  • Standard protection class IEC 60807-2
  • Voltage resistance Power 1000 V
  • Operating voltage Power 250 V
  • Current carrying capacity Power 40 A
  • Connection type Power: Straight crimp
  • High current contacts for wire cross-section AWG 8- 10
  • Contact resistance Power:1 mOhm
  • High current contacts material: Copper alloy
  • High current contacts surface: Plug side: Gold on nickel
  • High current contacts surface Connection side: Gold over nickel
Product type

Pin

AWG max.

8

Contact material

Copper alloy

Content

1 pc(s)

AWG (min.)

10

Connection

Crimp

Mating cycles

500

Manufacturer part #

131C11049X

Contact surface

Gold on nickel

Nominal current

40 A

RoHS-compliant

Yes

Type

131C11049X

IP20

Documents & Downloads

Datasheet

Datasheet 3374457 Conec 131C11049X 131C11049X Pin AWG (min.): 10 AWG max.: 8 Copper alloy 40 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3374457 Conec 131C11049X 131C11049X Pin AWG (min.): 10 AWG max.: 8 Copper alloy 40 A 1 pc(s)

Description

Conec D-SUB combination contacts, stylus
