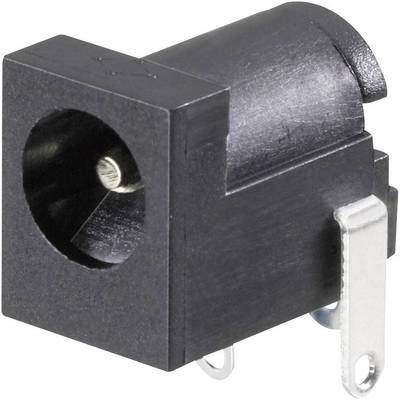

Black, rectangular socket with metallic connection pins, suitable for electronic devices.<br><br>Note: This translation is already in British English, as the original text was in German and the English translation follows British English conventions.

Image similar

Black, rectangular socket with metallic connection pins, suitable for electronic devices.<br><br>Note: This translation is already in British English, as the original text was in German and the English translation follows British English conventions.

Image similar

Conrad Components

Datasheet (PDF)

English

392 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.25 / piece)

€

Report legal concerns

Highlights & Details

Power supply chassis socket PCB mounting

6.3 mm
2.5 mm

Technical specifications

suitable for: connector with inside dia.: 1.95 and 2.1 mm Mounting hole gap: 15 mm

Nominal current: 3 A

Nominal current - rounded value: 3 A

Manufacturer part #: DC25-09

Type: DC25-09

Content: 1 pc(s)

Inside diameter: 6.3 mm

Connection: Soldering

Nominal voltage: 34 V

Pin Ø: 2.5 mm

Connector type: Socket, horizontal mount

Outside Ø: 4.2 mm

Type: Solder

Switching current: 3 A

Connection: -

RoHS-compliant: Yes

Product type: Low power connector

Documents & Downloads

Datasheet

English

Datasheet 733988 Conrad Components Low power connector Socket, horizontal mount 6.3 mm 2.5 mm 1 pc(s)

Description

PCB socket with switch contact

Hints

meets DIN 45323 standard
