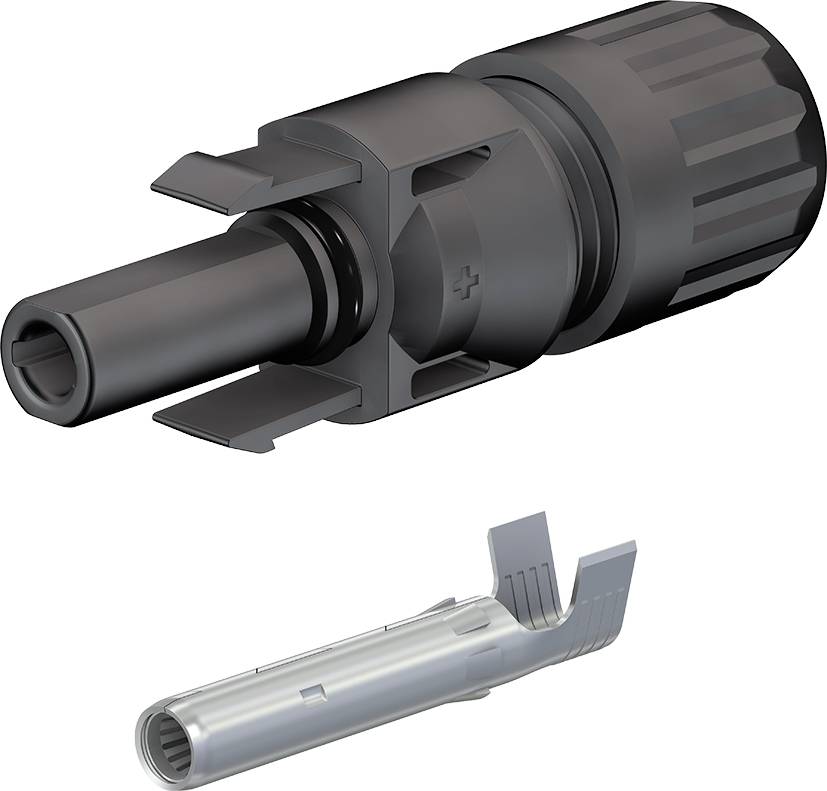

Coupling socket, MC4 connector 32.0034P0001 PV-KBT4/10II Stäubli Content: 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Technical specifications
- Pollution level 3
- Max. Contact resistance of connector: < 0.25 mΩ
- Type
PV-KBT4/10II
- Product type
Photovoltaics connector
IP2X
- Connection
Socket
- Rated surge voltage
16 kV
- Manufacturer part #
32.0034P0001
- Content
1 pc(s)
- Cable Ø (max.)
9 mm
- Cable Ø up to
5.5 mm
- Cable Ø range
5.5 - 9 mm
- Contact material
Copper silver plated
- Width
18.8 mm
- Height
18.8 mm
- Length
58 mm
- Connector type
Socket
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045924 Coupling socket, MC4 connector 32.0034P0001 PV-KBT4/10II Stäubli Content: 1 pc(s)
Description
Features
- According to NEC 2023, it can be unlocked only with a tool
- Proven, long-term stable MULTILAM technology, thereby constant low power loss over the entire life of the plug connector
- Approved for DC 1000 V (IEC) and DC 1500 V (UL)
- Proven plug connector, over 25 years of field experience
- Also suitable for mounting with cross sections of 10 mm²
- Also available as ready-made cables according to customer specifications
- For use with appropriate connectors from the MC4 connectors family and suitable cable
