Crydom DRSED Relay socket Compatible with series: Crydom ED series (L x W x H) 71 x 15.5 x 49.5 mm 1 pc(s)

A relay base with the inscription 'crydom DRSED 250V 12A', used for mounting relays in electrical circuits.

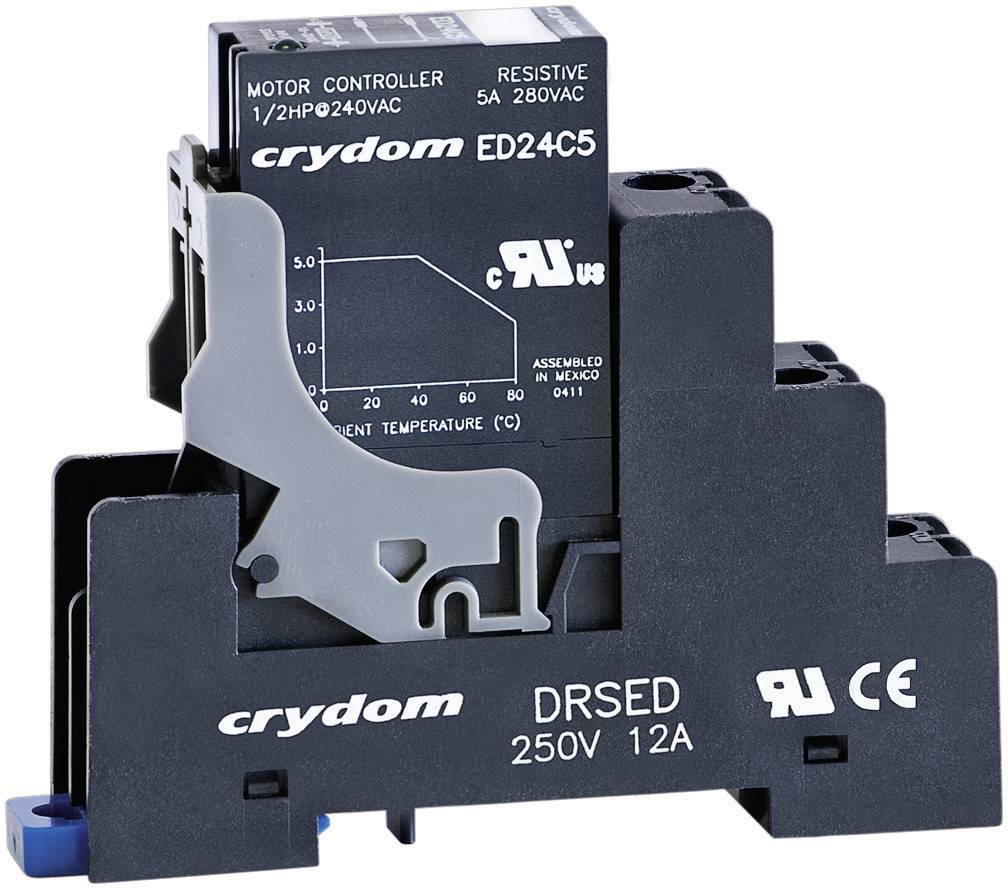

The image depicts a Crydom DRSED 250V 12A solid-state relay with a graphical diagram showing its power performance in relation to temperature.

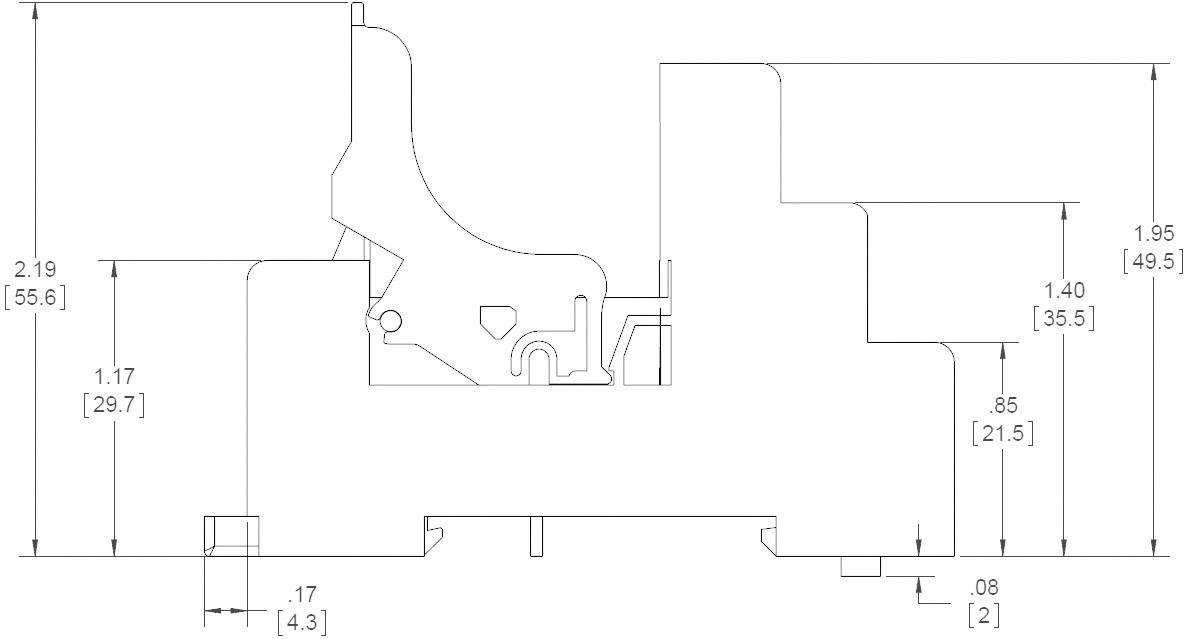

Technical drawing of a sectional profile with multiple dimensions in inches and millimetres; shows detailed edges and contours of a component.
Architectural plan view of a rectangular room with four circular elements, indicated as seats, arranged symmetrically. Scale: 15.5 cm.

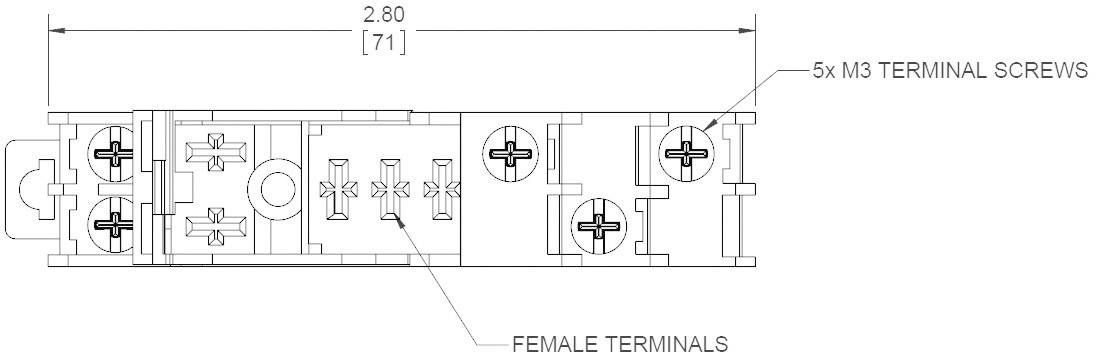

Drawing of an electrical component with M3 terminal screws, female connections, and overall dimension of 2.80 inches (71 mm).
1/5
Product type
Relay socket
Content
1 pc(s)
Compatible with
Crydom
Compatible with series
Crydom ED series
Min. temperature
-30 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
2 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 14.99 / piece)
€ 14.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

DIN-rail socket for semi-conductor relay ED-Series

Our service for you

Technical specifications

  • Switching voltage (max.): 250 V/DC, 250 V/AC
  • Load current (max.): 12 A
Product type

Relay socket

Content

1 pc(s)

Compatible with

Crydom

Compatible with series

Crydom ED series

Min. temperature

-30 °C

Max. temperature

+80 °C

Width

15.5 mm

Height

49.5 mm

Length

71 mm

Dim

(L x W x H) 71 x 15.5 x 49.5 mm

RoHS-compliant

Yes

Type

DRSED

Type

DRSED

Documents & Downloads

Datasheet

Datasheet 507509 Crydom DRSED Relay socket Compatible with series: Crydom ED series (L x W x H) 71 x 15.5 x 49.5 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 507509 Crydom DRSED Relay socket Compatible with series: Crydom ED series (L x W x H) 71 x 15.5 x 49.5 mm 1 pc(s)

Description

Scope of delivery

  • Supplied without relays.
  • This text is machine translated.

Hints

Approvals: UL.
