ElectromechanicsRelaysSolid State RelaysSolid State Relays

Crydom Solid State Electronic Load Relay, Panel Mount

A black Crydom solid state relay with screw terminals, suitable for 240V and 25A, shows connections and technical specifications.
'Diagram of an electrical component with dimensions. Shows connections, mounting points, and base plate. Designed for specific installation.'
1/2
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
3 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
280 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
34 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 65.99 / piece)
€ 74.99
-12 %
€ 65.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Crydom Solid State Electronic Load Relay, Panel Mount

Our service for you

Technical specifications

Packaging type

Piece

Product type

SSR

Type

D2425-10

Switching type

Instant response

Control voltage (min.)

3 V DC

Control voltage (max.)

32 V DC

Control voltage range

3 - 32 V DC

Surge current (max.)

625 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

280 V AC

Current load (max.)

25 A

Output voltage (max.)

280 V AC

Max. output current

25 A

Min. temperature

-40 °C

Max. temperature

+80 °C

Width

45.7 mm

Height

23 mm

Length

58.4 mm

RoHS-compliant

Yes

Permanent current (max.)

25 A

Content

1 pc(s)

Type

Quick-start

Ambient temperature

-40 - +80 °C

Documents & Downloads

Datasheet

Datasheet 187259 Crydom Solid State Electronic Load Relay, Panel Mount

User & Safety Instructions

User & Safety Instructions 187259 Crydom Solid State Electronic Load Relay, Panel Mount

Description

The widespread Series 1 is CRYDOM typical power relay family. With most modern SMD-technology, they ensure reliability in the toughest applications. Optically isolated SCR output for high switching loads in industrial applications. "Hockey Puck" standard industrial housing for chassis or Body-cooling assembly.

Hints

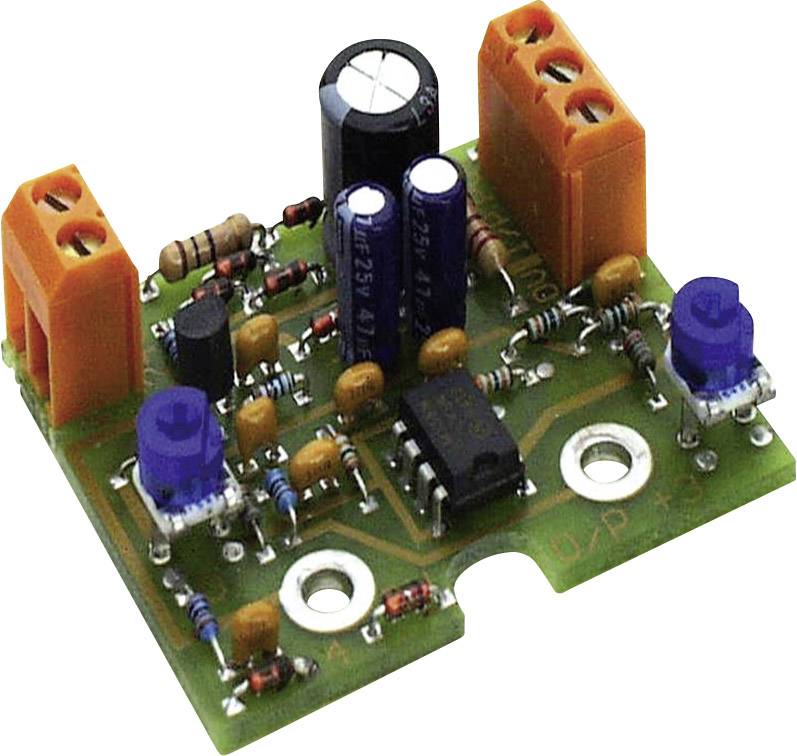

For dimmer and Softstart module Order No. 18 72 24 (Delivery without dimmer and Softstart module).
