Appoldt Dimmer & Soft Start Module
EAN:
Part number:
Item no:
Packaging type
Single
Product type
SSR
Control voltage (min.)
0 V DC
Control voltage (max.)
10 V DC
Output voltage (max.)
100 V
Datasheet (PDF)
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Control signal: 0 - 10 V/DC or potentiometer 10 KΩ
- Packaging type
Single
- Product type
SSR
- Type
PA 100V
- Control voltage (min.)
0 V DC
- Control voltage (max.)
10 V DC
- Control voltage range
0 - 10 V DC
- Output voltage (max.)
100 V
- Content
1 pc(s)
- Nominal voltage (details)
-
- Switching capacity
-
- Type
PA100V
Documents & Downloads
Datasheet
Datasheet 187224 Appoldt Dimmer & Soft Start Module
User & Safety Instructions
User & Safety Instructions 187224 Appoldt Dimmer & Soft Start Module
Description

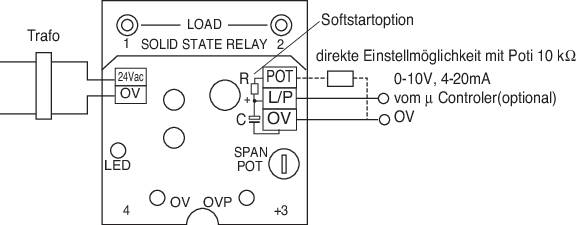

When connected to a solid state relay, this module (electronic power controller) can be used for actuating resistive loads. 24 V/AC 80 mA in the same phase is required for the voltage supply and the dimmer/soft-start control.
Scope of delivery
- Fixings
- Data sheet
Hints
Solid state relay D2425-10 (Order No. 18 72 59) or load relay D2450-10 (Order No. 50 41 48) please order separately.
