Name: CTEK 40-322 eMobility charging cable 5 m
Brand: CTEK
SKU: 2796265
Availability: BackOrder

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Black skipping rope with ergonomic handles and adjustable length, coiled on a white background.

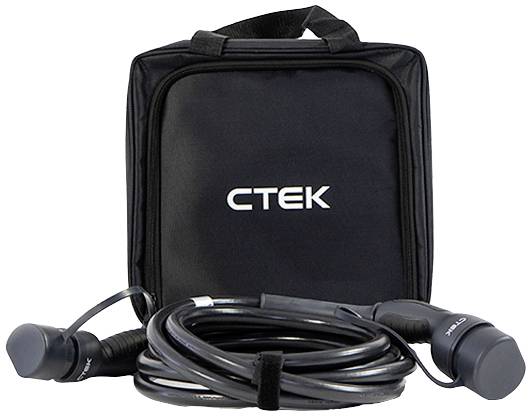

CTEK charger with insulated cable in front of a black transport bag, suitable for electric vehicles.

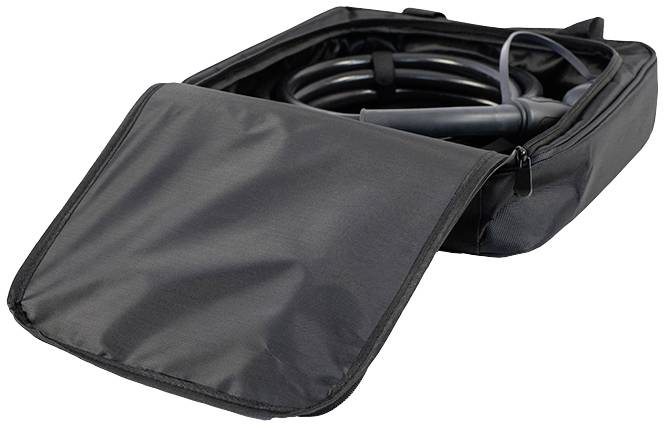

A black bag with a zip, partially open, reveals a coiled hose with a nozzle inside the bag.

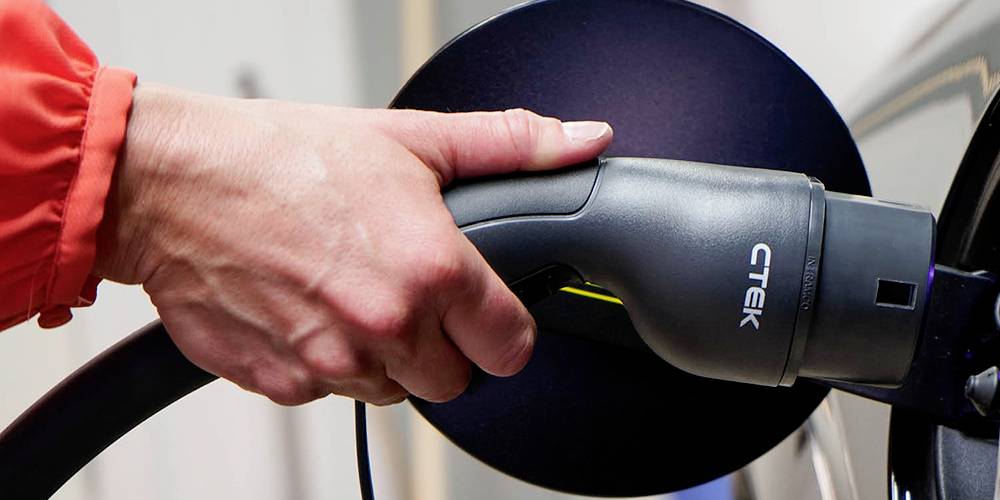

A hand is holding an electric vehicle charging plug and connecting it to a car. A print on the plug shows 'CTEK'.

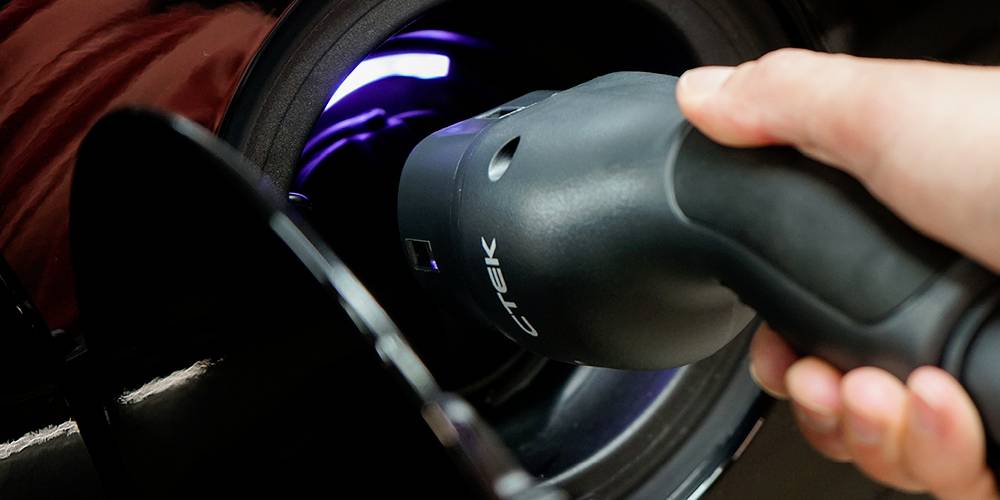

A hand is inserting a charging cable into the charging socket of a car.

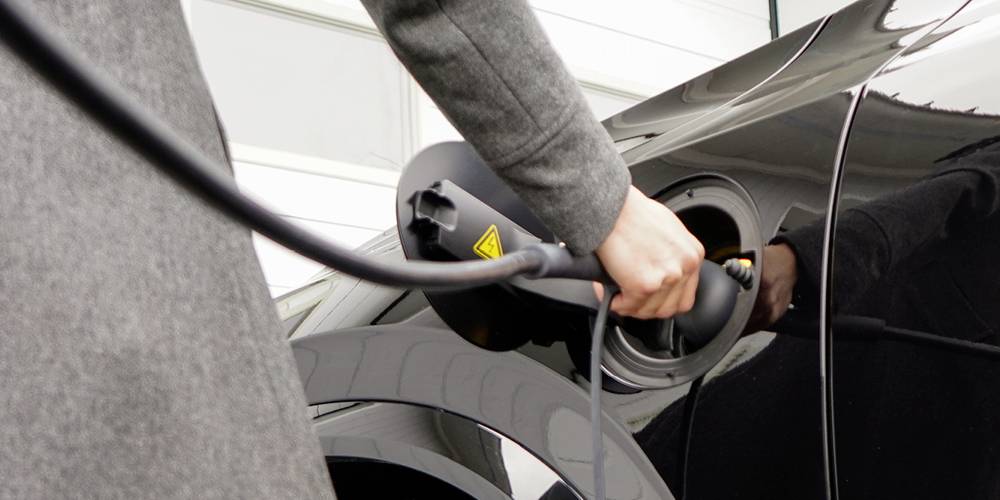

A person is plugging a charging cable into an electric car in front of a garage.

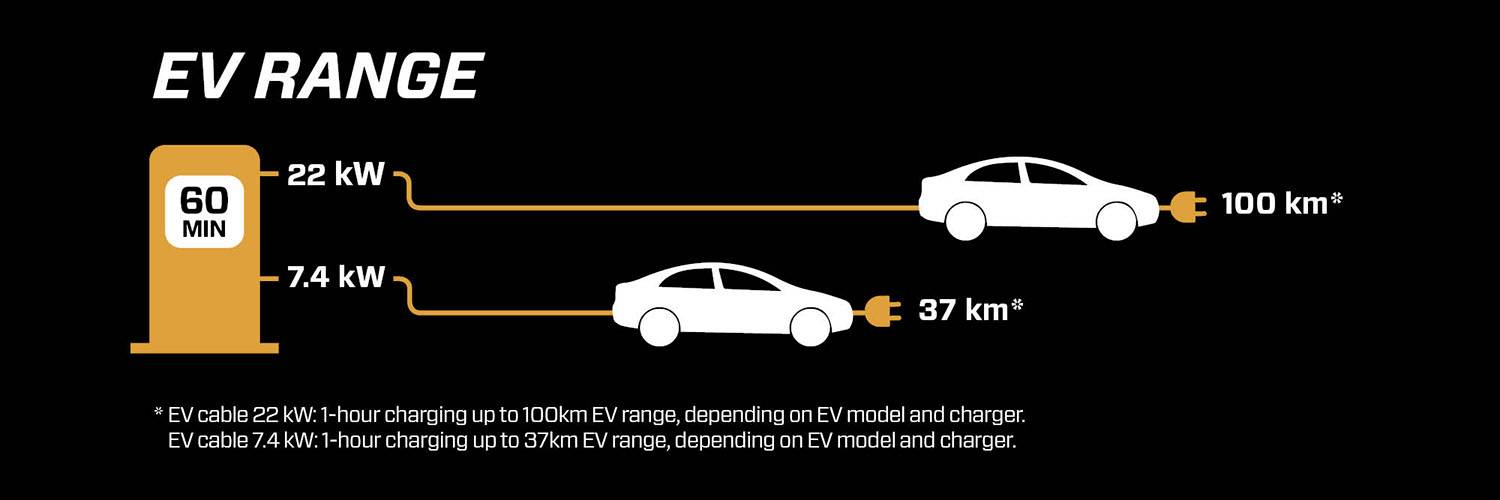

'EV RANGE': Graph shows two electric vehicles with different charging speeds and ranges: 22 kW for 100 km, 7.4 kW for 37 km.

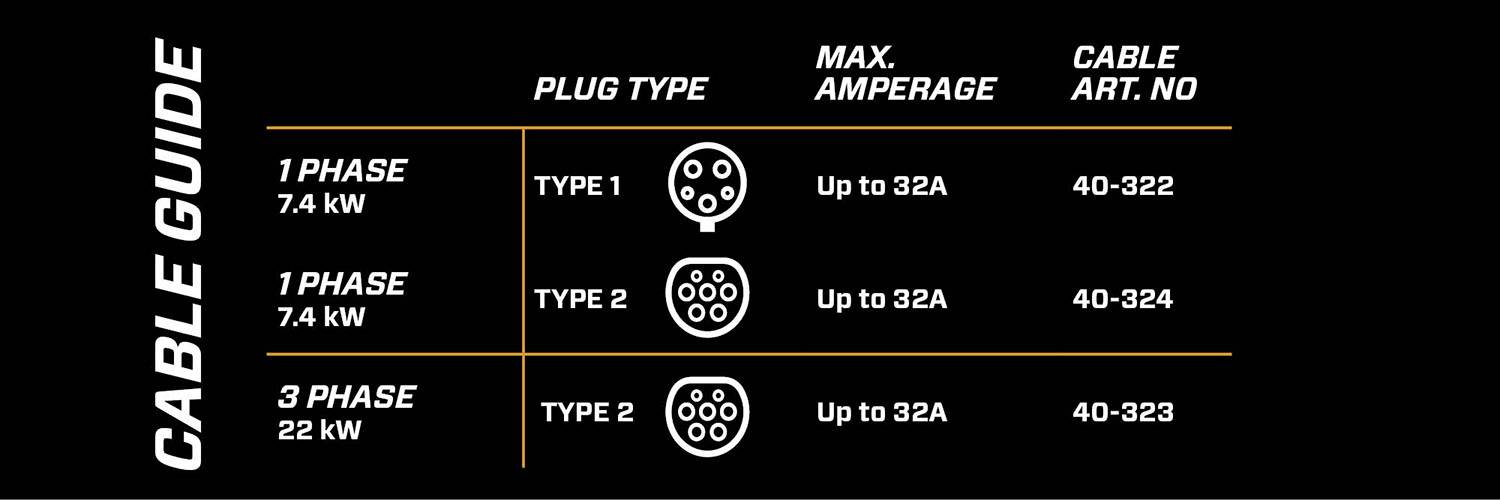

Cable Selection Table: 1 Phase, 7.4 kW, Type 1, up to 32A, Article Number 40-322; Type 2, up to 32A, Article Number 40-324. 3 Phase, 22 kW, Type 2, up to 32A, Article Number 40-323.

1/8

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 309.00 / piece)

€ 309.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Charging cable EV Type 2 Mode 3, 1 Phase

CTEK charging cable for electric vehicles, 5m
This text is machine translated.

Technical specifications

Product type: eMobility charging cable

Type A: Type 2

Type B: Type 2

No. of phases: 1-phase

Charging mode: Mode 3

Cable length: 5 m

Core layout: L1, earth, N

Nominal voltage: 230 V

Nominal current: 32 A

Nominal current - rounded value: 32 A

: IP44

Certification marks: CE, SGS, EC 62196-2, 61962-2

Signal flow direction: Bidirectional (bi)

Min. temperature: -40 °C

Max. temperature: +90 °C

Charging capacity: 22 kW

Charging current: 32 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2796265 CTEK 40-322 eMobility charging cable 5 m

Information

Information 2796265 CTEK 40-322 eMobility charging cable 5 m

Warranty Terms

Warranty Terms 2796265 CTEK 40-322 eMobility charging cable 5 m

Description

The charging cables for electric vehicles are made of wear-resistant and non-flammable plastic, which conforms to the specifications of the standard V-0. They are equipped with durable, heat-dissipating connections made of break-proof synthetic resin, which are absolutely safe to handle. The cables are CE-SGS approved and are covered by a two-year warranty. All charging cables from CTEK are designed for all charging stations of mode 3 and for up to three phases as well as 32 A. Even if your vehicle is designed only for single phase to 16 A, you can charge it safely with all cables of CTEK This means that you can already purchase a charging cable from CTEK for electric vehicles today and be sure that with this charger cable in the future you will also be able to charge a larger electric vehicle

This text is machine translated.
