Dasqua 1310-0015, DIN EN 862 Monoblock vernier caliper with nib style jaws and fine adjustment 1000 mm 1 pc(s)

A large metal vernier calliper with a scale, used for length measurement in craft and industrial applications.

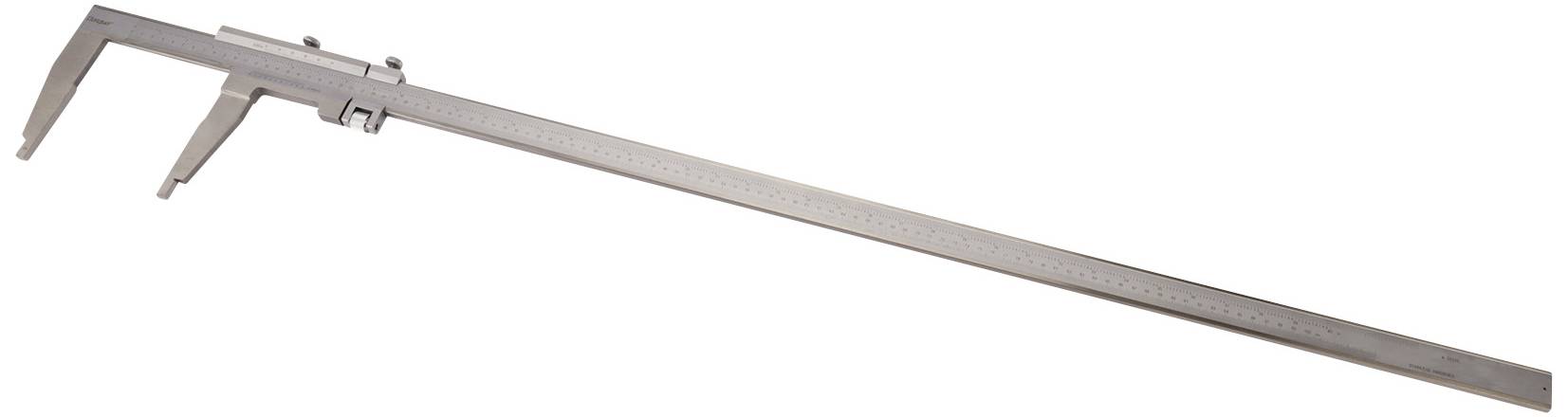

Large metal vernier calliper with scale, suitable for precise length measurements. Ideal for technical or industrial applications.

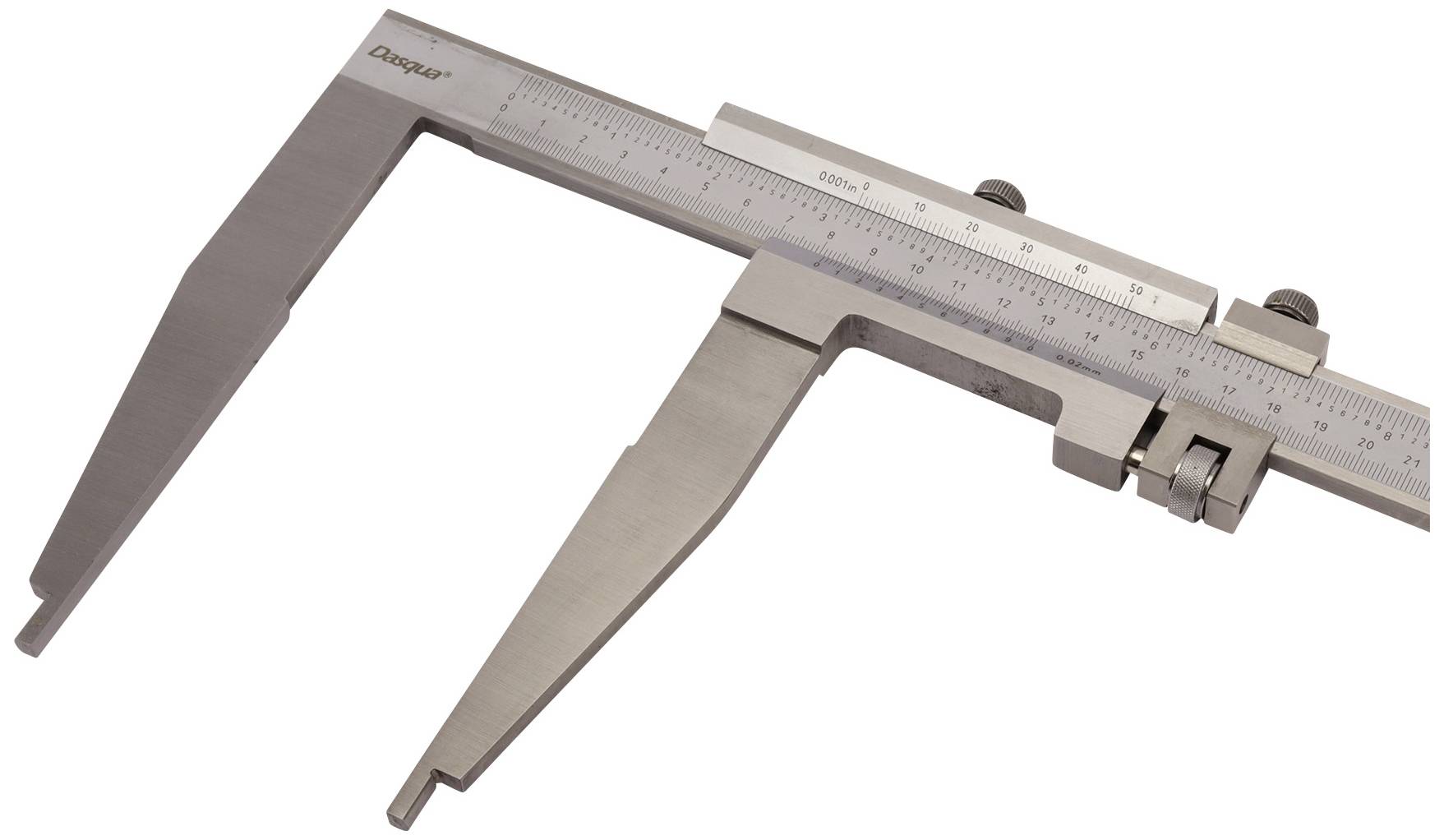

A metal vernier calliper with scale for precise measurement of distances and diameters.
'Metal ruler with centimetre and millimetre scales, ideal for precise measurement.'

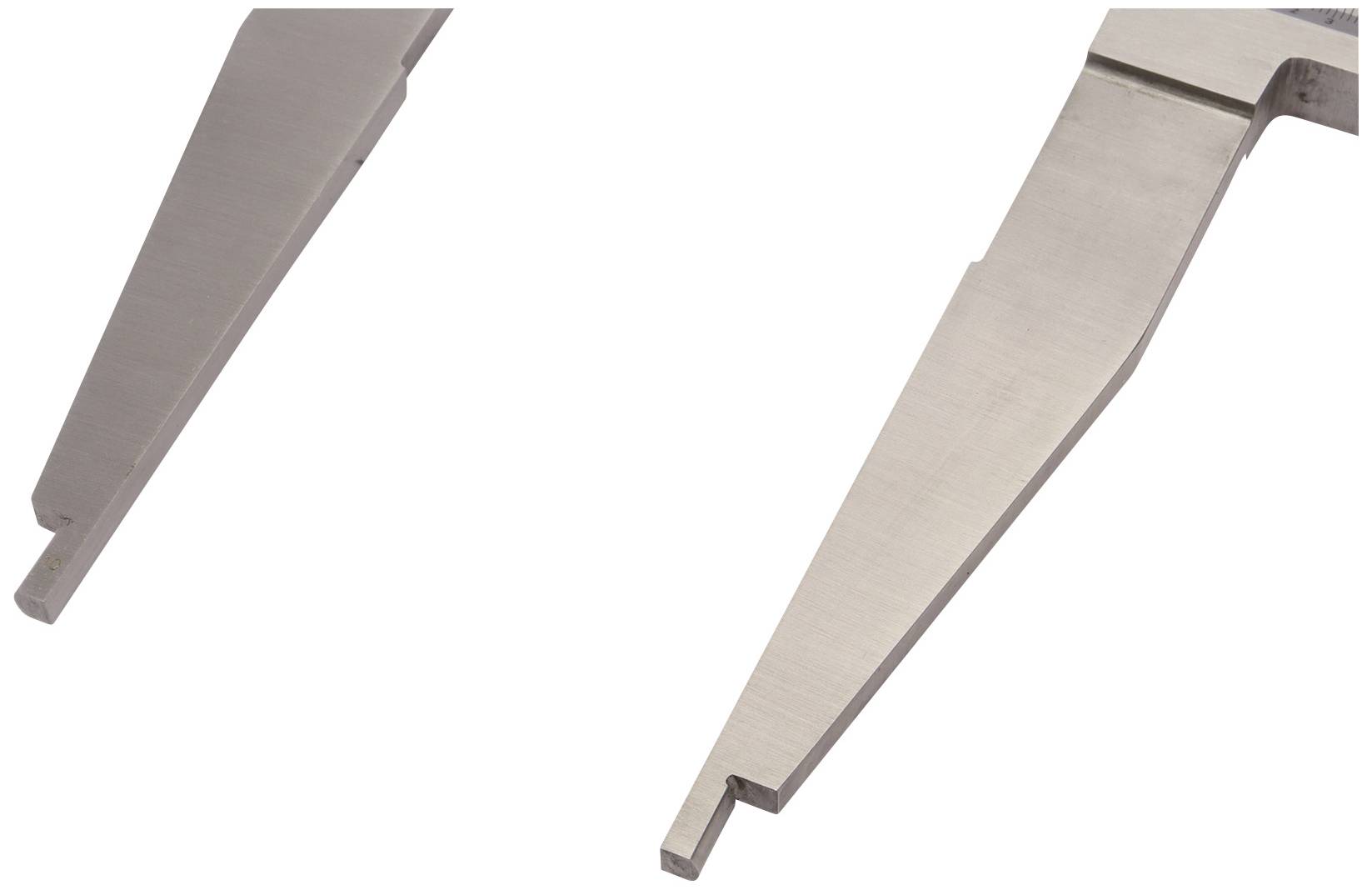

Close-up of a calliper with two parallel metal tips used for precise measurement of objects.

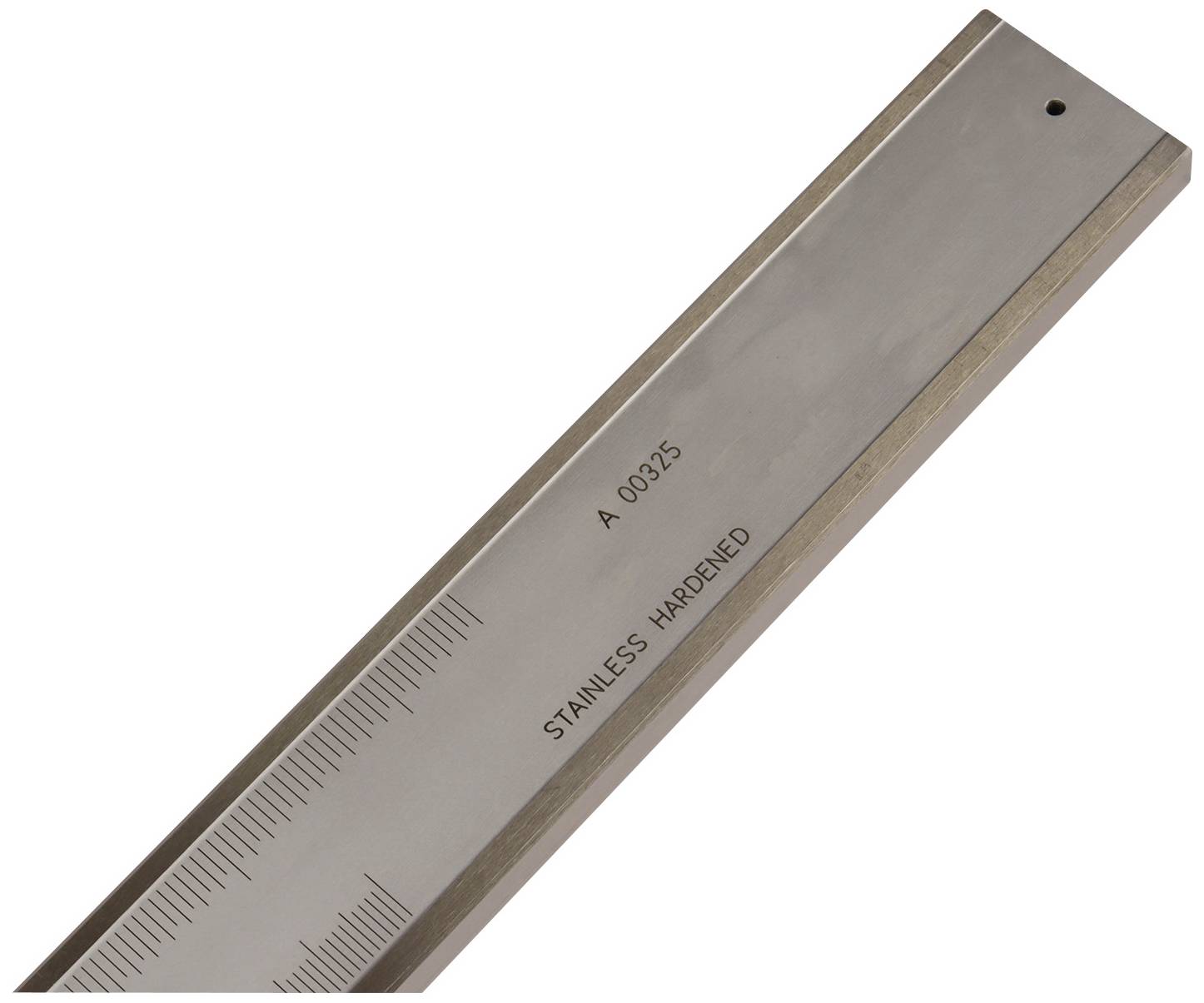

A metallic ruler with markings for length measurement; inscription: 'Stainless Hardened'.

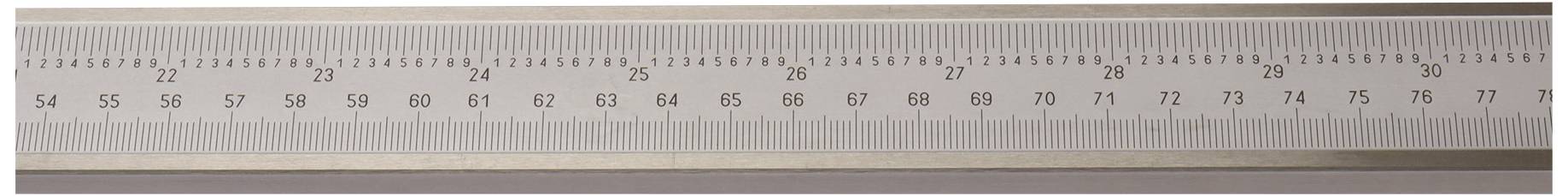

A steel ruler with centimetre and millimetre scales, showing measurements from 0 to 80 centimetres, used for precise measurements.

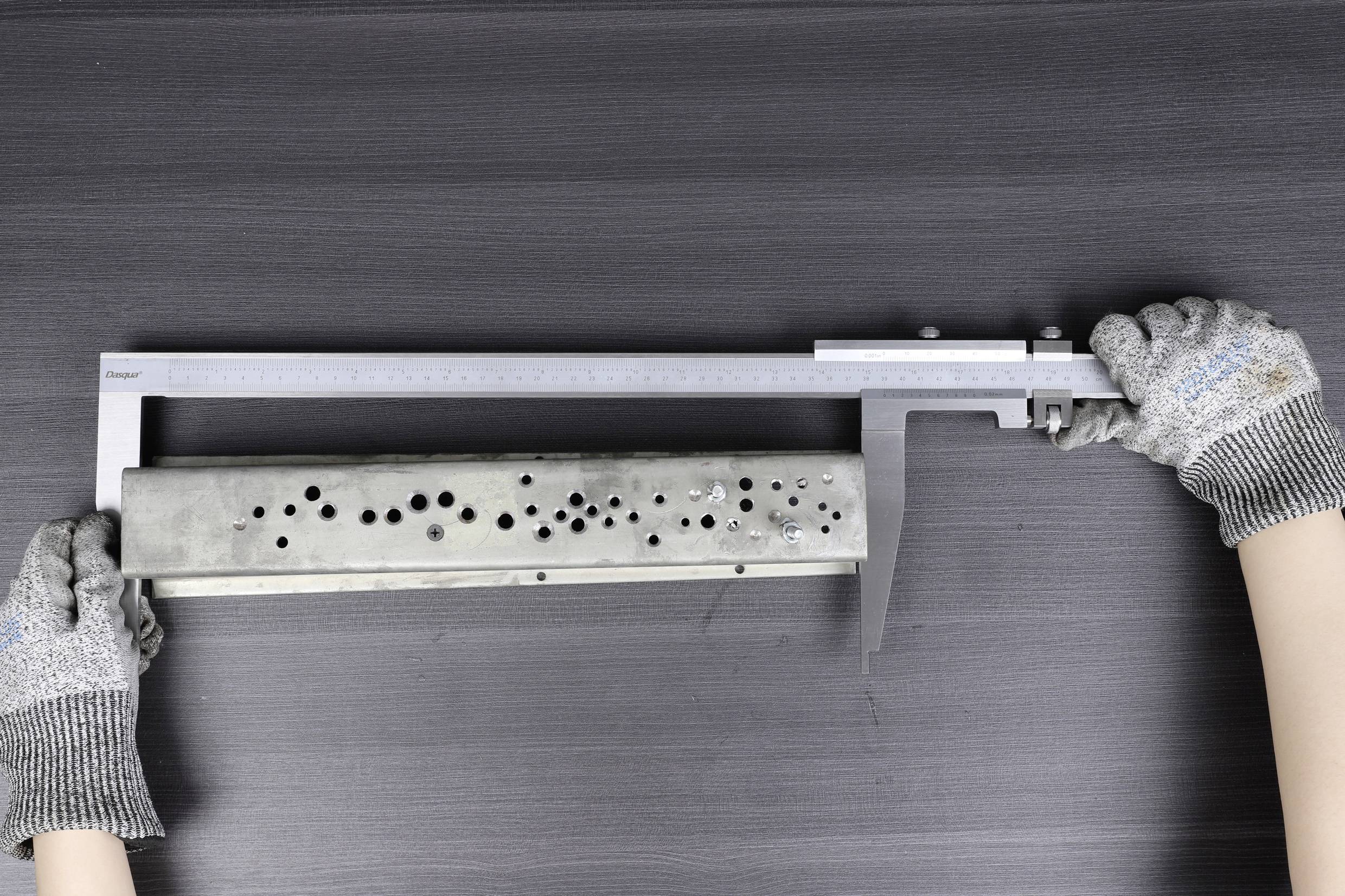

A person is measuring a rectangular metal part with a calliper. The part has several holes of different sizes.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
17 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 239.99 / piece)
€ 239.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Universal caliper

Reading range (max.)

1000 mm

Reading

0.02 mm

Link length

125 mm

Length

1240 mm

DIN standard

DIN 862

Material

Stainless steel

Weight

5.66 kg

Manufacturer's standards (no certificate)

Type

1310-0015, DIN EN 862

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2986867 Dasqua 1310-0015, DIN EN 862 Monoblock vernier caliper with nib style jaws and fine adjustment 1000 mm 1 pc(s)

Description

Rounded bark for internal and external measurements.
Solid monoblock design prevents the zero-point shifting when in contact with objects.
Markings and numbers are precisely lasered in satin chrome-plated.
Supplied in a massive plastic box with warranty card.

Features

  • Made of solid stainless steel
  • Locking screw for stable reading
  • Supplied in solid plastic box with warranty card
  • Made in accordance with DIN 862
  • Wth fine adjustment function

Scope of delivery

  • Monoblock vernier caliper
