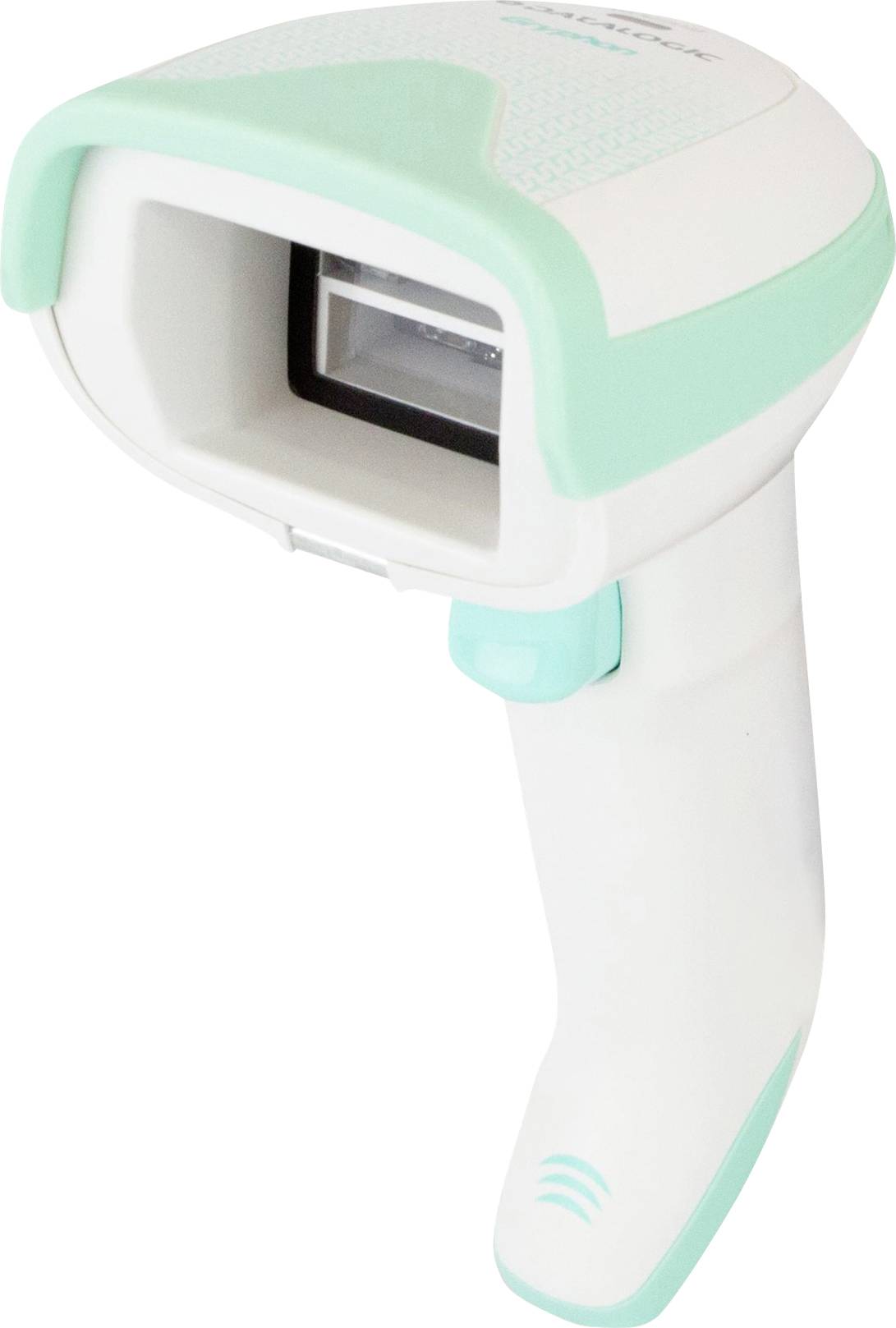

Datalogic GD4520-HCK1-HD Barcode scanner Corded 1D, 2D Imager White Hand-held USB
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 214.29 / piece)
€
Highlights & Details
Barcode Scanner
- Portable barcode reader white
- Scanner type 1D/2D
- Aztec code, data matrix, HAN Xin, MaxiCode, micro QR code, QR code
- 1280 x 800 pixels
- Angle of inclination 0 - 360°
- Wired standard interfaces: USB
- Power source: Direct current
Technical specifications
- Movement tolerance (cm/s): 88.9
- Product type
Barcode scanner
- Type
GD4520-HCK1-HD
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
1D
2D
- Cordless scanning
Corded
- Factory colour
White
- Interfaces
USB
- Width
68 mm
- Height
166 mm
- Depth
109 mm
- Weight
161 g
IP52
- Type
Portable barcode reader
- Input voltage
5 V
- Transfer type
Corded
- Operating temperature (T-T)
0 - 40 °C
- Wavelength
650 nm
- Optical sensor resolution (W x H)
1280 x 800 p
- Power consumption
300 mA
- Operating relative humidity (H-H)
0 - 95 %
- Pitch reading angle
-65 - 65°
- Tilt reading angle
0 - 360°
- Storage temperature (T-T)
-40 - 70 °C
- Light levels (direct sunlight)
0 - 100000 Lux
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3593566 Datalogic GD4520-HCK1-HD Barcode scanner Corded 1D, 2D Imager White Hand-held USB
Description
The Gryphon 4500 series boasts a modern, elegant design and user-friendly ergonomics. Thanks to innovative 2D imager that works with warm white light, it captures both 1D and 2D codes quickly and safely.
To read smaller, short codes, there are HD models with high resolution and for the detection of digital watermark codes, variants with red light optics.
Equipped with Datalogic's Motionix motion sensor technology, the scanner automatically switches to the hand-held-hero mode when he is taken in the hand. As soon as it is placed back in the station, it switches back to presentation mode. The charging station is movable and thus permits the use of the scanner as presentation scanner, while it is being charged.
The radio models are available with Bluetooth technology (GBT model) or narrow band radio based on Datalogic’s STAR Cordless System (GM model).
One of the most important innovations for the Gryphon 4500 is the inductive charging technology. It ensures higher reliability and at the same time reduces the total costs, since maintenance and cleaning work is not required on the contacts. The radio models can be used in 24/7 operation without interrupting the work processes for cleaning and maintenance operations.
For healthcare applications, the Gryphon 4500 Imager is available with a special disinfecting, anti-microbial housing.
This text is machine translated.
To read smaller, short codes, there are HD models with high resolution and for the detection of digital watermark codes, variants with red light optics.
Equipped with Datalogic's Motionix motion sensor technology, the scanner automatically switches to the hand-held-hero mode when he is taken in the hand. As soon as it is placed back in the station, it switches back to presentation mode. The charging station is movable and thus permits the use of the scanner as presentation scanner, while it is being charged.
The radio models are available with Bluetooth technology (GBT model) or narrow band radio based on Datalogic’s STAR Cordless System (GM model).
One of the most important innovations for the Gryphon 4500 is the inductive charging technology. It ensures higher reliability and at the same time reduces the total costs, since maintenance and cleaning work is not required on the contacts. The radio models can be used in 24/7 operation without interrupting the work processes for cleaning and maintenance operations.
For healthcare applications, the Gryphon 4500 Imager is available with a special disinfecting, anti-microbial housing.
This text is machine translated.
